Comparing 2D and 3D Clipping in Software Rasterization of Triangles

A Detailed Analysis of Clipping Techniques for Efficient Triangle Rendering

Key Takeaways

Performance Efficiency: 3D clipping optimizes performance by culling non-visible geometry early in the pipeline.
Implementation Complexity: While 3D clipping offers better performance, it requires more complex algorithms compared to 2D clipping.
Accuracy and Artifact Prevention: 3D clipping ensures mathematical correctness and prevents rendering artifacts, especially near clipping planes.

Introduction

In the realm of computer graphics, particularly within software rasterization pipelines, clipping is an indispensable process. Clipping ensures that only the portions of geometric primitives, such as triangles, that are visible within the viewport are processed and rendered. This not only optimizes performance but also enhances visual accuracy by preventing the rendering of out-of-view geometry. Two primary clipping methodologies are employed: 2D clipping in screen space and 3D clipping in view space. Each approach has its unique advantages, disadvantages, and applicable scenarios. This comprehensive analysis delves into both techniques, comparing their effectiveness, implementation intricacies, and impact on rendering performance.

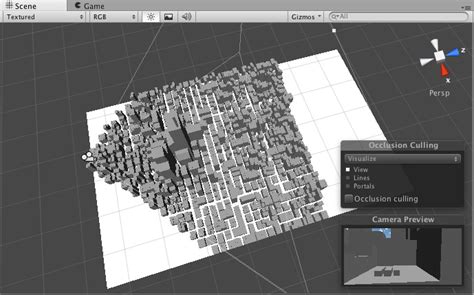

Understanding Clipping in Graphics Pipelines

What is Clipping?

Clipping is the process of trimming geometric primitives to fit within a defined rendering space. In the context of software rasterization, it ensures that only the visible portions of triangles are processed, thereby optimizing the rendering pipeline and preventing the consumption of computational resources on out-of-view geometry.

Why is Clipping Important?

Clipping serves multiple purposes:

Performance Optimization: By discarding non-visible portions of geometry early in the pipeline, clipping reduces the number of triangles that need to undergo subsequent processing stages such as shading and rasterization.
Visual Accuracy: Proper clipping prevents graphical artifacts such as flickering edges or z-fighting, ensuring that rendered images are free from distortions caused by out-of-view geometry.
Resource Management: Efficient clipping manages memory and processing power, especially critical in complex scenes with a high density of geometric primitives.

2D Clipping in Screen Space

Definition and Process

2D clipping in screen space involves trimming triangles after they have been projected onto the 2D screen coordinates. This process occurs post-projection, meaning that the 3D geometry has already been transformed and mapped to the viewport's 2D space.

Advantages

Simplicity of Implementation: Operating in a two-dimensional context simplifies the mathematics and algorithms required for clipping, making it easier to implement compared to 3D clipping.
Direct Pixel Handling: Since clipping is performed in screen space, it directly correlates with pixel coordinates, facilitating straightforward handling of edge cases where triangles extend beyond the viewport boundaries.
Avoids Complex Frustum Calculations: 2D clipping circumvents the need to compute intersections with 3D frustum planes, reducing computational overhead associated with handling the view volume.

Disadvantages

Late Culling: Clipping in screen space means that potentially non-visible or partially visible triangles have already undergone projection and possibly other transformation stages, leading to unnecessary processing.
Handling of Depth Information: Post-projection clipping may complicate the preservation of depth (z-coordinate) information, potentially leading to incorrect depth interpolation and rendering artifacts.
Limited Frustum Management: 2D clipping only manages the viewport boundaries and does not account for the full 3D view frustum, which includes near and far planes critical for depth management.

Implementation Considerations

Implementing 2D clipping typically involves algorithms like the Sutherland-Hodgman polygon clipping method. This process entails clipping the projected triangle against the screen boundaries defined by the viewport's dimensions:

Clipping against the left (x = 0) and right (x = screen width) boundaries.
Clipping against the top (y = 0) and bottom (y = screen height) boundaries.

After clipping, the resultant polygon is tessellated into triangles that fit entirely within the screen space, ready for rasterization.

3D Clipping in View Space

Definition and Process

3D clipping in view space, also known as camera space clipping, occurs before the projection transformation. This method involves trimming triangles against the six planes that define the view frustum: near, far, left, right, top, and bottom. By clipping in 3D space, geometry is precisely managed before any perspective or orthographic projection is applied.

Advantages

Early Geometry Culling: Clipping in view space allows for the early elimination of triangles that are entirely outside the view frustum, significantly reducing the number of primitives that proceed to the projection and rasterization stages.
Preservation of Depth Information: By handling clipping in 3D space, depth (z-coordinate) data is maintained accurately, ensuring correct depth interpolation and proper handling of occlusion.
Artifact Prevention: Clipping before projection prevents rendering artifacts such as z-fighting and ensures that triangles intersecting the near and far planes are handled correctly.
Perspective-Correct Interpolation: Maintaining 3D information during clipping ensures that subsequent perspective transformations and interpolations are accurate, preserving the visual integrity of the rendered scene.

Disadvantages

Increased Computational Complexity: Clipping against multiple 3D planes is mathematically more intensive than 2D clipping, requiring sophisticated algorithms to handle plane intersections and generate new vertices.
Implementation Challenges: Handling edge cases, such as triangles partially intersecting multiple frustum planes, necessitates robust and complex clipping logic, which can be error-prone and time-consuming to develop.
Performance Overhead: The computational cost associated with 3D clipping can be significant, particularly in software rasterizers where optimization is critical for real-time rendering.

Implementation Considerations

Effective implementation of 3D clipping involves defining the six planes of the view frustum and employing clipping algorithms such as Sutherland-Hodgman or Cohen-Sutherland adapted for 3D space. The process entails:

Defining the boundaries of the view frustum in view space.
Clipping each triangle against each of the frustum planes in sequence.
Generating new vertices and potentially splitting triangles that intersect multiple planes.

This ensures that only the visible portions of triangles are retained for projection and subsequent rendering stages.

Comparative Analysis

Space of Operation

Aspect	2D Clipping in Screen Space	3D Clipping in View Space
Space	Two-dimensional screen coordinates.	Three-dimensional view or camera space.
Pipeline Stage	Post-projection transformation.	Pre-projection transformation.
Clipping Planes	Viewport boundaries (left, right, top, bottom).	View frustum planes (near, far, left, right, top, bottom).
Computational Complexity	Lower complexity due to 2D operations.	Higher complexity due to 3D plane intersections.
Performance Impact	Less efficient for culling large volumes of off-screen geometry.	More efficient in reducing the number of triangles processed downstream.
Depth Handling	Limited depth information preservation.	Maintains accurate depth (z-coordinate) information.

Performance Efficiency

3D clipping in view space offers superior performance efficiency by eliminating non-visible geometry early in the rendering pipeline. By reducing the number of triangles that need to be projected and rasterized, it significantly lowers the computational load, especially in scenes with extensive geometry. Conversely, 2D clipping, while simpler, only manages what remains within the viewport without addressing the broader scope of the view frustum, potentially allowing more triangles to undergo unnecessary processing.

Implementation Complexity

Implementing 3D clipping requires a deeper understanding of 3D geometry and can involve complex algorithms to handle multiple clipping planes and edge cases. This complexity can increase development time and the potential for bugs. On the other hand, 2D clipping benefits from straightforward algorithms that are easier to implement and debug, albeit at the cost of reduced culling effectiveness.

Accuracy and Artifact Prevention

3D clipping ensures that depth information is accurately maintained, which is crucial for correct rendering of overlapping objects and proper depth-based shading. This precision helps prevent visual artifacts such as z-fighting and ensures that triangles intersecting the near and far planes are handled without introducing rendering errors. 2D clipping lacks this depth-aware approach, potentially leading to inaccuracies in depth interpolation and corresponding graphical artifacts.

Hybrid Clipping Approaches

Combining 3D and 2D Clipping

Many modern rendering systems employ a hybrid approach, leveraging the strengths of both 3D and 2D clipping. This involves performing 3D clipping in view space to efficiently cull large volumes of non-visible geometry and subsequently applying 2D clipping in screen space to handle boundary cases and ensure that all projected triangles reside within the viewport.

Benefits of Hybrid Approaches

Optimized Performance: Early culling through 3D clipping reduces the overall number of triangles, while 2D clipping finalizes the visibility within the screen boundaries.
Enhanced Accuracy: Combining both methods ensures both frustum and viewport boundaries are respected, maintaining depth accuracy and preventing overdraw.
Flexibility: Allows rendering systems to adapt to various scenarios, balancing between computational efficiency and rendering precision.

Implementation Strategies

Implementing a hybrid clipping strategy typically involves the following steps:

3D Clipping in View Space:
- Define the view frustum with its six planes.
- Apply a 3D clipping algorithm to trim triangles against these planes.
- Discard or modify triangles based on their intersection with the frustum.
Projection Transformation:
- Transform the clipped triangles from view space to screen space using the appropriate projection matrix.
2D Clipping in Screen Space:
- Apply 2D clipping algorithms to ensure all triangle vertices lie within the viewport boundaries.
- Handle edge cases where triangles intersect the screen edges.

Practical Recommendations

When to Use 3D Clipping

In scenarios with complex scenes containing numerous objects, where early culling can substantially reduce the rendering workload.
When depth accuracy is paramount, such as in applications requiring precise z-buffering and occlusion handling.
In rendering systems where preventing artifacts near the near and far clipping planes is critical.

When to Use 2D Clipping

In simpler systems or applications where the overhead of 3D clipping is unjustifiable.
When dealing primarily with orthographic projections, where depth-related clipping complexities are minimized.
As a supplementary step in hybrid clipping approaches to handle viewport boundary conditions.

Optimizing Clipping Performance

To optimize clipping performance in software rasterizers, consider the following strategies:

Efficient Algorithms: Utilize optimized clipping algorithms like the Liang-Barsky or Cohen-Sutherland for 2D clipping and the Sutherland-Hodgman for 3D clipping.
Early Rejection: Implement early rejection tests to quickly discard triangles that fall entirely outside the view frustum.
Batch Processing: Process triangles in batches to take advantage of data locality and reduce computational overhead.
Parallel Processing: Leverage multi-threading or SIMD instructions to perform clipping operations concurrently, enhancing throughput.

Conclusion

Clipping is a fundamental process in software rasterization, crucial for optimizing rendering performance and ensuring visual accuracy. The choice between 2D clipping in screen space and 3D clipping in view space hinges on the specific requirements of the rendering system, including performance constraints, implementation complexity, and the need for depth accuracy. While 2D clipping offers simplicity and ease of implementation, 3D clipping provides superior performance and accuracy by effectively managing the view frustum and preserving depth information. In many cases, adopting a hybrid approach that combines both techniques can yield the best results, leveraging the strengths of each method to create efficient and accurate rendering pipelines. As software rasterization continues to evolve, understanding and implementing effective clipping strategies remains paramount for developers aiming to achieve high-performance and visually compelling graphics.
