Comprehensive Guide to Calculating Current in a 3-Phase UPS System
Understanding the intricate details of 3-phase UPS current calculations for optimal performance
Key Takeaways
- Essential Formula: The current in a 3-phase UPS system is calculated using the formula \( I = \frac{S}{\sqrt{3} \times V_{LL}} \).
- Importance of Accurate Calculations: Precise current calculations ensure the UPS system operates efficiently and safely, preventing overloads and ensuring longevity.
- Factors Influencing Current: Power factor, voltage variations, and system balance are critical factors that affect the accuracy of current measurements in UPS systems.
Introduction
In today's electrical landscape, Uninterruptible Power Supply (UPS) systems play a pivotal role in ensuring continuous power to critical devices and infrastructures. Among these, 3-phase UPS systems are renowned for their efficiency and reliability in handling higher power demands. Understanding how to calculate the current in such systems is essential for engineers, technicians, and anyone involved in electrical system design and maintenance. This comprehensive guide delves deep into the methodology of calculating current in a 3-phase UPS system with a 50kVA rating, a line-to-line voltage of 380V, and a line-to-neutral voltage of 220V.

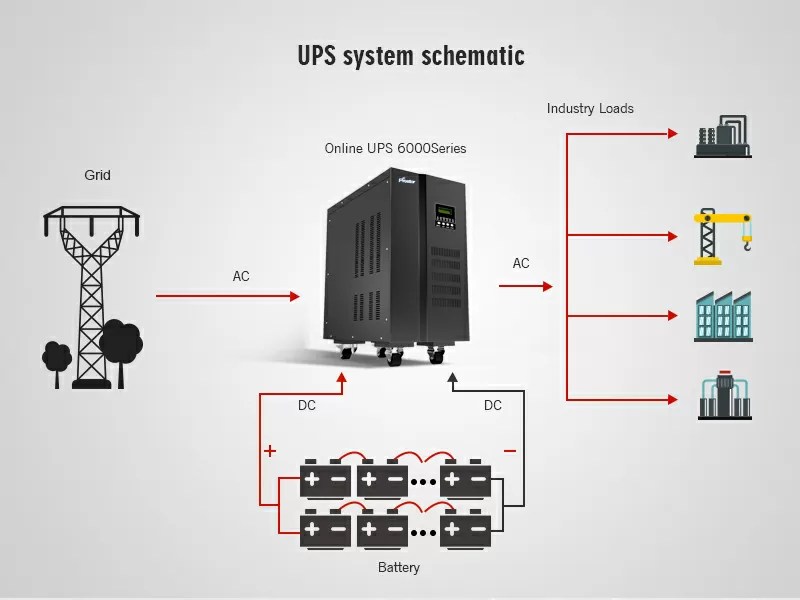

Understanding 3-Phase UPS Systems
Three-Phase Power Basics
Three-phase power systems are a cornerstone of modern electrical engineering, primarily due to their efficiency in transporting power and their ability to provide a constant power flow. Unlike single-phase systems, which can suffer from power pulsations, three-phase systems offer a more stable and balanced power supply, making them ideal for large-scale UPS systems.
Apparent Power (S) in 3-Phase Systems
Apparent power, represented as \( S \), is a critical parameter in power systems, especially in UPS calculations. It is measured in volt-amperes (VA) and is a combination of real power (which performs actual work) and reactive power (which sustains the electric and magnetic fields in the system). In a balanced 3-phase system, the apparent power is calculated using the formula:
$$ S = \sqrt{3} \times V_{LL} \times I $$
Where:
- \( S \) = Apparent Power (VA)
- \( V_{LL} \) = Line-to-Line Voltage (V)
- \( I \) = Current (A)
Calculating the Current
Formula for Current Calculation
The primary formula used to calculate the current in a three-phase UPS system is derived from the relationship between apparent power, voltage, and current in a balanced system. The formula is as follows:
$$ I = \frac{S}{\sqrt{3} \times V_{LL}} $$
Breaking down the components:
-
\( I \): Current in Amperes (A)
-
\( S \): Apparent Power in Volt-Amperes (VA)
-
\( V_{LL} \): Line-to-Line Voltage in Volts (V)
-
\( \sqrt{3} \): A constant representing the square root of three (~1.732) inherent in three-phase calculations.
Step-by-Step Calculation
-
Convert kVA to VA: Since the apparent power is given in kilovolt-amperes (kVA), it must be converted to volt-amperes (VA) for consistency in units.
$$ S = 50 \, \text{kVA} \times 1000 = 50,000 \, \text{VA} $$
-
Apply the Current Formula: Utilize the formula to determine the current based on the given apparent power and voltage.
$$ I = \frac{50,000}{\sqrt{3} \times 380} $$
-
Calculate the Denominator: Multiply the square root of three by the line-to-line voltage.
$$ \sqrt{3} \times 380 = 1.732 \times 380 \approx 658.16 $$
-
Determine the Current: Divide the apparent power by the previously calculated denominator to find the current.
$$ I = \frac{50,000}{658.16} \approx 75.97 \, \text{A} $$
Detailed Calculation Example
To provide a clearer understanding, let's walk through the calculation with the provided values:
| Step | Calculation | Result |
|---|---|---|
| 1. Convert kVA to VA | 50 kVA × 1000 | 50,000 VA |
| 2. Calculate Denominator | 1.732 × 380 V | 658.16 |
| 3. Compute Current | 50,000 VA ÷ 658.16 | ≈ 75.97 A |
Therefore, the current in each line of the 3-phase UPS system is approximately 75.97 A.
Factors Affecting Current Calculation
Power Factor Considerations
Although the primary calculations assume a unity power factor (PF = 1), real-world applications often involve power factors less than one. The power factor indicates the phase difference between voltage and current. If the power factor is known, the formula adjusts to:
$$ I = \frac{S}{\sqrt{3} \times V_{LL} \times \text{PF}} $$
A lower power factor increases the current, emphasizing the importance of accurate PF measurements for system design and protection.
Voltage Stability
The accuracy of current calculations is contingent upon the stability of the supply voltage. Fluctuations in line-to-line or line-to-neutral voltages can lead to significant variances in current, potentially causing equipment stress or failure. Regular voltage monitoring and stabilization measures are recommended to maintain consistent UPS performance.
System Balance
The assumption of a balanced system is crucial for accurate current calculations. In unbalanced systems, where the loads on each phase are unequal, the current distribution becomes uneven. This imbalance can lead to excessive heating and reduced efficiency. Balancing the loads across all three phases ensures optimal performance and longevity of the UPS system.
Practical Considerations
Selecting Appropriate Circuit Protection
Once the current is calculated, selecting the correct circuit breakers and protective devices becomes imperative. These devices must be rated to handle the calculated current with an added safety margin to account for transient conditions and potential future load increases. Adhering to electrical codes and standards ensures both safety and compliance.
Cable Sizing and Thermal Management
The current carrying capacity of cables must align with the calculated current to prevent overheating and potential fires. Utilizing appropriately rated cables and ensuring adequate thermal management through proper ventilation or heat-dissipating mechanisms enhances system reliability and safety.
UPS Sizing and Scalability
Accurate current calculations inform the overall sizing of the UPS system. Over-sizing can lead to unnecessary costs, while under-sizing may result in inadequate power delivery during outages. Additionally, considering future scalability ensures that the UPS can accommodate growing power demands without significant overhauls.
Conclusion
Calculating the current in a 3-phase UPS system is a fundamental aspect of electrical system design and maintenance. By leveraging the appropriate formulas and understanding the underlying principles of three-phase power, engineers can ensure that UPS systems operate efficiently, safely, and reliably. Factors such as power factor, voltage stability, and system balance play pivotal roles in achieving accurate calculations and, consequently, optimal system performance. As technology advances and power demands evolve, continuous learning and adaptation of these calculation techniques remain essential for maintaining robust and resilient power infrastructure.
