Calculating Resistors in AC Circuits

Understanding AC resistor calculations using ohm's law, RMS values, and impedance principles

Highlights

• Ohm's Law and RMS Values: AC circuits use RMS values for voltage and current, making Ohm's law directly applicable for resistors.
• Impedance Equals Resistance: In pure resistive loads, the impedance is equal to the resistance with no phase shift between voltage and current.
• Power Dissipation: The power in AC circuits is calculated using the same formulas as for DC circuits, with RMS values ensuring accuracy for alternating signals.

---

Introduction

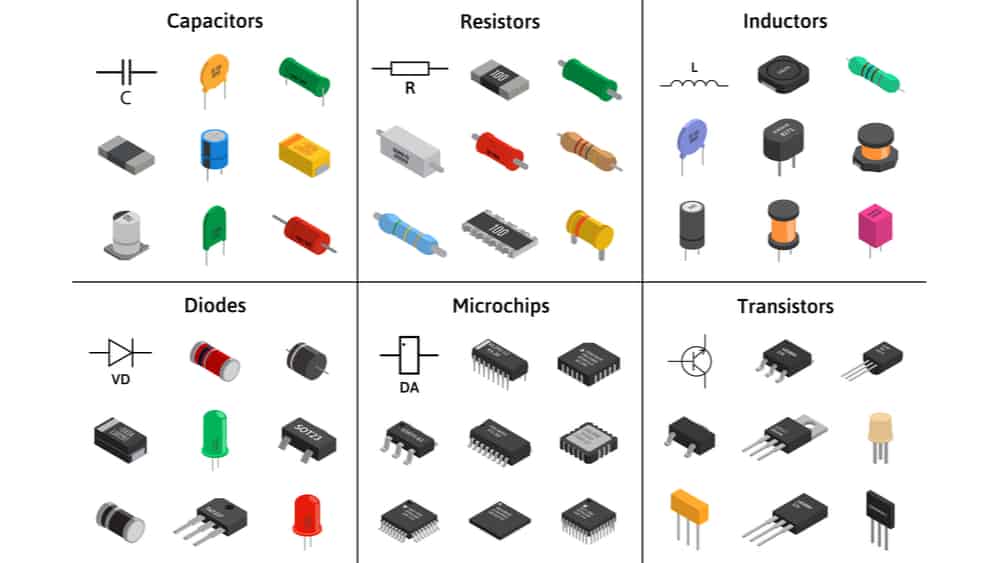

Resistors in alternating current (AC) circuits are an essential component in both industrial and consumer electronics. Despite dealing with a time-varying signal, the fundamental principles behind resistor calculations are remarkably similar to those in direct current (DC) circuits. This similarity is primarily because the resistor's behavior is independent of frequency—its resistance remains constant, and unlike inductive or capacitive components, it does not introduce any phase shift between voltage and current.

This comprehensive explanation will delve into the various aspects of calculating resistors in AC circuits, including the application of Ohm's law, the significance of RMS values, impedance, power calculations, and the behavior of resistors in series and parallel configurations. You will also find examples and a comparison table to help consolidate the understanding.

---

Fundamental Concepts in AC Resistor Calculations

Ohm's Law in AC Circuits

In AC circuits, Ohm's law takes on a very similar form to that used in DC circuits. The core relationship remains:

V = I × R

However, because both voltage and current vary with time in AC circuits, we use their root mean square (RMS) values rather than their peak values for practical calculations. RMS values provide a measure of the effective voltage or current – essentially translating the AC waveform into an equivalent DC amount that would produce the same amount of heat or work.

Using RMS Values

The concept behind RMS is to offer a statistical average of the varying values. For a sinusoidal voltage:

$$ V_{RMS} = \frac{V_{Peak}}{\sqrt{2}} $$

Similarly, for current:

$$ I_{RMS} = \frac{I_{Peak}}{\sqrt{2}} $$

When we apply Ohm’s law in AC circuits, we consider the RMS values:

$$ V_{RMS} = I_{RMS} \times R $$

This makes the calculation straightforward because resistors do not introduce any phase shift; the voltage and current waveforms remain in phase.

---

Impedance and Phase Relationship

Understanding Impedance

In AC circuits, the term impedance (Z) is often used rather than resistance. Impedance is a complex quantity that includes both the real part (resistance, R) and the imaginary part (reactance, X). Reactance arises from the effects of capacitors and inductors. However, in the case of a pure resistor:

Z = R

Phase Angle

One of the key characteristics of a resistor in AC circuits is that the voltage across it and the current through it are in phase. This means the phase angle (ϕ) is 0°. Consequently, the power factor (which is the cosine of the phase angle) is 1. This unity power factor signifies that all the power supplied to the resistor is efficiently converted into heat.

---

Calculating Power in AC Circuits

Power Dissipation in Resistors

Power calculations in AC circuits adhere closely to the methodologies applied in DC circuits with a slight twist – the consideration of RMS values. The average power dissipated in a resistor can be calculated using several equivalent formulas:

RMS-Based Power Formulas

These formulas include:

• P = I_RMS² × R
• P = V_RMS² / R
• P = V_RMS × I_RMS (since the power factor is 1 for a resistor)

Because the resistor is a purely dissipative component, it never stores energy. Instead, it continuously converts electrical energy into heat, making these power calculations crucial for designing circuits that avoid overheating and ensure efficient energy usage.

---

Examples of Resistor Calculations in AC Circuits

Example 1: Basic Calculation

Consider a resistor connected to an AC supply providing 120V RMS. If the resistor has a resistance of 47Ω, we can calculate the current flowing through it and the associated power dissipation.

Step-by-Step Calculations

Step 1: Apply Ohm's Law
The current is:

$$ I_{RMS} = \frac{V_{RMS}}{R} = \frac{120}{47} \approx 2.55 \text{ A} $$

Step 2: Calculate the Power
The power dissipated by the resistor can be computed as:

$$ P = I_{RMS}^2 \times R \approx (2.55)^2 \times 47 \approx 306 \text{ Watts} $$

Alternatively, using the voltage:

$$ P = \frac{V_{RMS}^2}{R} = \frac{(120)^2}{47} \approx 306 \text{ Watts} $$

Example 2: Heating Element Calculation

In another practical scenario, consider a heating element rated at 500 Watts connected to a 300V AC source. To determine the resistance needed for the heating element:

Step-by-Step Calculations

Step 1: Rearranging the Power Equation
The power dissipation is given by:

$$ P = \frac{V_{RMS}^2}{R} \quad \Longrightarrow \quad R = \frac{V_{RMS}^2}{P} $$

Step 2: Substitute the Known Values
Substituting, we have:

$$ R = \frac{300^2}{500} = \frac{90000}{500} = 180 \Omega $$

---

Resistors in Combination with Other Components

Series and Parallel Arrangements

When resistors are combined with other resistive components or with reactive elements such as capacitors and inductors, basic principles for series and parallel circuits still apply.

Series Combinations

In series, the total resistance is the sum of individual resistances:

$$ R_{\text{total}} = R_1 + R_2 + R_3 + \dots $$

Parallel Combinations

In parallel, the reciprocal of the total resistance is the sum of the reciprocals of the individual resistances:

$$ \frac{1}{R_{\text{total}}} = \frac{1}{R_1} + \frac{1}{R_2} + \frac{1}{R_3} + \dots $$

When these resistors are part of an AC circuit, if there are reactive components present, the resistor's impedance remains purely real and is combined with the complex impedance of the reactive elements using vector addition methods. However, for the resistor elements themselves, calculations similar to those in DC circuits are used.

---

Comparative Table: DC vs. AC Resistor Calculations

Concept	DC Circuits	AC Circuits
Ohm's Law	V = I × R (using constant values)	VRMS = IRMS × R (using RMS values)
Impedance	R (purely real)	R (for resistors; no reactive component)
Voltage-Current Relationship	In phase	In phase
Power Calculation	P = I²R or V²/R	P = IRMS² × R or VRMS² / R
Application of RMS	Not required	Essential for replacing peak values with equivalent values

---

Advanced Considerations in AC Resistor Calculations

Instantaneous vs. Average Values

In theoretical treatments of AC circuits, one might consider instantaneous voltage and current values. However, because both vary sinusoidally, instantaneous calculations are less practical for most engineering applications. Instead, RMS values are universally adopted to represent the effective, or average, behavior of the circuit.

The instantaneous values for a resistor in AC would be represented as:

$$ v(t) = V_{Peak} \sin(\omega t) \quad \text{and} \quad i(t) = I_{Peak} \sin(\omega t) $$

Despite their theoretical interest, these instantaneous functions are primarily used in signal analysis and are less relevant for practical power calculations, which rely on the steady-state effective (RMS) values.

Frequency Independence of Resistance

A key attribute of a resistor is its independence from the frequency of the applied AC signal. Unlike capacitors and inductors, whose impedances are frequency-dependent, the resistor’s value remains constant regardless of the frequency. This property makes resistors especially reliable and predictable in AC circuit design.

The impedance of a resistor (Z) simply equals its resistance (R), and there is no added complexity from reactive elements:

$$ Z = R + j0 $$

Thermal Considerations and Power Rating

While calculating the resistance or impedance is straightforward, it is important to note that the resistor must be capable of safely dissipating the power calculated. Overloading a resistor leads to overheating, which can cause thermal damage or failure. Thus, when designing circuits, engineers carefully choose resistors with appropriate power ratings to handle the dissipated energy.

As seen earlier in our examples, whether calculating power from the formula P = V_RMS² / R or through I_RMS, ensuring that the resistor’s rating exceeds the dissipated power is a necessary safety measure.

---

Summary and Practical Applications

Summary of Key Points

In summary, calculating resistors in AC circuits revolves around these fundamental principles:

• Use RMS values for voltage and current to account for the time-varying nature of AC signals.
• Apply Ohm’s law directly in the form V_RMS = I_RMS × R to determine resistor behavior.
• Recognize that the impedance of a resistor is simply its resistance (Z = R) and that voltage and current remain in phase.
• Calculate power dissipation using familiar formulas, ensuring that resistors have sufficient power ratings.
• Understand series and parallel resistor combinations for more complex AC circuit analyses.

Practical Relevance

These calculations are not just academic exercises but have real-world applications in designing heating elements, controlling current flow in household electronics, and even safeguarding devices against sudden surges. By meticulously applying these principles in both theoretical and practical settings, engineers are able to design resilient and efficient AC circuits.

---

Conclusion

Resistor calculations in AC circuits are built upon the same fundamental principles as those used in DC circuits, with the primary difference being the use of RMS values to capture the effective levels of voltage and current. A resistor in an AC circuit behaves predictably with an impedance equal to its resistance, with voltage and current remaining in phase, resulting in a power factor of 1. These properties simplify many aspects of circuit analysis and design, enabling engineers to calculate current flow, voltage drops, and power dissipation accurately.

Whether working on simple resistive circuits or more complex configurations involving capacitors and inductors, the basic approach to calculating resistors remains a critical element of circuit analysis. With careful attention to RMS values and a solid understanding of Ohm's law, one can ensure that resistors perform their intended function effectively while maintaining safety and efficiency in the overall circuit design.

---
