Traffic Lights with Sensor Control by Arduino

A Comprehensive Guide on Building Smart, Sensor-Driven Traffic Systems

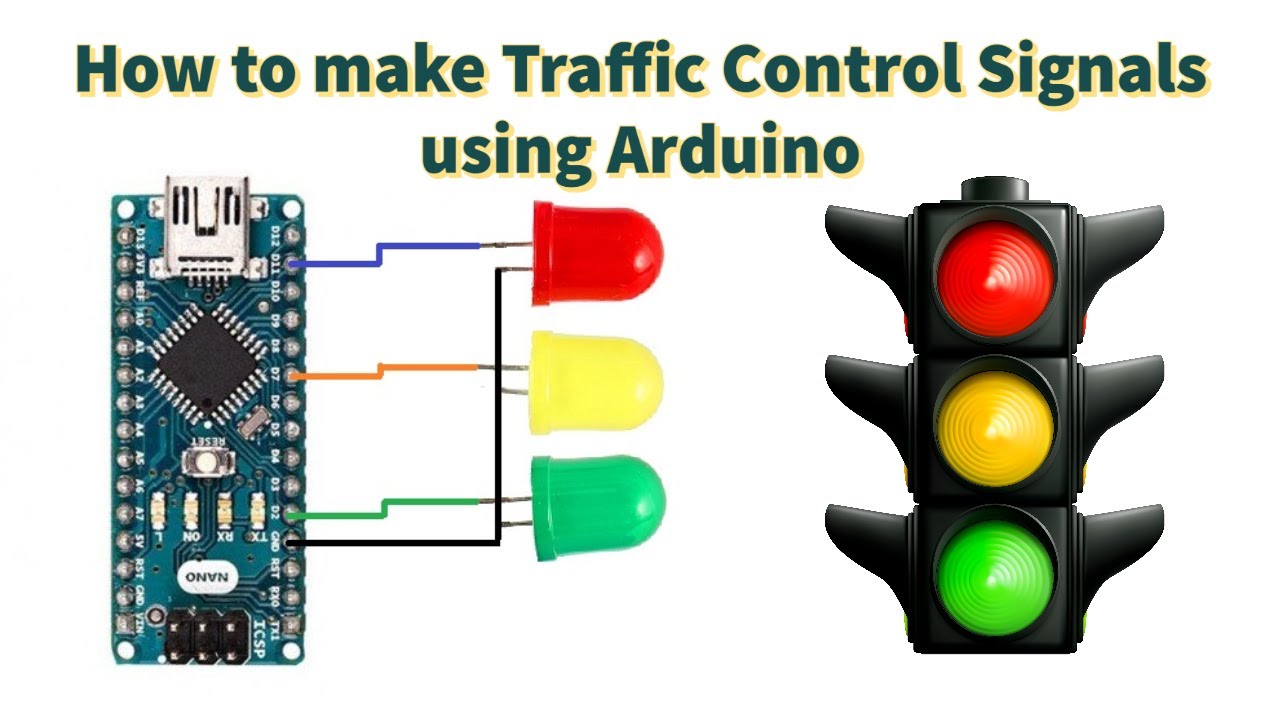

arduino traffic electronics

Key Takeaways

  • Dynamic Control: Sensor inputs allow the traffic controller to adapt signal timings based on real-time traffic density, improving flow and reducing congestion.
  • Flexible Implementation: Multiple sensor types (ultrasonic, IR, or even buttons) can be integrated with an Arduino to simulate or manage traffic conditions.
  • Scalable Design: The system can be expanded from a single intersection project to a multi-lane, four-way junction, incorporating advanced features such as pedestrian detection and IoT connectivity.

Introduction

In urban environments, traffic congestion remains a significant challenge that affects commuters, emergency services, and urban planning. Traditional fixed-time traffic signals often result in inefficient flows during varying traffic conditions. By integrating sensor control with an Arduino-based system, cities can achieve a dynamic, responsive traffic light system that adapts to real-time conditions. This guide explores the design principles, hardware components, wiring setups, and coding approaches necessary to create a smart traffic light system with sensor control.

System Overview

The core concept of a sensor-controlled traffic light system using Arduino revolves around using various sensors to detect vehicle presence or density. Based on these inputs, the Arduino processes sensor data and dynamically adjusts the sequence and duration of traffic signals. This adaptive system can significantly improve traffic efficiencies by prioritizing lanes with higher traffic densities while minimizing waiting times on less busy roads.

Hardware Components

One of the fundamental aspects of building such a system is selecting the appropriate hardware components. Below is a list of recommended components and a description of their role in the system:

Component Pin Assignment/Connection Description
Arduino Board (e.g., UNO) N/A The microcontroller that processes sensor inputs and controls the timed sequencing of traffic lights.
LEDs (Red, Yellow, Green) Digital pins (varies by design, e.g., pins 2–10) Represents the traffic signals. Each LED corresponds to a different light (stop, caution, go).
Sensors (Ultrasonic or IR) Digital or analog pins (e.g., HC-SR04 sensor on pins 8 & 9, IR sensors on digital pins) Detect vehicle presence and measure distance, providing real-time input to the traffic light controller.
Resistors In series with each LED Used to limit current to the LEDs, preventing damage.
Breadboard & Jumper Wires N/A Facilitate connections between different components without the need for soldering.
Optional: Push Buttons Digital pins Can emulate sensor inputs or be used to trigger events like pedestrian crossing alerts.

Circuit Setup & Wiring

The circuit setup for a sensor-controlled traffic light system involves connecting the Arduino to the LEDs and sensing devices. The wiring overview typically includes:

LED Connections

For a basic two-road intersection scenario:

  • Main Road LEDs:
    • Green LED connected to a digital output (e.g., pin 2)
    • Yellow LED connected to a different digital output (e.g., pin 3)
    • Red LED connected to another digital output (e.g., pin 4)
  • Secondary Road LEDs:
    • Green LED connected to a digital output (e.g., pin 5)
    • Yellow LED connected to a digital output (e.g., pin 6)
    • Red LED connected to a digital output (e.g., pin 7)

Sensor Connections

The sensor, whether it is ultrasonic or IR, must be connected in such a way that the Arduino can continuously read its output:

  • Ultrasonic Sensor (HC-SR04):
    • Vcc to 5V on the Arduino
    • GND to ground
    • Trigger pin to a digital output (e.g., pin 8)
    • Echo pin to a digital input (e.g., pin 9)
  • Infrared Sensor:
    • Connected to 5V, GND, and an analog/digital pin for signal reading
  • Push Buttons (Optional): Can be connected to digital pins to emulate sensor inputs.

Software & Code Implementation

The software aspect of the project involves programming the Arduino to read sensor data and subsequently control the LED sequences. The Arduino code typically includes:

Initialization and Setup

In the setup function, all LED pins are configured as outputs, and sensor pins are set as inputs. The initial configuration commonly sets the main road to a “green” status, while the secondary road remains red until a sensor trigger is detected.

Sensor Data Processing

The sensor reading function repeatedly checks the presence of vehicles. For an ultrasonic sensor, the process includes sending a pulse, measuring the echo, and calculating the distance using sound velocity, as given by:

$$ \text{Distance (cm)} = \frac{\text{Duration} \times 0.034}{2} $$

If the distance measured is below a certain threshold, the code interprets this as an indication of vehicle presence, triggering a change in the light sequence.

Traffic Light Sequencing

The system employs different sequences depending on the scenario. Under normal conditions with no vehicle detected on secondary roads, the main road remains green. However, once a vehicle is detected, the sequence transitions:

Steps in the Transition Sequence

  • The current "green" state on the main road transitions to yellow to alert drivers.
  • After a brief steady state, the main road changes to red indicating a stop.
  • The secondary road then receives the green signal, allowing vehicles to pass.
  • Finally, after a set period, the secondary road cycles through yellow and back to red, reverting control to the main road.

Sample Code Structure

A simplified sketch might look like this:


  // Define pin assignments for main road
  const int mainGreen = 2;
  const int mainYellow = 3;
  const int mainRed = 4;

  // Define pin assignments for secondary road
  const int secGreen = 5;
  const int secYellow = 6;
  const int secRed = 7;

  // Define sensor pins for an ultrasonic sensor (HC-SR04)
  const int trigPin = 8;
  const int echoPin = 9;

  // Timing constants
  const unsigned long mainGreenTime = 8000;  // 8 seconds
  const unsigned long mainYellowTime = 2000; // 2 seconds
  const unsigned long secGreenTime = 5000;   // 5 seconds
  const unsigned long secYellowTime = 2000;  // 2 seconds

  // Distance detection threshold in cm
  const int detectionThreshold = 20;

  void setup() {
      // Initialize LED pins as outputs
      pinMode(mainGreen, OUTPUT);
      pinMode(mainYellow, OUTPUT);
      pinMode(mainRed, OUTPUT);
      pinMode(secGreen, OUTPUT);
      pinMode(secYellow, OUTPUT);
      pinMode(secRed, OUTPUT);

      // Initialize sensor pins
      pinMode(trigPin, OUTPUT);
      pinMode(echoPin, INPUT);

      Serial.begin(9600);
      // Set default state
      digitalWrite(mainGreen, HIGH);
      digitalWrite(secRed, HIGH);
  }

  void loop() {
      int distance = getDistance();
      if (distance > 0 && distance < detectionThreshold) {
          // Trigger secondary road sequence
          changeToSecGreen();
      } else {
          // Normal state: main road remains green
          delay(500);
      }
  }

  // Function to get the distance from the ultrasonic sensor
  int getDistance() {
      digitalWrite(trigPin, LOW);
      delayMicroseconds(2);
      digitalWrite(trigPin, HIGH);
      delayMicroseconds(10);
      digitalWrite(trigPin, LOW);
      long duration = pulseIn(echoPin, HIGH, 30000);
      if (duration == 0) return -1;
      int distance = duration * 0.034 / 2;
      return distance;
  }

  // Function to reset all LEDs off
  void resetLights() {
      digitalWrite(mainGreen, LOW);
      digitalWrite(mainYellow, LOW);
      digitalWrite(mainRed, LOW);
      digitalWrite(secGreen, LOW);
      digitalWrite(secYellow, LOW);
      digitalWrite(secRed, LOW);
  }

  // Function to change traffic signals giving priority to the secondary road
  void changeToSecGreen() {
      resetLights();
      digitalWrite(mainYellow, HIGH);
      digitalWrite(secRed, HIGH);
      delay(mainYellowTime);

      resetLights();
      digitalWrite(mainRed, HIGH);
      digitalWrite(secRed, HIGH);
      delay(1000); // safety pause

      resetLights();
      digitalWrite(mainRed, HIGH);
      digitalWrite(secGreen, HIGH);
      delay(secGreenTime);

      resetLights();
      digitalWrite(mainRed, HIGH);
      digitalWrite(secYellow, HIGH);
      delay(secYellowTime);

      resetLights();
      digitalWrite(mainGreen, HIGH);
      digitalWrite(secRed, HIGH);
      delay(1000);
  }


This code offers a foundation and can be adjusted to incorporate more sensors, additional lanes, or other features such as pedestrian crossing signals.


Design Considerations & Customization

Optimizing Sensor Placement

Sensor placement is critical to ensure accurate vehicle detection without generating false positives. Whether using ultrasonic or IR sensors, ensure that:

  • Sensors are positioned at an optimal distance from the road to detect vehicles reliably.
  • The sensor angle and mounting height are adjusted based on the type of sensor and installation environment.
  • Threshold values in the code are calibrated based on practical tests to account for different vehicle sizes and speeds.

Adapting to Traffic Variability

Traditional traffic signals operate on fixed cycles, but a sensor-controlled system can dynamically adjust its sequence. When high traffic is detected on one road, the control unit extends the green period for that lane. Conversely, low traffic density ensures the system returns quickly to its normal cycle. This dynamic approach minimizes delays and improves the overall efficiency of signal management.

Scalability and Integration

The system described can be scaled further beyond a simple two-lane intersection. In a multi-lane, four-way junction, each lane can be equipped with sensors to measure vehicle density independently. The control logic can then prioritize lanes based on real-time traffic conditions. Future improvements might include:

  • Integrating additional sensors for pedestrian detection and emergency vehicle detection.
  • Incorporating wireless modules for IoT-based remote monitoring and control.
  • Using more advanced microcontrollers or PLCs for handling multiple inputs concurrently without lag.

Safety and Reliability

Safety is paramount when designing systems that interact with moving vehicles. Steps to ensure safety include:

  • Implementing proper delays to allow vehicles to clear intersections before light transitions.
  • Ensuring that sensor failures or false readings default to a safe state (usually a red light for the conflicting traffic path).
  • Conducting extensive bench testing with simulated scenarios before deploying in a live environment.

Customization Tips

The project can be customized in several ways to fit different application needs:

  • Adjust Timing Values: The durations for green, yellow, and red lights can be calibrated to reflect real-world traffic conditions. This might vary depending on the road type and typical traffic volume.
  • Multiple Sensors: Integrate more than one sensor per lane to help account for various angles of approach, especially at complex intersections.
  • Emergency Overrides: Consider adding manual override options such that traffic control authorities can intervene during emergencies or special events.
  • Integration with Other Systems: For smart city implementations, the Arduino system can be interfaced with a larger network monitoring system that can aggregate data from multiple intersections.

Advanced Features and Future Enhancements

As smart city initiatives grow, the potential upgrades for sensor-controlled traffic systems expand. Advanced features that can be considered include:

IoT Connectivity

Integrating the Arduino system with IoT platforms allows for remote monitoring and adjustments. Through wireless communication modules (such as Wi-Fi or Bluetooth), traffic data can be transmitted to a central server where analytics are performed. This data can help in predicting traffic patterns, adjusting signal timings proactively, and promptly responding to unusual traffic conditions.

Artificial Intelligence Integration

With the rise of AI, traffic light systems can go a step further by using machine learning algorithms to analyze historical and real-time traffic data. This would lead to:

  • Predicting peak traffic times more accurately
  • Automatically adjusting green light durations based on predicted volume
  • Dynamically re-routing traffic during emergencies or road closures

Multimodal Sensor Integration

Combining data from different types of sensors (such as cameras, inductive loop detectors, and radar) can provide a comprehensive view of traffic conditions. While the Arduino-based system is a great prototype, future versions might blend various sensor inputs for increased reliability.

Energy Efficiency and Sustainability

Another important consideration is to design the system with energy efficiency in mind. Using low-power LEDs, optimizing the sensor polling rate, and incorporating sleep modes in the microcontroller when traffic is low can contribute to lower energy consumption. This is especially critical when deploying systems in remote or resource-constrained areas.


Conclusion

In conclusion, a sensor-controlled traffic light system using Arduino provides a flexible and scalable solution to tackle urban traffic congestion. By integrating sensors like ultrasonic and IR types, the system consistently monitors traffic flow and adapts signal timings accordingly. This dynamic approach not only improves traffic efficiency but also enhances road safety by reducing unnecessary waiting times and allowing smoother traffic transitions.

The project has a wide range of potential customizations—from adjusting time intervals based on vehicle density to expanding the system for multi-lane intersections. With further advancements integrating IoT and AI technologies, the future of traffic light systems holds promise for even smarter, data-driven urban management. Ultimately, while the fundamental principles remain simple, the evolving complexity of urban traffic necessitates such innovative approaches to ensure safer and more efficient roads.
