Understanding the Arduino Uno

A comprehensive look at the widely used, open-source microcontroller board

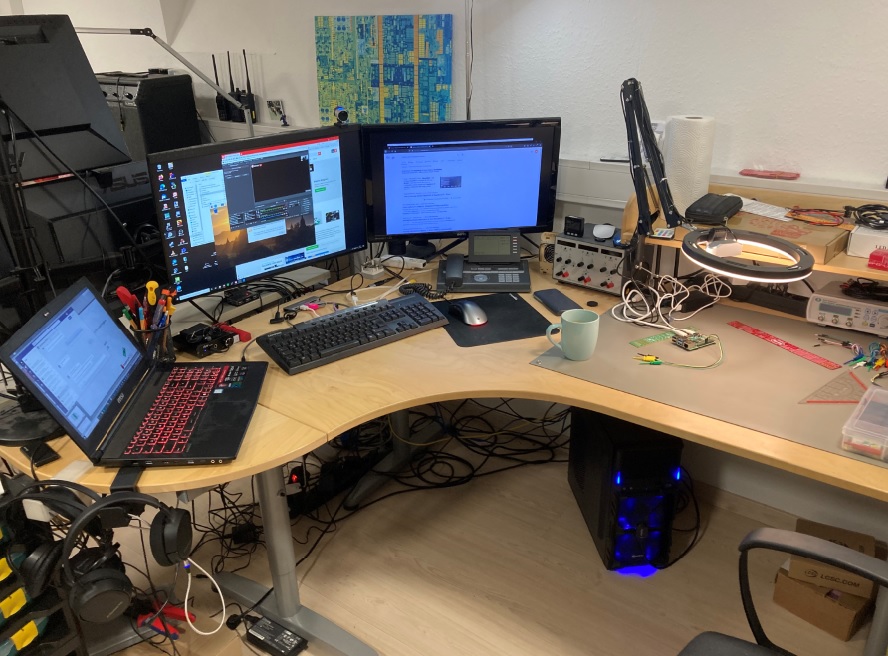

arduino board embedded electronics workspace

Key Highlights

Versatility and Ease of Use: Ideal for both beginners and experienced developers with extensive community support.
Robust Hardware Specifications: Built around the ATmega328P and equipped with multiple digital and analog I/O options.
Open-Source Innovation: Supported by open hardware and software, making it a popular choice for prototyping and educational projects.

Introduction

The Arduino Uno stands as one of the most popular open-source microcontroller development boards used across the globe. Initially released in 2010, the board has matured into a reliable and versatile platform for prototyping and educational purposes. By integrating a simple programming environment with user-friendly hardware, the Arduino Uno provides an excellent pathway for individuals—from hobbyists to seasoned professionals—to experiment, learn, and develop innovative projects.

Hardware Overview

Microcontroller and Processing Unit

At the heart of the Arduino Uno lies the ATmega328P microcontroller. This 8-bit AVR processor operates at a clock speed of 16 MHz, which delivers sufficient computational power for many embedded and educational applications. The microcontroller is responsible for executing the instructions defined by the user's code, reading input signals from various sensors, and controlling outputs such as LEDs, motors, and other devices.

Memory and Storage

The board manages multiple types of memory:

Flash Memory: 32 KB (with 0.5 KB reserved for the bootloader), used primarily to store the program code.
SRAM: 2 KB of volatile memory used for runtime data and variable storage.
EEPROM: 1 KB, which allows for storing data that must persist even after the board is powered off.

These memory configurations ensure that the Arduino Uno can handle both the storage of static algorithms and dynamic data processing during runtime.

Input/Output Capabilities

One of the major strengths of the Arduino Uno is its extensive range of input/output (I/O) capabilities:

Digital I/O: 14 digital pins are available for general-purpose input/output functions. Out of these, 6 can be utilized for Pulse Width Modulation (PWM), which is crucial for tasks such as controlling the brightness of an LED or managing the speed of a motor.
Analog Input: 6 analog pins (A0 to A5) allow the board to interface with various sensors (e.g., temperature, light, distance sensors) by converting analog signals into digital values the microcontroller can process.

Additionally, specialized pins are provided for communication protocols such as serial, SPI (Serial Peripheral Interface), and I²C (Inter-Integrated Circuit), broadening the scope of projects that can be developed.

Power Supply and Connectivity

Power Options

The Arduino Uno offers flexible power supply options:

USB Connection: The board can be powered directly from a computer via a USB cable, which also facilitates programming and debugging using the Arduino Integrated Development Environment (IDE).
External Power: For standalone or mobile applications, the board supports an external AC-to-DC adapter or battery. Although the operating voltage is 5V, the recommended input is between 7V and 12V, ensuring that the onboard voltage regulator can provide stable power to the microcontroller and peripherals.

Connectivity and Programming Interface

Programming the Arduino Uno is straightforward thanks to its integration with the Arduino IDE. This development environment supports a simplified version of C/C++ and provides comprehensive libraries that abstract complex hardware interactions. A built-in bootloader facilitates uploading code via the USB interface, eliminating the need for external programming hardware. Additionally, the board supports serial communication which is crucial in debugging and interactive applications.

Applications in Prototyping and Education

Why Arduino Uno is Ideal for Beginners

The Arduino Uno’s design philosophy emphasizes ease of use, making it exceptionally popular in educational settings. Its user-friendly interface, coupled with a wealth of online tutorials and community support, empowers learners to bridge the gap between theoretical concepts and practical application. New programmers and electronics enthusiasts can start with basic projects, such as blinking an LED, and gradually advance to more complicated systems such as automation, robotics, and Internet of Things (IoT) applications.

The clear structure of the hardware and programming architecture also serves to demystify complex computational concepts. Educational curricula around robotics, embedded systems, and mechatronics frequently incorporate the Arduino Uno, taking advantage of its capacity to simplify learning around sensor inputs, digital logic, and system integration.

Prototyping and Rapid Development

Beyond education, the Arduino Uno is a cornerstone in rapid prototyping. Engineers and hobbyists appreciate its open-source nature, which not only allows them to study the schematics but also to modify and tailor the board to fit specific project needs. From simple home automation systems to intricate robotic assemblies, the Uno provides a reliable platform to test and iterate on design concepts.

Its versatility is further enhanced by the availability of countless add-on modules and shields, which are designed to extend the functionality of the base board. For instance, communication shields can add Wi-Fi, Bluetooth, or Ethernet capabilities, while motor driver shields enable complex robotics projects.

Technical Specifications at a Glance

For designers and developers who prefer a quick reference guide, the following table summarizes the main technical specifications of the Arduino Uno:

Specification	Details
Microcontroller	ATmega328P
Clock Speed	16 MHz
Digital I/O Pins	14 (with 6 PWM outputs)
Analog Input Pins	6 (A0 to A5)
Flash Memory	32 KB (0.5 KB used by bootloader)
SRAM	2 KB
EEPROM	1 KB
Operating Voltage	5V
Input Voltage (recommended)	7-12 V
USB Connection	Yes
ICSP Header	Yes
Reset Button	Yes

The Role of Software and Community Support

Arduino Integrated Development Environment (IDE)

The Arduino IDE is a central element to the success of the Arduino Uno ecosystem. With its intuitive interface and cross-platform compatibility, users can write, compile, and upload programs to the board without grappling with complex configurations. The IDE comes bundled with numerous libraries and examples that significantly reduce the learning curve, enabling rapid development from the first “Hello, World!” project to more advanced implementations.

Moreover, the Arduino IDE is constantly being updated by both the Arduino development team and a vibrant community of enthusiasts. This continuous evolution addresses bugs, introduces new functionalities, and ensures that the platform remains relevant in an ever-changing technological landscape.

Community and Open-Source Benefits

One of the most celebrated aspects of the Arduino Uno is its robust, open-source community. This network of programmers, educators, and engineers shares projects, tutorials, and libraries across various forums, blogs, and dedicated Arduino websites. The open-source nature of both the hardware schematics and the Arduino IDE fosters an environment where knowledge is freely distributed, enabling learners and professionals alike to collaborate and innovate.

Detailed project documentation, troubleshooting guides, and forums (such as the Arduino Forum) further support users in overcoming challenges related to hardware interfacing, programming, and circuit design. This expansive support ecosystem not only enhances the functionality of the Arduino Uno but also drives the evolution of embedded systems engineering as a whole.

Practical Applications and Project Ideas

Educational Projects

In classrooms and workshops alike, the Arduino Uno is an invaluable tool for fostering creativity and technical skill. It can be used to introduce basic concepts of electronics, enabling tasks such as reading sensor data, controlling light and sound, and simulating real-world phenomena. Common educational projects include:

Light-driven circuits, such as automatically controlled LED displays.
Simple robotics projects like small-scale automated vehicles and robotic arms.
Interactive installations for art and design that respond to environmental stimuli.

These projects not only demonstrate fundamental engineering principles but also encourage teamwork and problem-solving—skills that are highly transferable to a variety of professional fields.

Advanced and Industrial Applications

For more advanced users, the Arduino Uno serves as a stepping stone into the realm of embedded systems design. In the context of industrial prototyping, the board can integrate with various sensors and control systems, laying the groundwork for developing custom automation systems, remote monitoring solutions, and even Internet of Things (IoT) applications. Although many sophisticated projects may eventually migrate to more specialized hardware platforms, the Arduino Uno remains indispensable during the conceptualization and prototype validation phases.

Furthermore, many derived projects incorporate shields—specialized hardware extensions—that unlock additional capabilities, such as wireless communication (Wi-Fi, Bluetooth, ZigBee) and enhanced processing power. This modularity offers designers the flexibility to adapt and upscale their projects, meeting specific requirements that may arise in both academic research and professional industrial design.

Comparisons and Evolution Within the Arduino Family

Evolution of Arduino Uno

Over the years, the Arduino Uno has evolved to incorporate community feedback and technological advances. While maintaining a core simplicity that appeals to beginners, newer iterations have improved aspects like power management and interface options. As part of the broader Arduino family, the Uno shares many similarities with other boards such as the Arduino Mega and Arduino Nano, yet it also holds its unique position by balancing cost, simplicity, and performance.

The Arduino Uno's balance of functionality and affordability has not only enabled widespread adoption across educational institutions and hobbyist circles but has also laid the foundation for more specialized boards. This evolution continues as open-source developers adapt the board for modern challenges in digital fabrication, smart home technologies, and sensor networks.

Comparative Table of Arduino Uno and Its Successors

For a clearer understanding of its position within the Arduino ecosystem, consider the table below, which contrasts the Arduino Uno with some other popular boards:

Feature/Board	Arduino Uno	Arduino Mega	Arduino Nano
Microcontroller	ATmega328P	ATmega2560	ATmega328P
Clock Speed	16 MHz	16 MHz	16 MHz
Digital I/O Pins	14 (6 PWM)	54 (15 PWM)	22 (6 PWM)
Analog Input Pins	6	16	8
Flash Memory	32 KB	256 KB	32 KB
SRAM	2 KB	8 KB	2 KB
EEPROM	1 KB	4 KB	1 KB

Software Tools and Programming Support

Programming Methodologies

Programming an Arduino Uno is made accessible through the user-friendly Arduino IDE. This integrated development environment supports a simplified syntax based on C/C++, which streamlines the process of writing, compiling, and uploading code. Whether for simple projects like blinking an LED or complex tasks involving sensor arrays and motor control, the Arduino IDE ensures that developers can focus on design logic rather than grappling with underlying hardware intricacies.

The board's bootloader further simplifies programming by enabling serial uploading without an external programmer. This design philosophy encourages exploration and iterative development—and its wide adoption means that numerous tutorials, sample projects, and troubleshooting guides are readily available.

Rich Ecosystem of Libraries and Tools

One of Arduino Uno’s most powerful assets is its support for a vast array of libraries. These libraries abstract the complexity of interfacing with hardware components such as sensors, displays, and communication modules. By using these pre-built libraries, developers can implement functionality with minimal code, thereby accelerating the prototyping process.

Additionally, the Arduino community actively contributes tools and libraries, further enhancing the board’s capabilities. Whether you are interfacing with GPS modules, accelerometers, or even connecting to cloud-based IoT platforms, there is likely a library available to streamline your development process.

The Future of Arduino Uno

Continued Innovation and Expansion

As technology continues to evolve, the Arduino Uno remains a pivotal resource for learning and experimentation. Its open-source design has not only fostered innovation from hobbyists and educators but has also inspired new hardware designs that address the growing needs of advanced embedded systems. With integration possibilities spanning artificial intelligence, IoT, and even augmented reality, the Arduino Uno will continue to serve as an introductory yet robust platform for a diverse range of applications in the future.

The board’s enduring success is largely attributed to the passionate community that consistently supports, refines, and shares their projects. This collaboration among global users ensures that the Arduino Uno stays at the forefront of prototyping technology, bridging the gap between education and cutting-edge innovation.
