Automated MBBR Process Design Calculator

Streamline Your Sewage Treatment Plant Design with Precision and Efficiency

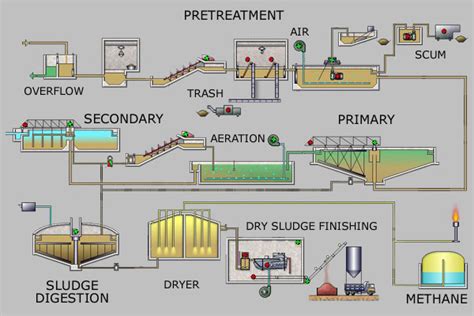

sewage treatment plant

Key Takeaways

  • Comprehensive Input Variables: Incorporate all essential parameters to tailor the MBBR design to specific sewage treatment needs.
  • Automated Calculations: Utilize built-in formulas and thumb rules from the CPHEEO manual to ensure accurate reactor sizing and operational parameters.
  • User-Friendly Interface: Featuring intuitive layouts, conditional formatting, and visual representations for easy navigation and error-free design iterations.

Introduction to MBBR Process Design

The Moving Bed Biofilm Reactor (MBBR) is a versatile and efficient technology used in wastewater treatment plants (WWTPs) for the biological removal of contaminants. This automated MBBR process design calculator is crafted based on the guidelines provided by the CPHEEO Manual on Sewerage and Sewage Treatment. By integrating thumb rules and key variables, this tool facilitates the precise design of MBBR systems tailored to specific sewage treatment requirements.

System Overview

The automated sheet is structured into three main sections: Inputs, Calculations, and Outputs. Each section is meticulously designed to ensure flexibility, accuracy, and ease of use, allowing engineers to customize parameters as needed while adhering to CPHEEO standards.

1. Input Section

The input section is designed to capture all essential parameters required for the MBBR process design. Users can input variables related to influent characteristics, effluent requirements, and design parameters.

Essential Input Parameters

Parameter Unit Description
Flow Rate (Q) m³/day Daily wastewater inflow rate.
Influent BODâ‚… mg/L Biochemical Oxygen Demand in influent.
Influent COD mg/L Chemical Oxygen Demand in influent.
Influent TSS mg/L Total Suspended Solids in influent.
Influent NH₃-N mg/L Ammonia Nitrogen in influent.
Effluent BODâ‚… mg/L Target BODâ‚… in effluent.
Effluent COD mg/L Target COD in effluent.
Effluent TSS mg/L Target TSS in effluent.
Effluent NH₃-N mg/L Target NH₃-N in effluent.
SALR g BOD₅/m²/day Surface Area Loading Rate.
Media Fill Fraction % Percentage of tank volume filled with media.
Hydraulic Retention Time (HRT) hours Time wastewater remains in the reactor.
Reactor Operating Temperature °C Temperature at which reactor operates.

2. Calculation Section

This section leverages built-in formulas and thumb rules from the CPHEEO manual to perform essential calculations for reactor sizing, oxygen requirements, and overall system design.

Key Calculations and Formulas

  1. Surface Area Loading Rate (SALR):

    $$SALR = \frac{Q \times (BOD_{in} - BOD_{out})}{A_{media}}$$

    Where \( A_{media} \) is the total surface area of the media. Typical SALR ranges from 5–15 g BOD₅/m²/day for domestic sewage.

  2. Hydraulic Retention Time (HRT):

    $$HRT = \frac{V}{Q}$$

    Typically ranges from 4–8 hours for domestic sewage.

  3. Oxygen Requirement:

    $$O_2 = 1.5 \times Q \times (BOD_{in} - BOD_{out})$$

    The factor 1.5 accounts for the oxygen demand for BOD removal.

  4. Air Requirement:

    $$Air = \frac{O_2}{0.23 \times \eta}$$

    Where \( \eta \) is the oxygen transfer efficiency, typically ranging from 8–12%.

  5. Reactor Volume (V):

    $$V = \frac{Q \times HRT}{24}$$

    Determines the total volume of the MBBR reactor.

  6. Media Surface Area (Amedia):

    $$A_{media} = \frac{Q \times (BOD_{in} - BOD_{out})}{SALR}$$

    Calculates the required media surface area based on SALR.

3. Output Section

The output section presents the results of the calculations in a clear and organized manner, providing essential parameters for the design and operation of the MBBR system.

Calculated Outputs

Parameter Value Unit Description
Media Surface Area (Amedia) [Calculated Value] m² Total surface area of media required.
Reactor Volume (V) [Calculated Value] m³ Total volume of the MBBR reactor.
Oxygen Requirement [Calculated Value] kg/day Total oxygen needed for BOD removal.
Air Requirement [Calculated Value] m³/day Volume of air required to supply the necessary oxygen.
Hydraulic Retention Time (HRT) [Calculated Value] hours Time wastewater remains in the reactor.

Graphical Representations

Visual charts can be included to depict relationships such as SALR vs. BOD removal efficiency and HRT vs. tank volume, aiding in a better understanding of the design parameters.


// Example Chart Initialization using Chart.js
const ctx = document.getElementById('salrChart').getContext('2d');
const salrChart = new Chart(ctx, {
    type: 'line',
    data: {
        labels: [/* BOD Removal Efficiency Data */],
        datasets: [{
            label: 'SALR vs. BOD Removal',
            data: [/* SALR Data */],
            borderColor: '#cc9900',
            fill: false
        }]
    },
    options: { /* Chart Options */ }
});



4. Conditional Formatting and Validation

To ensure the integrity of the design, the automated sheet incorporates conditional formatting to highlight critical values that exceed typical ranges. For instance, if the SALR exceeds 15 g BOD₅/m²/day, the corresponding cell will be highlighted in red, signaling the need for review.

Example Conditional Formatting Rules


=IF(SALR > 15, "Warning: SALR exceeds recommended range", "Within Range")



Sample Calculation

To illustrate the functionality of the automated sheet, consider the following example:

Inputs

  • Flow Rate (Q) = 1000 m³/day
  • Influent BODâ‚… = 250 mg/L
  • Effluent BODâ‚… = 30 mg/L
  • SALR = 10 g BODâ‚…/m²/day
  • Media Fill Fraction = 50%
  • HRT = 6 hours
  • Oxygen Transfer Efficiency (η) = 10%

Calculations

  1. Media Surface Area (Amedia):

    $$A_{media} = \frac{1000 \times (250 - 30)}{10} = 22,000 \, \text{m²}$$

  2. Reactor Volume (V):

    $$V = \frac{1000 \times 6}{24} = 250 \, \text{m³}$$

  3. Oxygen Requirement:

    $$O_2 = 1.5 \times 1000 \times (250 - 30) = 330,000 \, \text{g/day} = 330 \, \text{kg/day}$$

  4. Air Requirement:

    $$Air = \frac{330}{0.23 \times 0.10} = 14,348 \, \text{m³/day}$$

Outputs

  • Media Surface Area = 22,000 m²
  • Reactor Volume = 250 m³
  • Oxygen Requirement = 330 kg/day
  • Air Requirement = 14,348 m³/day
  • Hydraulic Retention Time = 6 hours

Design Guidelines and Best Practices

Adhering to CPHEEO guidelines ensures that the MBBR system is both efficient and compliant with regulatory standards.

Loading Rates

  • BOD Loading: 8-15 g BOD/m²·day
  • Nitrification Loading: 0.8-1.2 g NHâ‚„-N/m²·day
  • Media Fill Ratio: 30-70%

Design Criteria

  • Minimum HRT: 3-4 hours for BOD removal
  • DO Maintenance: 2-3 mg/L
  • Temperature Correction Factor (θ): 1.04 for nitrification

Implementation Tips

To maximize the efficiency and user-friendliness of the automated sheet, consider the following best practices:

User Interface Enhancements

  • Utilize dropdown menus for selecting parameters like "Fill Fraction" to minimize input errors.
  • Incorporate tooltips or cell comments to provide additional information about each input parameter.
  • Apply color-coding and conditional formatting to highlight critical values and guide the user through the design process.

Error Checking and Validation

  • Implement data validation rules to ensure inputs fall within acceptable ranges.
  • Use formulas to automatically check for compliance with CPHEEO guidelines and flag any discrepancies.
  • Provide clear error messages or warnings when input values exceed typical ranges or violate design criteria.

Sample Layout of the Automated Sheet

Input Parameters Sheet

Variable Unit Value (User Input) Notes
Flow (Q) m³/day [User Input] Enter daily wastewater inflow
Influent BODâ‚… mg/L [User Input] As per CPHEEO manual
Effluent BODâ‚… mg/L [User Input] BOD limit per discharge guidelines
Influent COD mg/L [User Input] Chemical Oxygen Demand
Influent TSS mg/L [User Input] Total Suspended Solids
Influent NH₃-N mg/L [User Input] Ammonia Nitrogen
SALR g BOD₅/m²/day [User Input] Typical range: 5-15
Media Fill Fraction % [User Input] Typically 40-60%
Hydraulic Retention Time (HRT) hours [User Input] 4-8 hours recommended
Reactor Operating Temperature °C [User Input] Operational temperature

Design Calculations Sheet

Formula Value Notes
BOD Removed (kg/day) [Q × (BOD_in - BOD_out)] Calculates the total BOD to be removed daily.
Media Surface Area (Amedia) [Q × (BOD_in - BOD_out) / SALR] Determines the required media surface area.
Reactor Volume (V) [Q × HRT / 24] Calculates the total volume of the MBBR reactor.
Oxygen Requirement (kg/day) [1.5 × Q × (BOD_in - BOD_out)] Ascertain the oxygen needed for BOD removal.
Air Requirement (m³/day) [O₂ / (0.23 × η)] Estimates the volume of air required based on oxygen transfer efficiency.
Hydraulic Retention Time (HRT) [V / (Q / 24)] Verifies the retention time within the reactor.

Output Parameters Sheet

Parameter Value Unit Notes
Reactor Volume [Calculated Value] m³ Total reactor volume needed.
Media Surface Area [Calculated Value] m² Total surface area of media required.
Oxygen Requirement [Calculated Value] kg/day Total oxygen needed for BOD removal.
Air Requirement [Calculated Value] m³/day Volume of air required for oxygen supply.
Hydraulic Retention Time (HRT) [Calculated Value] hours Retention time within the reactor.

Best Practices for Using the Automated Sheet

1. Ensuring Accurate Inputs

Accurate input data is critical for reliable MBBR design. Ensure that all influent characteristics (Flow Rate, BOD₅, COD, TSS, NH₃-N) are measured accurately using standardized methods. Double-check values to avoid errors in subsequent calculations.

2. Utilizing Conditional Formatting

Leverage conditional formatting to highlight out-of-range values. For example, if the SALR exceeds the typical range of 5–15 g BOD₅/m²/day, the cell can be automatically highlighted, prompting a review of inputs or design parameters.

3. Incorporating Visual Aids

Integrate charts and graphs to visualize key relationships, such as SALR versus BOD removal efficiency or HRT versus reactor volume. Visual aids enhance understanding and aid in making informed design decisions.

4. Regularly Reviewing Design Criteria

Periodically review the design criteria based on CPHEEO guidelines to ensure compliance. Adjust parameters as necessary to meet regulatory standards and optimize system performance.

Conclusion

The automated MBBR process design calculator provides a comprehensive and user-friendly tool for engineers designing sewage treatment plants. By integrating key variables, thumb rules from the CPHEEO manual, and intuitive features such as conditional formatting and visual aids, this tool ensures accurate and efficient MBBR system designs. Adhering to best practices and regularly reviewing design parameters further enhances the reliability and compliance of the wastewater treatment system.


References

  1. CPHEEO Manual - Chapter 5: Design and Construction of Sewage Treatment Facilities
  2. MBBR Design Guidelines - Orenco Systems
  3. MBBR Process Calculator - Enviraj
  4. MBBR Sizing Calculator - WSI LLC
  5. MBBR Wastewater Treatment Design Spreadsheet - Engineering Excel Spreadsheets
