Unlocking Blazing Speed: A Deep Dive into AWS ElastiCache for Redis Architecture

Amazon ElastiCache for Redis is a fully managed, in-memory data store and caching service by AWS that boosts application performance by providing microsecond latency. It simplifies the deployment, operation, and scaling of Redis, an open-source, in-memory data structure store renowned for its speed and versatility. This guide delves into the architecture of Redis within ElastiCache, focusing on its mechanisms for scaling, concurrency control, replication, and sharding.

Key Highlights of ElastiCache for Redis

Fully Managed Service: ElastiCache for Redis automates time-consuming management tasks such as hardware provisioning, software patching, setup, configuration, monitoring, and backups, allowing developers to focus on application logic.
Robust Scalability: The service offers comprehensive scaling capabilities, including vertical scaling (changing node instance types), horizontal scaling (adding or removing shards/replicas), and automated scaling based on performance metrics, ensuring your cache can adapt to fluctuating demands.
High Availability and Durability: Through sophisticated replication across multiple Availability Zones (AZs) and automatic failover mechanisms, ElastiCache for Redis ensures high availability for critical applications. Data tiering and snapshot features further enhance data durability.

Understanding the Redis Architecture in AWS ElastiCache

AWS ElastiCache offers Redis in a managed environment, leveraging its powerful in-memory data structures (like strings, hashes, lists, sets, sorted sets) while integrating AWS's operational excellence. The architecture primarily revolves around clusters of nodes.

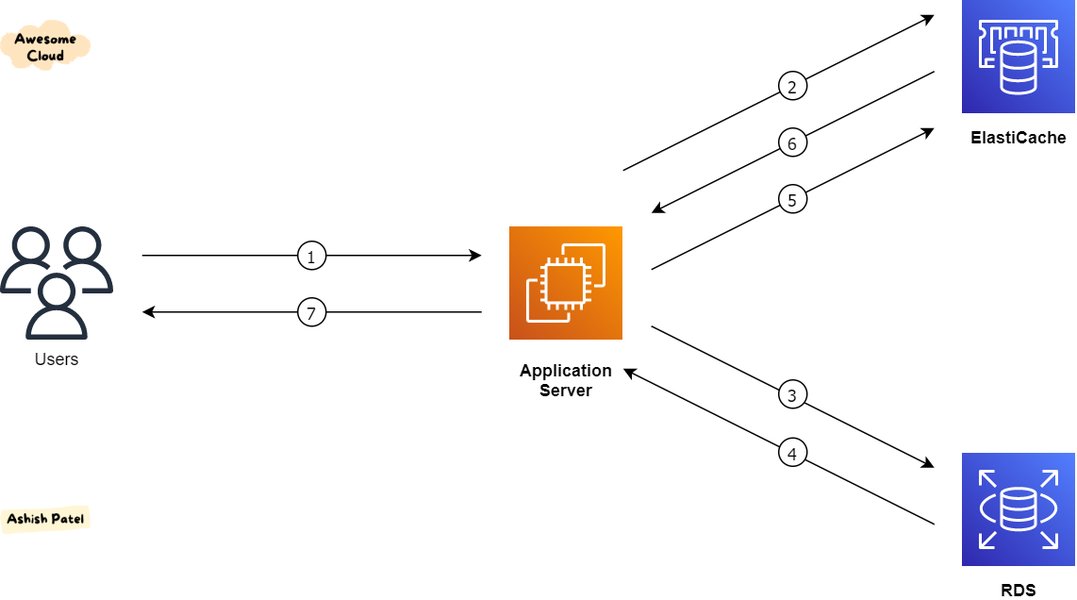

General overview of Amazon ElastiCache architecture.

Core Architectural Components

Nodes and Clusters

An ElastiCache for Redis deployment consists of one or more clusters. A cluster is a collection of one or more nodes, where each node runs an instance of the Redis engine. Data is stored in memory on these nodes for fast access.

Deployment Modes

ElastiCache for Redis supports several deployment configurations:

Non-Cluster Mode (Cluster Mode Disabled): This setup involves a single primary node. You can optionally add read replicas to this primary node to increase read throughput and improve availability. This mode is simpler for applications that don't require data partitioning across multiple primaries.
Cluster Mode Enabled: This mode allows you to build Redis clusters with data partitioned across multiple shards (up to 500 shards and 500 nodes per cluster, depending on Redis version and AWS limits). Each shard has its own primary node and can have up to five read replicas. This mode is essential for horizontal scaling, handling larger datasets, and distributing write load.
ElastiCache Serverless: This option abstracts away the underlying cluster management. ElastiCache Serverless automatically scales compute, memory, and network resources based on application demand without requiring users to plan capacity or manage individual nodes or shards. It continuously monitors resource utilization and scales seamlessly.
Self-Designed Clusters: For users needing fine-grained control, ElastiCache allows the manual design of clusters, including choosing node types, number of nodes, and their distribution across Availability Zones.

AWS Management and Integration

AWS handles many operational aspects, including:

Automated Backups and Snapshots: Regular snapshots can be configured for data persistence and disaster recovery.
Patching and Maintenance: AWS manages software patches and system maintenance.
Monitoring: Integration with Amazon CloudWatch provides detailed metrics for monitoring cache performance and health.
Security: Features include VPC isolation, encryption at rest (using AWS KMS) and in transit (using TLS), and IAM-based access control.

Scaling Strategies in ElastiCache for Redis

ElastiCache for Redis provides flexible scaling options to adapt to changing workload demands, ensuring optimal performance and cost-efficiency. Scaling can be broadly categorized into vertical and horizontal scaling, often managed by AWS Auto Scaling.

Vertical Scaling (Scaling Up/Down)

Vertical scaling involves changing the instance type of your cache nodes to increase or decrease their capacity (CPU, memory, network bandwidth). ElastiCache allows you to modify the node type of a running cluster, often with minimal downtime, especially in multi-node configurations where failover procedures can mask the update. However, vertical scaling is limited by the maximum available instance size.

Horizontal Scaling (Scaling Out/In)

Horizontal scaling involves adding or removing nodes or shards in your cluster.

Scaling Replicas: In both non-cluster and cluster modes, you can add or remove read replicas to/from a primary node (or shard) to scale read throughput.
Scaling Shards (Cluster Mode Enabled): This is a key feature for write-intensive workloads and large datasets. You can add or remove shards in your Redis cluster. ElastiCache supports online cluster resizing, allowing data to be redistributed across the new shard configuration without service interruption.

Automated Scaling with AWS Auto Scaling

ElastiCache integrates with AWS Auto Scaling to automatically adjust your cache capacity based on real-time demand. This can be achieved through:

Dynamic Scaling: Using Amazon CloudWatch metrics (e.g., CPU utilization, memory usage, network traffic), you can define target-tracking scaling policies. ElastiCache will then automatically add or remove shards or replicas to maintain the target metric at the desired level.
Scheduled Scaling: For predictable traffic patterns, you can schedule scaling actions to increase or decrease capacity at specific times.
Pre-scaling (Pre-warming): With ElastiCache Serverless, you can set minimum supported limits for resources like ECPUs/second or storage. When raising these limits, the update typically completes within 60 minutes.

It's generally recommended to perform scaling operations, especially scaling out (adding shards), during periods of lower workload to minimize any potential impact from data resynchronization.

Concurrency Control in ElastiCache for Redis

Redis is renowned for its high performance, partly due to its approach to concurrency. While Redis itself is primarily single-threaded for command execution, ElastiCache and Redis offer mechanisms to handle high concurrency effectively.

Single-Threaded Command Execution

Redis processes client commands sequentially on a single main thread. This design choice simplifies concurrency management by eliminating the need for complex locking mechanisms for internal data structures, thereby avoiding race conditions and deadlocks within the server. This ensures that each command is atomic.

Mechanisms for Managing Concurrency

Atomic Operations: Redis provides a rich set of atomic operations for its data structures (e.g., INCR for counters, LPUSH for lists). These operations are guaranteed to execute completely without interruption, ensuring data consistency even with many concurrent clients.
Lua Scripting: For more complex operations that need to be atomic, Redis allows Lua scripts to be executed on the server. The entire script runs as a single, indivisible operation, providing robust atomicity for multi-step logic.
Connection Pooling: Applications typically use connection pooling on the client-side to manage multiple connections to Redis efficiently, maximizing throughput.
ElastiCache Enhancements: ElastiCache for Redis versions 5.0.3 and later, on supported instance types (like M5 or R5 with at least 4 vCPUs), can utilize multiple vCPUs for I/O operations (dynamic network processing). This doesn't change Redis's single-threaded command processing core but significantly improves throughput and reduces latency for handling concurrent client connections by offloading network I/O to other cores.
Client-Side Sharding: While not a direct Redis feature, applications can implement client-side sharding logic to distribute requests across multiple independent Redis instances or clusters, further enhancing concurrent processing capacity.

Replication for High Availability and Read Scalability

Replication is a fundamental Redis feature that creates copies of your data on multiple replica nodes. AWS ElastiCache fully manages and enhances this capability.

ElastiCache Redis Replication Cluster Architecture

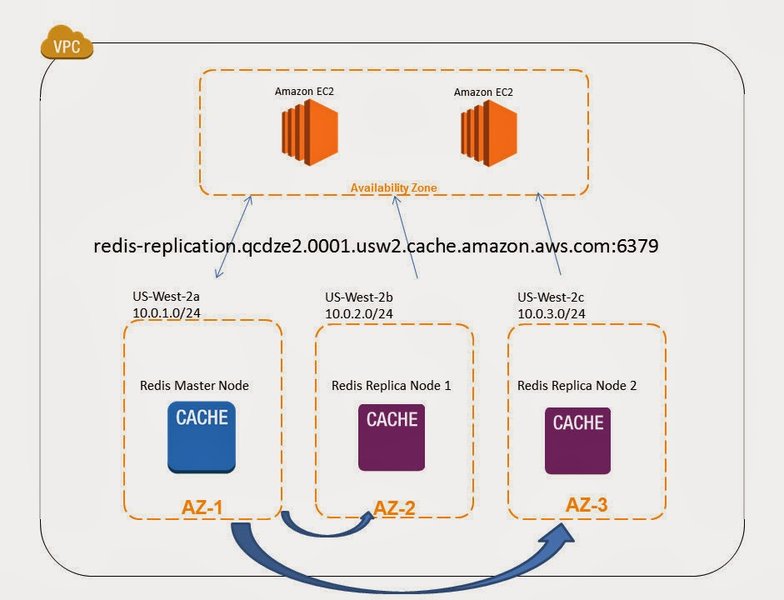

Illustration of an ElastiCache Redis replication cluster.

Master-Replica Model

In a replication setup (often called a replication group in ElastiCache):

There is one primary (master) node that handles all write operations.
There are one or more read replica (slave) nodes. ElastiCache allows up to 5 read replicas per primary/shard.

Replicas maintain an exact copy of the data from their primary node through asynchronous replication. If the connection between a primary and replica breaks, the replica will attempt to reconnect and resynchronize.

High Availability with Automatic Failover

A key benefit of replication is enhanced availability. ElastiCache continuously monitors the health of primary nodes. If a primary node fails:

ElastiCache automatically promotes one of its read replicas to become the new primary.
DNS records are updated to point to the new primary.
A replacement replica is launched to restore the desired number of replicas.

This process typically completes within seconds to minutes, minimizing downtime. By deploying replicas in different Availability Zones (Multi-AZ), ElastiCache provides resilience against AZ-level failures.

Read Scalability

Read replicas can serve read requests, offloading traffic from the primary node. This significantly improves read throughput for read-heavy applications. Clients can be configured to direct read queries to replicas, distributing the load.

However, due to asynchronous replication, there might be a small replication lag, meaning reads from a replica might occasionally return slightly stale data. Applications should be designed to tolerate this eventual consistency if reading from replicas.

Sharding for Horizontal Scalability and Large Datasets

Sharding, or partitioning, is a technique used to distribute a large dataset and its associated workload across multiple Redis nodes (shards). This is crucial for scaling beyond the capacity of a single primary node, especially for write operations and datasets that exceed available memory on one node.

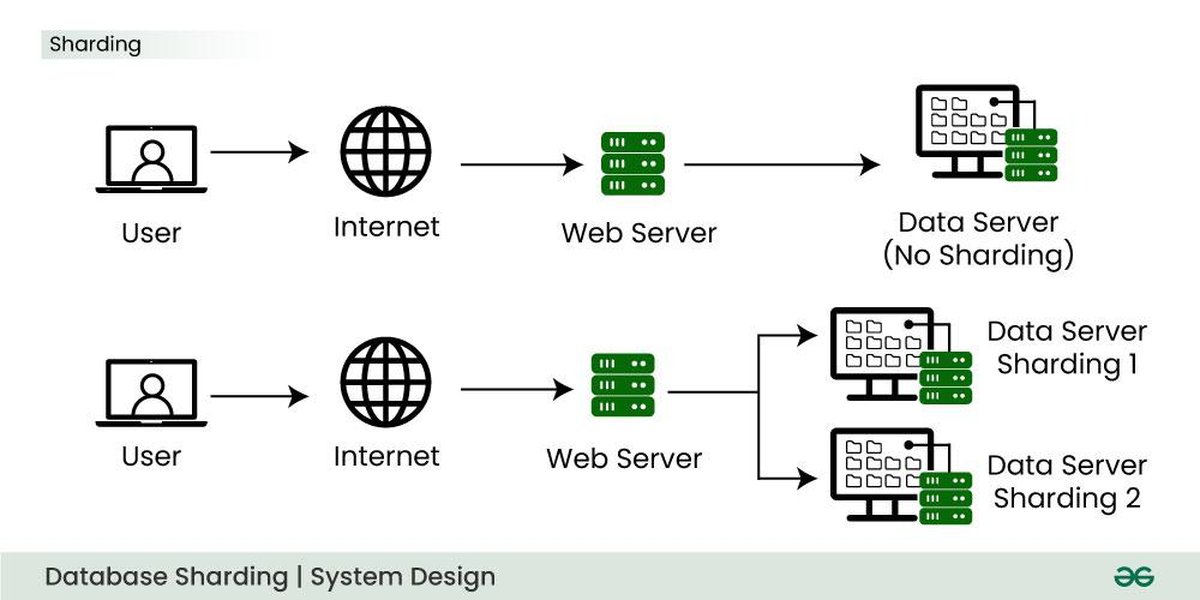

Conceptual diagram of database sharding.

How Sharding Works in Redis Cluster

When ElastiCache for Redis is run in "Cluster Mode Enabled," it utilizes Redis Cluster's native sharding capabilities:

Hash Slots: The entire Redis key space is divided into 16,384 hash slots. Each key, based on a hash of its name (or a designated part of it using "hash tags"), is mapped to one of these slots.
Data Distribution: These hash slots are distributed among the available shards in the cluster. Each shard is responsible for storing and serving data for the subset of hash slots assigned to it.
Client Redirection: When a client connects to any node in a Redis Cluster and issues a command for a key, if that node doesn't own the hash slot for that key, it will respond with a redirection message (-MOVED or -ASK error) telling the client which node owns the slot. Smart clients cache this slot-to-node mapping to directly route future requests. ElastiCache provides a cluster configuration endpoint that clients can use to discover this topology.

Benefits of Sharding

Write Scalability: By distributing data (and thus write operations) across multiple primary nodes (one per shard), sharding significantly improves write throughput.
Increased Memory Capacity: The total dataset size can be much larger than what a single node can hold, as it's spread across the memory of all shards.
Improved Performance and Availability: Load is distributed, reducing hotspots. If a shard's primary fails, only the data on that shard is temporarily unavailable until failover completes; other shards continue to operate.

Sharding and Replication Combined

In ElastiCache, sharding and replication are typically used together. Each shard in a Redis Cluster consists of a primary node and can have its own set of read replicas. This combination provides both write scalability (via sharding) and read scalability/high availability (via replication within each shard).

Online Resharding

ElastiCache supports online resharding for Redis clusters. This means you can add or remove shards from a running cluster, and ElastiCache will automatically migrate hash slots and data between shards with minimal impact on application availability.

Comparative Analysis of ElastiCache for Redis Configurations

The choice of ElastiCache for Redis configuration depends on specific application requirements. The radar chart below provides a comparative view of different setups across key attributes like performance, scalability, availability, cost-effectiveness for small-scale deployments, and management overhead. Note that 'Management Overhead' is lower for more managed options like Serverless.

This chart illustrates how different configurations trade off these aspects. For example, sharded clusters excel in scalability and performance for large workloads but might have slightly higher management overhead (if not serverless) and cost for very small deployments compared to a single node.

Visualizing ElastiCache for Redis Concepts

To better understand the relationships between these core concepts, the following mindmap provides a hierarchical overview of AWS ElastiCache for Redis architecture and its key features.

mindmap root["AWS ElastiCache for Redis"] Arch["Core Architecture"] Nodes["Nodes (Primary/Replica)"] Shards["Shards (Data Partitioning)"] Modes["Deployment Modes"] NM["Non-Cluster Mode"] CM["Cluster Mode"] Serv["Serverless"] Self["Self-Designed Clusters"] Scal["Scaling Strategies"] Vert["Vertical Scaling (Node Type)"] Horiz["Horizontal Scaling (Shards/Replicas)"] AutoS["Auto Scaling (Dynamic & Scheduled)"] ServS["Serverless Automatic Scaling"] Conc["Concurrency Control"] SingleT["Single-Threaded Command Execution"] Atomic["Atomic Operations"] Lua["Lua Scripting for Atomicity"] NetOpt["Network Optimizations (ElastiCache)"] Pool["Client-Side Connection Pooling"] Repl["Replication for HA & Read Scalability"] MasterRep["Master-Replica Model"] AsyncR["Asynchronous Replication"] FailO["Automatic Failover (Multi-AZ)"] ReadSc["Read Scalability via Replicas"] Shard["Sharding for Write Scalability & Large Datasets"] DataDist["Data Distribution (16,384 Hash Slots)"] WriteSc["Enhanced Write Scalability"] OnlineR["Online Resharding Capability"] Comb["Combined with Replication per Shard"]

This mindmap highlights how features like scaling, replication, and sharding are interconnected to provide a robust and performant caching solution.

Deep Dive Video: Amazon ElastiCache for Redis

For a more in-depth visual explanation and practical insights into Amazon ElastiCache for Redis, the following video from AWS re:Invent provides a comprehensive overview of its capabilities, architecture, and use cases. It discusses how ElastiCache for Redis is designed to boost application performance with microsecond latency.

AWS re:Invent 2021 - Deep dive on Amazon ElastiCache for Redis.

Key Features Summary Table

The table below summarizes the primary goals, mechanisms, and impact of scaling, replication, and sharding within AWS ElastiCache for Redis.

Feature	Primary Goal	Mechanism	Impact on Writes	Impact on Reads	AWS ElastiCache Implementation
Scaling	Adjust cache capacity (compute, memory, network) to meet application demand efficiently.	Vertical: Change node instance type. Horizontal: Add/remove nodes (replicas) or shards.	Horizontal scaling (sharding) improves write throughput by distributing data and load.	Adding more replicas or nodes (in a sharded or non-sharded setup) can improve read throughput.	Supports vertical, horizontal, and AWS Auto Scaling (dynamic, scheduled). ElastiCache Serverless offers fully automatic scaling.
Replication	Achieve high availability, data redundancy, and scale read operations.	Creates exact copies (replicas) of the primary node's data. Writes go to primary, reads can be served by replicas.	Primary node handles all write operations. Replication itself does not scale writes.	Offloads read requests to multiple read replicas, significantly increasing overall read throughput.	Managed primary-replica setup (up to 5 replicas per primary/shard), automatic failover, Multi-AZ deployment for enhanced availability.
Sharding	Distribute a large dataset and its associated workload (especially writes) across multiple nodes (shards) for horizontal scalability.	Partitions the data (keyspace) across multiple primary nodes. Redis Cluster uses a hash slot mechanism (16,384 slots).	Distributes write load across multiple shards, significantly improving write throughput and overall capacity.	Distributes read load across shards. Combined with replication per shard, read capacity is also greatly enhanced.	Implemented via Redis Cluster Mode Enabled. Supports online resharding (adding/removing shards). Integrates with Auto Scaling.

Frequently Asked Questions (FAQ)

What is the main difference between replication and sharding in ElastiCache for Redis?

Replication involves creating copies of your data on multiple nodes (a primary and its replicas) primarily for high availability (through failover) and read scalability (by offloading read traffic to replicas). Sharding, on the other hand, involves partitioning your data across multiple primary nodes (shards). Its main purpose is to scale write operations and to handle datasets larger than what a single node can accommodate by distributing both data and load.

How does ElastiCache for Redis handle concurrency if Redis is single-threaded?

Redis processes commands on a single main thread, which ensures atomicity for each command and simplifies internal data management. Concurrency for multiple clients is handled by Redis's fast, non-blocking I/O model and efficient event loop. ElastiCache enhances this by leveraging modern multi-core instances for network I/O processing (on supported instance types and Redis versions), allowing the single Redis command thread to focus on execution. Additionally, applications use client-side connection pooling, and techniques like Lua scripting ensure atomicity for complex operations.

Can I scale my ElastiCache for Redis cluster without downtime?

Yes, ElastiCache for Redis is designed to support scaling operations with minimal or no downtime. For vertical scaling (changing node types), this is often achieved through failover procedures in replicated setups. For horizontal scaling in Cluster Mode Enabled (adding or removing shards or replicas), ElastiCache supports online cluster resizing and data resharding, which are designed to occur while the cluster remains operational and serving requests.

What is ElastiCache Serverless for Redis?

ElastiCache Serverless is a deployment option for ElastiCache for Redis (and Memcached) that simplifies cache management by removing the need to plan capacity, provision, or manage cache clusters. It automatically scales compute, memory, and network resources up or down based on the application's traffic patterns. You pay only for the data stored and the compute your application consumes, making it easier to build high-performance applications without deep expertise in cache infrastructure management.

Conclusion

AWS ElastiCache for Redis provides a powerful, highly available, and scalable in-memory caching solution by combining the strengths of the Redis engine with the managed services capabilities of AWS. Its robust architecture, featuring sophisticated scaling options (vertical, horizontal, auto-scaling, serverless), efficient concurrency handling, reliable replication with automatic failover, and effective sharding mechanisms, empowers developers to build and operate demanding applications that require microsecond latencies and high throughput. By understanding these architectural components, users can better leverage ElastiCache for Redis to optimize their application performance and resilience.
