Comprehensive Architecture for Azure-Based API/Microservices with Kafka Backbone and ML.NET Integration

Enhancing System Reliability and Anticipating Errors in High-Volume Environments

Key Takeaways

Scalable Microservices Deployment: Leveraging Azure Kubernetes Service (AKS) and Azure App Service ensures robust and scalable microservices architecture.
Kafka as the Messaging Backbone: Apache Kafka facilitates reliable, asynchronous communication and efficient error handling across microservices.
Proactive Error Analysis with ML.NET: Integrating ML.NET for error pattern recognition enhances system reliability and enables predictive maintenance.

Architecture Overview

1. Core Components

a. Microservices on Azure

Deploying microservices on Azure ensures scalability, reliability, and efficient management. Utilizing Azure Kubernetes Service (AKS) or Azure App Service allows for automatic scaling, seamless deployments, and high availability.

b. Kafka Messaging Backbone

Apache Kafka serves as the central messaging system, enabling asynchronous communication between microservices. Kafka's robust architecture supports high throughput, fault tolerance, and real-time data streaming, making it ideal for high-volume systems.

c. Error-Driven Development

Adopting an error-driven development approach ensures that errors are treated as critical events. By capturing and analyzing errors in real-time, the system can proactively address issues, improve reliability, and reduce downtime.

d. ML.NET for Error Analysis

ML.NET integrates machine learning capabilities to analyze error patterns, predict potential failures, and recommend corrective actions. This integration facilitates continuous improvement and enhances system resilience.

e. Monitoring and Logging

Utilizing Azure Monitor and Application Insights provides comprehensive telemetry, enabling real-time monitoring, alerting, and detailed logging. These tools are essential for tracking system performance and identifying anomalies.

Detailed Component Analysis

1. Microservices Deployment on Azure

Microservices architecture decomposes applications into small, independent services that can be developed, deployed, and scaled independently. On Azure, this is achieved through:

Azure Kubernetes Service (AKS): Managed Kubernetes service for container orchestration, providing automated scaling, load balancing, and self-healing capabilities.
Azure App Service: Platform-as-a-Service (PaaS) offering for hosting web applications, RESTful APIs, and mobile backends with built-in scaling and patching.
Azure Container Instances (ACI): Enables rapid deployment of containers without managing servers, suitable for burst workloads.
Azure API Management: Centralized API gateway for managing, securing, and monitoring APIs, facilitating seamless communication between clients and services.

2. Kafka Backbone Integration

Integrating Kafka as the messaging backbone ensures reliable and efficient communication between microservices. Key aspects include:

Event Streaming: Kafka handles high-volume event streams, allowing microservices to publish and subscribe to events seamlessly.
Fault Tolerance: Kafka's distributed architecture ensures data durability and high availability, preventing message loss.
Scalability: Kafka clusters can scale horizontally to handle increasing loads without compromising performance.
Topic Management: Organizing events into dedicated Kafka topics (e.g., error-events, performance-metrics) facilitates structured data flow.

3. Implementing Error-Driven Development

Error-driven development focuses on treating errors as primary data points for system improvement. The process involves:

Error Capture: Microservices detect errors during operation and publish detailed error events to designated Kafka topics (e.g., error-events).
Dead Letter Queues (DLQ): Implementing DLQs for unprocessable messages ensures that erroneous data is isolated and can be reprocessed without affecting the main data flow.
Error Handling Patterns: Utilizing retry policies, circuit breakers, and bulkhead patterns within microservices to manage transient failures and prevent cascading issues.
Real-Time Processing: Dedicated services consume error events from Kafka, enabling immediate analysis and response.

4. Leveraging ML.NET for Enhanced Error Analysis

Integrating ML.NET introduces machine learning capabilities into the architecture, enabling predictive analytics and intelligent error handling:

Error Pattern Recognition: ML.NET models analyze historical error data to identify recurring patterns and potential root causes.
Predictive Maintenance: By forecasting potential system failures, the architecture can initiate preventive measures before issues escalate.
Automated Recommendations: ML.NET provides actionable insights, suggesting corrective actions to rectify identified issues.
Continuous Learning: The system continuously retrains ML models with new data, ensuring models remain accurate and relevant.

5. Monitoring and Telemetry

Effective monitoring is crucial for maintaining system health and performance. Azure's monitoring tools offer comprehensive visibility:

Azure Monitor: Centralized platform for collecting, analyzing, and acting on telemetry data from cloud and on-premises environments.
Application Insights: Extends Azure Monitor by providing detailed application performance monitoring, including request rates, response times, and failure rates.
Dashboards and Alerts: Customizable dashboards display real-time metrics, while alerts notify stakeholders of critical issues.

Data Flow and Workflow

1. Event Publishing

Microservices emit various events, including regular operational events and error events, to Kafka topics:

Operational Events: Metrics such as request counts, response times, and resource usage.
Error Events: Detailed information about errors encountered, including stack traces, error codes, and contextual data.

2. Kafka as the Central Messaging Hub

Kafka acts as the intermediary, ensuring that events flow reliably between producers (microservices) and consumers (processing services). Key components include:

Producers: Microservices that publish events to Kafka topics.
Consumers: Services that subscribe to Kafka topics to process incoming events.
Topics: Logical channels in Kafka for organizing and categorizing different types of events.
Partitions: Enable parallel processing of events, enhancing throughput and reliability.

3. Error Processing and ML.NET Integration

Errors captured by microservices are consumed by dedicated services for analysis:

Error Ingestion: An Error Processing Service subscribes to the error-events Kafka topic, ingesting error data in real-time.
Data Enrichment: Combining error data with contextual information (e.g., service version, deployment environment) to enhance analysis accuracy.
ML.NET Analysis: Machine learning models trained with historical error data analyze incoming errors to identify patterns and predict potential failures.
Insight Generation: The system generates actionable insights, such as identifying high-risk components or recommending specific corrective actions.

4. Feedback Loop for Continuous Improvement

The insights derived from ML.NET inform system adjustments and improvements:

Automated Responses: Triggering actions like scaling services, adjusting resource allocations, or implementing rate limiting based on predictive insights.
Manual Interventions: Providing recommendations to development teams for code fixes or architectural changes.
Model Retraining: Continuously updating ML.NET models with new data to maintain prediction accuracy.

Implementation Strategy

1. Setting Up Microservices on Azure

Deploy microservices using Azure's container orchestration services:

Azure Kubernetes Service (AKS): Orchestrate container deployment, manage scaling, and ensure high availability.
Azure App Service: Host web applications and APIs with integrated scaling and deployment pipelines.
CI/CD Pipelines: Implement continuous integration and continuous deployment pipelines using Azure DevOps or GitHub Actions to automate build, test, and deployment processes.

2. Configuring Kafka on Azure

Deploy and manage Kafka clusters using Azure's managed services:

Azure Event Hubs: Utilize the Kafka-enabled endpoint of Azure Event Hubs for seamless integration with existing Kafka clients.
Cluster Configuration: Set up appropriate partitions, replication factors, and retention policies to balance performance and reliability.
Security: Implement authentication and authorization mechanisms, such as SASL and ACLs, to secure Kafka clusters.

3. Implementing Error-Driven Development

Establish a systematic approach to error handling:

Error Logging: Integrate logging libraries (e.g., Serilog, NLog) within microservices to capture and log errors consistently.
Kafka Producers: Configure microservices to publish error events to designated Kafka topics upon encountering errors.
Dead Letter Queues (DLQ): Set up DLQs for handling messages that cannot be processed after multiple retries, ensuring data integrity.
Monitoring: Use Azure Monitor and Application Insights to track error rates, types, and trends across microservices.

4. Integrating ML.NET for Predictive Error Analysis

Leverage ML.NET to enhance error analysis capabilities:

Data Pipeline: Stream error events from Kafka into ML.NET models for real-time analysis.
Model Development: Train ML.NET models using historical error data to identify patterns and predict future errors.
Deployment: Host ML.NET models within Azure Machine Learning or as part of the Error Processing Service for scalable inference.
Continuous Learning: Implement automated retraining schedules to incorporate new error data, ensuring models remain up-to-date.

5. Establishing Monitoring and Alerting Mechanisms

Ensure comprehensive visibility and proactive issue resolution:

Azure Monitor: Collect and analyze telemetry data from microservices and Kafka clusters.
Application Insights: Monitor application performance, track user interactions, and detect anomalies.
Alerts and Notifications: Configure alerts for critical error thresholds, model prediction anomalies, and system performance metrics. Integrate with communication tools like Microsoft Teams or email for immediate notifications.
Dashboards: Create interactive dashboards using Power BI or Azure Dashboards to visualize system health, error trends, and ML.NET insights.

Architectural Workflow

1. Event Lifecycle

The flow of events within the architecture ensures seamless communication and proactive error handling:

Event Production: Microservices generate events (operational and error) and publish them to Kafka topics via Kafka producers.
Event Consumption: Dedicated services consume events from Kafka topics for processing and analysis.
Error Analysis: Error events are forwarded to ML.NET models for pattern recognition and prediction.
Insight Application: Generated insights trigger automated adjustments or notify development teams for further action.
Feedback Loop: Continuous monitoring informs system refinements and model retraining, fostering an adaptive and resilient architecture.

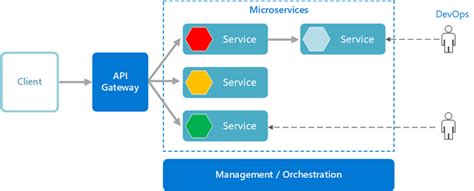

2. Textual Representation of the Architecture

The following diagram provides a textual overview of the system architecture:


    [ Client Applications / External Systems ]
                  |
          Azure API Management
                  |
    -------------------------------------------------
    |                |                |             |
[ Service A ]    [ Service B ]    [ Service C ]    ... [ Service N ]
    |                |                |             |
    |                |                |             |
    v                v                v             v
  +-------------------------------------------------------+
  |                     Apache Kafka                      |
  |                   (Azure Event Hubs)                  |
  |                                                       |
  |  +-----------+     +-----------+     +-----------+    |
  |  | Topic:    |     | Topic:    |     | Topic:    |    |
  |  | Events    |     | Errors    |     | DLQ       |    |
  |  +-----------+     +-----------+     +-----------+    |
  +-------------------------------------------------------+
                  |                |                |
                  v                v                v
    +---------------+    +------------------+    +------------+
    | Event         |    | Error Analysis   |    | Dead Letter|
    | Processor     |    | Service (ML.NET) |    | Queue      |
    +---------------+    +------------------+    +------------+
                  |                |
                  v                v
        +----------------+    +-----------------+
        | Insights &     |    | Corrective      |
        | Predictions    |    | Actions         |
        +----------------+    +-----------------+

3. Error Processing Workflow

Error Generation: A microservice encounters an error during execution.
Error Publication: The error details are published to the errors Kafka topic.
Error Consumption: The Error Analysis Service subscribes to the errors topic and consumes the error event.
Error Analysis: ML.NET processes the error data to identify patterns and predict potential system failures.
Insight Generation: Based on the analysis, the system generates insights and recommendations for corrective actions.
Action Initiation: Automated systems or development teams implement the recommended actions to address and mitigate the errors.
Feedback Integration: The system incorporates the insights to improve overall reliability and anticipates future errors.

Enhancing System Reliability

1. Predictive Maintenance

By analyzing error patterns, the system can predict potential failures before they occur. This proactive approach minimizes downtime and ensures continuous service availability.

2. Automated Scaling

Leveraging insights from ML.NET, the system can dynamically scale resources based on predicted workloads and error rates. This ensures optimal performance during peak times and cost-efficiency during low usage periods.

3. Dynamic Thresholds

Implementing dynamic threshold adjustments for monitoring alerts based on real-time data allows the system to respond accurately to varying conditions, reducing false positives and ensuring critical issues are promptly addressed.

4. Continuous Improvement

The integration of ML.NET fosters a culture of continuous improvement. By constantly analyzing new data and retraining models, the system evolves to handle emerging challenges and enhances its resilience over time.

Table: Architectural Components and Their Roles

Component	Role	Technologies Used
Azure Kubernetes Service (AKS)	Container orchestration and microservices deployment	AKS, Docker
Apache Kafka	Messaging backbone for event streaming	Azure Event Hubs with Kafka interface
Azure API Management	API gateway for routing and managing API traffic	Azure API Management
ML.NET	Machine learning for error analysis and prediction	ML.NET, Azure Machine Learning
Azure Monitor	System monitoring and telemetry collection	Azure Monitor, Application Insights
Dead Letter Queue (DLQ)	Handling unprocessable messages to prevent data loss	Kafka DLQ Topics

Implementing the Solution

1. Setting Up Azure Services

Begin by provisioning the necessary Azure services:

Azure Kubernetes Service (AKS): Deploy AKS clusters to host microservices containers, ensuring scalability and resilience.
Azure Event Hubs: Configure Event Hubs with Kafka interfaces to manage event streaming and messaging.
Azure API Management: Set up API gateways to manage and secure API traffic.
Azure Machine Learning: Provision ML.NET environments for developing, training, and hosting machine learning models.

2. Developing and Deploying Microservices

Design microservices adhering to the principles of loose coupling and high cohesion:

Service Design: Each microservice should encapsulate specific business functionalities and expose well-defined APIs.
Containerization: Package microservices into Docker containers for consistent deployment across environments.
Deployment: Utilize AKS for orchestrating container deployments, ensuring automatic scaling and load balancing.
API Management: Use Azure API Management to route client requests to appropriate microservices, enforce security policies, and monitor API usage.

3. Integrating Kafka for Messaging

Establish Kafka as the communication backbone:

Topic Configuration: Define Kafka topics for different event types, such as events, errors, and metrics.
Producer Implementation: Implement Kafka producers within microservices to publish events to designated topics.
Consumer Setup: Develop consumer services that subscribe to Kafka topics for processing incoming events.
Scaling Partitions: Configure Kafka partitions to handle high-throughput scenarios, enabling parallel processing and ensuring scalability.

4. Error Handling and Analysis with ML.NET

Implement ML.NET to analyze and predict errors:

Error Ingestion: Create services that consume error events from Kafka and feed them into ML.NET models for analysis.
Model Training: Use historical error data to train ML.NET models, focusing on anomaly detection and failure prediction.
Real-Time Prediction: Deploy trained models to process incoming error data in real-time, generating predictions and insights.
Actionable Insights: Integrate the output of ML.NET models to trigger automated responses, such as scaling resources or alerting development teams.

5. Monitoring and Continuous Improvement

Establish robust monitoring and feedback mechanisms:

Telemetry Collection: Configure Azure Monitor and Application Insights to gather detailed telemetry from microservices and Kafka clusters.
Dashboarding: Develop dashboards to visualize key metrics, error rates, and ML.NET insights, providing a comprehensive view of system health.
Alerting: Set up alerts based on predefined thresholds to notify stakeholders of critical issues requiring immediate attention.
Feedback Loops: Incorporate feedback from monitoring tools to continuously refine ML.NET models and system configurations, promoting an adaptive and resilient architecture.

Example Code Integration

Kafka Producer Example in .NET


// Import necessary Kafka libraries
using Confluent.Kafka;

// Configure Kafka producer
var config = new ProducerConfig { BootstrapServers = "your_kafka_bootstrap_servers" };

// Create a producer
using (var producer = new ProducerBuilder<Null, string>(config).Build())
{
    // Create a message
    var message = new Message<Null, string> { Value = "Error event details" };

    // Publish the message to the 'errors' topic
    var deliveryResult = await producer.ProduceAsync("errors", message);

    // Log the result
    Console.WriteLine($"Delivered '{deliveryResult.Value}' to '{deliveryResult.TopicPartitionOffset}'");
}

ML.NET Model Training Example


// Import ML.NET libraries
using Microsoft.ML;
using Microsoft.ML.Data;

// Define data schema
public class ErrorEvent
{
    public float ErrorCode { get; set; }
    public float ErrorCount { get; set; }
    public DateTime Timestamp { get; set; }
}

// Define prediction schema
public class ErrorPrediction
{
    [VectorType(3)]
    public double[] Prediction { get; set; }
}

class Program
{
    static void Main(string[] args)
    {
        // Initialize ML context
        var mlContext = new MLContext();

        // Load data
        IDataView data = mlContext.Data.LoadFromTextFile<ErrorEvent>("error_events.csv", hasHeader: true, separatorChar: ',');

        // Define data preparation and model training pipeline
        var pipeline = mlContext.Transforms.Concatenate("Features", "ErrorCode", "ErrorCount")
                        .Append(mlContext.Clustering.Trainers.KMeans(nameof(ErrorPrediction.Prediction), numberOfClusters: 3));

        // Train the model
        var model = pipeline.Fit(data);

        // Save the model
        mlContext.Model.Save(model, data.Schema, "ErrorPredictionModel.zip");

        Console.WriteLine("Model training completed and saved.");
    }
}

Conclusion

This comprehensive architecture leverages Azure's robust services, Apache Kafka's reliable messaging capabilities, and ML.NET's powerful machine learning tools to create a resilient, scalable, and intelligent system. By embracing error-driven development, the system not only handles errors efficiently but also utilizes them as opportunities for continuous improvement and reliability enhancement. Integrating predictive analytics through ML.NET ensures that potential issues are anticipated and mitigated proactively, maintaining high system throughput and availability even in high-volume environments.

References

This architecture leverages Azure, Kafka, and ML.NET to create a robust, error-driven system capable of handling high volumes while improving reliability through predictive analytics. Let me know if you need further clarification or additional details!
