Unlock the Airwaves: Finding Your Ideal Software-Defined Ham Radio Under $2000

Explore top SDR options and key features to make the perfect choice for your ham radio journey in 2025.

Software-Defined Radio (SDR) has revolutionized the amateur radio landscape, replacing traditional hardware components like mixers, filters, and amplifiers with sophisticated software processing. This shift offers incredible flexibility, advanced features, and often, a more cost-effective entry point or upgrade path for ham operators. If you're looking for a capable SDR solution for ham radio activities under a $2000 budget, you're in the right place. Let's explore the best options available as of April 5, 2025.

Highlights: Key Takeaways

Flexibility is Key: SDRs range from simple receivers like the RTL-SDR to versatile transmit/receive platforms like the HackRF One, and even full-featured transceivers like the Icom IC-7300 that heavily utilize SDR technology.
Budget Matters: Excellent SDR receivers (RTL-SDR, SDRplay) are available for under $200, versatile transceiver SDRs (HackRF One) around $300-$400, while high-performance SDR-based ham transceivers (IC-7300, FlexRadio 6400M) push closer to the $2000 limit.
Consider Your Needs: Factors like desired frequency bands (HF, VHF, UHF), transmit capability, required bandwidth, software compatibility, and ease of use are crucial in selecting the right SDR.

Understanding Software-Defined Radio (SDR) in Ham Radio

What Makes SDR Different?

Traditional radios use hardware circuits (filters, mixers, demodulators) to tune, filter, and process radio signals. Software-Defined Radio takes a different approach. An SDR uses an antenna to capture radio waves and an analog-to-digital converter (ADC) to transform these waves into digital data. This digital data is then processed by software running on a computer or embedded system. This software defines the radio's characteristics – frequency, bandwidth, modulation type, filtering, and more.

Advantages of SDR for Ham Operators:

Versatility: A single SDR device can often cover vast frequency ranges and demodulate various signal types (AM, FM, SSB, CW, digital modes) simply by changing the software.
Advanced Signal Processing: SDR software allows for powerful digital filtering, noise reduction, and signal analysis capabilities often difficult or expensive to achieve with traditional hardware.
Visual Spectrum Analysis: Most SDR software provides a "waterfall" display, showing a wide slice of the radio spectrum visually, making it easy to spot signals.
Upgradability: New features and modes can often be added through software updates without needing new hardware.
Integration: SDRs easily interface with computers for logging, digital mode operation, remote control, and sharing reception via the internet (e.g., KiwiSDR).

While some purists might differentiate between "true" SDRs (like HackRF or SDRplay, which rely heavily on a host PC) and modern transceivers using SDR *technology* internally (like the Icom IC-7300 or FlexRadio series), both leverage software for core radio functions, offering significant benefits over older analog designs.

Key Factors When Choosing an SDR Ham Radio

Matching the Tech to Your Goals

Selecting the right SDR involves balancing features, performance, and budget. Here are the critical factors to consider:

Frequency Range

What bands do you want to operate on? HF (High Frequency, typically 1.8-30 MHz) is popular for long-distance communication, while VHF (Very High Frequency, 30-300 MHz) and UHF (Ultra High Frequency, 300 MHz - 3 GHz) are used for local communication, repeaters, satellites, and more. Some SDRs cover specific ranges (e.g., KiwiSDR for HF), while others offer extremely wide coverage (e.g., HackRF One up to 6 GHz).

Bandwidth

Instantaneous bandwidth refers to how much of the radio spectrum the SDR can "see" or process at once. A wider bandwidth (e.g., 10 MHz on SDRplay RSPdx, up to 61.44 MHz on LimeSDR) allows you to monitor multiple signals or entire bands simultaneously via the waterfall display. Cheaper SDRs like the RTL-SDR typically offer around 2.4 MHz of stable bandwidth.

ADC Resolution (Bits)

The Analog-to-Digital Converter (ADC) resolution (measured in bits) affects the dynamic range – the ability to receive weak signals in the presence of strong ones. Higher bit counts (e.g., 12-bit, 14-bit, 16-bit found in mid-range and higher-end SDRs) generally lead to better performance, especially in crowded band conditions, compared to the typical 8-bit resolution of basic RTL-SDR dongles.

Transmit (TX) Capability

Do you just want to listen (receive-only, RX), or do you also want to transmit (transceiver, TX)? Many popular SDRs like the RTL-SDR and SDRplay RSP series are receive-only. SDRs like the HackRF One, LimeSDR, PlutoSDR, and full ham transceivers like the Icom IC-7300 or FlexRadio series offer transmit capabilities. Note that some SDR transceivers like the HackRF One operate in half-duplex (transmit or receive, but not simultaneously), while others might offer full-duplex.

Software Compatibility & Ease of Use

Ensure the SDR hardware is compatible with your computer's operating system (Windows, macOS, Linux) and popular SDR software packages (e.g., SDR#, HDSDR, GQRX, SDR Console, GNU Radio). Some SDRs, particularly full transceivers, come with dedicated, user-friendly software (like FlexRadio's SmartSDR). Others require more configuration and familiarity with different software options.

Connectivity and Form Factor

Consider how the SDR connects (USB, Ethernet) and its physical form. USB dongles are portable, while larger desktop units or network-connected SDRs might offer more features or better performance. Some SDRs are bare boards requiring enclosures, while others are fully finished products.

Antenna System

While some SDR bundles include basic antennas, your antenna system is arguably the most critical part of your station. Factor in the need for appropriate antennas (and potentially filters or preamplifiers) for the bands you wish to use. Most SDRs use standard connectors like SMA or BNC, allowing connection to a wide variety of ham radio antennas.

Budget

Your $2000 budget allows for a wide range of options, from entry-level receivers costing under $30 to sophisticated SDR transceivers. Determine how much you're willing to spend based on the features and performance you need.

Top SDR and SDR-Based Ham Radio Options Under $2000

Exploring the Spectrum of Choices

Here’s a look at some of the most recommended SDRs and SDR-based transceivers relevant to ham radio use, fitting within or approaching the $2000 budget:

Entry-Level & Receiver SDRs (Typically < $300)

RTL-SDR (V3/V4 Dongles): (~$20 - $40) The absolute budget king. Originally TV tuners, these USB dongles offer reception from ~500 kHz (with direct sampling on V3+) up to 1.7 GHz with ~2.4 MHz bandwidth. Excellent for beginners exploring VHF/UHF and basic HF listening. Limited dynamic range (8-bit ADC). Requires a computer and software like SDR#.
NooElec NESDR SMArt / SMArTee Series: (~$30 - $50) Enhanced RTL-SDR variants often featuring better components (TCXO for stability), metal cases, and sometimes bundled antennas. The HF Bundle includes an upconverter for improved HF performance compared to direct sampling. Still 8-bit ADC.
SDRplay RSPdx: (~$200 - $250) A high-performance 14-bit receiver covering 1 kHz to 2 GHz with up to 10 MHz bandwidth. Features multiple antenna ports and excellent software support (SDRuno). A significant step up from RTL-SDRs for serious shortwave listening (SWL) and general reception. Receive-only.
Airspy HF+ Discovery: (~$170 - $200) Renowned for outstanding HF and VHF performance with excellent dynamic range, despite its small size. Covers 9 kHz - 31 MHz and 60 - 260 MHz. Uses custom high-performance software (SDR#). Receive-only.
KiwiSDR: (~$300) A unique network-based SDR receiver (10 kHz - 30 MHz) built around a BeagleBone single-board computer. Designed to be shared over the internet, allowing multiple users worldwide to tune in simultaneously. Includes GPS for timing. Receive-only.

Mid-Range & Transceiver SDRs ($300 - $600)

HackRF One: (~$300 - $350) A highly versatile, open-source SDR platform capable of half-duplex transmit and receive from 1 MHz to 6 GHz. Popular for experimentation and learning. Lower transmit power (requires amplification for serious ham use) and 8-bit ADC. Often paired with the PortaPack for standalone operation.
LimeSDR Mini / USB: (~$200 - $400+) Full-duplex transceiver SDRs known for wide bandwidth (up to 61.44 MHz on USB version) and frequency coverage (10 MHz - 3.5 GHz / 100 kHz - 3.8 GHz). More complex to set up than HackRF but very capable, especially for digital modes and experimentation. 12-bit ADC.
ADALM-PLUTO (PlutoSDR): (~$150 - $220) Developed by Analog Devices, this affordable SDR transceiver covers 325 MHz to 3.8 GHz (expandable via firmware mods down to 70 MHz and up to 6 GHz). Full-duplex, 12-bit ADC, up to 20 MHz bandwidth. Great for learning, satellite work, and VHF/UHF experimentation. Network and USB connectivity.
AFEDRI SDR-Net: (~$400) A network-based SDR receiver focused on HF (9 kHz - 30 MHz) known for good performance and remote operation capabilities via a web interface. Offers up to 1.5 MHz bandwidth.
Anan 200D (Older/Used): While newer Anan models exceed the budget, older models like the 10 or 100 series, or potentially a used 200D, might fall under $2000. These are high-performance HF + 6m SDR transceivers based on the HPSDR (High Performance Software Defined Radio) open-source project, known for excellent receiver performance (especially Predistortion for clean transmit signals). Require a PC with specific software (e.g., Thetis, PowerSDR).

SDR-Based Ham Transceivers (Approaching/Around $2000)

Icom IC-7300: (~$1000 - $1300) Arguably the most popular entry-level HF + 6m transceiver today. It uses a direct-sampling SDR architecture, offering excellent performance, a built-in antenna tuner, a touch screen with a real-time spectrum scope, and user-friendly operation. While not an "SDR" in the HackRF sense (it's a self-contained radio), its core is software-defined.
Yaesu FTDX10: (~$1500 - $1800) A direct competitor to the IC-7300, also using an SDR architecture (hybrid SDR - IF sampling). Known for excellent receiver performance, effective noise reduction, and a large color touch display with spectrum scope. Covers HF + 6m.
FlexRadio FLEX-6400M / 6400: (~$2200 / $2000 - Often slightly above $2000 new, but may dip below during sales or be found used within budget). Represents a step up in SDR transceivers. The 6400M includes an integrated touch screen and controls (Maestro front end), while the 6400 is a "black box" controlled entirely via PC or Maestro. Offers exceptional performance, industry-leading software (SmartSDR), remote operation capabilities, and covers HF + 6m.
Elecraft K4 / K4D: (Significantly above $2000 new, but worth mentioning as a high-end SDR benchmark). A top-tier modular HF + 6m transceiver renowned for contest-grade performance and direct sampling SDR architecture.

Visualizing SDR Capabilities: A Comparative Glance

SDR Feature Comparison Radar Chart

This chart provides a subjective comparison of several popular SDR options based on common ham radio priorities. Ratings are relative interpretations based on typical use cases and specifications discussed: '1' represents lower capability/complexity/cost, and '5' represents higher capability/complexity/cost within the general SDR landscape (not limited to the under $2000 category).

This visualization helps compare the relative strengths and weaknesses across different dimensions. For instance, the HackRF One excels in frequency coverage but lags in receiver performance compared to the SDRplay RSPdx or IC-7300. The IC-7300 offers great ease of use for traditional ham operation, while the FlexRadio provides a top-tier software experience but requires PC control and sits at the higher end of the budget.

Navigating Your SDR Choices: A Mindmap

Decision Pathways for SDR Selection

Choosing an SDR involves considering your primary goals and budget. This mindmap outlines key decision factors and categories of SDRs relevant to ham radio operators looking for options under $2000.

mindmap root["SDR Ham Radio < $2000"] ["Key Considerations"] ["Budget"] ["<$100"] ["$100 - $500"] ["$500 - $1000"] ["$1000 - $2000"] ["Primary Use"] ["Listening/SWL"] ["Experimentation/Learning"] ["HF Operation"] ["VHF/UHF Operation"] ["Digital Modes"] ["Remote Operation"] ["Transmit Needed?"] ["Receive Only (RX)"] ["Transmit/Receive (TX/RX)"] ["Technical Skill Level"] ["Beginner (Plug & Play)"] ["Intermediate (Some Setup)"] ["Advanced (DIY/Complex SW)"] ["Features"] ["Bandwidth"] ["Dynamic Range (ADC Bits)"] ["Frequency Coverage"] ["Software Needs"] ["Portability"] ["SDR Categories"] ["Entry-Level RX (<$100)"] ["RTL-SDR"] ["NooElec NESDR"] ["Mid-Range RX ($150-$300)"] ["SDRplay RSPdx"] ["Airspy HF+ Discovery"] ["KiwiSDR (Networked)"] ["Versatile TX/RX (<$500)"] ["HackRF One"] ["LimeSDR Mini"] ["PlutoSDR"] ["SDR-Based Transceivers ($1000+)"] ["Icom IC-7300"] ["Yaesu FTDX10"] ["FlexRadio 6400/M (Near $2k)"] ["Used/Older Anan/HPSDR"] ["Popular Software"] ["SDR# (Sharp)"] ["HDSDR"] ["GQRX (Linux/Mac)"] ["SDR Console"] ["SDRuno (for SDRplay)"] ["GNU Radio (Advanced)"] ["Vendor Specific (Flex SmartSDR)"]

Use this map to trace your requirements (like needing transmit capability or focusing on HF) to potential SDR categories and specific models mentioned earlier.

SDR Specifications at a Glance

Comparing Key Technical Details

This table summarizes the core technical specifications for some of the most discussed SDRs and SDR-based transceivers relevant to the under $2000 budget for ham radio use. Prices are approximate and can vary significantly based on retailer, condition (new/used), and included accessories.

Model	Typical Price Range (USD)	Frequency Range	Max Stable Bandwidth	ADC Resolution	Transmit Capable?	Primary Use Case
RTL-SDR (V3/V4)	$20 - $40	~500 kHz - 1.7 GHz	~2.4 MHz	8-bit	No	Beginner RX, VHF/UHF Scan
SDRplay RSPdx	$200 - $250	1 kHz - 2 GHz	10 MHz	14-bit	No	High-Performance RX, SWL
HackRF One	$300 - $350	1 MHz - 6 GHz	20 MHz	8-bit	Yes (Half-Duplex, Low Power)	Experimentation, Wideband RX/TX
ADALM-PLUTO (PlutoSDR)	$150 - $220	325 MHz - 3.8 GHz (Expandable: 70 MHz - 6 GHz)	20 MHz (Up to 56 MHz modded)	12-bit	Yes (Full-Duplex, Low Power)	Learning, VHF/UHF/Microwave TX/RX
Icom IC-7300	$1000 - $1300	HF + 6m (RX: 0.03-74.8 MHz)	Scope Span (Not Inst. BW like others)	16-bit (Equivalent via FPGA)	Yes (100W HF, 50W 6m)	All-Mode HF/6m Ham Transceiver
Yaesu FTDX10	$1500 - $1800	HF + 6m (RX: 0.03-75 MHz)	Scope Span	18-bit (Equivalent via ADC/FPGA)	Yes (100W HF, 50W 6m)	High-Performance HF/6m Ham Transceiver
FlexRadio 6400 / 6400M	$2000 - $2400	HF + 6m (RX: 0.03 - 54 MHz)	14 MHz (per 'Slice' receiver)	16-bit	Yes (100W)	Advanced SDR Ham Transceiver, Remote Op

Note that specifications like "ADC Resolution" for integrated transceivers (IC-7300, FTDX10, Flex) reflect the performance achieved through their specific SDR architectures (Direct Sampling, Hybrid Sampling) and may not be directly comparable to the raw ADC specs of receiver dongles.

Visualizing the World of SDR Ham Radio

Hardware Setups and Software Interfaces

Getting started with SDR involves connecting the hardware to an antenna and a computer (or using a self-contained unit). The software interface then becomes your window into the radio spectrum. Below are some images illustrating typical SDR hardware, ham shack setups incorporating SDRs, and the visual waterfall displays common in SDR software.

SDRuno Software Interface with Waterfall Display

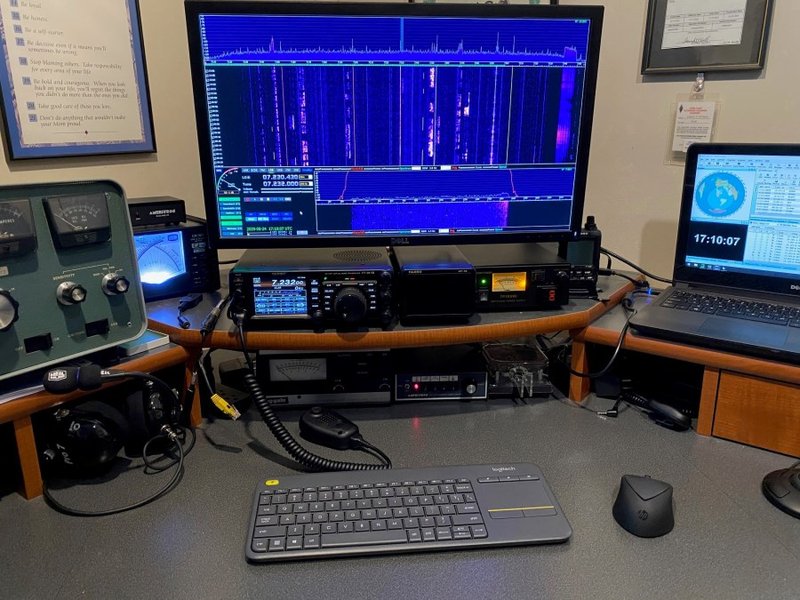

Ham Shack with Yaesu FT-991 and HDSDR Software

These images showcase the range from simple USB dongles like the RTL-SDR (top left) to more complex setups integrating SDRs with traditional transceivers (bottom left, showing HDSDR with an FT-991). The software screenshots highlight the powerful visual aspect of SDR, allowing operators to see radio signals across a band in real-time via the spectrum scope and waterfall display (top right, bottom center).

Expert Insights: Choosing Your HF Base Station

Video Discussion on Radios Under $2000

While focusing broadly on HF base stations rather than exclusively SDRs, this video provides valuable context on popular radios within the under $2000 price bracket, many of which utilize SDR technology like the Icom IC-7300 discussed earlier. It offers insights into feature comparisons relevant to making a purchase decision in this price range.

Understanding the landscape of popular HF transceivers helps contextualize where different SDR options fit, whether as standalone solutions, complementary receivers (panadapters), or the core technology within modern radios.
