Conversion of Binary 11010101 to Denary

A Detailed Step-by-Step Guide and Analysis

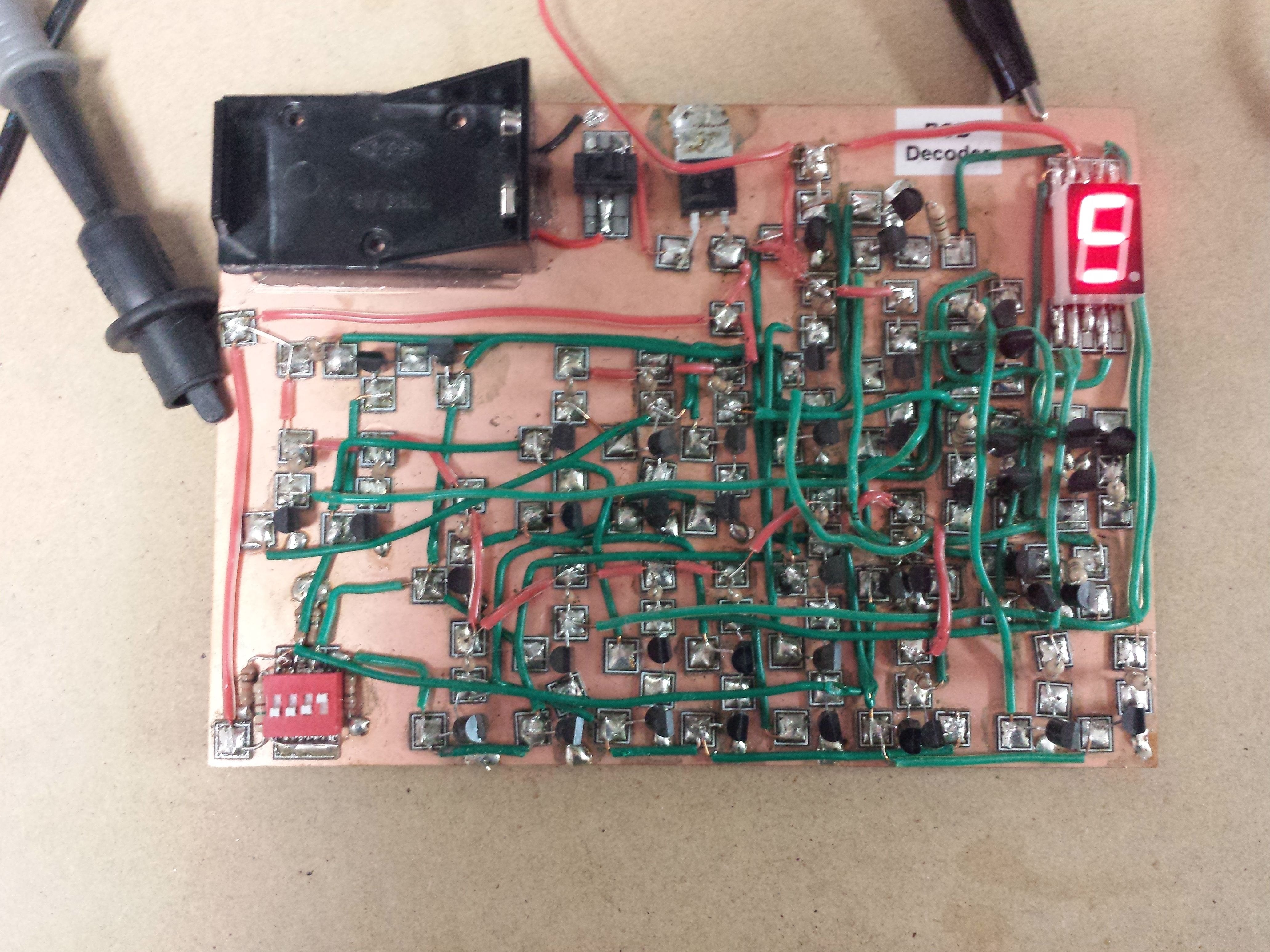

digital circuit board and binary display

Highlights

Binary Positional Values: Each position of a binary digit represents a power of 2, starting with \(2^0\) on the right.
Step-by-Step Calculations: Multiply each binary digit by its corresponding power and sum the results to obtain the decimal (denary) value.
Fundamental Concepts: Understanding binary conversion deepens your grasp of digital systems and computer arithmetic.

Understanding the Binary Number System

The binary number system is the backbone of digital electronics and computing. Unlike the decimal system, which is based on the number 10, binary is based on just two digits: 0 and 1. Each binary digit, or bit, represents an exponential power of 2. Because digital devices operate using two states (commonly represented as off and on), binary naturally fits into the design and functioning of these systems.

Positional Notation in Binary

Positional notation is essential in understanding how numbers in various bases operate. In binary numbers, each digit's value depends not just on whether it is a 0 or 1, but also on its position relative to the right side of the number. The rightmost bit corresponds to \(2^0\) (which equals 1), and each digit to the left increases exponentially by a factor of 2. Thus, for an n-bit number, the leftmost bit corresponds to \(2^{(n-1)}\).

Illustration of Positional Values

Consider the binary number 11010101, which is composed of 8 bits. The positional values from left to right can be mapped as follows:

Bit Position	Digit	Power of 2	Calculation
7 (leftmost)	1	\(2^7 = 128\)	\(1 \times 128 = 128\)
6	1	\(2^6 = 64\)	\(1 \times 64 = 64\)
5	0	\(2^5 = 32\)	\(0 \times 32 = 0\)
4	1	\(2^4 = 16\)	\(1 \times 16 = 16\)
3	0	\(2^3 = 8\)	\(0 \times 8 = 0\)
2	1	\(2^2 = 4\)	\(1 \times 4 = 4\)
1	0	\(2^1 = 2\)	\(0 \times 2 = 0\)
0 (rightmost)	1	\(2^0 = 1\)	\(1 \times 1 = 1\)

This table clearly lays out the value each bit contributes toward the overall number when represented in decimal form.

Step-by-Step Conversion Process

Step 1: Writing Down the Binary Number

Begin by clearly writing the binary number. For our example, the number is:

11010101

Step 2: Assigning Positional Values

Each binary digit is assigned a positional value based on powers of 2. Starting from the rightmost digit which represents \(2^0\) (or 1), continue to the left by incrementing the exponent by 1. This procedure assigns the following values to each digit:

1 (leftmost) is multiplied by \(2^7 = 128\)
1 is multiplied by \(2^6 = 64\)
0 is multiplied by \(2^5 = 32\)
1 is multiplied by \(2^4 = 16\)
0 is multiplied by \(2^3 = 8\)
1 is multiplied by \(2^2 = 4\)
0 is multiplied by \(2^1 = 2\)
1 (rightmost) is multiplied by \(2^0 = 1\)

Step 3: Multiplication of Digits and Power Values

Calculate the product for each digit with its corresponding power of 2:

Calculation Details

For the leftmost 1: \(1 \times 128 = 128\)
For the next 1: \(1 \times 64 = 64\)
For 0: \(0 \times 32 = 0\)
For the 1: \(1 \times 16 = 16\)
For 0: \(0 \times 8 = 0\)
For the next 1: \(1 \times 4 = 4\)
For another 0: \(0 \times 2 = 0\)
For the rightmost 1: \(1 \times 1 = 1\)

Step 4: Summing the Values

To find the decimal (denary) equivalent, add all the products obtained in the previous step:

\[ 128 + 64 + 0 + 16 + 0 + 4 + 0 + 1 = 213 \]

Thus, once the binary digits have been multiplied by their corresponding powers of 2 and the resulting values added together, the final decimal number is 213.

In-Depth Analysis of the Conversion Process

The conversion of binary numbers into decimal is not only useful for understanding how computers process data but also important for multiple disciplines including digital electronics and computer science. The conversion process involves core mathematical principles that can be applied to any number system conversion. Here, we examine the broader implications of the process with added insights.

Understanding Positional Notation in Greater Detail

The positional nature of the numeral system allows for an elegant representation of numbers. In the binary system, each digit (bit) represents an increasing power of 2, similar to how the decimal system uses powers of 10. The fundamental relationship can be expressed mathematically as:

\[ N = \sum_{i=0}^{n-1} b_i \times 2^i \]

Here, \(b_i\) is the binary digit at position \(i\), and \(n\) represents the number of bits. This principle is not limited only to binary conversion but applies universally in various base conversion scenarios. For the binary number 11010101, with n = 8, each bit contributes to the overall number according to its place-value. Recognizing this systematic approach enhances one’s capacity to deduce and even design conversion algorithms that are crucial in computer arithmetic.

Practical Applications of Binary Conversion

Understanding how to convert binary to decimal has several practical applications:

Computer Architecture: Software engineers and hardware designers must often convert binary data to a human-readable decimal format for debugging and system design.
Digital Communication: In digital data transmission, binary representation ensures error detection and correction. The conversion process assists in interpreting these data streams.
Cryptography and Data Security: Many encryption algorithms, hashing functions, and data encoding techniques utilize binary arithmetic for their operations. Understanding conversion helps demystify these processes and improve implementation accuracy.

Comparative Look at Alternative Methods

While the traditional method of multiplying each binary digit by its respective power of 2 is the most common approach, several alternative methods can simplify the process in specific contexts:

Bit Shifting Techniques

In many programming languages, converting a binary number to decimal can be done using bit shifting, which shifts bits left or right to simulate multiplication or division by powers of 2. Although the manual process remains fundamental for educational purposes, bit shifting makes the procedure more efficient in code, especially when processing large datasets or performing real-time computations.

Using Built-in Conversion Functions

Modern programming environments provide built-in functions that perform this conversion with a high degree of accuracy. For example, languages like Python, C++, and Java offer methods to convert binary strings to their decimal equivalents, often wrapping the underlying logic into a single function call. However, knowing the manual technique remains invaluable for understanding how these functions work and troubleshooting when unexpected behavior occurs.

Applying the Conversion in Real-World Scenarios

Examining a scenario where conversion of binary data becomes necessary can illustrate its importance. Imagine a software engineer working on a low-level system application that communicates directly with computer hardware. Data received in binary format must be interpreted to determine the correct functioning of hardware components. In such a case, manually verifying the conversion process ensures that the system’s data handling is accurate, ultimately reducing the likelihood of errors in the overall system.

Challenges in Binary Conversion

Despite its straightforward nature, binary conversion can sometimes lead to errors if the positional values are misinterpreted. Programmers and engineers must be extra cautious when dealing with large binary sequences. Relying on well-tested conversion methods and double-checking computations minimizes the risk of miscalculations. As computer systems become more complex, understanding fundamental principles such as these becomes critical.

Additional Examples and Practice Problems

To consolidate your understanding of binary to decimal conversion, practicing additional examples is beneficial. Here are a few examples:

Example 1: Convert 10101010 to Decimal

Assign the positional values:

Bit	Power of 2	Value
1	\(2^7 = 128\)	\(128\)
0	\(2^6 = 64\)	\(0\)
1	\(2^5 = 32\)	\(32\)
0	\(2^4 = 16\)	\(0\)
1	\(2^3 = 8\)	\(8\)
0	\(2^2 = 4\)	\(0\)
1	\(2^1 = 2\)	\(2\)
0	\(2^0 = 1\)	\(0\)

Then sum the results: \(128 + 0 + 32 + 0 + 8 + 0 + 2 + 0 = 170\). Therefore, 10101010 equals 170 in decimal.

Example 2: Convert 11110000 to Decimal

Apply the positional weights:

Bit	Power of 2	Value
1	\(2^7 = 128\)	\(128\)
1	\(2^6 = 64\)	\(64\)
1	\(2^5 = 32\)	\(32\)
1	\(2^4 = 16\)	\(16\)
0	\(2^3 = 8\)	\(0\)
0	\(2^2 = 4\)	\(0\)
0	\(2^1 = 2\)	\(0\)
0	\(2^0 = 1\)	\(0\)

Summing these up: \(128 + 64 + 32 + 16 = 240\). Thus, 11110000 in binary equals 240 in decimal.

Exercises like these not only reinforce the process but also help you understand the subtleties involved in converting binary data from one numeral system to another.

Advanced Concepts and Considerations

Error Checking and Validation

When dealing with binary to decimal conversion, particularly when processing long binary strings or data received from hardware sensors, validation is essential. Common checks include:

Ensuring that the binary string contains only the digits 0 and 1.
Verifying the length of the binary string matches expected formats for the particular system or protocol.
Using checksums or parity bits to detect errors if the conversion is part of a data transmission process.

Historical Context of Binary Computing

The binary system has a storied history, dating back to ancient civilizations that employed similar dualistic concepts in philosophical constructs. Fast forward to the 20th century, and binary logic became the foundation of digital computing, led by pioneers such as George Boole and Claude Shannon. The ability to translate binary data into human-readable formats underpins modern computing and has revolutionized the way we process and understand information.

Implementing Conversions in Software

For professionals in software development, understanding the underlying arithmetic of binary conversion is beneficial when writing custom conversion functions or troubleshooting existing code. Consider a simple algorithm in pseudocode:


# Pseudocode for converting binary to decimal
def binary_to_decimal(binary_str):
    decimal_value = 0
    length = len(binary_str)
    for index in range(length):
        digit = int(binary_str[length - index - 1])
        decimal_value += digit * (2 ** index)
    return decimal_value

# Example usage:
binary_number = "11010101"
print("Decimal value:", binary_to_decimal(binary_number))

This pseudocode mirrors the manual process of evaluating positional values, ensuring a clear and effective conversion. Though many high-level languages have libraries to handle this conversion automatically, it remains useful to grasp the underlying method.

Practical Applications in Modern Technology

Understanding binary-to-decimal conversion is not merely an academic exercise. It finds practical application in various fields:

Embedded Systems: These systems often require direct handling of binary data for sensor readings, status indicators, or communication protocols.
Networking: Data packets transmitted over networks are encoded in binary, and the ability to convert this data into numerical values is critical for error-checking and data integrity analysis.
Digital Signal Processing: Converting between number systems is inherent in algorithms used to process audio, video, and other signal forms.
Educational Tools: Teachers often employ binary conversion problems to explain the fundamentals of computer science, binary arithmetic, and logic circuits.

By mastering this conversion, practitioners not only improve their technical skills but also lay a strong foundation for more complex computational tasks such as encryption, compression, and data visualization.

Conclusion

In conclusion, converting the binary number 11010101 to its decimal equivalent involves understanding the positional values of each digit and then multiplying these values by the corresponding powers of 2 before summing the results. The process, while simple at face value, has profound implications in computing, digital electronics, and various fields of engineering. Through a detailed examination of binary positional notation, practical applications, and even some code examples, we have thoroughly demonstrated how a binary number can be precisely converted to its denary form. The final result is that 11010101 in binary equals 213 in decimal. Mastering this technique not only enriches one's understanding of number systems but also provides essential insights into the workings of modern digital systems.
