Unveiling Boundary Value Analysis: A Core Technique in Software Testing

Key Insights into Boundary Value Analysis

Strategic Focus: Boundary Value Analysis (BVA) is a black-box testing technique that specifically targets the extreme edges of input ranges, where software defects are most frequently found.
Efficiency and Effectiveness: By concentrating on values at, just inside, and just outside valid and invalid boundaries, BVA significantly reduces the number of test cases required while maximizing the likelihood of uncovering critical errors.
Complementary Power: BVA is often used in conjunction with Equivalence Partitioning (EP), with EP dividing inputs into broad categories and BVA refining testing by focusing on the boundaries within those categories.

In the intricate world of software development, ensuring the reliability and robustness of an application is paramount. Software testing plays a crucial role in this process, systematically identifying flaws and verifying that the software behaves as expected under various conditions. Among the myriad of testing techniques, Boundary Value Analysis (BVA) stands out as a highly effective and widely adopted method, particularly within the realm of black-box testing. BVA is founded on the astute observation that software errors tend to congregate at the extreme ends of input ranges rather than in their middle. This technique provides a focused approach to uncover vulnerabilities that might otherwise remain undetected, thereby significantly enhancing software quality.

What is Boundary Value Analysis (BVA)?

Pinpointing Pitfalls at the Extremes

Boundary Value Analysis (BVA) is a software testing technique that zeroes in on the boundaries or "edges" of input ranges to identify potential defects. It's a type of black-box testing, meaning it's conducted without knowledge of the internal code structure. The core principle behind BVA is that programmers are more prone to making errors when dealing with conditions at the limits of an input domain, such as using "equal to" ($=$), "greater than" ($>$), "less than" ($<$), "greater than or equal to" ($\geq$), or "less than or equal to" ($\leq$) operators, or when defining loop iterations. By strategically testing values precisely at these boundaries, just inside them, and just outside them, testers can effectively expose these common programming oversights.

Diagram illustrating boundary values for a range

An illustrative diagram showing valid and invalid partitions with marked boundary values.

Why Focus on Boundaries?

The rationale behind BVA is simple yet profound: defects are statistically more likely to occur at the boundaries of input ranges. Consider a system designed to accept an age between 18 and 60. While values like 30 or 45 might work perfectly, issues could arise at 17 (just below the minimum), 18 (at the minimum), 60 (at the maximum), or 61 (just above the maximum). These "edge cases" are where incorrect assumptions about system behavior or subtle coding errors manifest. By rigorously testing these specific points, BVA ensures that the software handles extreme conditions gracefully and accurately.

The Interplay with Equivalence Partitioning

A Powerful Combination for Test Case Optimization

Boundary Value Analysis is often employed in conjunction with another powerful black-box testing technique: Equivalence Partitioning (EP). While EP focuses on dividing the entire input domain into distinct "equivalence classes" or partitions—groups of inputs that are expected to behave similarly—BVA takes this a step further by concentrating on the edges of these partitions. Equivalence Partitioning helps reduce the total number of test cases by asserting that if one value in a partition works, others in that same partition likely will too. However, it's the boundaries between these partitions where BVA shines, revealing errors that EP might miss.

Diagram showing equivalence partitions and boundary values

Visual representation of how Equivalence Partitioning divides input ranges, complemented by Boundary Value Analysis targeting the edges.

Synergy in Test Design

The combination of EP and BVA is highly synergistic. First, equivalence partitioning is used to logically divide the input data into valid and invalid groups. For example, if a scholarship program accepts test scores between 70% and 85%, the valid partition is [70, 85]. Invalid partitions would be $(-\infty, 69]$ and $[86, +\infty)$. Once these partitions are established, BVA then focuses on the values at and around the boundaries of these partitions, both valid and invalid. This strategic approach ensures comprehensive coverage while keeping the number of test cases manageable, leading to more efficient and effective testing cycles.

Implementing Boundary Value Analysis: A Step-by-Step Approach

Crafting Effective Test Cases

To effectively apply BVA, a systematic approach is essential. The process typically involves identifying the input variables, defining their ranges, and then systematically selecting test cases based on the boundary values. This technique is particularly effective for systems that process numerical data or have defined constraints.

Steps for Conducting BVA

Identify Input Variables and Ranges: Begin by pinpointing all input variables that have defined ranges or constraints. For each variable, determine its valid and invalid ranges, including minimum and maximum values.
Define Equivalence Partitions (Optional but Recommended): If not already done, divide the input domain into equivalence classes (valid and invalid). This provides a foundational structure for identifying boundaries.
Select Boundary Test Cases: For each identified boundary, choose test cases that include:
- The value exactly at the boundary.
- A value just inside the boundary (e.g., boundary value - 1 for integers, or boundary value - 0.01 for decimals).
- A value just outside the boundary (e.g., boundary value + 1 for integers, or boundary value + 0.01 for decimals).
Execute Test Cases: Run the selected test cases and carefully observe the system's behavior.
Document Results: Record the actual outcomes, compare them with expected outcomes, and report any discrepancies as defects.

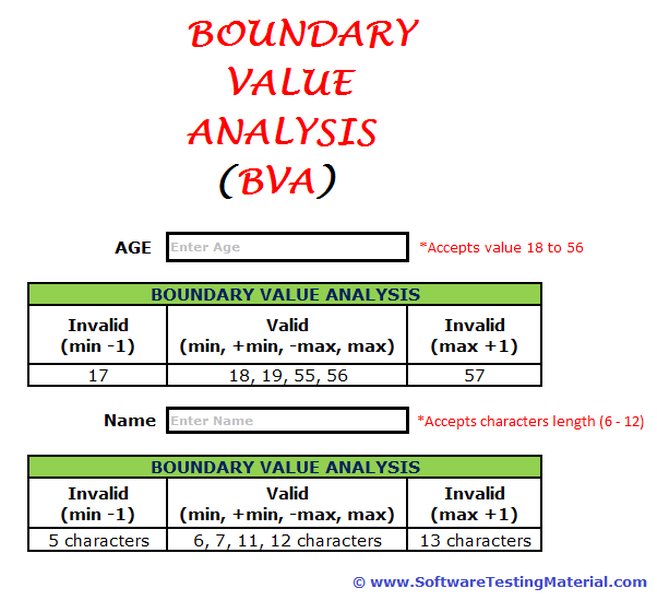

Example: Age Validation System

Consider a system that accepts ages from 18 to 56 for a specific service. The valid range is $[18, 56]$.

Invalid ranges are $(-\infty, 17]$ and $[57, +\infty)$.

Based on BVA, the critical test cases would be:

Minimum Boundary: 17 (just outside, invalid), 18 (on the boundary, valid), 19 (just inside, valid).
Maximum Boundary: 55 (just inside, valid), 56 (on the boundary, valid), 57 (just outside, invalid).

This set of six test cases provides robust coverage for the age input, far more efficiently than testing numerous values within the range.

This video provides a concise explanation of Boundary Value Analysis with practical examples, reinforcing the concepts discussed.

Benefits and Considerations of Boundary Value Analysis

Enhancing Software Reliability and Efficiency

BVA offers several compelling advantages that make it an indispensable technique in a tester's toolkit. However, like any testing method, it also has its limitations that testers must consider.

Advantages of BVA

Early Defect Detection: Since many errors occur at boundaries, BVA helps identify critical issues early in the development cycle, reducing the cost of fixing them later.
Reduced Test Case Count: It significantly cuts down the number of test cases needed compared to exhaustive testing, saving time and resources.
Improved Test Coverage: By systematically targeting error-prone areas, BVA ensures high-quality test coverage for numerical and sequential input fields.
Increased Software Robustness: Ensures the software handles edge cases and extreme inputs gracefully, leading to more reliable and stable applications.
Cost-Effective: By optimizing test cases and enabling early detection, BVA contributes to overall cost efficiency in the testing process.

Limitations of BVA

Not Suitable for Non-Ordered Data: BVA is primarily applicable when input parameters are ordered, typically numeric or sequential. It's less effective for non-numeric, unordered, or boolean input types.
May Miss Mid-Range Errors: While strong at boundaries, BVA might not detect errors that occur strictly within the middle of an equivalence partition and are not related to boundary conditions.
Complexity with Multiple Variables: For complex input domains with many interacting variables, BVA can become challenging to apply comprehensively.
Assumes Single Fault: Traditional BVA often operates under the "single fault assumption," meaning it tests one boundary at a time. It may not uncover defects arising from combinations of boundary conditions across multiple inputs.

Boundary Value Analysis in Practice: Real-World Applications

Diverse Scenarios Where BVA Shines

Boundary Value Analysis is applicable across a wide array of software types and functionalities, particularly where input ranges and constraints are present. Its versatility makes it a go-to technique for ensuring accuracy and stability.

Practical Examples

Scenario	Input Range	Valid Boundary Values	Invalid Boundary Values	Test Cases (BVA)
Online Store Discount	Purchase amount for a 10% discount: $100-$500	$100, $500	$99.99, $500.01	$99.99, $100, $100.01, $499.99, $500, $500.01
Password Length	Password characters: 8-16	8, 16	7, 17	7, 8, 9 (valid within range), 15, 16, 17
Date Input	Dates between 05/08/2023 and 30/09/2023	05/08/2023, 30/09/2023	04/08/2023, 01/10/2023	04/08/2023, 05/08/2023, 06/08/2023, 29/09/2023, 30/09/2023, 01/10/2023
Student Grade System	Grade points: 0-100	0, 100	-1, 101	-1, 0, 1, 99, 100, 101

As illustrated in the table, BVA provides a clear and concise set of test cases for each scenario, covering the most critical points where issues are likely to surface.

The Strategic Importance of Boundary Value Analysis

A Foundation for Quality Assurance

Boundary Value Analysis is more than just a technique; it's a strategic mindset in software testing. It forces testers to think critically about the implicit and explicit boundaries within a system's requirements. By recognizing that programmers, despite their best efforts, often introduce subtle errors at the edges of their logic, BVA ensures that these vulnerable points are thoroughly scrutinized.

The radar chart above visually compares Boundary Value Analysis (BVA) against Equivalence Partitioning (EP) and Random Testing across several key metrics. It highlights BVA's strong performance in terms of efficiency, defect detection rate (especially for boundary-related issues), and its significant contribution to software robustness. While EP offers broader coverage by categorizing inputs, BVA provides a targeted, high-impact approach where errors are most likely to hide. Random testing, while simple, lacks the strategic focus of BVA and EP, making it less effective in uncovering specific types of defects.

Ultimately, BVA is a cornerstone of effective black-box testing. When integrated thoughtfully into the overall test strategy, particularly alongside Equivalence Partitioning, it empowers testing teams to deliver higher-quality software that stands up to the rigors of real-world usage, even at its operational limits.

Frequently Asked Questions (FAQ)

What is the main goal of Boundary Value Analysis?

The main goal of Boundary Value Analysis is to find defects and errors in software by testing input values at the boundaries of acceptable ranges, as these are areas where errors are most likely to occur.

Is Boundary Value Analysis a black-box or white-box testing technique?

Boundary Value Analysis (BVA) is a black-box testing technique. This means it focuses on the inputs and outputs of the software without requiring knowledge of its internal code structure or implementation.

How does BVA relate to Equivalence Partitioning?

BVA is closely related to and often used as an extension of Equivalence Partitioning (EP). EP divides input data into partitions (valid and invalid), while BVA focuses on testing the values exactly at, just inside, and just outside the boundaries of these partitions, where defects are commonly found.

What are the typical test cases derived from Boundary Value Analysis?

For any given boundary, BVA typically derives three test cases: one value exactly on the boundary, one value just inside the boundary (e.g., minimum + 1, maximum - 1), and one value just outside the boundary (e.g., minimum - 1, maximum + 1).

Can Boundary Value Analysis be used for non-numeric data?

BVA is most effective for ordered data, typically numerical or sequential (like character limits in a string). While its core principle of "boundaries" can be conceptually applied to some non-numeric scenarios, it is less directly applicable to unordered or boolean data types.
