The Brooklyn Bridge Span: Comprehensive Overview

Exploring the Dimensions and Engineering Marvel of New York's Iconic Landmark

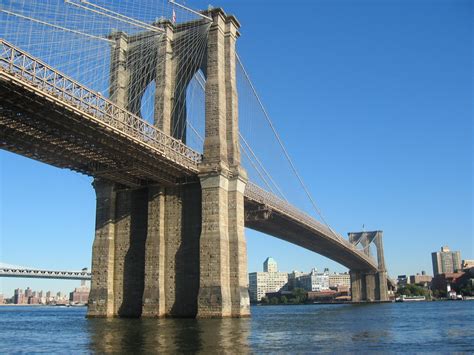

Brooklyn Bridge New York City

Key Takeaways

  • Main Span: The Brooklyn Bridge boasts a main suspension span of 1,595.5 feet (486.3 meters).
  • Total Length: Including approaches, the bridge stretches approximately 6,016 feet (1,833.7 meters).
  • Historical Significance: Upon its completion in 1883, it was the world's longest suspension bridge, marking a pivotal moment in engineering history.

Introduction

The Brooklyn Bridge stands as a testament to architectural ingenuity and engineering prowess. Connecting the boroughs of Manhattan and Brooklyn over the East River, this iconic suspension bridge not only serves as a vital transportation link but also as a symbol of New York City's enduring spirit. This comprehensive overview delves into the various aspects of the Brooklyn Bridge's span, exploring its dimensions, structural components, and historical significance.

Main Span Details

Dimensions of the Primary Suspension Span

The main span of the Brooklyn Bridge is one of its most defining features. Measuring 1,595.5 feet (486.3 meters), this suspension span is the distance between the two primary towers that anchor the bridge. The main span is not only crucial for supporting the roadway but also plays a significant role in the bridge's aesthetic appeal, providing an elegant curve that has become emblematic of its design.

Engineering Construction

The construction of the main span was a monumental engineering challenge during the late 19th century. Utilizing groundbreaking techniques for its time, builders employed massive steel cables and innovative anchoring methods to ensure stability and durability. The main span's ability to withstand the test of time is a testament to the meticulous planning and execution undertaken by the engineers involved in its creation.

Total Length and Structure

Comprehensive Measurement

Including its approaches, the Brooklyn Bridge spans a total length of approximately 6,016 feet (1,833.7 meters). This measurement encompasses the full extent of the bridge from Park Row in Manhattan to Sands Street in Brooklyn, integrating both the suspension spans and the ancillary structural elements that support pedestrian walkways and vehicular traffic.

Structural Components

The bridge's extensive length is divided into several key sections:

  • Main Span: 1,595.5 feet (486.3 meters)
  • Side Spans: Each side span measures 930 feet (280 meters), bridging the gap between the main towers and the anchorages on either side.
  • Approaches: These extend the overall length to 6,016 feet (1,833.7 meters), providing access points to both Manhattan and Brooklyn.

Side Spans

Function and Design

Flanking the main span are the side spans, each measuring 930 feet (280 meters). These sections serve as transitional areas between the towering suspension cables and the anchorages that secure the bridge to the surrounding landscape. The side spans are integral in distributing the structural load and maintaining the bridge's overall balance and integrity.

Architectural Significance

The side spans contribute to the Brooklyn Bridge's harmonious design, ensuring that the structural elements complement the aesthetic lines of the main span. Their robust construction provides essential support, allowing the bridge to accommodate both heavy traffic and the dynamic forces exerted by wind and water currents.

Deck Elevation

Height Above Water

The deck of the Brooklyn Bridge is elevated 127 feet (38.7 meters) above Mean High Water. This elevation ensures sufficient clearance for maritime traffic navigating beneath the bridge, preventing obstructions and facilitating smooth passage for ships and boats along the East River.

Safety and Accessibility

The elevated deck provides not only operational efficiency but also enhances the safety and accessibility of the bridge. Pedestrian walkways and vehicular lanes are strategically positioned to leverage this height, offering expansive views of the New York City skyline while ensuring secure pathways for all users.


Engineering Significance and History

Historical Context

Completed in 1883, the Brooklyn Bridge was a groundbreaking achievement in civil engineering. At the time of its inauguration, it held the title of the world's longest suspension bridge, a record it maintained until 1890. Its construction marked a pivotal moment in the development of suspension bridge technology, setting new standards for design, materials, and construction methodologies.

Innovations Introduced

The bridge incorporated several innovative features that were advanced for its era:

  • Cable Construction: The use of steel-wire cables was a significant advancement, providing greater strength and flexibility compared to previous materials.
  • Tower Design: The Gothic-style stone towers not only offered structural support but also added to the bridge's aesthetic appeal, blending functionality with beauty.
  • Anchoaisum Techniques: Advanced anchorage techniques ensured the stability of the suspension cables, allowing the bridge to endure environmental stresses over time.

Legacy and Preservation

Today, the Brooklyn Bridge is celebrated not only for its historical significance but also for its enduring functionality. Continuous preservation efforts have maintained its structural integrity and appearance, allowing it to remain a vital artery for traffic and a beloved landmark for both residents and visitors of New York City.

Comparison with Other Suspension Bridges

Relative Measurements

While the Brooklyn Bridge was the longest of its kind at the time of its completion, numerous suspension bridges have surpassed its main span in the ensuing decades. For instance, modern bridges like the Akashi Kaikyō Bridge in Japan boast main spans exceeding 6,500 feet (1,980 meters), highlighting advancements in engineering and materials sciences.

Design Evolution

Comparing the Brooklyn Bridge with contemporary suspension bridges reveals significant evolutions in design and construction techniques. Modern bridges often utilize advanced computing for precise engineering, materials with higher tensile strengths, and aerodynamic designs to better withstand environmental forces. Despite these advancements, the Brooklyn Bridge remains a benchmark for classical suspension bridge design, celebrated for its timeless elegance and robust construction.

Cultural Impact

Beyond mere functionality, the Brooklyn Bridge has had a profound cultural impact, serving as an inspiration for artists, writers, and architects. Its enduring presence in literature, film, and visual arts underscores its role as a cultural icon, representing the intersection of human ingenuity and the natural environment.


Conclusion

The Brooklyn Bridge's span, encompassing a main suspension span of 1,595.5 feet and a total length of over 6,000 feet, stands as a monumental achievement in the realm of civil engineering. Its construction not only connected two vital boroughs of New York City but also set enduring standards for suspension bridge design. Today, the bridge continues to serve as a vital transportation link and a cherished symbol of New York's architectural heritage, embodying the city's resilience and forward-looking spirit.
