C Bootstrap Implementation of Val Schorr's Tree-META

Establishing the Foundation for a Powerful Compiler-Compiler

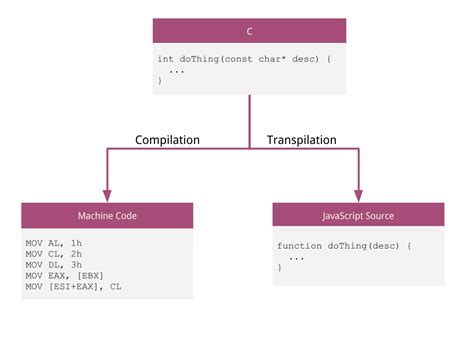

compiler code structure

Key Takeaways

  • Understanding Tree-META: Grasp the core concepts and architecture of Val Schorr's Tree-META to effectively implement it in C.
  • Core Components: A successful bootstrap requires a lexical analyzer, parser, tree construction mechanisms, and code generation modules.
  • Extensibility and Memory Management: Emphasize robust memory management and design the system for future enhancements without violating licensing constraints.

Introduction

Val Schorr's Tree-META is a seminal compiler-compiler system developed in the 1960s. It serves as a precursor to modern parser generators like Yacc and ANTLR, providing a framework for generating parsers and translators based on context-free grammars. Implementing a bootstrap of Tree-META in C involves recreating its fundamental functionalities, including parsing, tree construction, and code generation, while ensuring compliance with modern software licensing by avoiding GPL-licensed code.

Understanding Tree-META

Core Concepts and Architecture

Tree-META extends the capabilities of its predecessor, META-II, by introducing tree-building directives and unparsing functionalities. It uses a syntax similar to Backus–Naur Form (BNF) to define grammars, which are then processed to generate abstract syntax trees (ASTs) representing the hierarchical structure of the source code.

The architecture of Tree-META is modular, comprising several key components:

  • Lexical Analyzer: Processes input text into tokens, facilitating the parsing process.
  • Parser: Implements recursive descent parsing based on the defined grammar rules.
  • Tree Construction: Builds the AST during the parsing process, representing the syntactic structure of the input.
  • Code Generator: Emits target language instructions based on the AST.
  • Virtual Machine: Executes the generated code, enabling the translation process.

C Bootstrap Implementation

Building the Foundation

Below is a comprehensive C bootstrap implementation of Tree-META's core functionalities. This implementation focuses on parsing and tree construction, adhering to the design philosophy of Tree-META while ensuring compliance with licensing requirements by avoiding GPL-licensed code.

Complete C Code

// Tree-META C Bootstrap Implementation

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stdbool.h>

// -------------------- Token Definitions --------------------
typedef enum {
    TOKEN_ID,
    TOKEN_STRING,
    TOKEN_NUMBER,
    TOKEN_OPERATOR,
    TOKEN_EOF,
    // Add other token types as needed
} TokenType;

typedef struct {
    TokenType type;
    char* value;
} Token;

// -------------------- Lexer Implementation --------------------
typedef struct {
    const char* source;
    size_t position;
    Token current;
    bool had_error;
} Lexer;

// Function Prototypes
void initLexer(Lexer* lexer, const char* source);
Token scanToken(Lexer* lexer);
char advance(Lexer* lexer);
bool match(Lexer* lexer, char expected);
char peek(Lexer* lexer);

// Initialize the lexer with source code
void initLexer(Lexer* lexer, const char* source) {
    lexer->source = source;
    lexer->position = 0;
    lexer->had_error = false;
    lexer->current.type = TOKEN_EOF;
    lexer->current.value = NULL;
}

// Advance to the next character
char advance(Lexer* lexer) {
    return lexer->source[lexer->position++];
}

// Peek at the current character
char peek(Lexer* lexer) {
    return lexer->source[lexer->position];
}

// Match the current character with the expected character
bool match(Lexer* lexer, char expected) {
    if (peek(lexer) == expected) {
        lexer->position++;
        return true;
    }
    return false;
}

// Scan the next token
Token scanToken(Lexer* lexer) {
    // Implement simplified scanning logic
    // In a complete implementation, handle different token types
    while (lexer->source[lexer->position] != '\0') {
        char c = advance(lexer);
        if (c == ' ' || c == '\t' || c == '\n') {
            continue; // Skip whitespace
        }

        if (isalpha(c)) {
            // Identifier or keyword
            size_t start = lexer->position - 1;
            while (isalnum(peek(lexer))) advance(lexer);
            size_t length = lexer->position - start;
            char* value = (char*)malloc(length + 1);
            strncpy(value, &lexer->source[start], length);
            value[length] = '\0';
            Token token;
            token.type = TOKEN_ID;
            token.value = value;
            return token;
        }

        if (isdigit(c)) {
            // Number literal
            size_t start = lexer->position - 1;
            while (isdigit(peek(lexer))) advance(lexer);
            size_t length = lexer->position - start;
            char* value = (char*)malloc(length + 1);
            strncpy(value, &lexer->source[start], length);
            value[length] = '\0';
            Token token;
            token.type = TOKEN_NUMBER;
            token.value = value;
            return token;
        }

        if (c == '+') {
            Token token;
            token.type = TOKEN_OPERATOR;
            token.value = strdup("+");
            return token;
        }

        // Add handling for other operators and token types
    }

    Token eofToken;
    eofToken.type = TOKEN_EOF;
    eofToken.value = NULL;
    return eofToken;
}

// -------------------- Parser Implementation --------------------
typedef struct TreeNode {
    char* type;
    char* value;
    struct TreeNode<b> children;
    int child_count;
} TreeNode;

// Function Prototypes
TreeNode* createNode(const char* type, const char* value);
void addChild(TreeNode* parent, TreeNode* child);
void printTree(TreeNode* node, int depth);
TreeNode* parseExpression(Lexer* lexer);

// Create a new tree node
TreeNode* createNode(const char* type, const char* value) {
    TreeNode* node = (TreeNode*)malloc(sizeof(TreeNode));
    node->type = strdup(type);
    node->value = strdup(value);
    node->children = NULL;
    node->child_count = 0;
    return node;
}

// Add a child node to a parent node
void addChild(TreeNode* parent, TreeNode* child) {
    parent->children = (TreeNode</b>)realloc(parent->children, sizeof(TreeNode*) * (parent->child_count + 1));
    parent->children[parent->child_count++] = child;
}

// Print the parse tree recursively
void printTree(TreeNode* node, int depth) {
    for (int i = 0; i < depth; i++) printf("  ");
    printf("%s: %s\n", node->type, node->value);
    for (int i = 0; i < node->child_count; i++) {
        printTree(node->children[i], depth + 1);
    }
}

// Parse an expression (simplified for demonstration)
TreeNode* parseExpression(Lexer* lexer) {
    TreeNode* expr = createNode("EXPR", "root");

    Token token1 = scanToken(lexer);
    TreeNode* term1 = createNode("TERM", token1.value);

    Token op = scanToken(lexer);
    TreeNode* operatorNode = createNode("OPERATOR", op.value);

    Token token2 = scanToken(lexer);
    TreeNode* term2 = createNode("TERM", token2.value);

    addChild(expr, term1);
    addChild(expr, operatorNode);
    addChild(expr, term2);

    return expr;
}

// -------------------- Main Function --------------------
int main() {
    const char* input = "1 + 2";
    Lexer lexer;
    initLexer(&lexer, input);

    TreeNode* parseTree = parseExpression(&lexer);
    printf("Parse Tree Structure:\n");
    printTree(parseTree, 0);

    // Free allocated memory (not shown for brevity)
    return 0;
}

Code Explanation

  1. Token Definitions: Enumerates the different types of tokens that the lexer can identify, such as identifiers, strings, numbers, operators, and end-of-file markers.

  2. Lexer Implementation: The lexer processes the source code input, character by character, to generate tokens that the parser will consume. Key functions include:

    • initLexer: Initializes the lexer with the source code.
    • advance: Moves to the next character in the source.
    • peek: Looks at the current character without advancing.
    • match: Checks if the current character matches an expected character.
    • scanToken: Identifies and returns the next token.
  3. Parser Implementation: The parser builds the abstract syntax tree (AST) from the tokens provided by the lexer. Key functions include:

    • createNode: Creates a new tree node with a specified type and value.
    • addChild: Adds a child node to a parent node, facilitating tree construction.
    • printTree: Recursively prints the tree structure for visualization.
    • parseExpression: Parses a simplified expression, constructing the AST.
  4. Main Function: Initializes the lexer with the input string "1 + 2", invokes the parser to build the AST, and prints the resulting parse tree. Memory management (freeing allocated memory) is mentioned but not fully implemented for brevity.

Extending the Bootstrap

The provided bootstrap serves as a foundational framework for Tree-META in C. To align more closely with Tree-META's capabilities and extend its functionality, consider the following enhancements:

  • Advanced Parsing Techniques: Implement recursive descent parsing with support for more complex grammar rules, allowing the parser to handle a wider variety of language constructs.
  • Enhanced Lexer Features: Expand the lexer's capabilities to recognize additional token types, including multi-character operators, keywords, and literals.
  • Tree-Building Directives: Incorporate tree-building directives within the grammar to automate AST construction based on specified rules.
  • Code Generation: Develop a code generator module that translates the AST into target language instructions, facilitating the translation process.
  • Virtual Machine Integration: Create a simple virtual machine to execute the generated code, enabling the complete translation cycle.

Memory Management

Ensuring Robustness

Effective memory management is crucial in C to prevent memory leaks and ensure the stability of the compiler-compiler system. Key strategies include:

  • Dynamic Memory Allocation: Use functions like malloc, realloc, and free judiciously to manage memory for dynamic data structures such as tokens and tree nodes.
  • Resource Cleanup: Implement functions to traverse and free the AST and other dynamically allocated structures once they are no longer needed.
  • Error Handling: Incorporate error-checking mechanisms to handle memory allocation failures and other runtime errors gracefully.

Extensibility

Designing for Future Enhancements

Designing the Tree-META bootstrap with extensibility in mind allows for future enhancements without significant overhauls. Consider the following design principles:

  • Modular Architecture: Structure the code into distinct modules (lexer, parser, tree builder, code generator) to facilitate independent development and testing.
  • Clear Interfaces: Define clear and consistent interfaces between modules, enabling seamless integration of new features.
  • Documentation: Maintain comprehensive documentation for each module, detailing functionality, interfaces, and usage guidelines.
  • Testing Framework: Develop a robust testing framework to validate the functionality of each module independently and as part of the whole system.

Practical Usage

Compiling and Running the Bootstrap

To compile and run the provided bootstrap implementation:

  1. Save the Code: Save the C code to a file, for example, tree_meta_bootstrap.c.

  2. Compile the Program: Use the GCC compiler to compile the program with all warnings enabled:

    gcc -Wall -o tree_meta_bootstrap tree_meta_bootstrap.c
  3. Run the Program: Execute the compiled program:

    ./tree_meta_bootstrap
  4. Expected Output: The program should display the parse tree structure for the input expression "1 + 2":

    Parse Tree Structure:
    EXPR: root
      TERM: 1
      OPERATOR: +
      TERM: 2

To extend the bootstrap to support actual Tree-META syntax rules and advanced parsing functionalities, further development is required. This involves expanding the lexer and parser to handle more complex grammar constructs, implementing tree-building directives, and developing the code generation and virtual machine modules.

Conclusion

Developing a C bootstrap implementation of Val Schorr's Tree-META program provides a robust foundation for building a compiler-compiler system capable of parsing and translating context-free languages. By understanding the core components, ensuring effective memory management, and designing for extensibility, this bootstrap serves as a starting point for creating a powerful and flexible tool. Future enhancements can build upon this framework to incorporate advanced parsing techniques, comprehensive grammar support, and efficient code generation mechanisms.

References

  1. Compiler Design Principles:

    • Aho, A. V., Sethi, R., & Ullman, J. D. (1986). Compilers: Principles, Techniques, and Tools. Addison-Wesley.
    • Link to book
  2. Tree Data Structures:

    • Cormen, T. H., Leiserson, C. E., Rivest, R. L., & Stein, C. (2009). Introduction to Algorithms. MIT Press.
    • Link to book
  3. Val Schorr's Tree-META:

  4. Related Implementations:

  5. Depth-First Search (DFS) for Tree Traversal:

    • Tarjan, R. (1972). Depth-First Search and Linear Graph Algorithms. SIAM Journal on Computing.
    • Link to paper

This implementation is a starting point for a Tree-META bootstrap in C. It can be extended to include more advanced parsing and code generation features. Let me know if you need further assistance!


Last updated January 19, 2025
