Comprehensive Guide to Calculating Total Probable Error in Pressure Transmitters

Understanding TPE for Enhanced Accuracy and Reliability in Pressure Measurement

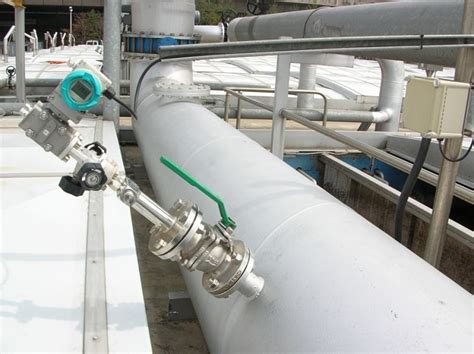

industrial pressure transmitter equipment

Key Takeaways

Total Probable Error (TPE) is a vital metric that consolidates various error sources to assess the overall accuracy of pressure transmitters.
The Root Sum Square (RSS) method is employed to calculate TPE, ensuring a realistic estimation by considering the independence of error components.
Accurately calculating and minimizing TPE is essential for applications requiring high precision, safety, and reliability in pressure measurements.

1. Introduction to Total Probable Error (TPE)

In the realm of pressure measurement, Total Probable Error (TPE) serves as a comprehensive indicator of a pressure transmitter's accuracy under real-world operating conditions. TPE amalgamates various individual error sources, providing a single metric that reflects the overall performance and reliability of the transmitter. Understanding and accurately calculating TPE is crucial for ensuring that pressure transmitters meet the stringent accuracy requirements necessary for diverse industrial and engineering applications.

2. Errors Included in Total Probable Error

To comprehend TPE, it's essential to identify and understand the different types of errors that contribute to it. These errors can be broadly categorized into systematic and random errors, each affecting the transmitter's performance in various ways.

2.1 Reference Accuracy

Reference Accuracy denotes the inherent precision of the pressure transmitter as specified by the manufacturer. It encompasses several sub-components:

Linearity: The degree to which the transmitter's output corresponds proportionally to the input pressure across its entire measurement range.
Hysteresis: The difference in the transmitter’s output when the pressure is increasing versus when it is decreasing.
Repeatability: The ability of the transmitter to produce consistent outputs under identical conditions over multiple measurements.

2.2 Ambient Temperature Effects

Pressure transmitters are sensitive to ambient temperature variations, which can introduce measurement errors. These effects are typically divided into:

Temperature Effect on Zero (TZ): Deviations in the transmitter's zero reading due to temperature changes.
Temperature Effect on Span (TS): Alterations in the transmitter's span (full-scale output) as a result of temperature fluctuations.

These temperature effects are usually specified as a percentage of the full-scale output per degree Celsius (°C) change.

2.3 Static Pressure Effects

In applications involving differential pressure measurements, static pressure (the pressure in the line) can impact the accuracy of measurements. This error is represented as a percentage of the full scale and accounts for the influence of varying static pressures on the transmitter’s output.

2.4 Long-Term Stability

Over time, pressure transmitters may exhibit drift in their performance due to factors like aging components or environmental wear. Long-Term Stability is quantified as a percentage of the full scale over a specified period (e.g., per year) and indicates how much the transmitter’s accuracy may deteriorate over time.

2.5 Installation Effects

Improper installation can introduce additional errors that are often challenging to quantify. Factors such as misalignment, mechanical vibrations, and improper mounting can affect the transmitter’s performance. While these errors are typically not specified in percentages, they must be considered in the overall error assessment.

2.6 Power Supply Variation

Variations in the transmitter's power supply can lead to minor errors in output. Although typically minimal, especially in high-quality transmitters, it's an additional error source that can influence the TPE.

3. Calculating Total Probable Error

Calculating TPE involves aggregating the individual error components identified above. The most widely accepted method for this calculation is the Root Sum Square (RSS) method, which statistically combines the errors to provide a realistic estimate of the total error.

3.1 Root Sum Square (RSS) Method

The RSS method is favored because it accounts for the statistical independence of individual error sources. Unlike simple addition, RSS ensures that only probable combinations of errors are considered, reducing the likelihood of overestimating the total error.

3.2 Calculation Formula

The general formula for TPE using the RSS method is as follows:

$$ \text{TPE} = \sqrt{(E_1)^2 + (E_2)^2 + (E_3)^2 + \dots + (E_n)^2} $$

Where:

E₁, E₂, E₃, …, Eₙ: Individual error components (e.g., Reference Accuracy, Temperature Effects, Static Pressure Effects, etc.).

3.3 Step-by-Step Calculation Process

To calculate TPE, follow these systematic steps:

Identify Individual Errors: Obtain values for each error component from the transmitter's datasheet, calibration certificate, or manufacturer specifications.
Ensure Uniform Units: Convert all error values to the same units, typically expressed as a percentage of the transmitter's full-scale output.
Apply the RSS Formula: Square each individual error value, sum all the squared values, and then take the square root of this sum.
Interpret the Result: The resulting TPE value represents the maximum expected error under specified operating conditions.
Validate Against Requirements: Ensure that the calculated TPE aligns with the application's accuracy requirements. If necessary, select a transmitter with a lower TPE or implement measures to mitigate error sources.

3.4 Example Calculation

Consider a pressure transmitter with the following error specifications:

Error Component	Value (% of span)
Reference Accuracy (E₁)	0.1%
Temperature Effect on Zero (E₂)	0.05%
Temperature Effect on Span (E₃)	0.05%
Long-Term Stability (E₄)	0.1% per year
Static Pressure Effect (E₅)	0.02%
Power Supply Variation (E₆)	0.01%

Applying the RSS method:


// Calculate the squares of each error
E1² = (0.1)^2 = 0.01
E2² = (0.05)^2 = 0.0025
E3² = (0.05)^2 = 0.0025
E4² = (0.1)^2 = 0.01
E5² = (0.02)^2 = 0.0004
E6² = (0.01)^2 = 0.0001

// Sum of squares
Sum = 0.01 + 0.0025 + 0.0025 + 0.01 + 0.0004 + 0.0001 = 0.0255

// TPE is the square root of the sum
TPE = √0.0255 ≈ 0.1598 or 15.98% of span

Thus, the Total Probable Error for this pressure transmitter is approximately 15.98% of the full-scale span.

4. Understanding the Meaning and Implications of TPE

The Total Probable Error is more than just a numerical value; it holds significant implications for the selection, installation, and maintenance of pressure transmitters in various applications.

4.1 Accuracy Estimation

TPE provides a realistic estimation of the worst-case error that can be expected during pressure measurements. By consolidating all potential error sources, TPE offers a holistic view of the transmitter's performance, ensuring that users are aware of the maximum deviation from true pressure values under specified conditions.

4.2 Selection and Sizing

When selecting a pressure transmitter for a specific application, it's imperative to consider the TPE alongside the application's required accuracy. For processes where precision is paramount, such as in safety-critical systems or high-precision manufacturing, choosing a transmitter with a lower TPE is essential to meet regulatory standards and ensure operational integrity.

4.3 Performance Management

Regular calibration and maintenance are vital in managing TPE over the transmitter's lifespan. As components age or environmental conditions change, the individual error components may vary, leading to changes in TPE. Implementing a maintenance schedule helps in identifying and mitigating factors that could adversely affect TPE, thereby maintaining consistent measurement accuracy.

4.4 Impact on Process Control and Safety

In industrial settings, accurate pressure measurement is critical for process control and safety. An underestimated TPE can lead to erroneous pressure readings, which might result in process inefficiencies, equipment malfunctions, or even hazardous situations. Therefore, understanding and accurately calculating TPE is fundamental in designing robust control systems that ensure both safety and efficiency.

5. Mitigating Total Probable Error

While TPE is a valuable metric for assessing transmitter accuracy, it is equally important to implement strategies to minimize it. Reducing TPE enhances measurement reliability and overall system performance.

5.1 Selecting High-Quality Transmitters

Opting for pressure transmitters with inherently lower individual error components can significantly reduce TPE. Evaluating manufacturers' specifications and selecting devices known for high precision and stability is a proactive step in minimizing error.

5.2 Ensuring Proper Installation

Correct installation practices are crucial in mitigating installation-induced errors. Ensuring proper alignment, securing the transmitter to minimize vibrations, and adhering to manufacturer guidelines can prevent additional errors that contribute to TPE.

5.3 Environmental Control

Controlling the environmental conditions where the transmitter operates can reduce temperature-induced errors. Implementing temperature control measures or using transmitters designed with enhanced temperature compensation can help maintain accuracy.

5.4 Regular Calibration and Maintenance

Periodic calibration ensures that the transmitter's performance remains within desired accuracy parameters. Maintenance practices, including checking for wear and recalibrating error components, help in sustaining a low TPE over the transmitter's operational life.

6. Practical Applications and Considerations

Understanding and effectively managing TPE is indispensable across various applications where pressure measurement is critical. Below are some practical considerations and applications where TPE plays a pivotal role.

6.1 Process Control in Manufacturing

In manufacturing processes, precise pressure measurements are essential for maintaining product quality and consistency. A low TPE ensures that the pressure control systems respond accurately, preventing deviations that could compromise the manufacturing process.

6.2 Safety Systems in Industrial Plants

Pressure transmitters are integral components of safety systems in industrial plants, such as those monitoring boiler pressures or gas pipeline integrity. Accurate pressure readings, ensured by a well-calculated TPE, are critical for timely detection of anomalies and prevention of potential accidents.

6.3 HVAC Systems

In Heating, Ventilation, and Air Conditioning (HVAC) systems, maintaining optimal pressure levels is vital for energy efficiency and system longevity. Accurate pressure transmitters with minimal TPE contribute to effective system regulation and energy management.

6.4 Medical Equipment

Medical devices that rely on precise pressure measurements, such as ventilators or blood pressure monitors, depend on low TPE to ensure patient safety and treatment efficacy. High accuracy in these applications can be life-critical.

7. Conclusion

Total Probable Error (TPE) is an indispensable metric in the evaluation of pressure transmitters, encapsulating the combined effect of various error sources to provide a comprehensive assessment of measurement accuracy. By meticulously identifying individual error components, applying the Root Sum Square method for calculation, and implementing strategies to minimize these errors, engineers and technicians can ensure that pressure measurements are both accurate and reliable. This is particularly crucial in applications where precision is paramount for safety, efficiency, and operational integrity. Understanding TPE not only aids in selecting the appropriate transmitter for specific applications but also underscores the importance of diligent maintenance and calibration practices to sustain measurement excellence over time.
