Modulators for Class D Audio Amplifiers
Enhancing Efficiency and Fidelity in Modern Audio Systems
Key Takeaways
- Diverse Modulation Techniques like PWM and Sigma-Delta are fundamental for Class D amplifiers.
- Design Considerations such as carrier frequency and feedback loops critically impact performance.
- Modern Innovations like filterless and spread-spectrum modulation are pushing the boundaries of audio quality and efficiency.

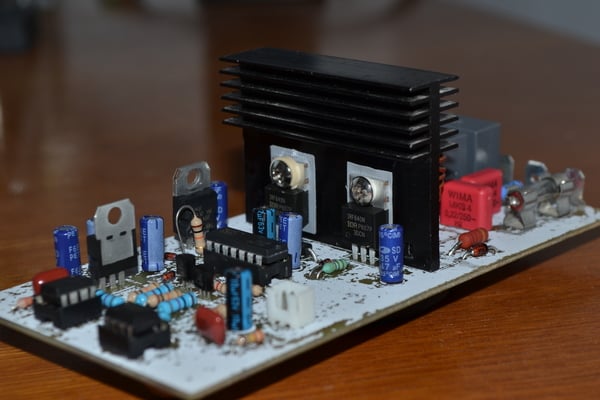

Introduction to Class D Audio Amplifiers
Class D audio amplifiers have revolutionized the realm of audio technology by offering unparalleled efficiency and compactness. Unlike traditional linear amplifiers, which dissipate excess power as heat, Class D amplifiers employ switching techniques to minimize energy loss, making them ideal for portable and high-power applications. At the heart of this technology lies the modulator, a critical component that transforms the analog audio signal into a form suitable for efficient amplification.
Understanding Modulators in Class D Amplifiers
A modulator in a Class D audio amplifier is responsible for converting the incoming analog audio signal into a pulse-based signal, typically using pulse-width modulation (PWM) or other modulation schemes. This pulse-based signal then drives the switching transistors, which amplify the signal with high efficiency. The accuracy and effectiveness of the modulator directly influence the overall performance, including audio fidelity, efficiency, and thermal management of the amplifier.
Types of Modulators
Pulse Width Modulation (PWM)
PWM is the most prevalent modulation technique used in Class D amplifiers. It involves comparing the input audio signal with a high-frequency carrier wave, usually a triangle or sawtooth waveform. The result is a series of pulses whose width varies in proportion to the amplitude of the audio signal.
How PWM Works
The analog audio signal is fed into a comparator along with a fixed-frequency triangle wave. When the audio signal exceeds the triangle wave, the comparator outputs a high pulse; when it falls below, it outputs a low pulse. This creates a PWM signal where the duty cycle (the ratio of the pulse width to the period) corresponds to the audio signal's instantaneous amplitude.
Advantages of PWM
- High efficiency due to rapid switching between saturation and cutoff states of the transistors.
- Simpler implementation with widely available analog components.
- Scalability for various power levels and applications.
Disadvantages of PWM
- Requires precise timing to minimize noise and distortion.
- External low-pass filters are necessary to reconstruct the audio signal, which can add to the complexity and cost.
- Potential for electromagnetic interference (EMI) due to high-frequency switching.
Sigma-Delta (ΣΔ) Modulation
Sigma-Delta modulation, a form of pulse density modulation, is another technique employed in Class D amplifiers. It leverages oversampling and noise shaping to achieve high-resolution pulse streams that can faithfully represent the audio signal.
How Sigma-Delta Modulation Works
This method involves integrating the difference between the input signal and a feedback signal to produce a high-frequency pulse train. The density of these pulses reflects the amplitude of the original audio signal, allowing for efficient amplification with minimal distortion.
Advantages of Sigma-Delta Modulation
- Higher resolution and lower noise levels compared to traditional PWM.
- Improved audio fidelity, making it suitable for high-fidelity applications.
- Enhanced efficiency through better noise shaping and oversampling.
Disadvantages of Sigma-Delta Modulation
-
Increased complexity in design and implementation.
-
Requires more sophisticated circuitry, often involving digital signal processing.
-
Potential challenges in stability and noise management.
Alternative Modulation Techniques
Beyond PWM and Sigma-Delta, several specialized modulation techniques are utilized to address specific challenges or optimize performance in Class D amplifiers.
Pulse Density Modulation (PDM)
PDM encodes the audio signal by varying the density of the pulses rather than their width. This technique is closely related to Sigma-Delta modulation and is often used in low-power applications where simplicity and efficiency are paramount.
Controlled Oscillation Modulation (COM)
Developed by Bang & Olufsen, COM is a proprietary modulation scheme that dynamically adjusts the oscillation frequency based on the audio signal, reducing EMI and improving audio quality.
Ternary Modulation
Ternary modulation introduces an additional state in the pulse train, reducing harmonic distortion and improving the signal-to-noise ratio. This method is particularly effective in minimizing audible noise in high-fidelity systems.
Design Considerations for Modulators
Carrier Frequency Selection
The carrier frequency in a Class D modulator should be significantly higher than the highest audio frequency (typically up to 20 kHz) to ensure that the low-pass filter can effectively remove switching artifacts. Common carrier frequencies range from hundreds of kilohertz to several megahertz, balancing the trade-off between filtering complexity and component performance.
Dead-Time Insertion
Dead-time refers to a short interval inserted between the switching of transistors to prevent short circuits and reduce electromagnetic interference. Proper dead-time management is crucial for ensuring the longevity of the switching devices and maintaining the integrity of the amplified signal.
Noise and Distortion Management
Modulator designs must address the inherent trade-offs between efficiency, noise, and distortion. Linear components, such as comparators and oscillators, play a significant role in determining the overall audio fidelity. Additionally, feedback loops can be employed to mitigate non-linearities and enhance signal accuracy.
Feedback and Compensation
Many modern Class D amplifiers incorporate feedback mechanisms that monitor the output signal and adjust the modulator accordingly to compensate for deviations and non-ideal behaviors. This closed-loop approach enhances linearity, reduces distortion, and ensures stable operation across varying load conditions.
Comparative Analysis of Modulation Techniques
| Modulation Technique | Advantages | Disadvantages | Typical Applications |
|---|---|---|---|
| Pulse Width Modulation (PWM) | High efficiency, simple implementation, widely available components | Requires external filters, potential EMI issues | General-purpose Class D amplifiers, portable audio devices |
| Sigma-Delta (ΣΔ) Modulation | Higher resolution, lower noise, improved audio fidelity | Increased design complexity, challenges in stability | High-fidelity audio systems, professional audio equipment |
| Pulse Density Modulation (PDM) | Simple and efficient for low-power applications | Limited resolution compared to σΔ modulation | Portable speakers, low-power amplifiers |
| Controlled Oscillation Modulation (COM) | Reduced EMI, adaptive frequency adjustment | Proprietary and less standardized | Premium audio brands, specialized high-fidelity amplifiers |
| Ternary Modulation | Lower harmonic distortion, better signal-to-noise ratio | More complex circuitry | High-fidelity audio systems, audiophile-grade equipment |
Implementation Examples
Comparator-Based PWM Modulators
The simplest form of PWM modulation involves using an analog comparator to switch transistors based on the comparison between the audio signal and a carrier waveform. Integrated circuits like the SG3525A are commonly used for this purpose, providing the necessary control signals to drive the power stage efficiently.
<!-- Example: Comparator-Based PWM Circuit -->
Component List:
- Comparator (e.g., LM311)
- Triangle Wave Oscillator
- MOSFETs for Switching
- Low-Pass Filter (LC Circuit)
Circuit Description:
1. Generate a triangle wave oscillator at desired carrier frequency.
2. Feed the audio signal and triangle wave into the comparator.
3. Comparator output drives the MOSFETs in the output stage.
4. Low-pass filter smooths the PWM signal into an analog audio signal for the speaker.
Digital PWM Generation
Digital modulation leverages microcontrollers or digital signal processors (DSPs) to generate precise PWM signals. By utilizing digital algorithms, these modulators can implement complex compensation and feedback mechanisms to enhance audio quality and stability.
Example Using an FPGA
An FPGA can be programmed to perform high-resolution PWM modulation by processing I2S audio inputs, applying interpolation filters, and generating PWM signals with precise timing. This approach offers flexibility and scalability, accommodating various audio processing requirements.
// Verilog code snippet for PWM generation
module pwm_modulator (
input wire clk,
input wire [15:0] audio_in,
output wire pwm_out
);
reg [15:0] comparator;
always @(posedge clk) begin
comparator <= audio_in;
pwm_out <= (clk_counter < comparator) ? 1'b1 : 1'b0;
end
endmodule
Dedicated ICs for Modulation
There are integrated circuits specifically designed to handle modulation tasks in Class D amplifiers. These ICs often incorporate modulators, drivers, and sometimes even the output stage, simplifying the design process and enhancing reliability.
Examples include the Texas Instruments PCM series and the ROHM BD series, which offer integrated solutions with built-in protection features and optimized performance parameters.
Modern Developments in Modulation Technology
Filterless Modulation
Traditional Class D amplifiers rely on external low-pass filters to reconstruct the audio signal from the PWM output. However, contemporary designs are exploring filterless modulation techniques that minimize or eliminate the need for these bulky components. By carefully designing the modulation scheme and employing advanced feedback loops, it's possible to achieve high-fidelity audio without extensive filtering, reducing cost and saving board space.
Spread-Spectrum Modulation
Spread-spectrum modulation involves varying the switching frequency slightly around a central value. This technique helps in spreading the electromagnetic interference (EMI) across a broader frequency range, making it less likely to cause interference in any specific band. This results in quieter operation and compliance with stringent EMI regulations, which is particularly beneficial in consumer electronics and automotive applications.
Key Components of a Class D Amplifier Modulator
Comparator
The comparator is a fundamental component in PWM and other modulation schemes. It compares the incoming audio signal with a reference waveform (usually a high-frequency triangle or sawtooth wave) and switches the output state based on this comparison. High-precision comparators are essential for minimizing distortion and ensuring accurate modulation.
Oscillator
The oscillator generates the carrier waveform used in modulation. Its frequency must be stable and sufficiently high to separate the audio signal components from the switching artifacts. The design of the oscillator impacts the overall efficiency and sound quality of the amplifier.
Feedback Loop
Feedback loops are integral to modern Class D amplifier designs. By feeding a portion of the output signal back to the modulator, the system can correct for errors, reduce distortion, and enhance linearity. This closed-loop control is vital for maintaining consistent performance across different operating conditions.
Practical Applications and Considerations
When designing or selecting a modulator for a Class D audio amplifier, it's essential to consider the specific application requirements. Factors such as power output, audio fidelity, size constraints, and cost will influence the choice of modulation technique and components.
Conclusion
The modulator is a pivotal component in Class D audio amplifiers, determining the efficiency, fidelity, and overall performance of the system. Understanding the various modulation techniques—such as PWM and Sigma-Delta—and the associated design considerations enables engineers to tailor amplifiers to meet diverse application needs. As technology advances, innovations like filterless and spread-spectrum modulation continue to enhance the capabilities of Class D amplifiers, making them increasingly versatile and high-performing for a wide range of audio applications.
