Strength and Durability of Clay Expansive Soils

Understanding Challenges and Advanced Stabilization Techniques in Geotechnical Engineering

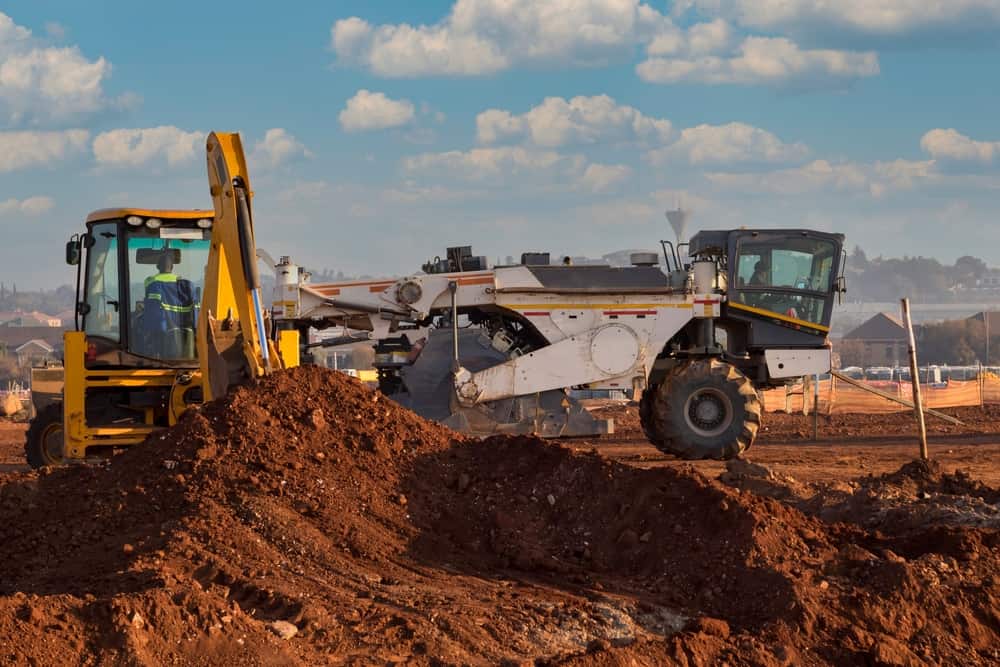

expansive clay soil stabilization landscape

Key Highlights

Complex Volume Changes: Clay expansive soils undergo significant swelling and shrinkage with moisture variations affecting engineering properties.
Advanced Stabilization Methods: Utilization of chemical additives, alternative materials, and eco-friendly stabilizers enhance durability and strength.
Environmental Interactions: Moisture fluctuations, freeze-thaw cycles, and climatic conditions critically influence soil performance over time.

Overview of Clay Expansive Soils

Expansive soils, particularly those rich in clay minerals, are widely recognized in geotechnical engineering for their pronounced volume changes arising from moisture variations. This unique behavior results from the soil’s mineral composition, particularly the presence of reactive clays such as montmorillonite which are highly susceptible to water absorption. The inherent properties of these soils, including high plasticity and a low bearing capacity, raise significant challenges for construction and infrastructural stability. Understanding the strength and durability of these soils is critical for designing stable foundations, pavements, and other vital structures.

The main issues with expansive soils are their propensity to swell when wet and shrink when dry. This continuous cycle leads to repeated stress on any overlying structures, potentially resulting in differential settlement, cracks, and overall degradation of construction quality. The degree of volume change is influenced by factors such as in-situ moisture content, density, mineral composition, and environmental conditions including seasonal moisture variations and freeze-thaw cycles.

Mechanics of Strength in Expansive Clay Soils

Key Mechanical Properties

The strength of clay expansive soils is primarily dictated by two interconnected properties: shear strength and compressive strength. These properties are sensitive to the moisture content and the nature of the clay minerals present within the soil matrix.

Shear Strength

Shear strength, which is the resistance to sliding along soil layers, is influenced by the cohesion between particles and the internal friction angle. In expansive soils, as moisture increases, the potential for reduction in cohesion and friction becomes evident. The higher water content weakens the bonds between clay particles, leading to decreased shear strength. In contrast, treatments that reduce water sensitivity can enhance the shear resistance and contribute to a more stable soil profile.

Compressive Strength

The compressive strength of expansive soils refers to the soil's capacity to withstand loads without significant deformation. Given the tendency for these soils to swell and shrink, compressive strength greatly fluctuates depending on moisture conditions. Empirical research demonstrates that untreated expansive soils often exhibit low compressive strength, making them less capable of supporting structural loads. Enhancing compressive strength is therefore a primary objective of soil stabilization techniques.

Influence of Moisture and Mineralogy

The intrinsic expansive behavior is largely controlled by the type of clay minerals present – with montmorillonite and smectite being significant contributors to volume change. The soil structure’s response to wetting and drying cycles creates challenges in maintaining long-term structural integrity. Moisture variations initiate the dynamic process of swelling upon water absorption followed by shrinkage upon drying, leading to cyclic loading conditions.

Additionally, seasonal and climatic variations contribute to these moisture cycles. The durability of clay soils, therefore, not only hinges on their inherent composition but also on how they interact with environmental conditions over extended periods. It is imperative to account for both the geotechnical characteristics and the environmental factors when assessing and mitigating the risks associated with expansive soils.

Enhancement Techniques for Improved Strength and Durability

Chemical Stabilization Methods

Chemical stabilization is one of the most common and effective methods employed to improve the mechanical properties of expansive clay soils. This process involves the incorporation of chemical additives that alter the soil’s behavior.

Lime Stabilization

Lime is extensively used due to its ability to reduce the plasticity index of clay soils, thereby improving the soil’s workability and strength. When lime interacts with the clay minerals, it provokes a chemical reaction that changes the soil’s structure, resulting in increased stability and reduced susceptibility to moisture-induced volume changes.

Cement and Geopolymer Applications

Portland cement stabilization is another widely adopted technique. Cement not only enhances compressive strength but also works to bind the soil particles effectively, thereby reducing potential swelling. More recent advances involve the use of slag-based geopolymers which are sustainable and offer comparable improvements in soil stability. These novel agents help in forming a robust matrix that can resist both shear and compressive stresses.

Alternative and Eco-friendly Stabilizers

In pursuit of environmentally sustainable engineering practices, research has focused on alternative materials for soil stabilization. Alternative stabilizers include recycled ash, natural fibers, and nanoclay. These materials serve not only to improve the soil’s engineering properties but also to provide cost-effective and sustainable options.

Use of Recycled Ash and Natural Fibers

The addition of recycled ash can enhance both the compressive and shear strength of expansive soils by improving particle interlock. Similarly, natural fibers such as coconut coir or sisal offer reinforcement at a micro-scale, mitigating the effects of shrink-swell cycles. Both these materials help in forming a composite matrix that is both resilient and durable.

Nanoclay and Other Novel Additives

Incorporating nanoclay into expansive soil mixes has been found to result in significant improvements in soil stability. Nanoclay particles, due to their extremely small size, interact at a molecular level with the host soil, leading to enhanced strength characteristics. Additionally, the use of enzyme-based stabilization and other modern materials like zeolites has shown promise in improving long-term durability.

Environmental Considerations and Durability Factors

The durability of clay expansive soils is not solely determined by the applied stabilization techniques but also by the environmental conditions they are subjected to. Factors such as moisture fluctuations, freeze-thaw cycles, and temperature variations play a crucial role in the behavior of these soils.

Impact of Moisture Cycles

The natural cyclical process of wetting and drying leads to significant volume changes in expansive soils. This behavior can directly lead to deterioration in mechanical performance over time, resulting in structural damage like cracking and uneven settling. Engineers often simulate multiple moisture cycles through laboratory testing methods (such as oedometer and Atterberg limits tests) to predict and mitigate such effects.

Incorporating effective drainage systems and moisture barriers is critical in design strategies. Additionally, selecting appropriate foundation types that can accommodate some degree of movement without transferring stress to the superstructure is a common practice in regions with expansive soils.

Freeze-Thaw Cycles and Temperature Effects

In colder climates, the freeze-thaw cycle can be particularly damaging. When water in the soil freezes, it expands, creating additional pressure and potential fractures in the soil matrix. Upon thawing, the soil may settle unevenly, leading to reduced compressive strength and increased potential for structural failure. Stabilization treatments must therefore be designed to account for these temperature fluctuations, ensuring that the soil’s enhanced properties do not degrade under cyclic thermal stress.

Some studies have also explored the incorporation of plastic wastes or other reinforcing materials during stabilization to offset the adverse effects of freeze-thaw cycles. These additives function to create a flexible yet strong soil composite that withstands both mechanical and environmental stresses.

Testing and Evaluation of Stabilized Soils

Laboratory Testing Procedures

Evaluating the effectiveness of various stabilization methods involves a series of rigorous laboratory tests that simulate the conditions encountered in the field. Among the most frequently conducted tests are:

Atterberg Limits Tests

These tests measure the critical water contents and provide insights into the soil’s plasticity. The liquid limit, plastic limit, and plasticity index are essential metrics for understanding how the soil will behave under changing moisture conditions. Lowering the plasticity index through chemical stabilization is a primary objective, as it correlates with reduced sensitivity to moisture variations.

Oedometer and Consolidation Tests

Oedometer tests simulate the vertical pressure conditions on soils to evaluate how they compress under load. This is particularly important for assessing the compressive strength and consolidation behavior of expansive soils. The changes in soil height under standardized loads provide an estimate of how the soil will perform once subject to an actual building’s weight.

Unconfined Compressive Strength (UCS) and Resilient Modulus

The UCS test measures the maximum axial compressive stress that a soil sample can endure without lateral support, while the resilient modulus reflects the soil’s capacity to recover its shape after deformation. Both parameters are fundamental in predicting the longevity and durability of soil under dynamic loads and during periods of moisture fluctuation.

Field Performance Evaluation

Beyond laboratory tests, field evaluations are indispensable for verifying the long-term performance of stabilization treatments. Monitoring the performance of structures built on stabilized soils can provide data to refine design methods and stabilization techniques. Factors such as settlement monitoring, periodic strength testing, and long-term durability assessments are crucial to understanding the interaction between the treated soil and the superstructure over time.

Summary Table of Stabilization Methods and Outcomes

Stabilization Method	Main Additives/Materials	Expected Outcome	Key Considerations
Chemical Stabilization	Lime, Cement, Geopolymers	Improved compressive & shear strength; reduced plasticity	Optimal dosage and curing time
Alternative Materials	Recycled Ash, Natural Fibers, Nanoclay	Enhanced particle interlock & durability	Sustainable and cost-effective
Eco-friendly Stabilizers	Enzyme-based, Zeolites, Plastic Wastes	Increased resistance to freeze-thaw cycles	Environmental impact and local availability
Mechanical Adjustments	Proper Drainage, Flexible Foundations	Reduced structural stress during moisture cycling	Design must account for seasonal changes
