Giant Clotrope Fiber into Textile Fiber via the Lyocell Process

Exploring sustainable textile production using regenerated cellulose

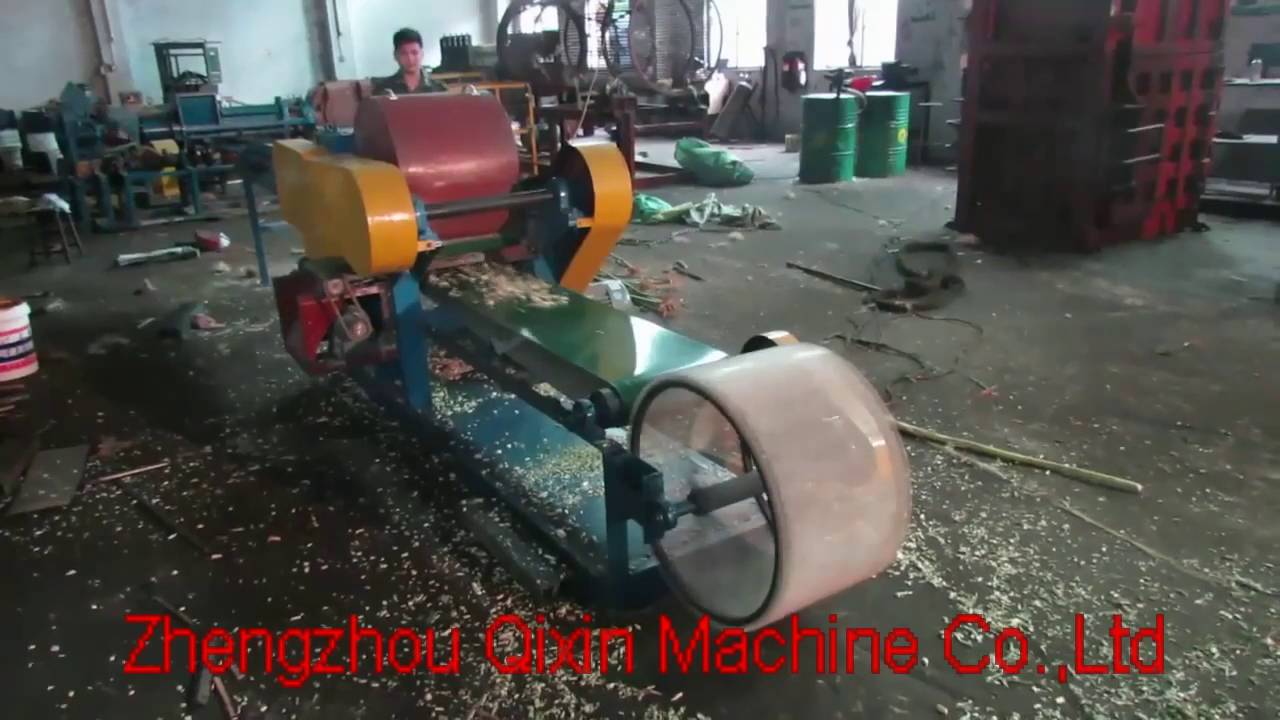

natural fiber processing industrial machinery

Highlights

Adaptability of Process: The Lyocell method can be adapted to process giant clotrope fibers despite their unique composition.
Eco-Friendly Production: Utilizing a closed-loop solvent recovery system, this method minimizes environmental impact compared to traditional rayon methods.
Enhanced Fiber Properties: Products exhibit high strength, excellent moisture management, and potential biodegradability, making them great for sustainable textiles.

Introduction

The pursuit of sustainable and innovative textile materials has led industries to explore non-traditional feedstocks and processing techniques. One intriguing possibility is to convert giant clotrope fiber, derived from the Calotropis gigantea plant, into high-quality textile fibers using the Lyocell process. While historically, certain natural fibers have been used in rudimentary textile applications, modern techniques such as the Lyocell process not only enhance the utility of these fibers but also promote environmental sustainability.

The giant clotrope fiber, sometimes referenced by its unique nomenclature, shares many characteristics with other cellulose-based natural fibers. Due to its robust structure and natural abundance, its potential conversion into regenerated cellulose fiber offers an attractive alternative for sustainable textiles. The transformation leverages a solvent spinning method that directly dissolves the cellulose to reform it into new, highly uniform fibers.

Understanding the Lyocell Process

The Lyocell process is a modern method for regenerating cellulose fibers. Unlike older techniques, this process employs a non-derivatizing solvent to dissolve cellulose without chemically altering it. The key solvent in the process is N-methylmorpholine N-oxide (NMMO), chosen for its ability to effectively dissolve cellulose in a relatively eco-friendly closed-loop system.

Process Overview

The process can be broadly segmented into the following stages:

1. Preparation of the Cellulose Source

Prior to conversion, the raw giant clotrope fibers must undergo rigorous purification. This purification involves mechanical and chemical treatments aimed at removing impurities such as lignin, hemicellulose, and other non-cellulosic materials. Sometimes, additional pre-treatment methods are applied to adjust the molecular weight and ensure uniformity conducive to fiber spinning.

2. Dissolution Stage

In the dissolution phase, the purified cellulose is mixed with NMMO. For giant clotrope fiber, due to its unique cell wall composition, the dissolution parameters such as temperature, concentration of NMMO, and water content might require meticulous optimization. This adjustment ensures a complete and homogeneous solution—often referred to as the spinning dope—which is critical for forming high-quality fibers.

3. Spinning (Fiber Formation)

The homogeneous cellulose solution is then extruded through a spinneret. As the solution passes through tiny orifices, it forms continuous filaments. Upon entering a coagulation bath, the solvent diffuses out while water diffuses in, leading to the controlled precipitation of cellulose as a solid fiber. This coagulation allows for precise control over the fiber’s microstructure.

4. Post-Spinning Treatments

After the fibers are formed, they undergo drawing. Drawing involves mechanically stretching the fibers, which aligns the cellulose chains. This step is vital for achieving enhanced tensile strength and uniformity. Following drawing, the fibers are washed to remove any residual NMMO and other impurities, dried, and may even receive finishing treatments such as heat setting and surface modifications to improve their handling and performance.

Adapting the Lyocell Process for Giant Clotrope Fiber

Converting giant clotrope fiber into textile-grade fiber requires both understanding the standard Lyocell process and tailoring it specifically to the unique characteristics of this cellulose source. Although giant clotrope fibers have been used historically in rudimentary textile applications, their conversion through modern Lyocell processing poses a number of challenges that demand careful consideration.

Chemical Composition and Pre-treatment

Unlike many conventional feedstocks (e.g., wood pulp), giant clotrope fiber may contain higher levels of lignin and hemicellulose. These components contribute to the fiber’s rigidity and can hinder dissolution. Therefore, an initial pre-treatment is imperative:

Mechanical and Chemical Treatments

The first step involves mechanically preparing the fiber by cleaning and cutting it into manageable lengths. Subsequently, chemical treatments can be applied using mild alkaline solutions or other agents to break down non-cellulosic components. This process results in a purer form of cellulose that is more amenable to the Lyocell process. Optimizing such pre-treatment strategies is crucial to ensure that the fiber dissolves evenly and completely in the subsequent dissolution stage.

Dissolution Optimization

With pre-treated giant clotrope fibers, the next challenge is achieving complete dissolution in the solvent. NMMO remains the standard solvent due to its non-derivatizing properties, which preserve the integrity of the cellulose molecular structure. However, the presence of residual lignin or hemicellulose might affect the dissolution kinetics:

Tuning Solvent Parameters

Depending on the specific composition of the fiber, the concentration of NMMO and the water content in the mixing stage might require adjustment. Smaller concentrations or a tailor-made solvent blend could be necessary to ensure that the cellulose dissolves without degradation. The spinning dope’s viscosity, critical for successful fiber extrusion, depends heavily on maintaining these optimal conditions.

Researchers are exploring different solvent systems that may work more effectively with non-wood cellulose sources. The adaptation of the solvent system for giant clotrope may involve experimental trials to establish ideal temperature, solvent-to-water ratio, and pre-heating protocols.

Fiber Spinning and Coagulation

After obtaining a homogeneous solution, the next phase is fiber formation. The spinning process involves extruding the cellulose solution through a spinneret. Once the filament is extruded, the fiber enters a coagulation bath:

Control over Coagulation

In the coagulation bath, water acts as an anti-solvent. As water diffuses into the extruded solution, it precipitates the cellulose out of its dissolved state, thereby solidifying the fiber. For giant clotrope fiber, controlling the rate of solvent and water exchange is key. A rapid coagulation process can lead to non-uniform fibers, while a slower process might ensure better chain alignment. Advanced spinneret designs and coagulation bath engineering can help tailor the fiber’s properties by precisely managing these parameters.

The uniformity of the fibers plays a direct role in their tensile strength and overall performance in textiles. Techniques such as multi-hole spinnerets and controlled drawing post-coagulation are often used to ensure that fibers have a consistent diameter and molecular alignment.

Post-Spinning Processes

Once the giant clotrope fibers are coagulated, they undergo a series of post-spinning treatments to enhance performance characteristics.

Drawing and Alignment

Mechanical drawing aligns the cellulose chains within the fiber, which significantly improves tensile strength and uniformity. This stretching process not only refines the fiber’s microstructure but also contributes to its smooth surface and elasticity—traits that are desirable for diverse textile applications.

Washing and Solvent Recovery

Following drawing, the fibers are washed thoroughly to remove residual NMMO and any by-products of the dissolution process. Because the Lyocell process is designed as a closed-loop system, the solvent recovery is both efficient and environmentally friendly. The reclaimed solvent is often cleaned, filtered, and reused, minimizing waste and reducing the overall environmental footprint of the process.

Drying and Finishing

Drying the fibers in controlled conditions is crucial to prevent damage and ensure that the regenerated fibers are free from moisture that could compromise textile applications. Finishing treatments such as heat setting, surface smoothing, and even the incorporation of protective agents may be implemented to tailor the fibers to specific end-use requirements. These finishing steps contribute to the performance characteristics such as dye uptake, hand feel, and durability in the final textile product.

Comparative Analysis: Advantages and Considerations

Moving giant clotrope fiber through the Lyocell process offers several advantages compared to conventional fiber processing techniques. Major benefits include:

Environmental Sustainability

One of the highlights of the Lyocell process is its inherent eco-friendliness. The use of NMMO in a closed-loop system greatly reduces the release of harmful chemicals. In comparison to the viscose process—which relies on carbon disulfide—the Lyocell process minimizes air and water pollution, making it a preferred method in modern sustainable textile production.

Enhanced Fiber Properties

The Lyocell process produces fibers known for their uniformity, high tensile strength, and soft hand feel. For giant clotrope fiber, successfully adjusting the process parameters can yield textile fibers that combine the robust natural characteristics of the source with the favorable properties of regenerated cellulose. This synergy results in fibers that are not only durable but also capable of excellent moisture management, breathability, and biodegradability.

Economic and Industrial Viability

While the adaptation of the Lyocell process for giant clotrope fiber is promising, it is important to note that economic and technical challenges may arise. The need for additional pre-treatment steps and the fine-tuning of dissolution parameters could potentially increase production costs. However, the current trend in sustainable manufacturing and the demand for eco-friendly textiles may justify these initial investments as industries shift towards greener production processes.

Key Considerations and Challenges

Despite its many advantages, processing giant clotrope fiber using the Lyocell process involves several important considerations:

Process Stage	Key Focus	Potential Challenges
Pre-treatment	Removal of lignin and hemicellulose, fiber cleaning	Ensuring efficient breakdown without damaging cellulose
Dissolution	Achieving a homogeneous cellulose solution	Optimizing solvent concentration and water balance
Spinning	Uniform extrusion and controlled coagulation	Controlling coagulation kinetics to maintain fiber quality
Post-Spinning	Drawing, washing, and finishing	Retaining fiber properties and ensuring complete solvent recovery

Each of these stages can benefit from ongoing research and experimentation, ensuring that industrial-scale production remains both efficient and sustainable.

Future Prospects and Research Directions

The exploration of converting giant clotrope fiber into textile fiber via the Lyocell process is still in its early phases. Academic and industrial research efforts are currently focused on addressing the challenges of adapting the process, particularly concerning the optimization of pre-treatment methods and solvent systems tailored to non-wood cellulose sources.

Potential Innovations

Future research could focus on the following innovations:

Enhanced Pre-treatment Protocols: Development of cost-effective, environmentally benign methods to remove non-cellulosic components without compromising the fiber's structural integrity.
Solvent System Optimization: Experimentation with alternative or modified solvent systems that could improve dissolution efficiency and yield for giant clotrope fibers.
Hybrid Fiber Blends: Investigating the potential of blending giant clotrope fiber with other natural fibers (such as cotton) to combine desirable physical properties and overcome processing limitations.
Process Automation and Scaling: Integrating advanced monitoring and control systems in the spinning and coagulation stages, allowing real-time adjustments to ensure fiber uniformity, quality, and energy efficiency.

Industrial Implementation

While many of these innovations remain in the experimental phase, their successful implementation could revolutionize sustainable textile production. As global demand for environmentally friendly textiles grows, converting underutilized natural fibers like giant clotrope into high-quality textiles not only promotes waste valorization but also opens up new opportunities in eco-conscious fashion and industrial fabrics.

Collaboration between researchers, material scientists, and textile manufacturers is essential for overcoming the current limitations. With combined expertise, it is feasible to fine-tune the Lyocell process and create a scalable, economically viable production method for giant clotrope fibers.

Conclusion and Final Thoughts

The adaptation of the Lyocell process for converting giant clotrope fiber into robust textile fiber represents a promising frontier in sustainable material science. Through meticulous pre-treatment, optimized dissolution in NMMO, careful spinning and coagulation, and intensive post-spinning treatments, giant clotrope fiber can potentially be transformed into a high-quality textile material. The inherent benefits of the Lyocell process—environmental sustainability, fiber strength, and uniformity—make it an attractive solution for meeting future demands in eco-friendly textiles.

While challenges remain, particularly concerning the removal of lignin and hemicellulose, tailored pre-treatment processes and the fine-tuning of solvent conditions can mitigate these issues. The ongoing research and technological innovations in fiber spinning, coupled with industry momentum towards greener manufacturing, bolster the case for wider adoption of such techniques. Ultimately, integrating giant clotrope fiber into modern textile production not only diversifies the source materials but also enhances the environmental profile of textile manufacturing.

The convergence of sustainable practices and innovative processing techniques underscores the vast potential of non-conventional cellulose sources. With continued interdisciplinary collaboration and process optimization, the transformation of giant clotrope fiber via the Lyocell process could pave the way for a new generation of eco-friendly, high-performance textiles.
