Developing a Collision Avoidance Function for Unmanned Surface Vehicles in the Ocean

Comprehensive Strategies for Ensuring Safe and Efficient USV Navigation

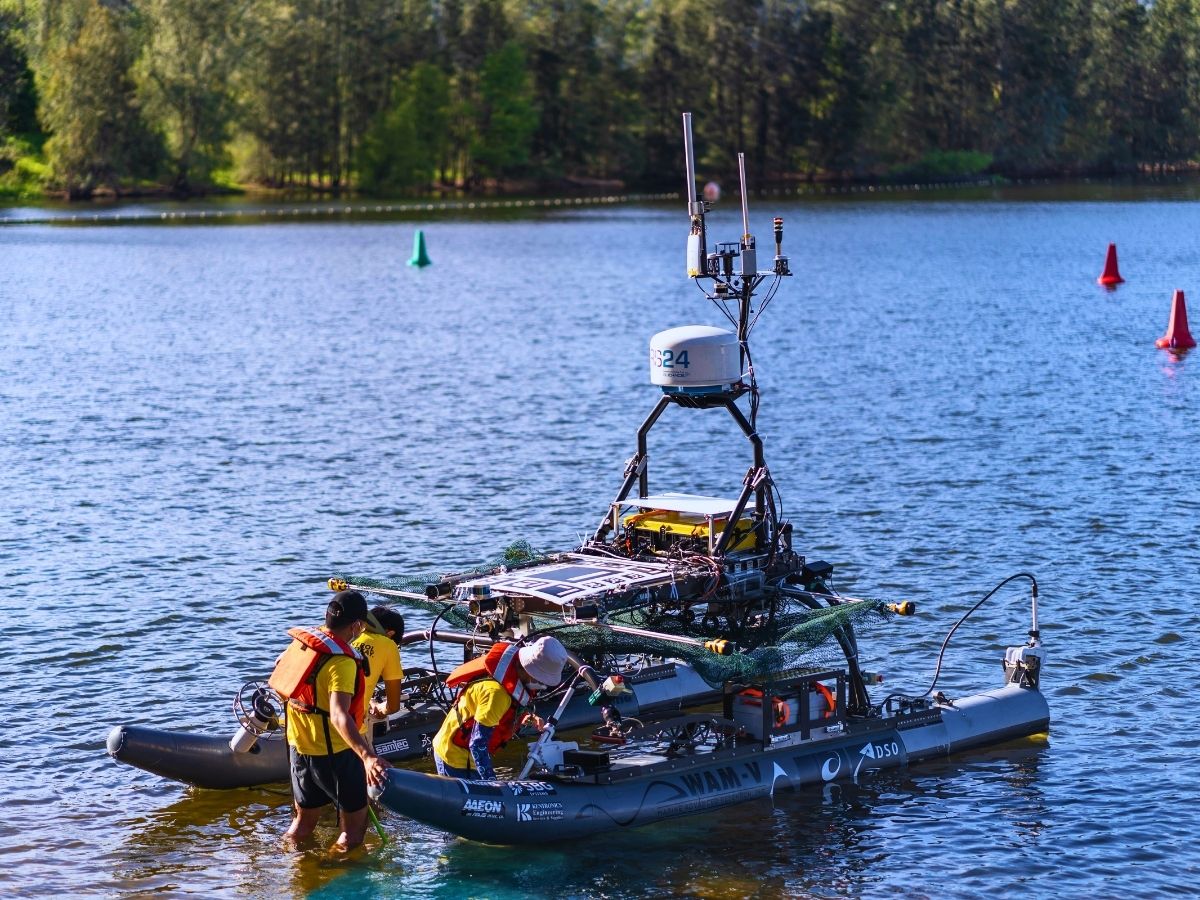

unmanned surface vehicle ocean navigation

Key Takeaways

Comprehensive Sensor Integration: Utilizing a combination of radar, LiDAR, AIS, and vision systems enhances environmental perception.
Advanced Algorithm Development: Implementing machine learning and probabilistic methods ensures effective real-time collision avoidance.
Rigorous Testing and Compliance: Extensive simulation, field trials, and adherence to maritime regulations guarantee system reliability and legality.

1. Defining Requirements and Operational Constraints

Establishing the Foundation for Collision Avoidance

The development of a collision avoidance function for Unmanned Surface Vehicles (USVs) begins with a clear definition of the system's requirements and operational constraints. This foundational step ensures that the system is tailored to the specific missions and environments in which the USV will operate.

1.1. Identifying Operating Conditions

Understanding the maritime environment is crucial. Factors such as ocean currents, wave patterns, weather conditions, and traffic density must be considered. These elements influence the USV's navigation and the collision avoidance strategies required.

1.2. Setting Mission Objectives

Defining the mission objectives—whether the USV is designated for patrolling, surveying, or transporting cargo—guides the development of the collision avoidance system. Each mission type may require different levels of autonomy and specific safety protocols.

1.3. Safety Requirements and Regulatory Compliance

Adhering to maritime safety standards, such as the International Regulations for Preventing Collisions at Sea (COLREGs), is mandatory. These regulations provide guidelines for navigation rules and right-of-way, which the USV must follow to ensure safe interactions with other vessels.

2. Sensor Selection and Integration

Building a Robust Environmental Perception System

The effectiveness of a collision avoidance system heavily depends on the quality and integration of various sensors. Selecting the right combination of sensors ensures comprehensive environmental perception, enabling the USV to detect and respond to obstacles accurately.

2.1. Choosing Appropriate Sensors

Different sensors offer varied strengths in obstacle detection and environmental monitoring:

Radar: Suitable for long-range detection and effective in adverse weather conditions.
LiDAR: Provides high-resolution data for precise obstacle mapping at medium ranges.
AIS (Automatic Identification System): Tracks other vessels by receiving broadcasted information, enhancing situational awareness.
Cameras and Vision Systems: Capture detailed visual information for obstacle identification and classification.
Acoustic Sensors: Detect underwater obstacles and vessels, complementing above-water sensors.

2.2. Sensor Fusion Techniques

Integrating data from multiple sensors through sensor fusion enhances accuracy and reliability. Techniques such as Dempster-Shafer evidence theory combine data sources to mitigate individual sensor limitations, providing a more comprehensive understanding of the environment.

2.3. Ensuring Robust Integration

The integrated sensor suite must withstand harsh marine conditions. Waterproofing, corrosion resistance, and reliable data transmission are critical factors in the physical integration of sensors.

3. Environmental Mapping and Modeling

Creating Dynamic and Accurate Representations of the Operating Area

Accurate environmental mapping is essential for effective collision avoidance. The system must dynamically represent both static and dynamic obstacles, accounting for uncertainties in sensor data.

3.1. Static and Dynamic Obstacles

Static obstacles include natural features like islands and buoys, while dynamic obstacles encompass other vessels and floating debris. The collision avoidance system must differentiate between these types and respond appropriately.

3.2. Mapping Techniques

Techniques such as occupancy grids or probabilistic maps are employed to model the environment. These methods account for uncertainties and provide a probabilistic understanding of obstacle locations and movements.

3.3. Real-Time Updates

Environmental conditions are constantly changing. The mapping system must update in real-time to reflect new obstacles, changes in existing obstacles, and varying environmental conditions such as currents and waves.

4. Collision Avoidance and Path Planning Algorithms

Developing Intelligent Strategies for Safe Navigation

The core of the collision avoidance function lies in the algorithms that process sensor data to make real-time navigation decisions. These algorithms must be both robust and adaptable to various maritime scenarios.

4.1. Rule-Based Systems

Implementing maritime rules such as COLREGs ensures compliance and safety. These systems designate "give-way" and "stand-on" vessel behaviors based on the relative positions and intentions of other vessels.

4.2. Artificial Potential Fields

This method treats obstacles as repulsive forces and the navigation goal as an attractive force. The USV navigates by moving away from obstacles while moving towards the target, ensuring a collision-free path.

4.3. Model Predictive Control (MPC)

MPC uses optimization techniques over a prediction horizon to generate smooth and safe trajectories. It considers the USV's dynamic constraints and the predicted movements of obstacles to plan optimal paths.

4.4. Sampling-Based Planners

Algorithms like Rapidly-exploring Random Trees (RRT) efficiently explore possible paths in dynamic environments, quickly finding feasible routes around obstacles.

4.5. Machine Learning Approaches

Techniques such as Deep Reinforcement Learning (DRL) and Deep Deterministic Policy Gradient (DDPG) enable the USV to learn collision avoidance strategies from large datasets and simulations, improving adaptability and performance.

4.6. Velocity Obstacle (VO) Methods

VO methods analyze the relative velocities of the USV and obstacles to predict potential collisions and adjust the USV's path accordingly.

4.7. Dynamic Window Approach (DWA)

DWA evaluates the USV's possible velocity commands in dynamic environments, selecting the optimal velocity that balances speed and safety.

4.8. Probabilistic Approaches

Probabilistic methods account for uncertainty in sensor data and the unpredictable movements of obstacles, providing more resilient collision avoidance strategies.

5. Decision Making and Autonomy

Empowering the USV with Intelligent Control Systems

Autonomous decision-making is pivotal for real-time collision avoidance. The USV must interpret sensor data, predict the behavior of obstacles, and make navigational decisions without human intervention.

5.1. Machine Learning and Artificial Intelligence

AI algorithms enable the USV to learn from data and improve its collision avoidance strategies over time. Machine learning models can predict obstacle movements and optimize decision-making processes.

5.2. Adherence to Maritime Regulations

The decision-making framework must incorporate maritime rules, ensuring that the USV's actions comply with COLREGs and other relevant guidelines.

5.3. Real-Time Adaptability

The system must adapt to rapidly changing conditions, such as sudden obstacles or shifts in environmental factors, maintaining safe navigation at all times.

6. Testing and Validation

Ensuring Reliability Through Rigorous Evaluation

Comprehensive testing and validation are essential to verify the effectiveness and reliability of the collision avoidance system. This process involves both simulation and real-world trials.

6.1. Simulation Environments

Developing realistic simulation models allows for extensive testing under various scenarios, including different sea conditions, obstacle types, and traffic densities.

6.2. Hardware-in-the-Loop (HIL) Testing

HIL testing integrates actual hardware components with simulation software, bridging the gap between virtual testing and real-world performance.

6.3. Field Trials

Conducting controlled field trials in real ocean environments is crucial for validating the collision avoidance algorithms and sensor integration under authentic operating conditions.

6.4. Performance Analysis and Refinement

Analyzing performance data from simulations and field trials enables the continuous refinement of algorithms, sensor calibration, and overall system optimization.

7. Integration with Control Systems

Seamless Coordination Between Collision Avoidance and Navigation

The collision avoidance function must be seamlessly integrated with the USV's control systems to translate navigational decisions into actionable movements.

7.1. Interface Design

Designing robust interfaces between the collision avoidance module and the vessel’s control systems ensures that desired velocities and heading adjustments are accurately executed by the autopilot and actuators.

7.2. Safety Overrides

Implementing safety overrides allows for manual intervention or automatic activation of safe stop routines in emergency situations, enhancing the system's reliability and safety.

8. Compliance and Redundancy

Ensuring Legal Adherence and System Reliability

Compliance with maritime regulations and incorporating redundancy into the system design are vital for safe and lawful USV operations.

8.1. Adhering to Maritime Regulations

Ensuring that the collision avoidance system complies with international maritime rules, such as COLREGs, is mandatory for legal and safe navigation.

8.2. System Redundancy

Incorporating redundant sensors and fail-safe mechanisms ensures that the USV can maintain safe operations even in the event of sensor or system failures.

9. Continuous Improvement and Optimization

Enhancing System Performance Over Time

The development of a collision avoidance system is an ongoing process that benefits from continuous data collection, algorithm improvement, and technological advancements.

9.1. Data Collection and Analysis

Collecting operational data from USV deployments allows for the analysis of system performance and identification of areas for improvement.

9.2. Algorithm Refinement

Refining collision avoidance algorithms based on performance metrics and real-world feedback enhances their effectiveness and reliability.

9.3. Staying Updated with Technological Advances

Keeping abreast of the latest research and technological developments in USV navigation and collision avoidance ensures the system remains state-of-the-art.

10. Example Implementation

Illustrative Code for Basic Collision Avoidance

Below is an example of how a basic collision avoidance algorithm might be implemented using Python. This simplified example demonstrates fundamental concepts but would require significant expansion for real-world applications.

# Basic Collision Avoidance Example
import numpy as np

def calculate_distance(usv_position, obstacle_position):
    """Calculate distance between USV and obstacle."""
    return np.linalg.norm(np.array(usv_position) - np.array(obstacle_position))

def velocity_obstacle(usv_velocity, obstacle_velocity, distance):
    """Determine if a collision is likely based on velocity and distance."""
    # Simplified VO logic
    if distance < 100 and np.dot(usv_velocity, obstacle_velocity) > 0:
        return True
    return False

def adjust_course(usv_velocity, obstacle_velocity):
    """Adjust USV course to avoid collision."""
    # Simplified adjustment logic
    if velocity_obstacle(usv_velocity, obstacle_velocity, 100):
        return np.array([0, 1])  # Example adjustment vector
    return np.array([0, 0])  # No adjustment needed

# Example usage
usv_position = [0, 0]
obstacle_position = [100, 0]
usv_velocity = np.array([5, 0])
obstacle_velocity = np.array([-5, 0])

distance = calculate_distance(usv_position, obstacle_position)
if velocity_obstacle(usv_velocity, obstacle_velocity, distance):
    adjustment = adjust_course(usv_velocity, obstacle_velocity)
    print("Adjusting course:", adjustment)

This example illustrates basic concepts but would need significant expansion and refinement for real-world applications.

Conclusion

Achieving Safe and Autonomous USV Navigation

Developing a collision avoidance function for Unmanned Surface Vehicles in the ocean is a multifaceted endeavor that requires meticulous planning, robust sensor integration, advanced algorithm development, and rigorous testing. By adhering to maritime regulations and continuously refining system components, it is possible to create a reliable and efficient collision avoidance system that ensures safe navigation in dynamic and challenging marine environments. The integration of machine learning and artificial intelligence further enhances the system's adaptability and performance, paving the way for more autonomous and intelligent USV operations.
