Comprehensive Guide to MBBR Process Design Calculations

Master the Art of Designing Efficient Wastewater Treatment Systems

Key Takeaways

Understanding Influential Parameters: Grasp the critical influent and effluent parameters essential for accurate MBBR design.
Optimizing Reactor and Media Selection: Learn to calculate reactor volume and select appropriate biofilm carriers for optimal performance.
Efficient Aeration and Retention Time: Determine precise aeration requirements and hydraulic retention time to ensure effective treatment.

Introduction to MBBR Process Design

The Moving Bed Biofilm Reactor (MBBR) is an advanced biological wastewater treatment technology that utilizes biofilm carriers to enhance the degradation of organic pollutants and nutrients. Unlike traditional activated sludge systems, MBBR offers increased flexibility, higher treatment capacities, and improved resilience to varying load conditions. Designing an effective MBBR system requires meticulous calculations to ensure optimal performance, compliance with effluent standards, and cost-efficiency.

1. Determining Influent Characteristics

Analyzing Key Parameters

The first step in designing an MBBR system involves a thorough analysis of the influent wastewater characteristics. Accurate data on these parameters is crucial for sizing the reactor and selecting appropriate media. The primary parameters to be measured include:

Flow Rate (Q): The volumetric flow rate of wastewater entering the system, typically measured in cubic meters per day (m³/day) or cubic meters per hour (m³/hr).
Biochemical Oxygen Demand (BOD₅): Indicates the amount of oxygen required by microorganisms to decompose organic matter over five days, measured in mg/L.
Chemical Oxygen Demand (COD): Represents the total oxygen required to chemically oxidize all organic and inorganic matter, measured in mg/L.
Total Suspended Solids (TSS): The concentration of suspended particles in the wastewater, measured in mg/L.
Ammonia Nitrogen (NH₃-N): The concentration of ammonia nitrogen, a key parameter for nitrification processes, measured in mg/L.
Total Nitrogen (TN): The sum of all forms of nitrogen in the wastewater, measured in mg/L.
Total Phosphorus (TP): The concentration of total phosphorus, important for biological phosphorus removal, measured in mg/L.

Accurate characterization of these influent parameters provides the foundation for all subsequent design calculations, ensuring that the MBBR system can effectively handle the wastewater load and achieve the desired effluent quality.

2. Defining Effluent Requirements

Establishing Treatment Goals

Effluent requirements are determined based on regulatory standards, environmental discharge permits, and project-specific objectives. These requirements dictate the level of pollutant removal needed and influence the design parameters of the MBBR system. Common effluent quality targets include:

BOD₅: Typically ≤ 20 mg/L
NH₃-N: Typically ≤ 5 mg/L
Total Nitrogen (TN): Typically ≤ 10 mg/L
Total Phosphorus (TP): Varies based on local regulations

Setting clear effluent targets ensures that the MBBR system is designed to meet or exceed environmental and regulatory standards, thereby protecting aquatic ecosystems and public health.

3. Calculating Organic Loading Rate (OLR)

Assessing Organic Matter Input

The Organic Loading Rate (OLR) is a critical parameter that quantifies the amount of organic matter applied to the reactor per unit volume per day. It is essential for determining the reactor size and ensuring that the microbial population within the biofilm carriers can adequately process the influent. The formula for OLR is:

$$ OLR = \frac{Q \times BOD_{influent}}{V_{reactor}} $$

Where:

Q: Flow rate (m³/day)
BOD_influent: Influent BOD concentration (mg/L)
V_reactor: Reactor volume (m³)

By calculating the OLR, designers can ensure that the reactor volume is sufficient to handle the organic load without overburdening the microbial community, thereby maintaining treatment efficiency.

4. Determining Surface Area Loading Rate (SALR)

Quantifying Carrier Surface Demand

The Surface Area Loading Rate (SALR) measures the amount of organic matter applied per unit surface area of biofilm carriers per day. This parameter is essential for selecting the appropriate biofilm media and ensuring adequate microbial growth. The formula for SALR is:

$$ SALR = \frac{Q \times BOD_{influent}}{A_{carrier}} $$

Where:

Q: Flow rate (m³/day)
BOD_influent: Influent BOD concentration (mg/L)
A_carrier: Total surface area of biofilm carriers (m²)

Typical SALR values for BOD removal range from 5 to 15 g BOD/m²/day, while for nitrification, they range from 0.5 to 1.2 g NH₃-N/m²/day. Selecting carriers with adequate surface area ensures sufficient space for biofilm growth, enhancing the reactor's treatment capacity.

5. Selecting Biofilm Carrier Media

Choosing the Right Media for Optimal Performance

The selection of biofilm carrier media is pivotal for the success of an MBBR system. The carriers provide the surface for biofilm development, enabling microorganisms to degrade pollutants effectively. Key considerations in selecting media include:

Specific Surface Area: Typically ranges from 500 to 1200 m²/m³. Higher surface areas support more microbial growth.
Shape and Density: Optimal shapes facilitate movement within the reactor, preventing settling and ensuring uniform treatment.
Durability and Chemical Resistance: Carriers must withstand operational conditions without degrading or releasing contaminants.

To calculate the required volume of carrier media, use the following formula:

$$ V_{carrier} = \frac{A_{carrier}}{Specific\ Surface\ Area} $$

This ensures that there is adequate surface area for biofilm growth, tailored to the specific influent characteristics and treatment objectives.

6. Calculating Reactor Volume

Sizing the Reactor for Optimal Performance

The reactor volume is a fundamental aspect of MBBR design, determined by the Hydraulic Retention Time (HRT) and the flow rate. The formula for calculating reactor volume is:

$$ V_{reactor} = Q \times HRT $$

Where:

Q: Flow rate (m³/day)
HRT: Hydraulic Retention Time (hours or days)

HRT is critical as it dictates the time available for biological processes to occur. Typical HRT values range from 1.5 to 4 hours for BOD removal and nitrification, respectively. Adequate reactor sizing ensures sufficient contact time between wastewater and biomass, promoting efficient pollutant degradation.

7. Determining Aeration Requirements

Ensuring Sufficient Oxygen Supply

Aeration is a vital component of aerobic wastewater treatment, supplying the necessary oxygen for microbial metabolism. The oxygen demand for BOD removal and nitrification can be calculated using the following formula:

$$ O_{2 Demand} = Q \times (BOD_{influent} - BOD_{effluent}) \times 1.42 + Q \times NH_3-N \times 4.57 $$

Where:

Q: Flow rate (m³/day)
BOD_influent: Influent BOD concentration (mg/L)
BOD_effluent: Effluent BOD concentration (mg/L)
NH₃-N: Ammonia nitrogen concentration (mg/L)

After determining the oxygen demand, the required air supply can be calculated considering the oxygen transfer efficiency (OTE) of the aeration system:

$$ Air_{required} = \frac{O_{2 Demand}}{O_{transfer\ efficiency}} $$

For example, with an OTE of 20%, the air required would be five times the oxygen demand. Selecting an appropriate aeration system, such as fine bubble diffusers or mechanical aerators, ensures that sufficient oxygen is dissolved in the wastewater to support microbial activity.

8. Hydraulic Retention Time (HRT) and Solid Retention Time (SRT)

Balancing Flow and Biomass Retention

Hydraulic Retention Time (HRT) refers to the duration that wastewater remains in the reactor, while Solid Retention Time (SRT) pertains to the time solids (biomass) remain in the system. Both parameters are crucial for ensuring adequate treatment:

HRT Calculation:
$$ HRT = \frac{V_{reactor}}{Q} $$

Where:
- V_reactor: Reactor volume (m³)
- Q: Flow rate (m³/day)
SRT Considerations:
SRT influences the growth rate of microbial populations and the removal of specific pollutants. A longer SRT allows for the cultivation of slow-growing nitrifiers essential for effective nitrification.

Optimizing both HRT and SRT ensures a balanced system where adequate treatment occurs without excessive reactor sizing, promoting operational efficiency.

9. Denitrification (If Required)

Designing for Nitrogen Removal

If nitrogen removal is a treatment objective, designing for denitrification is essential. This involves creating an anoxic environment where denitrifying bacteria can convert nitrate (NO₃⁻) to nitrogen gas (N₂). The required volume for denitrification is calculated as:

$$ V_{anoxic} = \frac{Q \times NO_3-N}{Denitrification\ Rate} $$

Where:

Q: Flow rate (m³/day)
NO_3-N: Nitrate concentration in influent (mg/L)
Denitrification Rate: Typically 0.1–0.3 kg NO₃-N/m³/day

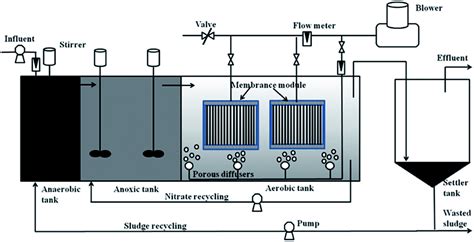

Incorporating an anoxic zone within the MBBR reactor or designing a separate denitrification stage ensures effective nitrogen removal, preventing eutrophication in receiving water bodies.

10. Optimizing Mixing and Hydraulics

Ensuring Uniform Treatment and Media Movement

Proper mixing within the reactor is crucial to prevent dead zones, ensure uniform distribution of wastewater and oxygen, and maintain effective movement of biofilm carriers. Strategies to optimize mixing include:

Mechanical Mixers: Utilize impellers or agitators to promote turbulence and prevent carrier settling.
Baffles: Install vertical or horizontal baffles to direct flow patterns and enhance mixing efficiency.
Carrier Movement: Ensure that biofilm carriers remain in suspension, facilitating continuous biofilm renewal and preventing clogging.

Effective mixing enhances mass transfer, oxygen distribution, and contact between microorganisms and pollutants, thereby improving overall treatment performance.

11. Validating Design with Simulation Tools

Utilizing Software for Accurate Design Verification

After performing manual calculations, it is advisable to validate the MBBR design using specialized simulation tools or software. Tools such as KU Leuven’s MBBR design tool or proprietary spreadsheets can simulate various operational scenarios, account for process variations, and optimize design parameters. Validation ensures that the system meets performance targets under different load conditions and operational constraints, reducing the risk of undersizing or oversizing the reactor.

12. Example Design Calculation

Applying Design Principles to a Practical Scenario

Input Details:

Daily Flow (Q): 500 m³/day
Influent BOD: 300 mg/L
Effluent BOD: 30 mg/L
SALR for BOD removal: 10 g BOD/m²/day
Specific Surface Area of Media (A_m): 350 m²/m³
Media Fill Fraction (Y): 40%
Oxygen Transfer Efficiency: 20%

Step-by-Step Solution:

BOD Removal:
- BOD_removal = 300 mg/L - 30 mg/L = 270 mg/L
Required Surface Area (SA):

$$ SA = \frac{Q \times BOD_{removal}}{SALR} = \frac{500 \times 270}{10} = 13,500 \, \text{m²} $$
Reactor Volume (V):

$$ V = \frac{SA}{A_{m} \times Y} = \frac{13,500}{350 \times 0.40} = 96.43 \, \text{m³} $$
Oxygen Demand:
- Using the stoichiometric constant (f = 1.42):
- $$ O_{2} = Q \times \frac{BOD_{removal}}{1000} \times f = 500 \times \frac{270}{1000} \times 1.42 = 191.7 \, \text{kg/day} $$
Air Requirement:
- $$ Air_{required} = \frac{O_{2}}{O_{transfer\ efficiency}} = \frac{191.7}{0.20} = 958.5 \, \text{kg/day} $$

This example demonstrates the practical application of MBBR design calculations, ensuring that the reactor size, media selection, and aeration system are appropriately scaled to handle the specified wastewater load.

13. Design Considerations and Best Practices

Ensuring Robust and Efficient MBBR Systems

When designing an MBBR system, several additional factors should be considered to enhance performance and reliability:

Temperature: Microbial activity is temperature-dependent. Design adjustments should be made for regions with significant temperature variations.
pH Levels: Maintaining an optimal pH range (typically 6.5-8.5) is essential for microbial health and enzymatic activity.
Influent Variability: Account for fluctuations in flow rate and pollutant concentrations to ensure system resilience.
Safety Factors: Incorporate safety margins (typically 1.2-1.5) in design calculations to accommodate unanticipated load increases or operational variations.
Regulatory Compliance: Ensure that the design meets all local, regional, and national wastewater discharge regulations.
Maintenance Accessibility: Design the reactor layout to facilitate easy access for maintenance and media replacement.

Adhering to these best practices ensures that the MBBR system operates efficiently, remains adaptable to changing conditions, and meets all treatment objectives consistently.

14. Utilizing Design Software and Simulation Tools

Enhancing Accuracy and Efficiency in Design

While manual calculations provide foundational understanding, leveraging specialized design software and simulation tools can significantly enhance the accuracy and efficiency of MBBR system design. These tools offer the following advantages:

Complex Calculations: Automate intricate calculations, reducing the risk of human error.
Scenario Analysis: Simulate various operational scenarios to assess system performance under different conditions.
Optimization: Identify optimal design parameters to maximize treatment efficiency and cost-effectiveness.
Visualization: Generate visual representations of reactor configurations, flow patterns, and media distribution.
Regulatory Compliance: Ensure that designs adhere to relevant standards and guidelines.

Popular MBBR design tools include KU Leuven’s MBBR design tool, Enviraj's online calculators, and various proprietary spreadsheets tailored for specific project requirements. Incorporating these tools into the design process streamlines workflow, enhances precision, and facilitates informed decision-making.

Conclusion

Summarizing the Essentials of MBBR Process Design

Designing an effective Moving Bed Biofilm Reactor (MBBR) system requires a comprehensive understanding of wastewater characteristics, treatment objectives, and key design parameters such as Organic Loading Rate (OLR), Surface Area Loading Rate (SALR), and Hydraulic Retention Time (HRT). By meticulously analyzing influent and effluent parameters, selecting appropriate biofilm carriers, and ensuring adequate aeration and mixing, engineers can develop robust MBBR systems capable of delivering high-efficiency wastewater treatment. Incorporating simulation tools and adhering to best practices further enhances design accuracy and system reliability, ensuring compliance with regulatory standards and environmental protection goals.
