在 Vue2 中创建梯形按钮的全面指南

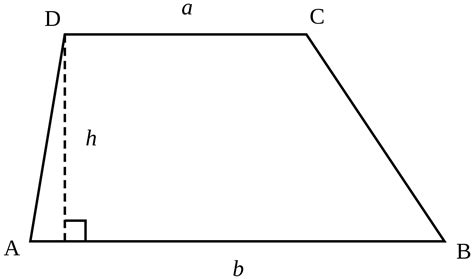

File:Trapezoid.svg - Simple English Wikipedia, the free encyclopedia

在现代网页设计中,按钮不仅仅是功能性的元素,更是提升用户体验和界面美感的重要组成部分。传统的矩形按钮虽然普遍,但在特定场景下,梯形按钮能够带来更独特的视觉效果和交互体验。本文将详细介绍如何在 Vue2 中使用 CSS 实现一个像素级别精准的梯形按钮,涵盖从基本概念到高级优化的各个方面。

一、梯形按钮的实现方法概述

在 Vue2 框架中创建梯形按钮主要依赖于 CSS 技巧,如 clip-path 属性、边框技巧以及伪元素的使用。通过这些方法,可以实现不同样式和效果的梯形按钮,满足不同设计需求。

二、使用 CSS 伪元素和边框实现梯形按钮

2.1 基本结构

首先,我们需要创建一个基础的 Vue 组件结构,其中包含一个用于按钮的 divbutton 元素。

<template>
  <div class="trapezoid-button" @click="handleClick">
    <span>点击我</span>
  </div>
</template>

2.2 CSS 样式定义

利用 CSS 的伪元素 ::before::after,可以为按钮添加额外的装饰层,进而形成梯形的视觉效果。以下是具体的样式实现:

.trapezoid-button {
  width: 150px;
  height: 60px;
  position: relative;
  background-color: #3498db;
  cursor: pointer;
  display: flex;
  align-items: center;
  justify-content: center;
  color: #fff;
  font-weight: bold;
  overflow: hidden;
  transition: transform 0.3s ease, background-color 0.3s ease;
}

.trapezoid-button::before,
.trapezoid-button::after {
  content: '';
  position: absolute;
  width: 100%;
  height: 100%;
  background-color: #3498db;
  transition: transform 0.3s ease, background-color 0.3s ease;
}

.trapezoid-button::before {
  clip-path: polygon(20% 0%, 80% 0%, 100% 100%, 0% 100%);
}

.trapezoid-button::after {
  clip-path: polygon(0% 0%, 100% 0%, 80% 100%, 20% 100%);
}

.trapezoid-button:hover {
  background-color: #2980b9;
  transform: translateY(-5px);
}

.trapezoid-button:hover::after {
  background-color: #1c5980;
}

上述代码通过 clip-path 属性定义了梯形的四个顶点,从而塑造出独特的形状。同时,伪元素的使用保证了按钮的层次感和交互效果。

三、结合 Vue2 组件化开发

3.1 创建 Vue 组件

为了复用性和维护性,建议将梯形按钮封装为一个独立的 Vue 组件。以下是一个完整的 Vue 2 组件示例:

<template>
  <button class="trapezoid-button" @click="handleClick">
    <slot>梯形按钮</slot>
  </button>
</template>

<script>
export default {
  name: 'TrapezoidButton',
  methods: {
    handleClick() {
      this.$emit('click');
    }
  }
};
</script>

<style scoped>
.trapezoid-button {
  position: relative;
  display: inline-block;
  padding: 15px 30px;
  font-size: 16px;
  color: #fff;
  background-color: #3498db;
  border: none;
  cursor: pointer;
  outline: none;
  clip-path: polygon(20% 0%, 80% 0%, 100% 100%, 0% 100%);
  transition: background-color 0.3s ease, transform 0.3s ease;
}

.trapezoid-button:hover {
  background-color: #2980b9;
  transform: translateY(-2px);
}

.trapezoid-button:active {
  background-color: #1c5980;
  transform: translateY(0);
}
</style>

3.2 在主应用中使用组件

将创建的梯形按钮组件引入到主应用中,并在需要的位置进行调用:

<template>
  <div id="app">
    <TrapezoidButton @click="buttonClicked">
      点击我
    </TrapezoidButton>
  </div>
</template>

<script>
import TrapezoidButton from './components/TrapezoidButton.vue';

export default {
  name: 'App',
  components: {
    TrapezoidButton
  },
  methods: {
    buttonClicked() {
      alert('梯形按钮被点击了!');
    }
  }
};
</script>

<style>
#app {
  display: flex;
  justify-content: center;
  align-items: center;
  height: 100vh;
  background-color: #ecf0f1;
}
</style>

通过以上步骤,梯形按钮将被成功集成到 Vue2 项目中,并具备良好的响应性和交互效果。

四、利用 CSS 的 clip-path 属性实现梯形按钮

4.1 使用 clip-path 定义形状

CSS 的 clip-path 属性允许我们通过多边形定义复杂的形状,如梯形。通过调整顶点坐标,可以实现不同倾斜角度和比例的梯形按钮。

.trapezoid-button {
  position: relative;
  padding: 15px 30px;
  font-size: 16px;
  color: #fff;
  background-color: #3498db;
  border: none;
  cursor: pointer;
  outline: none;
  clip-path: polygon(20% 0%, 80% 0%, 100% 100%, 0% 100%);
  transition: background-color 0.3s ease, transform 0.3s ease;
}

.trapezoid-button:hover {
  background-color: #2980b9;
  transform: translateY(-2px);
}

.trapezoid-button:active {
  background-color: #1c5980;
  transform: translateY(0);
}

在上述代码中,polygon(20% 0%, 80% 0%, 100% 100%, 0% 100%) 定义了梯形的四个顶点,分别位于按钮的不同位置,从而形成梯形形状。

4.2 添加交互效果

为了提升用户体验,可以为按钮添加悬停和点击时的动画效果,如颜色变化和位移:

.trapezoid-button:hover {
  background-color: #2980b9;
  transform: translateY(-2px);
}

.trapezoid-button:active {
  background-color: #1c5980;
  transform: translateY(0);
}

这些效果不仅增强了按钮的视觉反馈,还使其在用户交互时更加生动。

五、高级优化与自定义

5.1 响应式设计

为了确保按钮在不同设备和屏幕尺寸下均能保持良好的外观,可以调整 clip-path 的百分比值,使其具备响应性:

.trapezoid-button {
  clip-path: polygon(15% 0%, 85% 0%, 100% 100%, 0% 100%);
}

@media (max-width: 600px) {
  .trapezoid-button {
    clip-path: polygon(10% 0%, 90% 0%, 100% 100%, 0% 100%);
  }
}

通过媒体查询,可以根据屏幕宽度动态调整梯形的形状,确保在移动设备上也能保持一致的视觉效果。

5.2 可定制性增强

为了提升组件的复用性和灵活性,可以通过传递 Props 来动态控制按钮的颜色、大小和形状:

<template>
  <button
    class="trapezoid-button"
    :style="buttonStyle"
    @click="handleClick">
    <slot>{{ text }}</slot>
  </button>
</template>

<script>
export default {
  name: 'TrapezoidButton',
  props: {
    text: {
      type: String,
      default: '梯形按钮'
    },
    width: {
      type: String,
      default: '150px'
    },
    height: {
      type: String,
      default: '60px'
    },
    backgroundColor: {
      type: String,
      default: '#3498db'
    }
  },
  computed: {
    buttonStyle() {
      return {
        width: this.width,
        height: this.height,
        backgroundColor: this.backgroundColor,
        clipPath: 'polygon(20% 0%, 80% 0%, 100% 100%, 0% 100%)'
      };
    }
  },
  methods: {
    handleClick() {
      this.$emit('click');
    }
  }
};
</script>

通过这种方式,开发者可以在使用组件时根据需要传递不同的属性值,实现多样化的按钮样式。

5.3 增强动画效果

为了进一步提升用户体验,可以添加更丰富的动画效果,如阴影变化或旋转:

.trapezoid-button {
  transition: background-color 0.3s ease, transform 0.3s ease, box-shadow 0.3s ease;
  box-shadow: 0 4px 6px rgba(0, 0, 0, 0.1);
}

.trapezoid-button:hover {
  box-shadow: 0 6px 8px rgba(0, 0, 0, 0.15);
  transform: translateY(-5px) rotate(-2deg);
}

.trapezoid-button:active {
  box-shadow: 0 2px 4px rgba(0, 0, 0, 0.1);
  transform: translateY(0) rotate(0);
}

这些动画不仅使按钮在视觉上更加生动,还增强了用户的交互体验。

六、完整代码示例与演示

6.1 完整 Vue 组件代码

以下是一个综合了上述所有优化和自定义的完整 Vue2 梯形按钮组件:

<template>
  <button
    class="trapezoid-button"
    :style="buttonStyle"
    @click="handleClick">
    <slot>{{ text }}</slot>
  </button>
</template>

<script>
export default {
  name: 'TrapezoidButton',
  props: {
    text: {
      type: String,
      default: '梯形按钮'
    },
    width: {
      type: String,
      default: '150px'
    },
    height: {
      type: String,
      default: '60px'
    },
    backgroundColor: {
      type: String,
      default: '#3498db'
    }
  },
  computed: {
    buttonStyle() {
      return {
        width: this.width,
        height: this.height,
        backgroundColor: this.backgroundColor,
        clipPath: 'polygon(20% 0%, 80% 0%, 100% 100%, 0% 100%)',
        transition: 'background-color 0.3s ease, transform 0.3s ease, box-shadow 0.3s ease',
        boxShadow: '0 4px 6px rgba(0, 0, 0, 0.1)'
      };
    }
  },
  methods: {
    handleClick() {
      this.$emit('click');
    }
  }
};
</script>

<style scoped>
.trapezoid-button:hover {
  background-color: #2980b9;
  transform: translateY(-5px) rotate(-2deg);
  box-shadow: 0 6px 8px rgba(0, 0, 0, 0.15);
}

.trapezoid-button:active {
  background-color: #1c5980;
  transform: translateY(0) rotate(0);
  box-shadow: 0 2px 4px rgba(0, 0, 0, 0.1);
}
</style>

6.2 在主应用中集成组件

主应用中的集成代码如下:

<template>
  <div id="app">
    <TrapezoidButton
      text="提交"
      width="200px"
      height="70px"
      backgroundColor="#27ae60"
      @click="submitForm">
    </TrapezoidButton>
  </div>
</template>

<script>
import TrapezoidButton from './components/TrapezoidButton.vue';

export default {
  name: 'App',
  components: {
    TrapezoidButton
  },
  methods: {
    submitForm() {
      alert('表单已提交!');
    }
  }
};
</script>

<style>
#app {
  display: flex;
  justify-content: center;
  align-items: center;
  height: 100vh;
  background-color: #f0f3f5;
}
</style>

通过这种方式,可以轻松地在主应用中使用梯形按钮,并根据需要调整按钮的属性来适应不同的场景和设计需求。

七、进一步的定制与优化建议

7.1 多颜色状态支持

为了增强按钮的视觉层次,可以为不同的交互状态定义不同的颜色。例如,添加禁用状态的样式:

.trapezoid-button:disabled {
  background-color: #95a5a6;
  cursor: not-allowed;
  transform: none;
  box-shadow: none;
}

并在组件中添加对 disabled 属性的支持:

<button
  class="trapezoid-button"
  :style="buttonStyle"
:disabled="isDisabled"
  @click="handleClick">
  <slot>{{ text }}</slot>
</button>

7.2 动态调整梯形角度

通过调整 clip-path 的顶点坐标,可以动态改变梯形的倾斜角度。例如,可以根据按钮的宽度和高度比例自动调整:

.trapezoid-button {
  clip-path: polygon(${leftTop}% 0%, ${rightTop}% 0%, 100% 100%, 0% 100%);
}

在 Vue 组件中,可以通过计算属性动态生成 clip-path 的值:

<script>
export default {
  // ...
  props: {
    leftTop: {
      type: Number,
      default: 20
    },
    rightTop: {
      type: Number,
      default: 80
    },
    // ...
  },
  computed: {
    buttonStyle() {
      return {
        // ...
        clipPath: `polygon(${this.leftTop}% 0%, ${this.rightTop}% 0%, 100% 100%, 0% 100%)`,
        // ...
      };
    }
  },
  // ...
};
</script>

这样,开发者可以在使用组件时通过传递不同的 leftToprightTop 属性值来调整梯形的倾斜角度。

7.3 增加图标支持

为了提升按钮的可视化效果,可以在按钮中添加图标。例如,使用 Font Awesome 图标:

<template>
  <button
    class="trapezoid-button"
    :style="buttonStyle"
    @click="handleClick">
    <i class="fa fa-check" aria-hidden="true"></i>
    <span>{{ text }}</span>
  </button>
</template>

并在样式中调整图标的位置:

.trapezoid-button i {
  margin-right: 8px;
  font-size: 18px;
}

这样,按钮不仅拥有文字,还具备图标,使其在视觉上更加丰富。

八、常见问题及解决方案

8.1 按钮在不同浏览器中的兼容性

尽管大多数现代浏览器都支持 clip-path 属性,但在某些老旧浏览器中可能存在兼容性问题。为了解决这一问题,可以使用 SVG 或者多层伪元素等替代方案。此外,提供降级样式也是确保良好用户体验的关键。

8.2 按钮尺寸与响应性

在调整按钮的尺寸时,确保 clip-path 的比例值能够自动适应不同的尺寸,以避免形状失衡。使用百分比值而非固定像素值,是实现响应性设计的有效方法。

8.3 动画性能优化

在为按钮添加动画效果时,注意避免过于复杂的动画链,可能会影响页面的性能。选择合适的 CSS 属性进行动画,如 transformopacity,能够在保证视觉效果的同时,提升动画性能。

结论

通过本文的详细介绍,您已经掌握了在 Vue2 中创建梯形按钮的多种方法和技巧。从使用 CSS 伪元素和边框到应用 clip-path 属性,再到组件化开发和高级优化,所有步骤和技巧都旨在帮助您实现一个既美观又功能强大的梯形按钮。希望这些方法能够为您的项目增色,并提升整体的用户体验。

有关更多信息和更深入的教程,您可以参考以下资源:

资源名称 链接
Worktile社区:Vue实现梯形结构的方法 访问链接
博客园:Vue用CSS画一个梯形 访问链接
CSDN博客:Vue用CSS画一个梯形 访问链接
阿里云开发者社区:Vue2按钮组件(Button) 访问链接
CSDN博客:Vue2组件系列第二节:按钮 访问链接

这些资源提供了更详细的实现方法和背后的原理,对于希望深入学习和扩展梯形按钮功能的开发者来说,具有重要的参考价值。
