Comprehensive Guide to SQL JOIN Queries

Mastering SQL JOINs for Efficient Data Retrieval and Management

Key Takeaways

• Understanding JOIN Types: Mastering the various types of SQL JOINs is essential for effective data manipulation and retrieval.
• Optimal Query Performance: Proper usage of JOINs can significantly enhance the performance and efficiency of database queries.
• Complex Data Relationships: JOINs enable the handling of complex relationships between multiple tables, facilitating comprehensive data analysis.

---

Introduction to SQL JOIN Queries

SQL JOIN queries are fundamental tools in relational database management systems (RDBMS) that allow users to combine records from two or more tables based on related columns. Understanding how to effectively utilize JOINs is crucial for retrieving meaningful data from complex databases, enabling comprehensive data analysis and reporting.

Types of SQL JOINs

1. INNER JOIN

Description

The INNER JOIN returns only the rows that have matching values in both tables. It is the most commonly used type of JOIN, ideal for retrieving records that exist in both tables being joined.

Syntax

SELECT table1.column1, table2.column2
FROM table1
INNER JOIN table2
ON table1.common_field = table2.common_field;

Example

Consider two tables, Employees and Departments, where each employee is assigned to a department:

SELECT Employees.Name, Departments.DepartmentName
FROM Employees
INNER JOIN Departments
ON Employees.DepartmentID = Departments.DepartmentID;

2. LEFT (OUTER) JOIN

Description

The LEFT JOIN returns all rows from the left table and the matched rows from the right table. If there is no match, the result is NULL on the right side. This JOIN is useful for identifying records in the left table that may not have corresponding entries in the right table.

Syntax

SELECT table1.column1, table2.column2
FROM table1
LEFT JOIN table2
ON table1.common_field = table2.common_field;

Example

To retrieve all customers and their orders, including customers who have not made any orders:

SELECT Customers.Name, Orders.OrderID
FROM Customers
LEFT JOIN Orders
ON Customers.CustomerID = Orders.CustomerID;

3. RIGHT (OUTER) JOIN

Description

The RIGHT JOIN is the counterpart to the LEFT JOIN. It returns all rows from the right table and the matched rows from the left table. If there is no match, the result is NULL on the left side. This is particularly useful when you need all records from the right table regardless of matches in the left table.

Syntax

SELECT table1.column1, table2.column2
FROM table1
RIGHT JOIN table2
ON table1.common_field = table2.common_field;

Example

To list all orders and the employees who handled them, including orders that may not have been assigned to any employee:

SELECT Orders.OrderID, Employees.Name
FROM Orders
RIGHT JOIN Employees
ON Orders.EmployeeID = Employees.EmployeeID;

4. FULL (OUTER) JOIN

Description

The FULL OUTER JOIN returns all rows when there is a match in either the left or right table. Records without matches in one of the tables will have NULLs in the columns of the other table. This JOIN is useful for identifying unmatched records in both tables.

Syntax

SELECT table1.column1, table2.column2
FROM table1
FULL OUTER JOIN table2
ON table1.common_field = table2.common_field;

Example

To retrieve all customers and all orders, matching them where possible:

SELECT Customers.Name, Orders.OrderID
FROM Customers
FULL OUTER JOIN Orders
ON Customers.CustomerID = Orders.CustomerID;

5. CROSS JOIN

Description

The CROSS JOIN produces a Cartesian product of the two tables involved, meaning it returns all possible combinations of rows from both tables. This type of JOIN is generally used in scenarios where every combination of rows is necessary.

Syntax

SELECT table1.column1, table2.column2
FROM table1
CROSS JOIN table2;

Example

To generate all possible combinations of products and suppliers:

SELECT Products.ProductName, Suppliers.SupplierName
FROM Products
CROSS JOIN Suppliers;

6. SELF JOIN

Description

A SELF JOIN is a regular JOIN where a table is joined with itself. This is particularly useful for querying hierarchical data or comparing rows within the same table.

Syntax

SELECT A.column1, B.column2
FROM table1 A
JOIN table1 B
ON A.common_field = B.common_field;

Example

To find employees and their managers within the same Employees table:

SELECT E.Name AS Employee, M.Name AS Manager
FROM Employees E
JOIN Employees M
ON E.ManagerID = M.EmployeeID;

7. NATURAL JOIN

Description

The NATURAL JOIN automatically joins tables based on all columns with the same names and compatible data types in both tables. This simplifies queries but requires that the column names and types are consistent across the tables being joined.

Syntax

SELECT *
FROM table1
NATURAL JOIN table2;

Example

Assuming both Students and Enrollments tables have a column named StudentID, a natural join can be performed as follows:

SELECT *
FROM Students
NATURAL JOIN Enrollments;

---

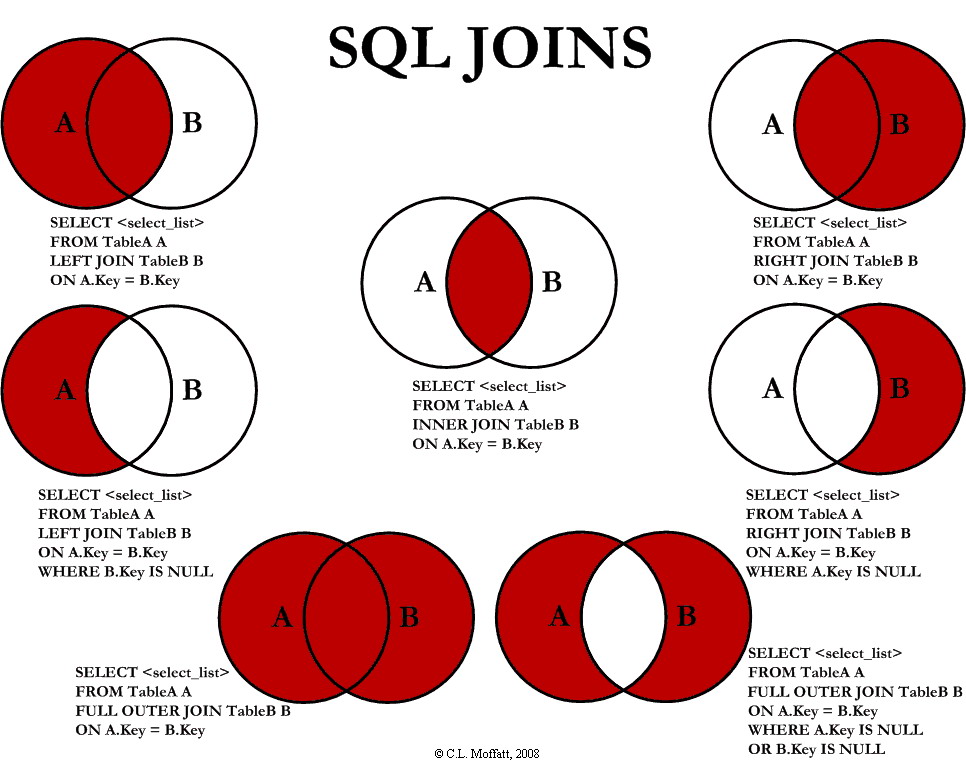

Comparative Overview of SQL JOIN Types

JOIN Type	Description	Result Set Includes
INNER JOIN	Returns only matching rows in both tables.	Intersection of both tables.
LEFT JOIN	Returns all rows from the left table and matched rows from the right table.	All left table records and matched right table records.
RIGHT JOIN	Returns all rows from the right table and matched rows from the left table.	All right table records and matched left table records.
FULL OUTER JOIN	Returns all rows when there is a match in either table.	All records from both tables with matches where possible.
CROSS JOIN	Returns the Cartesian product of both tables.	All possible combinations of rows from both tables.
SELF JOIN	Joins a table with itself.	Pairings of rows within the same table based on a related column.
NATURAL JOIN	Automatically joins tables based on columns with the same names.	All columns with matching names are used for the join.

---

Practical Applications of SQL JOINs

Data Retrieval Across Multiple Tables

JOINs are indispensable when dealing with normalized databases where data is spread across multiple tables to eliminate redundancy. By using JOINs, you can aggregate data from these tables into a cohesive result set, facilitating comprehensive data analysis.

Handling Complex Data Relationships

SQL JOINs allow for the representation and manipulation of complex relationships such as one-to-many, many-to-many, and hierarchical relationships within databases. This capability is crucial for accurately modeling real-world scenarios in relational databases.

Enhancing Query Performance

Properly structured JOINs can significantly improve query performance by reducing the need for subqueries and ensuring efficient data retrieval. Utilizing indexes on common fields used in JOIN conditions can further optimize performance.

Data Integrity and Consistency

By linking tables through JOINs based on primary and foreign keys, SQL ensures data integrity and consistency across related data sets. This relational approach maintains the coherence of data, which is essential for accurate reporting and analysis.

Best Practices for Using SQL JOINs

Use Aliases for Readability

Assigning aliases to table names simplifies query writing and enhances readability, especially when dealing with multiple tables. Aliases help in distinguishing between columns from different tables that share the same name.

SELECT C.Name, O.OrderID
FROM Customers AS C
INNER JOIN Orders AS O
ON C.CustomerID = O.CustomerID;

Specify Only Necessary Columns

Instead of using SELECT *, specify only the columns that are required for the result set. This practice minimizes data retrieval overhead and improves query performance.

SELECT Customers.Name, Orders.OrderDate
FROM Customers
INNER JOIN Orders
ON Customers.CustomerID = Orders.CustomerID;

Ensure Proper Indexing

Indexing the columns used in JOIN conditions (typically primary and foreign keys) can dramatically enhance the speed and efficiency of JOIN operations, especially on large tables.

Avoid Unintentional Cartesian Products

Ensure that JOIN conditions are correctly specified to prevent the creation of unintended Cartesian products, which can lead to exponential increases in result set size and degraded performance.

Leverage JOIN Types Appropriately

Understand the differences between JOIN types and choose the one that best fits the specific data retrieval needs. Using the appropriate JOIN type ensures accurate results and optimal performance.

Advanced JOIN Techniques

Combining Multiple JOINs

Complex queries often require combining multiple JOINs to link more than two tables. This allows for comprehensive data aggregation across various related tables.

SELECT Customers.Name, Orders.OrderID, Shippings.Status
FROM Customers
JOIN Orders ON Customers.CustomerID = Orders.CustomerID
JOIN Shippings ON Orders.ShippingID = Shippings.ShippingID;

Using Subqueries with JOINs

Incorporating subqueries within JOINs can facilitate more intricate data retrieval scenarios, such as filtering based on aggregated data or performing conditional joins.

SELECT Customers.Name, Orders.OrderID
FROM Customers
INNER JOIN (
    SELECT OrderID, CustomerID
    FROM Orders
    WHERE OrderDate > '2023-01-01'
) AS RecentOrders
ON Customers.CustomerID = RecentOrders.CustomerID;

Implementing Conditional JOINs

Conditional JOINs allow for more flexible data retrieval by applying specific conditions to the JOIN operation, enhancing the precision of the results.

SELECT Employees.Name, Departments.DepartmentName
FROM Employees
LEFT JOIN Departments
ON Employees.DepartmentID = Departments.DepartmentID
AND Departments.Location = 'New York';

Utilizing Self JOINs for Hierarchical Data

Self JOINs are particularly useful for working with hierarchical data structures, such as organizational charts or category trees, enabling the representation of relationships within the same table.

SELECT E1.Name AS Employee, E2.Name AS Manager
FROM Employees E1
JOIN Employees E2
ON E1.ManagerID = E2.EmployeeID;

Common Pitfalls and How to Avoid Them

Incorrect JOIN Conditions

Failing to properly define the JOIN conditions can result in incomplete or excessive data retrieval. Always ensure that the ON clause accurately reflects the relationship between the tables.

Overuse of CROSS JOINs

CROSS JOINs generate large result sets by combining all rows from both tables, which can lead to performance issues. Use them judiciously and only when necessary.

Neglecting Performance Optimization

Ignoring indexing and query optimization techniques can slow down JOIN operations, especially on large datasets. Always monitor and optimize JOIN performance.

Assuming Column Names are Unique

When joining tables with columns of the same name, ambiguous column references can cause errors. Use table aliases or fully qualified column names to avoid confusion.

Tips for Optimizing SQL JOIN Queries

Index Key Columns

Indexing the columns used in JOIN conditions can drastically reduce query execution time by allowing the database engine to quickly locate matching rows.

Select Only Needed Columns

Limiting the SELECT statement to only the necessary columns minimizes data processing and improves performance.

SELECT Customers.Name, Orders.OrderDate
FROM Customers
INNER JOIN Orders
ON Customers.CustomerID = Orders.CustomerID;

Use EXPLAIN to Analyze Queries

Utilizing the EXPLAIN statement can help you understand how the database engine executes your JOIN queries, allowing you to identify and address performance bottlenecks.

EXPLAIN SELECT Customers.Name, Orders.OrderDate
FROM Customers
INNER JOIN Orders
ON Customers.CustomerID = Orders.CustomerID;

Avoid Unnecessary JOINs

Evaluate whether all JOINs in your query are necessary. Removing redundant JOINs can simplify queries and enhance performance.

Optimize JOIN Order

In some cases, rearranging the order of JOIN operations can improve query performance, particularly in databases where JOIN order impacts execution plan efficiency.

---

Best Practices in Designing JOIN Queries

Maintain Consistent Data Types

Ensure that the columns used in JOIN conditions have compatible data types. Mismatched types can lead to inefficient queries and potential errors.

Use Explicit JOIN Syntax

Favor explicit JOIN syntax (e.g., INNER JOIN, LEFT JOIN) over implicit joins using commas. Explicit syntax enhances readability and reduces the likelihood of errors.

SELECT Customers.Name, Orders.OrderID
FROM Customers
INNER JOIN Orders
ON Customers.CustomerID = Orders.CustomerID;

Implement Referential Integrity

Enforce referential integrity through primary and foreign keys to ensure that JOIN operations yield accurate and consistent results.

Document JOIN Logic

Clearly documenting the purpose and logic behind JOIN operations within queries aids in maintenance and collaboration, especially in complex databases.

---

Conclusion

Mastering SQL JOIN queries is pivotal for efficient data management and retrieval in relational databases. By understanding the various types of JOINs, their applications, and best practices for optimization, database professionals can enhance the performance and accuracy of their data operations. Whether dealing with simple data relationships or complex hierarchical structures, a solid grasp of JOINs equips you to handle diverse data scenarios with confidence and precision.
