Conversion of 17 kW at 240 VAC to Current in Amperes

Detailed Explanation and Step-by-Step Analysis

Highlights

Formula Application: We use the fundamental power relationship to convert power (kW) to current (A).
Assumption of Single-Phase Circuit: The calculation assumes a single-phase circuit operating at 240VAC with a power factor of 1.
Calculated Current: The step-by-step calculation concludes that 17 kW at 240 VAC is equivalent to approximately 70.83 amps.

Introduction to the Electrical Conversion Problem

In electrical engineering, the conversion of power from kilowatts (kW) to current in amperes (A) is a common process when analyzing single-phase electrical circuits. The task at hand is to convert a power of 17 kW at a voltage of 240 VAC to the corresponding current in amperes using the basic principles of electrical power.

Understanding the Basic Concepts

To properly understand the conversion process, it’s important to recall some key electrical principles. Power (P) in watts (W) is related to voltage (V) and current (I) in amperes by the formula:

Power-Current Relationship

For a single-phase circuit, the relationship is given by:

\( \displaystyle P = V \times I \)

When power is expressed in kilowatts and voltage in volts, the conversion from kilowatts to watts is essential:

\( \displaystyle 1 \, \text{kW} = 1000 \, \text{W} \)

Therefore, the power equation can be rewritten as:

\( \displaystyle I (A) = \frac{P (W)}{V (V)} = \frac{1000 \times P (kW)}{V (V)} \)

Calculation Steps for 17 kW at 240 VAC

Step 1: Convert Kilowatts to Watts

The first step is to convert the given power from kilowatts to watts. Given that the power is 17 kW, the conversion is done as follows:

\( \displaystyle P (W) = 17 \, \text{kW} \times 1000 = 17000 \, W \)

This calculation confirms that 17 kW is equivalent to 17,000 watts.

Step 2: Apply the Current Formula

With the power now in watts, we use the formula for current:

\( \displaystyle I (A) = \frac{P (W)}{V (V)} \)

Substituting the values we have:

\( \displaystyle I (A) = \frac{17000}{240} \)

When you perform the division, you get:

\( \displaystyle I (A) \approx 70.83 \, A \)

Thus, a 17 kW load on a 240VAC single-phase circuit requires approximately 70.83 amperes of current.

Consideration of Power Factor

In practical situations involving alternating current (AC), the power factor (PF) may need to be considered. The power factor accounts for the phase difference between voltage and current. However, in this analysis, unless otherwise specified, we assume a power factor of 1 (ideal condition). Should the power factor differ from 1, the formula would require modification:

\( \displaystyle I (A) = \frac{1000 \times \text{P (kW)}}{\text{PF} \times V (V)} \)

For the case discussed (PF = 1), the earlier calculation remains unchanged.

Exploration of Related Electrical Concepts and Applications

Single-Phase vs. Three-Phase Circuits

The conversion performed above is applicable for single-phase circuits. However, in three-phase circuits, the calculation method changes as additional factors, such as the √3 term, are incorporated. For instance, the formula for a three-phase circuit is:

\( \displaystyle I (A) = \frac{1000 \times \text{P (kW)}}{\sqrt{3} \times \text{PF} \times V_{\text{L-L}}} \)

Here, \( V_{\text{L-L}} \) represents the line-to-line voltage. Since the query specifies 240VAC without indicating a type of three-phase system, the simpler single-phase analysis is appropriate.

Impact of Voltage Variations

It's important to note that the voltage in an electrical circuit significantly influences the required current. For example, if a system were to operate at a different voltage, say 120VAC, the current draw for the same 17 kW load would be calculated with the formula:

\( \displaystyle I (A) = \frac{17000}{120} \)

Such an operation would lead to nearly double the current compared to the 240VAC setup, highlighting the critical role voltage plays in the current requirements.

Safety Considerations and System Limitations

In designing electrical systems, several safety factors must be incorporated. System components such as circuit breakers, wiring, and connectors must adequately support the calculated current. For instance, a calculated current of approximately 70.83A necessitates a circuit breaker rated higher than this value to prevent nuisance tripping, and wiring must be selected to safely handle the current.

The National Electrical Code (NEC) and other standards provide guidelines to ensure that electrical installations are both safe and efficient. Engineers often apply a safety margin by designing for a current that is 125% of the calculated load to accommodate transient surges and ensure long-term system reliability.

Practical Examples and Additional Calculations

Example 1: Load Analysis for Residential Systems

Consider a residential setting where an appliance or system draws 17 kW at a voltage of 240VAC. Using our calculation:

\( \displaystyle I (A) \approx 70.83 \, A \)

In a typical household, 70.83 amps is significant for a single appliance. Therefore, such loads are often used in commercial or industrial applications. Designers must ensure that the electrical panel, wiring, and protective devices are rated appropriately given this high load.

Example 2: Comparison with Other Power Levels

To further understand the implications, let’s compare what current would be required for different power levels at 240VAC. The following table illustrates several scenarios:

Power (kW)	Voltage (VAC)	Calculation Formula	Current (A)
10 kW	240	\( \displaystyle \frac{1000 \times 10}{240} \)	\( \approx 41.67 \, A \)
15 kW	240	\( \displaystyle \frac{1000 \times 15}{240} \)	\( \approx 62.50 \, A \)
17 kW	240	\( \displaystyle \frac{1000 \times 17}{240} \)	\( \approx 70.83 \, A \)
20 kW	240	\( \displaystyle \frac{1000 \times 20}{240} \)	\( \approx 83.33 \, A \)

This table not only provides a direct comparison but also illustrates the linear relationship between power and current under constant voltage conditions.

Example 3: Adjusting for Different Power Factors

When using real-world loads, the power factor (PF) might deviate from 1. As an example, if a device operates at a PF of 0.9, the modified formula is:

\( \displaystyle I (A) = \frac{1000 \times 17}{0.9 \times 240} \)

Calculating this:

\( \displaystyle I (A) \approx \frac{17000}{216} \approx 78.70 \, A \)

This adjustment is crucial in scenarios where the reactive power affects the efficiency and performance of the circuit.

Advanced Topics in Power Conversion

Understanding the Role of Harmonics

In modern power systems, harmonics can influence the effective current drawn by a load. Harmonics are distortions in the waveform that can lead to additional losses. While the standard calculation assumes a perfect sinusoidal voltage, real-world waveforms might be distorted due to non-linear loads.

Harmonic analysis involves the study of the signal’s frequency components and is essential in large-scale installations. Although this analysis goes beyond the basic conversion, it is valuable in ensuring that the electrical infrastructure is robust and capable of handling complex loads.

Integration of Power Conversion Concepts in Electrical Design

Electrical design often integrates multiple analysis tools to validate the performance of circuits. Simulation software and real-life testing, for instance, can be used to ensure a system meets safety and efficiency standards. When converting power to current, engineers may simulate transient conditions to observe behavior under changing loads.

The systematic approach includes:

Designing the circuit with ample safety margins.
Employing modern simulation tools to model electrical behavior under various conditions.
Validating assumptions such as the power factor and voltage stability through testing.

These practices ensure that the final electrical design is both safe and cost-effective.

Practical Implementation Considerations

Current-Carrying Capacity and Conductor Sizing

When a calculation shows that a circuit draws approximately 70.83A, it is essential to verify that the conductors (wires and cables) in the installation are capable of handling this current. Conductor size is selected based on standards that account for current-carrying capacity, insulation type, ambient temperature, and installation conditions.

Example standards like the National Electrical Code (NEC) offer guidelines in determining the minimum wire gauge for specific current loads. Often, copper or aluminum conductors are chosen based on their conductivity and thermal properties.

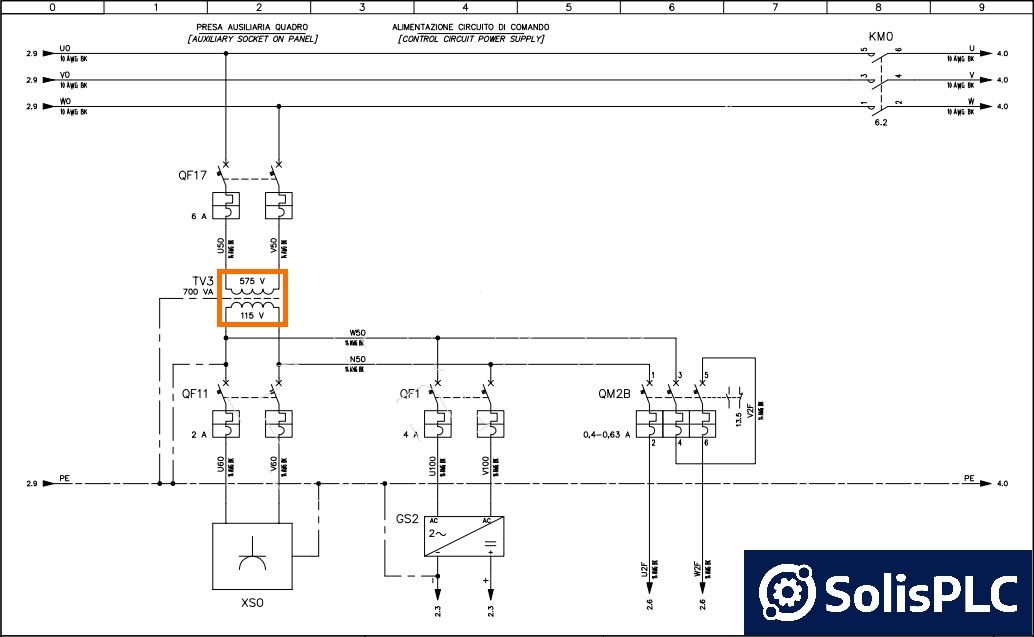

Electrical Panel and Circuit Breaker Configuration

Another key factor in real-world applications is the configuration of the electrical panel and the ratings of circuit breakers used. A calculated load of 70.83A would suggest that the circuit breaker must have a rating above this value to safeguard against overload. Often, a safety factor is applied resulting in the use of breakers rated at 80A or 100A depending on the application's requirements.

Proper configuration in the panel design ensures that the circuit is both protected and compliant with the relevant electrical regulations.

Monitoring and Protection Technologies

Modern electrical installations incorporate monitoring systems that track the current draw in real time. These systems help detect abnormal operating conditions, such as unexpected surges or sustained overloads that could lead to equipment failure. Additionally, protective devices like smart circuit breakers and current sensors are integrated to disconnect the circuit if the load exceeds safe limits.

These technologies contribute to the overall safety, efficiency, and longevity of the system.

Additional Calculations and Comparative Analysis

Summary Table of Conversion Calculations

The table below summarizes the conversion formula application for various scenarios, providing a quick reference for understanding the relationship between power, voltage, and current:

Scenario	Power (kW)	Voltage (VAC)	Power Factor (PF)	Formula	Calculated Current (A)
Standard Single-Phase	17	240	1	\( \frac{1000 \times 17}{240} \)	\( \approx 70.83 \, A \)
Reduced Voltage Example	17	120	1	\( \frac{1000 \times 17}{120} \)	\( \approx 141.67 \, A \)
With Reduced PF	17	240	0.9	\( \frac{1000 \times 17}{0.9 \times 240} \)	\( \approx 78.70 \, A \)
Lower Power Load	10	240	1	\( \frac{1000 \times 10}{240} \)	\( \approx 41.67 \, A \)

This comparative analysis helps illustrate the effect of different parameters on the current draw, ensuring that the conversion method is robust and well understood.

Additional Considerations for Practical Applications

Designing for Efficiency and Safety

Whether in residential, commercial, or industrial settings, the accuracy of converting power ratings to current ratings is crucial for the design and maintenance of electrical systems. This analysis provides critical insight into system radii involving engineer design specifications, material selection, and energy consumption predictions. Advanced planning includes future scalability and the integration of smart grid technologies that dynamically manage load currents.

Moreover, careful analysis during the design phase fosters energy efficiency and reduction in energy loss across transmission lines. By selecting appropriate protective devices and accounting for real-world variations—such as voltage drops, ambient temperature, and conductor resistance—the electrical installation ensures safe and optimized performance throughout its lifecycle.

Integration with Renewable Energy Systems

The principles outlined here are not only applicable to conventional AC circuits but also to renewable energy setups, such as solar power installations. In such contexts, system designers rely on the same fundamentals when configuring inverters, battery banks, and load centers. The conversion calculations maintain their relevance, ensuring that renewable energy systems are seamlessly integrated with existing grid infrastructure.

Furthermore, having a comprehensive understanding of current requirements can help in planning for potential future upgrades, like incorporating energy storage or expanding system capacity.
