Understanding and Customizing AXI4-Full IP Data Widths

Unlock the full potential of AXI4-Full by customizing data widths beyond the 32-bit default.

Key Takeaways

• AXI4-Full Protocol Flexibility: Supports data widths from 32 bits up to 1024 bits, catering to diverse system requirements.
• Default Configurations: Many IP generation tools default to a 32-bit width for simplicity, but this can be adjusted.
• Customization Techniques: Users can modify IP configurations, edit HDL code, or employ advanced scripting to achieve desired data widths.

---

AXI4-Full Protocol Capabilities

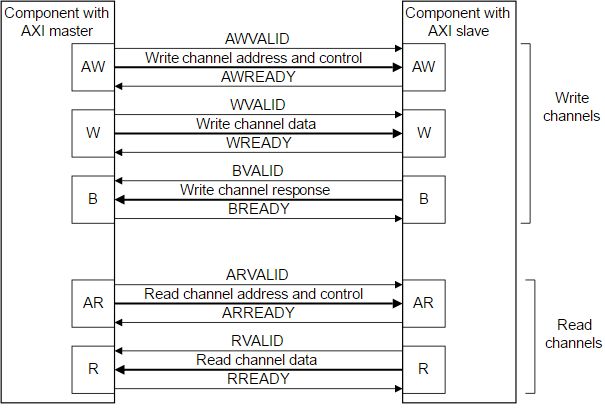

The Advanced eXtensible Interface 4 (AXI4) is a part of ARM's AMBA (Advanced Microcontroller Bus Architecture) specifications, designed to facilitate high-performance communication between components in a system on a chip (SoC). Within AXI4, the AXI4-Full protocol stands out for its robustness and flexibility, especially concerning data widths.

Supported Data Widths

Contrary to the perception that AXI4-Full might be limited to 32-bit data widths, the protocol inherently supports a broad range of data widths:

• 32 bits
• 64 bits
• 128 bits
• 256 bits
• 512 bits
• 1024 bits

This range allows designers to tailor the data bus to the specific needs of their applications, whether they require high bandwidth for data-intensive operations or streamlined communication for simpler peripherals.

Design Considerations

When selecting a data width for AXI4-Full IP, several factors should be considered to ensure optimal system performance and resource utilization:

• Bandwidth Requirements: Higher data widths can accommodate more data per transaction, reducing the number of required transactions and improving throughput.
• Resource Utilization: Wider data buses consume more FPGA resources, including logic elements and routing resources. Designers must balance bandwidth needs with available resources.
• System Architecture: The overall system design, including memory controllers and peripheral interfaces, must support the chosen data width to maintain compatibility and performance.
• Memory Interface: High-performance applications that interface with large memory systems benefit from wider data buses to facilitate faster data transfers.

Default Configurations in IP Generation Tools

When generating AXI4-Full IP cores using popular tools like Xilinx Vivado or AMD's IP Integrator, designers often encounter a default data width setting. Typically, these tools default to a 32-bit data width for several reasons:

Reasons for Defaulting to 32 Bits

• Simplicity and Compatibility: A 32-bit width is standard for many processors and peripherals, ensuring broad compatibility across various system components.
• Ease of Use: Starting with a 32-bit configuration simplifies the initial setup, allowing designers to quickly integrate AXI4-Full IP without immediate complexities.
• Resource Efficiency: Smaller data widths consume fewer resources, making them suitable for systems with limited FPGA capabilities or simpler processing needs.

Limitations of Default Settings

While a 32-bit default is beneficial for standard applications, it can pose limitations for high-performance or data-intensive systems that require wider data buses. Relying solely on default configurations may hinder the ability to fully leverage the AXI4-Full protocol's capabilities.

Customizing AXI4-Full Data Width

To utilize data widths beyond the default 32 bits in AXI4-Full IP, designers must engage in customization processes. These processes vary depending on the IP generation tool and the specific requirements of the system being designed.

Modifying IP Configuration in Vivado

In Xilinx Vivado, adjusting the data width of AXI4-Full IP involves navigating the IP configuration wizard or directly editing parameters within the HDL code:

• Using the IP Configuration Wizard:
  • Initiate the creation or configuration of the AXI4-Full IP core within Vivado.
  • During the setup process, locate the parameter labeled C_S_AXI_DATA_WIDTH or a similar designation.
  • Input the desired data width (e.g., 64, 128, 256 bits) to override the default setting.
  • Proceed with the IP generation, ensuring that the new data width is reflected in the generated HDL files.
• Editing HDL Code Directly:
  • Access the generated HDL source files for the AXI4-Full IP.
  • Identify the parameter controlling data width, such as AXI_DATA_WIDTH or DATA_WIDTH.
  • Manually adjust the parameter value to the desired bit width.
  • Verify that all instances and related modules are updated to accommodate the new data width.

Employing Advanced Scripting and Templates

For more complex or large-scale projects, designers may opt to use advanced scripting or custom templates to automate the generation of AXI4-Full IP with customized data widths:

• Scripting with TCL or Python: Utilize scripting languages to automate the configuration of IP cores, allowing for batch processing and consistent parameter settings across multiple modules.
• Custom Templates: Develop or modify existing HDL templates to include parameters for data width, enabling easy adjustments without manual code edits.
• Automated Workflows: Integrate custom scripts into the IP generation workflow to ensure that all AXI4-Full IP cores are uniformly configured according to system requirements.

Ensuring Compatibility Across the System

When increasing the data width of AXI4-Full IP cores, it's imperative to ensure that all connected components within the system support the new configuration:

• Memory Controllers: Verify that memory interfaces can handle the increased data throughput and align with the new data width.
• Peripherals: Ensure that peripherals communicate effectively with the AXI4-Full IP, avoiding bottlenecks or mismatches in data handling capacities.
• Interconnects: Update interconnect fabric and routing to accommodate wider data buses, maintaining signal integrity and timing requirements.

Practical Considerations for Wider Data Widths

While expanding data widths can yield significant performance benefits, it also introduces challenges that must be thoughtfully addressed during the design process.

Resource Utilization

Wider data buses consume more FPGA resources, including logic cells and routing channels. Designers must assess the trade-offs between performance gains and resource availability:

• Logic Elements: Increased data widths may necessitate more complex logic for data handling, which can strain available FPGA resources.
• Routing Complexity: Wider buses require more routing paths, potentially leading to congestion and increased latency if not managed effectively.
• Power Consumption: Higher data widths can result in increased power usage, which is a critical factor in power-sensitive applications.

Timing Analysis and Signal Integrity

As data widths expand, maintaining signal integrity and meeting timing requirements becomes more challenging:

• Propagation Delays: Wider buses may introduce longer signal paths, leading to increased propagation delays that must be accounted for in timing analysis.
• Setup and Hold Times: Ensuring that data signals meet setup and hold time requirements is crucial to prevent metastability and data corruption.
• Cross-Talk and Noise: Increased signal density can result in higher susceptibility to cross-talk and electromagnetic interference, necessitating careful PCB layout and shielding strategies.

System Compatibility

Enhancing data widths requires that all system components are compatible and capable of handling the increased data rates:

• Protocol Adherence: Ensure that all components adhere to the AXI4-Full protocol specifications, particularly regarding handshaking and data transfer mechanisms.
• Scalability: Design components to be scalable, allowing for future increases in data width or integration with additional modules without significant redesign.
• Testing and Validation: Implement comprehensive testing to validate that the system operates correctly with the customized data widths, identifying and addressing any issues that arise.

Examples and Step-by-Step Guidance

To provide a practical understanding of customizing AXI4-Full IP data widths, let's explore a step-by-step example using Xilinx Vivado.

Example: Increasing AXI4-Full Data Width to 128 Bits in Vivado

Step 1: Initiate IP Generation

Open your project in Xilinx Vivado and navigate to the IP catalog. Select the AXI4-Full IP core you intend to customize.

Step 2: Access IP Configuration Wizard

Launch the IP configuration wizard by double-clicking on the selected AXI4-Full IP core.

Step 3: Modify Data Width Parameter

Within the configuration options, locate the parameter C_S_AXI_DATA_WIDTH. Change its value from the default 32 to 128 to achieve a 128-bit data width.

Step 4: Generate the Customized IP

Proceed to generate the IP core with the new configuration. Vivado will update the HDL files to reflect the 128-bit data width.

Step 5: Integrate and Verify System Compatibility

Ensure that all connected components, such as memory controllers and peripherals, are configured to support the 128-bit data width. Update any interfaces as necessary to maintain system integrity.

Step 6: Perform Timing Analysis

Run timing analysis to validate that the new data width does not introduce timing violations. Adjust constraints or optimize the design as needed to meet performance requirements.

Code Example: Parameter Adjustment in HDL

For designers who prefer to edit HDL code directly, here's an example of modifying the data width parameter:

  // Original AXI4-Full Interface with 32-bit data width
  module axi4_full_interface (
      input wire [31:0] S_AXI_DATA,
      output wire [31:0] M_AXI_DATA,
      // ... other signals
  );

  // Customized AXI4-Full Interface with 128-bit data width
  module axi4_full_interface (
      input wire [127:0] S_AXI_DATA,
      output wire [127:0] M_AXI_DATA,
      // ... other signals
  );

  // Ensure all related modules and signal assignments are updated accordingly


In this example, the data width parameters for both the slave (S_AXI_DATA) and master (M_AXI_DATA) interfaces have been increased from 32 bits to 128 bits. It's essential to propagate these changes throughout the design to maintain consistency and functionality.

Practical Implications and Best Practices

Optimizing AXI4-Full data widths involves balancing performance gains with resource and design complexity. Adhering to best practices ensures that the customization process enhances system capabilities without introducing unintended issues.

Optimizing Resource Usage

Designers should strategically allocate resources to maximize performance while minimizing overhead:

• Selective Width Enhancement: Increase data widths selectively for high-bandwidth components, leaving simpler peripherals at lower widths to conserve resources.
• Utilize Efficient Coding Practices: Employ modular design techniques and reusable code blocks to streamline resource usage and facilitate maintenance.
• Leverage FPGA Features: Utilize FPGA-specific features such as block RAMs (BRAMs) and DSP slices to handle wider data operations efficiently.

Ensuring Robust Testing and Validation

Comprehensive testing is crucial to validate the functionality and performance of customized AXI4-Full IP cores:

• Simulation: Use simulation tools to verify data integrity and protocol adherence under various operating conditions.
• Hardware Validation: Implement test benches on physical hardware to assess real-world performance and identify potential issues.
• Performance Benchmarking: Measure key performance indicators such as throughput, latency, and resource utilization to ensure that the design meets desired specifications.

Maintaining Documentation and Configuration Management

Proper documentation and configuration management practices facilitate easier maintenance and scalability:

• Document Parameter Changes: Keep detailed records of all configuration changes, including data width modifications, to aid in future troubleshooting and enhancements.
• Version Control: Use version control systems to track changes to HDL code and IP configurations, ensuring that modifications can be reverted or reviewed as needed.
• Standardize Configuration Procedures: Develop standardized procedures for customizing IP cores to promote consistency and reduce the likelihood of errors.

---

Conclusion

The AXI4-Full protocol offers substantial flexibility in data width configurations, extending far beyond the commonly used 32-bit setups. While default settings in IP generation tools like Xilinx Vivado may initially restrict data widths to 32 bits for simplicity and compatibility, designers have the capability to customize these settings to meet the specific demands of their applications. By understanding the protocol's inherent flexibility, employing strategic customization techniques, and adhering to best practices in resource management and testing, engineers can fully leverage the performance and scalability benefits that wider data widths bring to their systems.
