D2D Signal Bumps Group Strategy within LSI

Comprehensive methodologies combining rule-based, heuristic, and reinforcement learning approaches

Highlights

Rule-Based Approach: Constraint definition, layer allocation, proximity requirements, and cross-channel borrowing for initial grouping.
Heuristic Methodology: Iterative improvement using proximity-based placement, cost functions to optimize routing lengths, and adaptive reconfiguration.
Reinforcement Learning: Environment modeling with state and action spaces, reward design for routing consistency and layer utilization, and training using algorithms such as DQN.

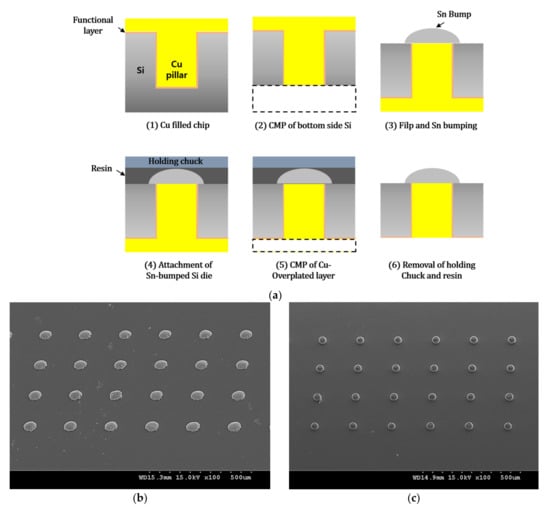

Introduction to the Strategy

For realizing an optimum “D2D signal bumps group strategy within LSI,” it is essential to consider multiple methodologies that offer both static and dynamic optimization techniques. The strategy involves grouping signal bumps, which are distributed across different rows (or channels), ensuring that the grouping respects the pattern, count, and rules specific to the bump attributes. Each channel has its unique bump pattern that includes bumps name, order (including power and ground bumps), and channel-specific characteristics. Given a 4 metal layers LSI, each bump group must contain exactly 4 bumps. The grouping must ensure that the bumps within the same group are physically close to minimize the routing length, that the bumps are distributed across different metal layers, and that TX and RX bumps are segregated into separate groups. An advanced requirement allows borrowing bumps from different channels to maintain a balanced grouping when one channel features surplus bumps and another a deficiency. Below, we outline detailed methodologies based on rule-based strategies, heuristic methods, and reinforcement learning (RL) techniques.

Rule-Based Methodology

Fundamental Rules and Constraints

The rule-based methodology lays out a set of explicit rules that guide the grouping process by ensuring that all physical constraints are duly respected. This approach is highly effective during the initial configuration phase as it establishes a baseline conforming to design rules and ensures that the subsequent heuristics or learning approaches start from a valid state.

Step 1: Analyze Bump Distribution

Begin by analyzing the initial distribution of signal bumps across the various rows. Each row, representing a channel, will have different patterns and counts. Attention should be given to:

The number of bumps available in each channel.
The ordering and naming of bumps, including PG bumps which are used for power and ground.
The inherent spatial distribution which influences the physical closeness necessary for minimizing routing length.

Step 2: Define Channel and Group Constraints

Since each row forms a channel, the rule-based strategy should incorporate the following constraints:

Group Size Determination: For a 4-metal layer LSI, fix the group size at 4 bumps.
Layer Distribution: Bumps within the same channel should be placed in different metal layers to ensure signal integrity.
TX/RX Separation: TX and RX bumps must not be grouped together to avoid signal corruption.
Routing Length Consistency: Ensure the bumps in a group are physically close to maintain uniform routing lengths.
Cross-Channel Borrowing: Define conditions under which a bump from one channel can be borrowed if there is an imbalance across channels.

Step 3: Implement the Rules

The rule-based approach involves algorithmically scanning through channel data, applying the constraints iteratively:

Establish bump groups sequentially per channel, checking immediately for layer distribution and proximity.
For any channel where the expected bump count is not met, apply the borrowing rule from another channel that exhibits an excess bump.
Ensure that throughout the process, the group formation preserves a balanced number of bumps per group and maintains signal integrity by accessing a greedy yet systematic allocation mechanism.

Example Pseudocode for Rule-Based Approach


# Begin by iterating through each channel to create initial groups.
def rule_based_grouping(channels, metal_layers):
    groups = []
    for channel in channels:
        bumps_per_group = metal_layers  # For example, 4 bumps per group.
        channel_groups = []

        for bump in channel['bumps']:
            # Check if bump meets criteria for being added to a group:
            if valid_for_group(bump):
                nearest_bumps = find_nearest_bumps(channel['bumps'], bump, bumps_per_group)
                # Enforce TX/RX separation and add if routing length is consistent.
                if check_tx_rx_separation(nearest_bumps) and check_routing(nearest_bumps):
                    channel_groups.append(nearest_bumps)

        # If the channel is missing a bump, apply the borrowing rule.
        if len(channel_groups) < required_groups(channel):
            borrowed_bumps = borrow_bumps_from_channels(channels, channel, bumps_needed)
            channel_groups.extend(borrowed_bumps)

        groups.extend(channel_groups)
    return groups

Heuristic-Based Methodology

Optimization Through Proximity and Iterative Improvement

While the rule-based method sets valid initial configurations, heuristic strategies introduce adaptability and efficiency into the optimization process. Heuristics rely on experience-based techniques such as greedy algorithms, genetic algorithms, and simulated annealing to overcome local optima and efficiently refine the grouping.

Initial Group Configuration

In the first phase, place the bumps into groups by prioritizing their physical proximity. The following factors need to be addressed:

Proximity: Group bumps that are physically close together to ensure routing length consistency.
Metal Layer Allocation: Allocate different metal layers for each bump in the group, adhering to the design constraints.
Bump Prioritization: Prioritize critical bumps (e.g., TX or RX which are vital for signal transmission) ensuring they are isolated as required.

Cost Function and Evaluation

After establishing an initial grouping, the strategy involves an iterative refinement process. Develop a cost function that evaluates:

Routing Length: Lower total routing lengths should give a lower cost.
Layer Consistency: A value that rewards groups with correct metal layer distribution.
Borrowing Penalties: Impose cost increments for improper borrowing or rule violations.

Iterative Improvement Using Heuristics

Use iterative improvements such as simulated annealing or genetic algorithms:

Generate perturbations or small changes to the current grouping configuration.
Evaluate the cost function after each perturbation.
If a perturbation improves the configuration (i.e., reduces the cost), update the grouping accordingly.
Continue the process until no significant improvements can be made, or a maximum number of iterations is reached.

Example Pseudocode for Heuristic Approach


def heuristic_grouping(channels, metal_layers):
    # Initial placement based on proximity and metal layer constraints.
    groups = initial_placement(channels, metal_layers)
    max_iterations = 1000

    for iteration in range(max_iterations):
        new_groups = perturb_groups(groups)  # Apply slight changes.
        if evaluate_cost(new_groups) < evaluate_cost(groups):
            groups = new_groups  # Update group configuration if improved.

    return groups

def evaluate_cost(groups):
    cost = 0
    for group in groups:
        cost += calculate_routing_length(group)
        # Add penalties for rule violation and improper layer usage.
    return cost

Reinforcement Learning Based Methodology

Adaptive Strategy Through Learning and Dynamic Refinement

The reinforcement learning (RL) approach employs an agent that learns optimal bump grouping strategies by interacting with a simulated environment. This method is particularly effective in dynamic scenarios where the distribution of bumps and environmental variables may vary.

Environment and State Definition

Define the RL environment using the following elements:

State Space: Includes the current distribution of bumps, their types (TX, RX, PG, signal), and their physical positions (essential for routing length evaluation), as well as the available metal layers.
Action Space: Constitutes the possible moves:
- Assigning a bump to a particular group.
- Moving a bump from one channel to another (i.e., borrowing bumps between channels).
- Swapping bumps between groups to improve routing length consistency.

Reward Function Design

A well-designed reward function is critical for ensuring that the RL agent converges to an optimal grouping strategy. The reward function should encourage configurations that:

Minimize the total routing length across groups.
Maintain proper metal layer distribution by rewarding groups that have one bump per metal layer.
Enforce TX and RX separation by penalizing any infractions within a group.
Reward balanced group sizes that match the usable metal layers, while allowing borrowing in a controlled manner.

RL Algorithm and Training Process

Choose an RL algorithm such as Deep Q-Networks (DQN) for a balance between complexity and effectiveness:

Agent Training: Train the RL agent using simulated scenarios of bump configurations. The training involves the agent interacting with the environment and progressively adjusting its actions according to the observed state transitions and rewards.
Iteration and Policy Refinement: The agent improves its policy over numerous iterations (episodes) until it can consistently form optimal bump groups.

Example Pseudocode for RL Approach


import gym
from gym import spaces

class BumpGroupingEnv(gym.Env):
    def __init__(self, channels, metal_layers):
        self.channels = channels
        self.metal_layers = metal_layers

        # Define a simple discrete action space (expandable for more complex actions)
        self.action_space = spaces.Discrete(len(channels) * metal_layers)
        self.observation_space = spaces.Dict({
            'channels': spaces.Box(low=0, high=1, shape=(len(channels), metal_layers), dtype=float)
        })

    def step(self, action):
        # Apply the action to change the bump configuration:
        self.perform_action(action)
        reward = self.calculate_reward()
        state = self.get_state()
        done = False  # Use termination criteria as needed
        return state, reward, done, {}

    def calculate_reward(self):
        reward = 0.0
        # Reward lower routing length, proper layer utilization, and TX/RX separation.
        reward -= self.total_routing_length()
        reward += self.layer_consistency_score()
        # Penalize rule violations
        if self.violates_tx_rx_rules():
            reward -= 10
        return reward

# Example of training loop:
agent = DQNAgent()  # Assume a pre-defined DQNAgent class
env = BumpGroupingEnv(channels, metal_layers)

for episode in range(1000):
    state = env.reset()
    done = False
    total_reward = 0.0
    while not done:
        action = agent.get_action(state)
        new_state, reward, done, _ = env.step(action)
        agent.update(state, action, reward, new_state)
        state = new_state
        total_reward += reward

Comparative Table of Methodologies

Methodology	Description	Advantages	Challenges
Rule-Based	Static rules deriving from physical constraints, TX/RX separation, layer distribution, and borrowing rules.	Easy to implement, ensures initial feasibility, clear constraint adherence.	May not find global optimum, rigidity in complex cases.
Heuristic-Based	Uses proximity-based placement and iterative improvement based on a cost function.	Efficient in finding good solutions, adaptable to local changes.	Prone to getting trapped in local optima, requires careful cost function design.
Reinforcement Learning	Adaptive learning where an agent trains to optimize grouping based on state transitions and rewards.	Capable of learning complex grouping strategies, adapts to dynamic scenarios.	Resource intensive, requires extensive training data and tuning.
