Solving Sudoku with Dancing Links: An In-Depth Exploration

Unveiling the synergy between Dancing Links and Sudoku for efficient puzzle-solving.

Key Takeaways

Exact Cover Modeling: Sudoku is transformed into an exact cover problem, enabling the application of Algorithm X.
Dancing Links Structure: Utilizes a circular doubly linked list for efficient row and column manipulation during backtracking.
Algorithm Efficiency: Combines heuristic optimizations with the dynamic nature of Dancing Links to solve complex Sudoku puzzles swiftly.

Introduction to Dancing Links and Sudoku

Sudoku, a widely popular number-placement puzzle, challenges players to fill a 9x9 grid so that each column, each row, and each of the nine 3x3 subgrids contain all of the digits from 1 to 9. While traditionally solved using logical reasoning and pattern recognition, algorithmic approaches offer a systematic and efficient means to solve even the most challenging Sudoku puzzles.

Dancing Links, an algorithmic technique introduced by Donald Knuth, is renowned for efficiently solving exact cover problems. When applied to Sudoku, Dancing Links provides a powerful method to navigate the vast search space inherent in the puzzle, ensuring solutions are found swiftly and accurately.

Understanding Exact Cover Problems

An exact cover problem requires selecting a subset of rows from a binary matrix such that each column contains exactly one '1'. This abstract formulation is versatile and can represent various combinatorial problems, including Sudoku.

Mapping Sudoku to Exact Cover

To apply Dancing Links to Sudoku, the puzzle must first be translated into an exact cover problem. This involves constructing a binary matrix where:

Rows: Each row represents a potential placement of a number in a specific cell of the Sudoku grid.
Columns: Each column encodes a constraint that must be satisfied. For Sudoku, these constraints include:

Cell Constraint: Every cell must contain exactly one number.
Row Constraint: Each number must appear exactly once in every row.
Column Constraint: Each number must appear exactly once in every column.
Box Constraint: Each number must appear exactly once in every 3x3 subgrid.

For a standard 9x9 Sudoku, this results in a matrix with 324 columns (81 for cell constraints, 81 for row constraints, 81 for column constraints, and 81 for box constraints) and 729 rows (9 possibilities for each of the 81 cells).

The Dancing Links Data Structure

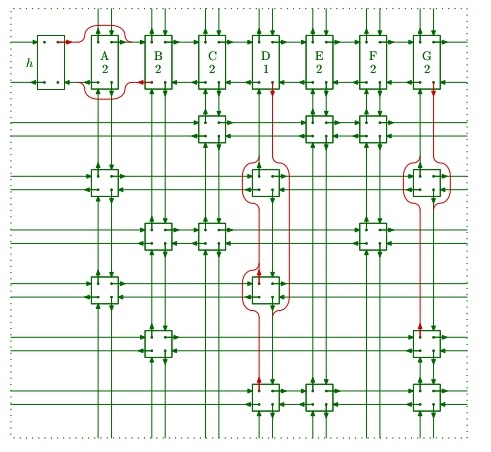

Dancing Links employs a circular doubly linked list to represent the sparse binary matrix efficiently. This data structure facilitates quick removal and restoration of rows and columns, which is essential during the backtracking process of Algorithm X.

Nodes: Each '1' in the matrix is represented by a node that contains pointers to its left, right, up, and down neighbors.
Headers: Each column has a header node that tracks the number of '1's in that column, aiding in heuristic selection.
Linking: Nodes are linked both horizontally (within rows) and vertically (within columns), forming a toroidal structure that allows the "dancing" aspect—the dynamic removal and reinsertion of nodes.

Structure Illustration


<table>
  <tr>
    <th>Cell Constraint</th>
    <th>Row Constraint</th>
    <th>Column Constraint</th>
    <th>Box Constraint</th>
  </tr>
  <tr>
    <td>Cell (1,1) = 1</td>
    <td>Row 1 contains 1</td>
    <td>Column 1 contains 1</td>
    <td>Box (1,1) contains 1</td>
  </tr>
  <!-- Additional rows representing possible number placements -->
</table>

The above HTML table snippet illustrates how constraints are mapped in the exact cover matrix, with each row representing a potential number placement and its corresponding constraints.

Algorithm X with Dancing Links

Algorithm X is a recursive, backtracking algorithm designed to find all solutions to the exact cover problem. When combined with the Dancing Links data structure, it becomes exceptionally efficient for problems like Sudoku.

Step-by-Step Operation

Choose a Column (Constraint) with the Fewest '1's

To minimize branching and enhance efficiency, the algorithm selects the constraint with the least number of possible options. This heuristic reduces the search space early on.
Cover the Selected Column

Covering a column involves removing it from the matrix, along with all rows that satisfy this constraint. This action effectively narrows down the potential number placements.
Choose a Row to Satisfy the Constraint

Select a row (number placement) from the selected column. This choice is a potential part of the solution and leads to further constraint reductions.
Recurse with the Reduced Matrix

With the selected row included in the partial solution, the algorithm recursively attempts to satisfy the remaining constraints using the reduced matrix.
Backtrack if Necessary

If a dead end is reached (i.e., no feasible row satisfies a remaining constraint), the algorithm backtracks by uncovering the previously covered column and restoring the removed rows.
Termination Upon Full Coverage

The algorithm successfully terminates when all columns (constraints) are covered, indicating that a valid Sudoku solution has been found.

Implementation Considerations

Implementing Algorithm X with Dancing Links requires meticulous handling of the linked list structure to ensure efficient row and column manipulation. Each operation—covering and uncovering columns and rows—must be executed with precision to maintain the integrity of the data structure.

Practical Example: Solving a Sudoku Puzzle

To elucidate the process, consider solving a simple 4x4 Sudoku puzzle. While smaller in scale, the principles remain consistent with the standard 9x9 variant.

Step 1: Construct the Exact Cover Matrix

For a 4x4 Sudoku, the exact cover matrix comprises:

16 Columns: Representing cell, row, column, and box constraints.
64 Rows: Each corresponding to a possible number placement within a cell.

Step 2: Initialize Dancing Links Structure

Create a circular doubly linked list where each node corresponds to a '1' in the exact cover matrix. Headers are established for each constraint, facilitating rapid access and manipulation.

Step 3: Apply Algorithm X

Select the constraint with the fewest options.
Choose a row that satisfies this constraint.
Cover the associated columns and proceed recursively.
Backtrack if a dead end is encountered.
Iterate until all constraints are satisfied, yielding the Sudoku solution.

Result

The algorithm efficiently navigates through potential number placements, systematically eliminating invalid options and converging on the puzzle's solution without exhaustive search.

Sample Code Implementation


# Example Python snippet using Dancing Links for Sudoku
class DancingLinks:
    def __init__(self, matrix):
        # Initialize the Dancing Links structure
        pass

    def search(self, k=0):
        # Implement Algorithm X search
        pass

def solve_sudoku(grid):
    matrix = construct_exact_cover_matrix(grid)
    dlx = DancingLinks(matrix)
    solutions = dlx.search()
    return solutions

# Example usage
sudoku_grid = [
    [5, 3, 0, 0],
    [6, 0, 0, 3],
    [0, 9, 8, 0],
    [0, 0, 0, 0]
]

solutions = solve_sudoku(sudoku_grid)
print(solutions)

The above Python code provides a skeletal framework for implementing Dancing Links to solve Sudoku. It outlines the initialization of the data structure, the recursive search mechanism, and the process of constructing the exact cover matrix based on the initial Sudoku grid.

Advantages of Using Dancing Links for Sudoku

Efficiency: The circular doubly linked list structure enables constant-time removal and restoration of rows and columns, significantly speeding up the backtracking process.
Scalability: Beyond standard Sudoku, Dancing Links can handle larger and more complex variants, including puzzles with additional constraints.
Completeness: It guarantees finding all possible solutions to a Sudoku puzzle, ensuring no potential solution is overlooked.
Flexibility: The exact cover framework is versatile, allowing the approach to be adapted for other combinatorial problems like the N-Queens problem or polyomino tiling.

Performance Comparison

Algorithm	Time Complexity	Space Complexity	Notes
Brute-Force Backtracking	Exponential	High	Simple but inefficient for complex puzzles.
Constraint Propagation	Better than brute-force	Moderate	Uses logical deductions to reduce search space.
Algorithm X with Dancing Links	Polynomial	Efficiently managed	Highly efficient for exact cover problems.

Conclusion

Dancing Links presents a robust and efficient method for solving Sudoku puzzles by translating them into exact cover problems and employing Algorithm X for systematic solution discovery. Its combination of an optimized data structure and recursive search strategy ensures that even the most challenging Sudoku variants can be solved swiftly and accurately. By leveraging the strengths of Dancing Links, one can achieve a high-performance Sudoku solver capable of handling real-world puzzle complexities.
