Unlocking the Blueprint of Data: Mastering Data Modeling

Key Highlights

Conceptual, Logical, and Physical Models: Different abstraction levels used to design data systems.
Types of Data Models: Relational, Hierarchical, Network, Dimensional, Graph, and more offering diverse structures.
Practical Examples and Use Cases: Real-life scenarios ranging from CRM systems to e-commerce and social networks.

Understanding Data Modeling

Data modeling is a strategic process used to create a visual blueprint of data elements and their relationships within an organization's information system. It represents a structured approach to organizing, managing, and utilizing data to support business operations and decision-making. By designing models at varying levels of abstraction, data modeling helps stakeholders and technical teams to develop, maintain, and optimize databases while ensuring data quality, integrity, and consistency.

What is Data Modeling?

At its core, data modeling is the process of organizing and structuring data to reflect real-world processes and rules. It defines how data is stored, connected, and processed within a system. This modeling not only acts as a schematic for database design but also facilitates communication between business users and technical teams. Data models serve as blueprints, guiding the development of databases and applications in a manner that supports efficient data management and analytical processing.

The Three Levels of Data Modeling

Conceptual Data Model: Serves as a high-level overview capturing business entities, their relationships, and overall requirements. It uses broad definitions without going into technical specifics.
Example: In a Customer Relationship Management (CRM) tool, a conceptual model may include entities like Customers, Contacts, and Interactions. It gives a big-picture view of customer data and business relationships.
Logical Data Model: Provides a more detailed representation by defining the specific attributes of each entity, their data types, constraints, and intricate relationships, yet remains independent of physical storage considerations.
Example: For the CRM system, the logical model will detail each attribute of the Customer entity (e.g., CustomerID, Name, Email, Phone Number) and specify how these entities are interlinked without delving into the underlying database technology.

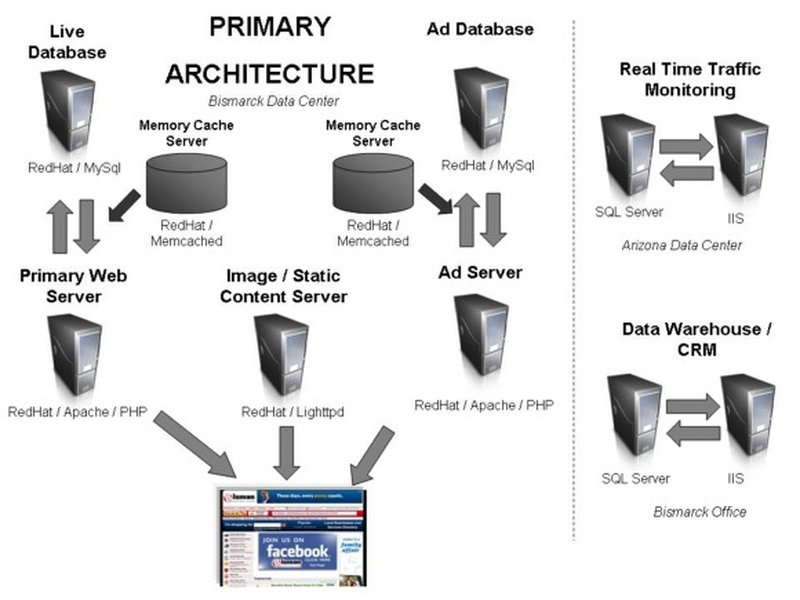

Physical Data Model: Maps the logical design to the actual implementation details within a specified database system. It includes table definitions, indexes, primary keys, foreign keys, and storage considerations.
Example: In an e-commerce database, the physical model would define concrete tables for Customers, Products, and Orders with keys, indexes, and optimized parameters defined for performance in a system like MySQL or PostgreSQL.

Types of Data Models

Numerous data models exist, each tailored for specific scenarios and system requirements. Choosing the right type of model not only improves data integrity and performance but also aligns with transformation requirements across various business contexts.

Common Data Model Types

Relational Data Model: Organizes data into structured tables (relations) using primary keys and foreign keys to establish relationships. This model is widely used due to its robust support for ACID transactions and data integrity.
Example: A retail system where tables like Customers, Orders, and Products are linked to maintain transactional records.
Hierarchical Data Model: Structures data in a tree-like format where each node has one parent, supporting one-to-many relationships.
Example: An organizational chart where a company has various departments and each department has multiple teams.
Network Data Model: An extension of the hierarchical model that allows many-to-many relationships where records can have multiple parent and child relationships.
Example: A social network database where users can be connected in various complex ways.
Dimensional Data Model: Specifically used in data warehousing, it structures data into fact tables and dimension tables for analytical querying.
Example: A sales data warehouse that uses a star schema with a central Sales fact table linked to dimension tables like Date, Customer, and Product.
Graph Data Model: Represents data using nodes and edges, which is particularly useful for expressing intricate relationships.
Example: Social graphs that depict relationships among users in platforms like Facebook or LinkedIn.
Key-Value Data Model: Uses a simple mechanism of key-value pairs for high-speed retrieval of data.
Example: Caching systems using Redis where each key is linked to a corresponding value.
Wide-Column Data Model: Optimized for scalable storage, storing data in columns rather than rows.
Example: NoSQL databases like Cassandra designed for big data applications.
Document Data Model: Structures data as documents typically in JSON or XML format.
Example: Content management systems using MongoDB where each document encapsulates related information.
Object-Oriented Data Model: Represents data as objects, encapsulating both data and behavior.
Example: Multimedia systems or applications where complex entity interactions require the flexibility of object representations.
Text Search Data Model: Specifically designed for efficient text indexing and search queries.
Example: Search engine platforms like Elasticsearch which optimize queries through faceted search capabilities.

Practical Examples of Data Modeling

Understanding data modeling requires examining real-world applications that illustrate how abstract models are translated into concrete systems. Below are some detailed examples and scenarios.

Example 1: E-commerce Database

An e-commerce platform relies heavily on efficient data modeling to manage diverse datasets effectively:

Conceptual Model: Identify key entities such as Customers, Products, Orders, Reviews, and Categories.
Logical Model: Define attributes for each entity – for instance, the Customer entity might include CustomerID, Name, Email, Address, and Payment Information.
Physical Model: Implement these entities in tables within a relational database system like MySQL. Create foreign key relationships, indexes, and optimize storage by ensuring each table is normalized and performance tuned.

This layered approach helps in achieving smoother data transactions and enables robust reporting and business intelligence analytics.

Example 2: Customer Relationship Management (CRM) System

A CRM system requires data modeling to align customer data with transactional and communication records effectively:

Conceptual Data Model: Outline entities such as Customers, Contacts, Leads, Sales Opportunities, and Interactions.
Logical Data Model: Detail attributes for each entity. For instance, an Interaction might include Date, Type, Outcomes, and Follow-up actions.
Physical Data Model: Build the schema on platforms like SQL Server or Oracle, ensuring that relationships (One-to-Many, Many-to-Many) are correctly defined with proper constraints.

Example 3: Social Network Database

Social networks, with their complex and interconnected data structures, benefit from flexible models:

Conceptual Mode: Define primary entities such as Users, Posts, Comments, Likes, and Friend Relationships.
Logical Model: Specify detailed attributes of each entity. For example, a User might have attributes like UserID, Name, Profile Picture, and Friends List.
Physical Model: Implementation might use a combination of relational tables for structured data and a Graph Data Model (using systems like Neo4j) for managing interconnected relationships.

Visualizing Data Modeling Concepts

Radar Chart Analysis: Data Modeling Aspects

The radar chart below provides a visual comparison of different aspects of data modeling based on criteria such as usability, integrity, scalability, flexibility, and performance. This visualization amalgamates expert opinions and various data modeling paradigms.

Mermaid.js Mindmap Diagram

The mindmap below provides a simplified overview of the data modeling process and its key components, from conceptualization to physical implementation.

mindmap root["Data Modeling"] Origins["Definition & Purpose"] Types["Types of Models"] Levels["Conceptual
Logical
Physical"] Tools["Modeling Tools"] Origins --> Use["Efficient Data Design"] Origins --> Insight["Business Intelligence"] Types --> Relational["Relational Model"] Types --> Hierarchical["Hierarchical Model"] Types --> Network["Network Model"] Types --> Dimensional["Dimensional Model"] Types --> Graph["Graph Model"] Levels --> Conceptual["Conceptual"] Levels --> Logical["Logical"] Levels --> Physical["Physical"] Tools --> ERD["ER Diagrams"] Tools --> UML["UML Modeling"] Tools --> Software["Modeling Software"]

Data Model Structure Table

The table below encapsulates a comprehensive comparison between different types of data models. This structured summary helps in quickly identifying the characteristics, advantages, and typical applications of each model type.

Data Model Type	Description	Key Features	Typical Use Cases
Relational	Data organized into tables with rows and columns using keys.	ACID Transactions, Normalized Schema, Referential Integrity	Retail systems, Banking, ERP
Hierarchical	Data structured in a tree-like hierarchy with parent-child relationships.	Simple structure, One-to-Many Relationships	Organizational Charts, File Systems
Network	Enhanced hierarchical model allowing many-to-many relationships.	Complex Relationships, Flexibility	Telecommunication, Social Networks
Dimensional	Designed for data warehousing with fact and dimension tables.	Star Schema, Fast Query Performance, Aggregation	Data Warehouses, Business Intelligence
Graph	Represents data with nodes and edges to depict complex interconnections.	Dynamic Relationships, Scalability	Social Networks, Recommendation Systems
Key-Value	Simplest form of data storage using key-value pairs.	High-Speed Retrieval, Simple Schema	Caching, Session Storage

Integrating Industry Tools with Data Modeling

Various software tools facilitate the data modeling process by providing intuitive interfaces for designing, visualizing, and maintaining data models. Tools like ER/Studio, Lucidchart, and Microsoft Visio offer robust features for creating ER diagrams and detailed data model representations. Furthermore, online platforms enable collaborative modeling, allowing teams to work together in real-time and ensure that models align with business requirements.

Key Benefits of Data Modeling

Enhanced Communication: Data models serve as a visual language bridging technical and non-technical teams.
Improved Data Quality: By establishing constraints and clear relationships, data models minimize redundancy and ensure consistency.
Optimized Performance: Thoughtfully designed models empower high-performance querying and scalability.
Streamlined Development: Accurate models simplify application development and database administration by providing a clear blueprint.
