Debugging Your 3D Knowledge Map: Enhancing Metadata and User Interface

Comprehensive solutions to ensure metadata synchronization and a sleek UI

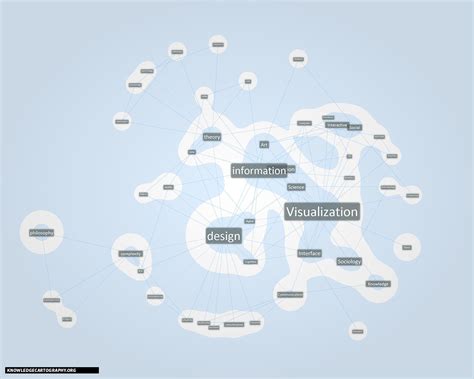

3d knowledge map interface

Key Takeaways

  • Seamless Metadata Movement: Implement robust methods to ensure metadata popups consistently follow their respective nodes during interactions and camera movements.
  • Rectangular Metadata Popups: Utilize refined CSS and JavaScript techniques to design modern, rectangular popup windows that enhance user experience.
  • Enhanced User Interface: Adopt best practices and modern frameworks to create a clean, intuitive, and visually appealing interface for your 3D knowledge map.

1. Ensuring Metadata Moves with Nodes

a. Dynamic Positioning of Metadata Popups

To ensure that the metadata popup window moves seamlessly with its corresponding node, it's crucial to update its position in real-time as the node or camera moves. This can be achieved by integrating the position update logic within the animation loop.

Implementation Steps:

  • Update the Animate Function:

    Incorporate a method to continuously update the metadata popup's position based on the node's world position and the camera's perspective.


    animate() {
        requestAnimationFrame(this.animate.bind(this));

        // Existing animate logic...

        // Update metadata positions
        this.updateModalPositions();

        this.controls.update();
        this.renderer.render(this.scene, this.camera);
    }

    updateModalPositions() {
        const modal = document.getElementById('nodeMetadataModal');
        if (modal && modal.classList.contains('visible') && this.selectedNode) {
            const rect = this.renderer.domElement.getBoundingClientRect();
            const nodeWorldPos = new THREE.Vector3();
            this.selectedNode.getWorldPosition(nodeWorldPos);
            const nodeScreenPos = nodeWorldPos.clone().project(this.camera);

            const x = ((nodeScreenPos.x + 1) / 2) * rect.width + rect.left;
            const y = ((-nodeScreenPos.y + 1) / 2) * rect.height + rect.top;

            modal.style.left = `${x}px`;
            modal.style.top = `${y}px`;
        }
    }

  • Handle Camera Movements:

    Ensure that any camera movement triggers an update to the metadata popup's position. This can be achieved by adding an event listener to the camera controls.


    this.controls.addEventListener('change', this.updateModalPositions.bind(this));

  • Drag Events Integration:

    When dragging nodes, continuously update the modal's position to follow the node.


    onMouseMove(event) {
        if (this.isDragging && this.selectedNode) {
            // Existing dragging logic...

            // Update modal position
            this.updateModalPositions();
        }
    }


2. Designing Rectangular Metadata Popups

a. Styling the Metadata Modal with CSS

A modern, rectangular design for the metadata popup enhances readability and user interaction. Applying consistent styling ensures that the modal aligns with contemporary UI standards.

CSS Enhancements:

  • Define Modal Styles:

    Create a clean and visually appealing rectangular modal using CSS properties such as border-radius, box-shadow, and padding.


    #nodeMetadataModal {
        position: fixed;
        width: 300px;
        background: #ffffff;
        border-radius: 8px;
        box-shadow: 0 4px 12px rgba(0, 0, 0, 0.2);
        padding: 16px;
        z-index: 1000;
        font-family: Arial, sans-serif;
        color: #333;
        display: none;
    }

    #nodeMetadataModal.visible {
        display: block;
    }

    #nodeMetadataModal .modal-header {
        font-size: 18px;
        font-weight: bold;
        margin-bottom: 12px;
    }

    #nodeMetadataModal .modal-content {
        font-size: 14px;
        line-height: 1.5;
        margin-bottom: 16px;
    }

    #nodeMetadataModal .modal-actions {
        display: flex;
        gap: 8px;
    }

    #nodeMetadataModal .modal-actions button {
        padding: 8px 12px;
        border: none;
        border-radius: 4px;
        cursor: pointer;
        font-size: 14px;
    }

    #nodeMetadataModal .edit-button {
        background: #4CAF50;
        color: white;
    }

    #nodeMetadataModal .delete-button {
        background: #F44336;
        color: white;
    }

  • Responsive Design:

    Ensure the modal is responsive and maintains its design across various screen sizes.


    @media (max-width: 600px) {
        #nodeMetadataModal {
            width: 90%;
            padding: 12px;
        }
    }


b. Integrating the Modal into HTML

Incorporate the styled modal into your HTML structure to ensure it functions correctly.


<!-- Metadata Modal -->
<div id="nodeMetadataModal" class="fixed bg-white rounded-lg shadow-lg p-4 z-50 hidden">
    <div class="modal-header" id="nodeLabel">Node Label</div>
    <div class="modal-content" id="nodeContent">Click to add content...</div>
    <div class="modal-actions">
        <button class="edit-button">Edit</button>
        <button class="delete-button">Delete</button>
    </div>
</div>


3. Enhancing the User Interface

a. Utilizing Modern CSS Frameworks

Adopting a modern CSS framework such as Tailwind CSS or Material UI can significantly streamline the styling process and ensure consistency across your application.

Integration Example with Tailwind CSS:

  • Include Tailwind CSS:

    Add the Tailwind CSS CDN link to your HTML's <head> section.


    <link href="https://cdn.jsdelivr.net/npm/tailwindcss@2.2.19/dist/tailwind.min.css" rel="stylesheet">

  • Styled Modal with Tailwind:

    Modify the modal's HTML to utilize Tailwind's utility classes for enhanced styling.


    <div id="nodeMetadataModal" class="fixed bg-white rounded-lg shadow-lg p-4 z-50 hidden">
        <div class="flex justify-between items-center mb-4">
            <h3 id="nodeLabel" class="text-lg font-bold">Node Label</h3>
            <button class="close-button text-gray-500 hover:text-gray-700">×</button>
        </div>
        <div id="nodeContent" class="text-sm text-gray-700 mb-4">Click to add content...</div>
        <div class="flex gap-2">
            <button class="edit-button bg-blue-500 text-white px-3 py-1 rounded">Edit</button>
            <button class="delete-button bg-red-500 text-white px-3 py-1 rounded">Delete</button>
        </div>
    </div>


b. Adding Smooth Animations and Transitions

Enhance user interactions by incorporating animations and transitions, making the interface feel more responsive and modern.

CSS Transitions Example:


#nodeMetadataModal {
    transition: all 0.3s ease-in-out;
}

#nodeMetadataModal.visible {
    opacity: 1;
    transform: translate(-50%, -100%);
}

#nodeMetadataModal.hidden {
    opacity: 0;
    transform: translate(-50%, -110%);
}


c. Organizing the Layout with Flexbox and Grid

Utilize CSS Flexbox and Grid to create a structured and adaptable layout, ensuring that elements are well-aligned and responsive.

Flexbox Integration:


.modal-header, .modal-actions {
    display: flex;
    justify-content: space-between;
    align-items: center;
}

.modal-actions {
    gap: 10px;
}


4. Additional Recommendations

a. Performance Optimization

As your 3D knowledge map scales, performance can become an issue. Implementing optimization techniques ensures a smooth user experience.

Using THREE.InstancedMesh:

For rendering a large number of similar objects, THREE.InstancedMesh can significantly reduce the rendering load.


// Example of creating an InstancedMesh for nodes
const count = 1000;
const geometry = new THREE.SphereGeometry(2, 32, 32);
const material = new THREE.MeshBasicMaterial({ color: 0x4CAF50 });
const instancedMesh = new THREE.InstancedMesh(geometry, material, count);

const dummy = new THREE.Object3D();
for (let i = 0; i < count; i++) {
    dummy.position.set(
        Math.random() * 1000 - 500,
        Math.random() * 1000 - 500,
        Math.random() * 1000 - 500
    );
    dummy.updateMatrix();
    instancedMesh.setMatrixAt(i, dummy.matrix);
}

scene.add(instancedMesh);


b. Accessibility Enhancements

Ensuring your application is accessible improves usability for all users. Implement ARIA labels and keyboard navigation to enhance accessibility.

ARIA Labels Example:


<button aria-label="Edit Node" class="edit-button bg-blue-500 text-white px-3 py-1 rounded">Edit</button>
<button aria-label="Delete Node" class="delete-button bg-red-500 text-white px-3 py-1 rounded">Delete</button>


Keyboard Navigation:

Implement keyboard shortcuts for common actions to improve accessibility.


// Example: Press 'E' to edit a node
document.addEventListener('keydown', (event) => {
    if (event.key === 'e' && this.selectedNode) {
        this.showNodeCustomizationMenu(this.selectedNode);
    }
});


Conclusion

By implementing the strategies outlined above, you can effectively debug and enhance your 3D knowledge map. Ensuring metadata popups move seamlessly with nodes, adopting a modern rectangular design, and enhancing the overall user interface will result in a more intuitive and visually appealing application. Additionally, optimizing performance and enhancing accessibility will provide a robust and user-friendly experience.
