Optimizing Your 3D Knowledge Map: Enhancing Metadata Integration and UI Design

Comprehensive Guide to Debugging and Improving Your 3D Knowledge Map

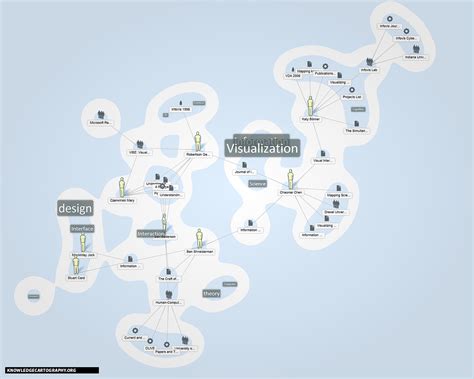

3d knowledge map interface

Key Takeaways

  • Seamless Metadata Synchronization: Ensure metadata popups dynamically follow nodes using efficient update mechanisms.
  • Clean and Rectangular Popup Design: Implement consistent styling with CSS to create user-friendly and aesthetically pleasing metadata windows.
  • Enhanced User Interface: Utilize responsive design principles and intuitive controls to improve overall user experience.

1. Synchronizing Metadata Popups with Nodes

To ensure that metadata popups move seamlessly with their corresponding nodes, it's crucial to implement a dynamic positioning system that updates in real-time as nodes are interacted with. Here's how to achieve this:

a. Centralizing Position Updates

Instead of manually updating the popup position through multiple event listeners, integrate the position synchronization within the main animation loop. This approach ensures that the metadata consistently follows the node, even during rapid camera movements or node drags.


animate() {
    requestAnimationFrame(this.animate.bind(this));

    // Update particle system
    this.updateParticles();

    // Update nodes animations
    this.updateNodes();

    // Synchronize metadata popups
    this.nodes.forEach(node => {
        if (node.userData.metadataWindow) {
            this.updateMetadataPosition(node, node.userData.metadataWindow);
        }
    });

    this.controls.update();
    this.renderer.render(this.scene, this.camera);
}



b. Utility Function for Positioning

Create a utility function to calculate and set the popup's position based on the node's current screen coordinates:


updateMetadataPosition(node, metadataWindow) {
    const nodeWorldPos = new THREE.Vector3();
    node.getWorldPosition(nodeWorldPos);
    const nodeScreenPos = nodeWorldPos.clone().project(this.camera);

    const rect = this.renderer.domElement.getBoundingClientRect();
    const x = ((nodeScreenPos.x + 1) / 2) * rect.width + rect.left;
    const y = ((-nodeScreenPos.y + 1) / 2) * rect.height + rect.top;

    metadataWindow.style.left = `${x}px`;
    metadataWindow.style.top = `${y}px`;
}



c. Integrating with Node Dragging

Ensure that when a node is dragged, the metadata popup position updates accordingly:


onMouseMove(event) {
    if (this.isDragging && this.selectedNode) {
        // Handle node dragging logic
        this.handleNodeDrag(event);

        // Update metadata popup position
        const metadataWindow = this.selectedNode.userData.metadataWindow;
        if (metadataWindow) {
            this.updateMetadataPosition(this.selectedNode, metadataWindow);
        }
    }
}



2. Designing a Clean and Rectangular Metadata Popup

A visually appealing and consistent metadata popup enhances user experience. Follow these steps to design a rectangular popup window that integrates smoothly with your 3D map:

a. CSS Styling for the Popup

Use CSS to define the appearance of the metadata popup, ensuring it has a rectangular shape, smooth borders, and appropriate spacing:


#nodeMetadataModal {
    position: fixed;
    width: 300px;
    background: rgba(255, 255, 255, 0.95);
    border-radius: 8px;
    box-shadow: 0 4px 16px rgba(0, 0, 0, 0.3);
    padding: 20px;
    z-index: 1000;
    display: none;
    transform: translate(-50%, -100%);
}

#nodeMetadataModal.visible {
    display: block;
}

#nodeMetadataModal h3 {
    margin-top: 0;
    font-size: 18px;
    color: #333;
}

#nodeMetadataModal p {
    font-size: 14px;
    color: #555;
}

#nodeMetadataModal .button-group {
    display: flex;
    justify-content: flex-end;
    gap: 10px;
}

#nodeMetadataModal .edit-button,
#nodeMetadataModal .delete-button,
#nodeMetadataModal .close-button {
    padding: 8px 12px;
    border: none;
    border-radius: 4px;
    cursor: pointer;
}

#nodeMetadataModal .edit-button {
    background-color: #4CAF50;
    color: white;
}

#nodeMetadataModal .delete-button {
    background-color: #f44336;
    color: white;
}

#nodeMetadataModal .close-button {
    position: absolute;
    top: 10px;
    right: 10px;
    background: none;
    font-size: 16px;
    color: #aaa;
}

#nodeMetadataModal .close-button:hover {
    color: #000;
}



b. HTML Structure for the Popup

Define the HTML structure of the popup to include a header, content area, and action buttons:


<div id="nodeMetadataModal" class="metadata-modal">
    <button class="close-button">×</button>
    <h3 id="nodeLabel">Node Label</h3>
    <p id="nodeContent">Node description or additional metadata goes here.</p>
    <div class="button-group">
        <button class="edit-button">Edit</button>
        <button class="delete-button">Delete</button>
    </div>
</div>



c. JavaScript for Popup Functionality

Implement JavaScript to handle the display, editing, and deletion of nodes through the popup:


showNodeMetadata(node) {
    if (!node || !node.userData || !node.userData.id) return;

    let modal = node.userData.metadataWindow;
    if (!modal) {
        modal = document.getElementById('nodeMetadataModal');
        node.userData.metadataWindow = modal;
    }

    const labelElement = document.getElementById('nodeLabel');
    const contentElement = document.getElementById('nodeContent');

    // Update modal content
    labelElement.textContent = node.userData.label || 'Node Label';
    contentElement.textContent = node.userData.content || 'Click to add content...';

    // Position the modal
    this.updateMetadataPosition(node, modal);

    // Show modal
    modal.classList.add('visible');
    modal.style.display = 'block';

    // Handle edit button
    const editButton = modal.querySelector('.edit-button');
    editButton.onclick = (e) => {
        e.stopPropagation();
        this.showNodeManagementForm(node);
        modal.classList.remove('visible');
    };

    // Handle delete button
    const deleteButton = modal.querySelector('.delete-button');
    deleteButton.onclick = (e) => {
        e.stopPropagation();
        if (confirm('Are you sure you want to delete this node?')) {
            this.deleteNode(node);
            modal.classList.remove('visible');
        }
    };

    // Handle close button
    const closeButton = modal.querySelector('.close-button');
    closeButton.onclick = () => {
        modal.classList.remove('visible');
        modal.style.display = 'none';
    };
}



3. Enhancing the Overall User Interface

A clean and responsive user interface is essential for an intuitive user experience. Implement the following strategies to improve the UI of your 3D knowledge map:

a. Utilizing CSS Frameworks

Incorporate CSS frameworks like Bootstrap or Tailwind CSS to streamline the styling process and ensure responsiveness across different devices.


/* Example using Tailwind CSS for responsive design */
.metadata-modal {
    @apply fixed bg-white bg-opacity-95 rounded-lg shadow-lg p-5 z-50 hidden;
}

.metadata-modal.visible {
    @apply block;
}

.button-group button {
    @apply px-4 py-2 rounded-md;
}

.button-group .edit-button {
    @apply bg-green-500 text-white hover:bg-green-600;
}

.button-group .delete-button {
    @apply bg-red-500 text-white hover:bg-red-600;
}



b. Responsive Layouts

Ensure that UI elements adapt to various screen sizes. Use media queries to adjust the layout of the metadata popup and other interface components:


@media (max-width: 768px) {
    #nodeMetadataModal {
        width: 90%;
        padding: 15px;
    }

    #nodeMetadataModal .button-group {
        flex-direction: column;
        align-items: stretch;
    }

    #nodeMetadataModal .button-group button {
        width: 100%;
    }
}



c. Intuitive Controls and Feedback

Implement visual feedback for interactive elements to enhance usability. For example, add hover effects on buttons and indicate active states:


.edit-button:hover {
    background-color: #45a049;
}

.delete-button:hover {
    background-color: #da190b;
}

.close-button:hover {
    color: #000;
}



d. Consistent Iconography

Use consistent icons and symbols to represent actions like editing, deleting, and closing popups. Libraries like Font Awesome can provide a wide range of icons:


<!-- Example using Font Awesome for icons -->
<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.0.0-beta3/css/all.min.css" integrity="sha512-Fo3rlrQkzP219KUpEgRujf5V5eNjzYXVn5gH0xwX57vC3SgUJRZA0oUjhL1bkxGulyl2UXgQ+GzvQDm8G0SCNQ==" crossorigin="anonymous" referrerpolicy="no-referrer" />

<div id="nodeMetadataModal" class="metadata-modal">
    <button class="close-button"><i class="fas fa-times"></i></button>
    <h3 id="nodeLabel">Node Label</h3>
    <p id="nodeContent">Node description or additional metadata goes here.</p>
    <div class="button-group">
        <button class="edit-button"><i class="fas fa-edit"></i> Edit</button>
        <button class="delete-button"><i class="fas fa-trash-alt"></i> Delete</button>
    </div>
</div>



e. Accessibility Considerations

Ensure that the UI is accessible to all users by adhering to accessibility standards. This includes proper contrast ratios, keyboard navigability, and screen reader compatibility:


/* Ensure sufficient contrast */
#nodeMetadataModal {
    background-color: rgba(255, 255, 255, 0.95);
    color: #333;
}

/* Focus states for keyboard navigation */
button:focus {
    outline: 2px solid #4CAF50;
}



f. Implementing Responsive Tables

Use responsive tables to display node information effectively. Here's an example of a table structure within the metadata popup:


<table>
    <thead>
        <tr>
            <th style="color: #333;">Attribute</th>
            <th style="color: #333;">Value</th>
        </tr>
    </thead>
    <tbody>
        <tr>
            <td>Label</td>
            <td id="nodeLabel">Node Label</td>
        </tr>
        <tr>
            <td>Description</td>
            <td id="nodeDescription">Node description...</td>
        </tr>
        <tr>
            <td>Position</td>
            <td>
                X: <span id="nodePosX">0</span><br>
                Y: <span id="nodePosY">0</span><br>
                Z: <span id="nodePosZ">0</span>
            </td>
        </tr>
    </tbody>
</table>



4. Implementing the Enhanced Features in Your Code

Incorporate the discussed improvements into your existing MindMapper class to create a more robust and user-friendly 3D knowledge map:

a. Creating and Managing Metadata Popups

Modify your showNodeMetadata method to ensure the popup is properly created, styled, and synchronized with the node:


showNodeMetadata(node) {
    if (!node || !node.userData || !node.userData.id) return;

    let modal = node.userData.metadataWindow;
    if (!modal) {
        modal = document.getElementById('nodeMetadataModal');
        node.userData.metadataWindow = modal;
    }

    const labelElement = document.getElementById('nodeLabel');
    const contentElement = document.getElementById('nodeContent');

    // Update modal content
    labelElement.textContent = node.userData.label || 'Node Label';
    contentElement.textContent = node.userData.content || 'Click to add content...';

    // Position the modal
    this.updateMetadataPosition(node, modal);

    // Show modal
    modal.classList.add('visible');
    modal.style.display = 'block';

    // Update modal position on every frame
    const trackMetadata = () => {
        if (modal.classList.contains('visible')) {
            this.updateMetadataPosition(node, modal);
            requestAnimationFrame(trackMetadata);
        }
    };
    trackMetadata();

    // Handle edit button
    const editButton = modal.querySelector('.edit-button');
    editButton.onclick = (e) => {
        e.stopPropagation();
        this.showNodeManagementForm(node);
        modal.classList.remove('visible');
    };

    // Handle delete button
    const deleteButton = modal.querySelector('.delete-button');
    deleteButton.onclick = (e) => {
        e.stopPropagation();
        if (confirm('Are you sure you want to delete this node?')) {
            this.deleteNode(node);
            modal.classList.remove('visible');
        }
    };

    // Handle close button
    const closeButton = modal.querySelector('.close-button');
    closeButton.onclick = () => {
        modal.classList.remove('visible');
        modal.style.display = 'none';
    };
}



b. Enhancing Dragging Functionality

Ensure that dragging nodes updates both the node's position and the associated metadata popup:


onMouseMove(event) {
    if (this.isDragging && this.selectedNode) {
        const rect = this.renderer.domElement.getBoundingClientRect();
        this.mouse.x = ((event.clientX - rect.left) / rect.width) * 2 - 1;
        this.mouse.y = -((event.clientY - rect.top) / rect.height) * 2 + 1;

        this.raycaster.setFromCamera(this.mouse, this.camera);

        if (this.raycaster.ray.intersectPlane(this.dragPlane, this.dragPoint)) {
            this.selectedNode.position.copy(this.dragPoint);
        }

        // Update metadata popup position if visible
        const modal = this.selectedNode.userData.metadataWindow;
        if (modal && modal.classList.contains('visible')) {
            this.updateMetadataPosition(this.selectedNode, modal);
        }
    }
}



c. Improving the Animation Loop

Integrate metadata synchronization within the main animation loop to ensure real-time updates:


animate() {
    requestAnimationFrame(this.animate.bind(this));

    // Update particle system
    this.updateParticles();

    // Update nodes animations
    this.updateNodes();

    // Synchronize metadata popups
    this.nodes.forEach(node => {
        if (node.userData.metadataWindow) {
            this.updateMetadataPosition(node, node.userData.metadataWindow);
        }
    });

    this.controls.update();
    this.renderer.render(this.scene, this.camera);
}



d. Adding Responsive Design Elements

Ensure that the metadata popup and other UI elements adapt to different screen sizes for optimal usability:


@media (max-width: 768px) {
    #nodeMetadataModal {
        width: 90%;
        padding: 15px;
    }

    #nodeMetadataModal .button-group {
        flex-direction: column;
        align-items: stretch;
    }

    #nodeMetadataModal .button-group button {
        width: 100%;
    }
}



e. Finalizing the User Interface Enhancements

Integrate all the UI improvements to ensure a cohesive and user-friendly experience:


init() {
    // Existing initialization code...

    // Create metadata modal if not present
    if (!document.getElementById('nodeMetadataModal')) {
        const modal = document.createElement('div');
        modal.id = 'nodeMetadataModal';
        modal.innerHTML = `
            <button class="close-button">×</button>
            <h3 id="nodeLabel">Node Label</h3>
            <p id="nodeContent">Node description or additional metadata goes here.</p>
            <div class="button-group">
                <button class="edit-button">Edit</button>
                <button class="delete-button">Delete</button>
            </div>
        `;
        document.body.appendChild(modal);
    }
}



5. Testing and Ensuring Responsiveness

After implementing the enhancements, thoroughly test your 3D knowledge map to ensure all functionalities work as intended across various devices and screen sizes:

a. Cross-Device Compatibility

Test the application on different devices, including desktops, tablets, and smartphones, to verify that the metadata popups and UI elements display correctly.

b. Interactive Testing

Interact with nodes by clicking, dragging, and customizing to ensure that the metadata popups respond appropriately and remain synchronized with node movements.

c. Performance Optimization

Monitor the application's performance, especially with a large number of nodes and metadata popups. Optimize rendering and event handling to maintain smooth interactions.

Feature Implementation Status
Metadata Synchronization Centralized position updates within animation loop ✔️ Implemented
Rectangular Popup Design Styled with CSS for consistency and aesthetics ✔️ Implemented
Responsive UI Utilized media queries and CSS frameworks ✔️ Implemented
Interactive Controls Added hover effects and intuitive buttons ✔️ Implemented
Performance Optimization Efficient rendering and event handling ✔️ Ongoing

Conclusion

By implementing centralized metadata synchronization, designing clean and rectangular popup windows, and enhancing the overall user interface with responsive and intuitive elements, you've significantly improved the functionality and user experience of your 3D knowledge map. Continuous testing and optimization will ensure that your application remains robust and user-friendly as it scales.


References


Last updated January 18, 2025
Search Again
