Detecting cracks in structures like buildings, bridges, pavements, and railway tracks is absolutely crucial for assessing their health, ensuring safety, estimating load-bearing capacity, and predicting longevity. For years, this task relied on manual inspections, a process often fraught with danger, inefficiency, high costs, and the inherent subjectivity of human judgment. However, the landscape of structural health monitoring is rapidly changing, thanks to the advent of automated crack detection technologies powered by computer vision and machine learning. Among these, deep learning (DL) has emerged as a particularly potent force, transforming image-based analysis with its sophisticated ability to extract features and recognize complex patterns.

Key Insights into Deep Learning for Crack Detection

Superior Accuracy & Automation: Deep learning models, especially Convolutional Neural Networks (CNNs), significantly outperform traditional image processing and manual inspection methods in terms of accuracy and reliability, automating a previously labor-intensive task.
Diverse Applications: DL techniques are versatile, successfully applied to various surfaces including concrete, asphalt, masonry, and railway components, often utilizing data captured by drones (UAVs) for inspecting large or inaccessible areas.
Pixel-Level Detail: Advanced DL methods enable segmentation, identifying cracks at the pixel level, which provides detailed information about crack shape, size, and extent, crucial for precise structural assessments.

The Evolution from Manual Checks to Intelligent Systems

Why Traditional Methods Fall Short

Traditional crack detection primarily involved visual inspections by trained personnel. While valuable, this approach is inherently limited. It's time-consuming, expensive, potentially hazardous for inspectors working at heights or in confined spaces, and prone to inconsistencies based on individual judgment and experience. Early attempts at automation using classical image processing techniques (like edge detection or thresholding) offered some improvements but struggled significantly with variability in lighting conditions, surface textures, image noise, and the presence of crack-like patterns (shadows, stains, joints), leading to unreliable results and frequent false positives or negatives.

The Deep Learning Breakthrough

The application of deep learning to crack detection, gaining significant traction around 2016, marked a paradigm shift. Unlike traditional methods requiring manual feature engineering (where humans define what constitutes a crack), DL models learn relevant features automatically and hierarchically directly from vast amounts of image data. Convolutional Neural Networks (CNNs) proved particularly adept at this, mirroring the human visual cortex's ability to process spatial information. This data-driven approach allows DL models to handle complex patterns, diverse crack morphologies, and noisy backgrounds far more effectively than previous methods.

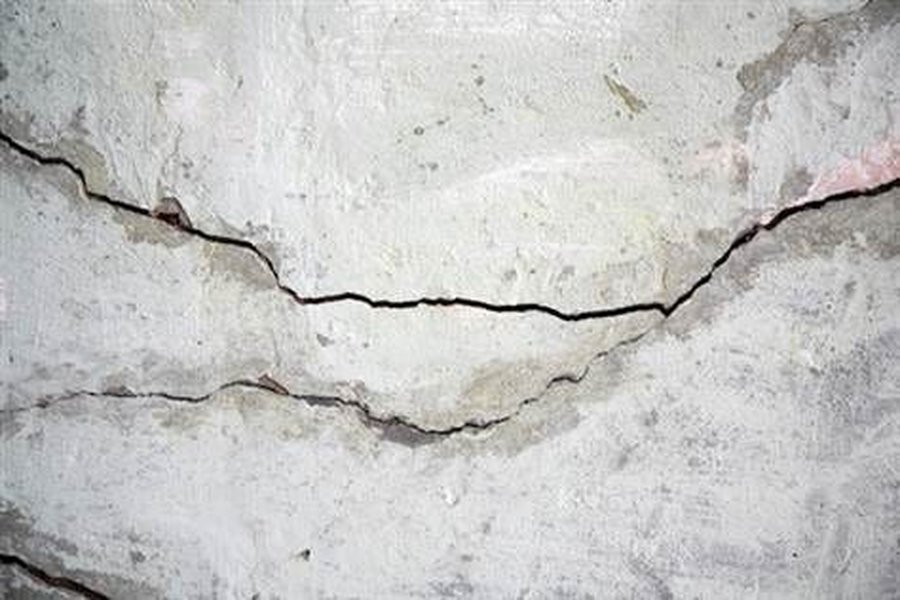

Surface cracks in concrete structures, a common target for deep learning-based detection systems.

Core Deep Learning Methodologies for Crack Analysis

Deep learning tackles crack detection through several distinct tasks, each offering different levels of detail:

Image Classification: The simplest task, determining if an entire image or a specific patch within an image contains a crack (a 'yes' or 'no' answer).
Object Detection: This approach goes further by locating cracks and typically drawing bounding boxes around them, indicating the crack's general position and extent.
Semantic Segmentation (Pixel-Level Detection): The most detailed method, classifying each pixel in an image as either 'crack' or 'non-crack'. This provides a precise map of the crack's shape, width, and path, enabling more accurate quantification and analysis. This is often considered the mainstream approach due to its informative output.

Dominant Architectures and Techniques

Various deep learning architectures have been adapted and developed for crack detection:

Convolutional Neural Networks (CNNs)

CNNs remain the cornerstone of image-based crack detection. Their inherent ability to learn spatial hierarchies makes them ideal for identifying visual patterns like cracks. Numerous CNN variations exist, from standard classification networks to more complex architectures designed for segmentation.

Standard CNNs: Used for basic classification tasks.
Fully Convolutional Networks (FCNs) & U-Net: Encoder-decoder architectures highly popular for segmentation tasks. They employ skip connections to combine high-level semantic information with low-level spatial details, crucial for precise pixel-level delineation. Modified U-Net versions aim to reduce parameters or incorporate semi-supervised learning.
Region-Based CNNs (e.g., Faster R-CNN): Often used in object detection approaches to identify crack patches.
YOLO (You Only Look Once) Variants (e.g., YOLOv5-IDS, YOLOv7): Known for their speed, making them suitable for real-time object detection and, increasingly, adapted for segmentation tasks. YOLOv5-IDS, for example, integrates segmentation capabilities for simultaneous detection and pixel-level analysis.
Specialized Networks (e.g., DeepCrack, ARF-Crack, TernausNet): Architectures specifically designed or fine-tuned for crack detection challenges, incorporating features like multi-layer supervision (DeepCrack), active rotation filters for orientation invariance (ARF-Crack), or loss functions focused on preserving crack continuity (TernausNet using TOPO-Loss).

Deep learning model identifying concrete cracks

Illustration of a deep learning model (Adam-SqueezeNet) automatically detecting concrete cracks.

Vision Transformers (ViTs)

A newer class of models adapted from natural language processing, ViTs are being explored alongside CNNs. They excel at capturing global context within an image, which can be beneficial for identifying long or complex crack patterns. Lightweight versions of ViTs are being compared against lightweight CNNs for real-time detection capabilities.

Hybrid Approaches & Transfer Learning

Some research combines deep learning feature extractors (like pre-trained CNNs) with traditional machine learning classifiers (e.g., SVM, Random Forest) to leverage the strengths of both paradigms. Transfer learning, using models pre-trained on large generic datasets (like ImageNet) and fine-tuning them on crack datasets, is a common technique, especially when labeled crack data is limited.

Comparing Deep Learning Approaches

Different deep learning architectures offer varying trade-offs between accuracy, speed, computational requirements, and the level of detail they provide. The table below summarizes key characteristics of common approaches used in crack detection.

Approach Type	Key Architectures	Primary Task	Strengths	Weaknesses
Classification	Standard CNNs (e.g., VGG, ResNet variants)	Image/Patch Labeling (Crack/No Crack)	Relatively simple, fast inference, good for initial screening.	Provides no location or shape information, coarse output.
Object Detection	R-CNN family (Faster R-CNN), YOLO family, SSD	Crack Localization (Bounding Boxes)	Provides location and approximate size, often fast (esp. YOLO).	Inaccurate boundary delineation, struggles with complex shapes.
Segmentation	FCN, U-Net variants, DeepLab, SegNet, DeepCrack, ARF-Crack	Pixel-Level Identification	Provides precise crack shape, path, and allows quantification (width, length).	Computationally more intensive, requires pixel-level annotated data for training.
Hybrid Models	CNN + SVM/RF, Integrated models (e.g., YOLOv5-IDS)	Varies (Detection, Segmentation, Quantification)	Can combine strengths of different methods, potentially improve robustness or efficiency.	Can increase model complexity, integration challenges.
Transformer-Based	Vision Transformers (ViTs)	Classification, Segmentation	Good at capturing global context, potential for complex patterns.	Often require large datasets, relatively newer in this domain, computational cost can be high.

Performance Evaluation of DL Models

Evaluating the performance of these models requires specific metrics. Common metrics include:

Accuracy: Overall percentage of correct predictions.
Precision: Proportion of predicted cracks that are actual cracks.
Recall (Sensitivity): Proportion of actual cracks that were correctly identified.
F1-Score: Harmonic mean of precision and recall, providing a balanced measure.
Intersection over Union (IoU): For segmentation and detection, measures the overlap between the predicted crack area/box and the ground truth.
Hausdorff Distance: Measures how far two subsets (predicted vs. ground truth crack pixels) are from each other, useful for evaluating boundary accuracy.
Processing Speed: Inference time per image (e.g., frames per second), crucial for real-time applications.

Comparative Performance Insights via Radar Chart

The following radar chart offers a conceptual comparison of different deep learning model families commonly used for crack detection. The scores (ranging conceptually from 1 to 5, where 5 is best/highest) are based on typical characteristics reported in research literature, illustrating the trade-offs involved. Note that specific implementations can vary greatly.

As the chart illustrates, models like U-Net/FCN excel in segmentation detail and accuracy but might be slower and more data-hungry. Lightweight CNNs and YOLO prioritize speed and efficiency, potentially sacrificing some detail or robustness. ViTs show promise in accuracy and robustness but can be computationally expensive and require significant data. The choice of model depends heavily on the specific application requirements (e.g., real-time monitoring vs. detailed post-analysis).

Applications Across Infrastructure Domains

Deep learning-based crack detection is not confined to labs; it's being actively applied and researched across a wide range of civil infrastructure:

Concrete Structures: Detecting cracks in buildings, dams, tunnels, and bridges is a primary application, crucial for assessing structural integrity after events like earthquakes or due to aging.
Pavements (Roads & Highways): Automated detection helps in identifying cracks in asphalt and cement surfaces, enabling timely maintenance planning and improving road safety. Models are evaluated for performance under diverse pavement conditions.
Railway Infrastructure: Used for inspecting tracks, including ballastless tracks, to identify cracks that could compromise safety.
Historical and Masonry Buildings: Specialized applications focus on identifying cracks in delicate historical structures, often needing to differentiate cracks from intricate surface details, ornaments, or biological growth.
Unmanned Aerial Vehicles (UAVs): Drones equipped with cameras are frequently used to capture images of large or hard-to-reach areas (like bridge decks or long stretches of highway). These images then serve as input for DL models, enabling efficient large-scale inspections.

Enhancing Inspections with UAVs and AI

The combination of UAVs and deep learning represents a significant advancement in infrastructure inspection. UAVs provide rapid data acquisition over extensive areas, while DL algorithms process the captured imagery to automatically detect, segment, and sometimes even quantify cracks. This synergy overcomes many limitations of ground-based manual inspections.

This video discusses the application of AI and deep learning, combined with images captured by Unmanned Aerial Vehicles (UAVs), for comprehensive automated analysis of pavement cracks, showcasing a powerful synergy between these technologies for infrastructure monitoring.

Mapping the Landscape of DL Crack Detection

To visualize the interconnected concepts within deep learning for crack detection, the following mindmap outlines the key areas, including the methodologies employed, the diverse applications, the persistent challenges, and the promising future directions of this rapidly evolving field.

mindmap root["Deep Learning for Crack Detection"] Methods id1["Classification"] id2["Object Detection"] id2a["Bounding Boxes"] id3["Segmentation (Pixel-Level)"] id3a["CNN-Based"] id3a1["FCN / U-Net"] id3a2["DeepCrack / ARF-Crack"] id3a3["YOLO (Adapted)"] id3b["Transformer-Based (ViT)"] id4["Learning Approaches"] id4a["Supervised"] id4b["Semi-Supervised"] id4c["Self-Supervised"] id4d["Transfer Learning"] Applications id5["Concrete Structures"] id5a["Buildings, Bridges, Dams"] id6["Pavements"] id6a["Asphalt, Cement Roads"] id7["Railways"] id7a["Tracks, Ballastless Systems"] id8["Masonry & Historical Buildings"] id9["UAV-Based Inspection"] Challenges id10["Data Requirements"] id10a["Large Labeled Datasets Needed"] id10b["Lack of Diversity (Texture, 3D)"] id10c["Annotation Quality"] id11["Computational Cost"] id11a["Training Time & Power"] id11b["Inference Speed (Real-time)"] id12["Robustness & Generalization"] id12a["Complex Backgrounds (Noise)"] id12b["Varying Lighting & Conditions"] id12c["Different Materials"] id12d["False Positives"] id13["Crack Continuity Preservation"] Future Trends id14["Lightweight Models"] id14a["Edge Deployment"] id15["Improved Learning Strategies"] id15a["Unsupervised Learning"] id15b["Advanced Semi/Self-Supervised"] id16["Hybrid Models"] id17["Multi-Modal Data Fusion"] id17a["Depth, Thermal, Ultrasonic"] id18["Enhanced Datasets & Synthesis"] id19["Explainable AI (XAI)"]

This mindmap highlights the multifaceted nature of the field, from the core techniques like segmentation using CNNs and ViTs, to practical uses in monitoring roads and bridges, while also acknowledging significant hurdles such as data dependency and the ongoing quest for more robust and efficient models.

Navigating the Challenges

Despite the remarkable progress, deploying deep learning for crack detection effectively still faces several significant hurdles:

Data Dependency: DL models, especially supervised ones, typically require vast amounts of accurately labeled training data (pixel-level annotations for segmentation are particularly laborious to create). Acquiring diverse datasets covering various crack types, materials, lighting conditions, and backgrounds is challenging and expensive.
Computational Resources: Training complex deep learning models demands substantial computational power (GPUs) and time. Deploying these models for real-time analysis on edge devices or mobile platforms requires lightweight architectures that balance accuracy and speed.
Generalization and Robustness: Models trained on one type of data may perform poorly when applied to different environments (e.g., different pavement textures, lighting, weather). Complex backgrounds containing "noise" like shadows, stains, joints, vegetation, or man-made objects (windows, doors, labels) can easily confuse models, leading to false positives or negatives.
Fine and Complex Cracks: Detecting very fine cracks or cracks with intricate patterns remains difficult. Ensuring the continuity of detected crack segments, rather than fragmented pieces, is another challenge addressed by specific loss functions (like TOPO-Loss).
Dataset Limitations: Existing public datasets often lack variety in textures (e.g., limited asphalt vs. cement examples) and predominantly consist of 2D images, hindering the development of 3D crack analysis.
Interpretability: Understanding why a deep learning model makes a particular prediction (or error) can be difficult, which can be a barrier to trust and adoption in critical safety applications.

Future Directions and Ongoing Research

Research is actively addressing these challenges and pushing the boundaries of DL-based crack detection:

Lightweight and Efficient Models: Developing smaller, faster models (quantized models, efficient architectures) suitable for real-time processing on mobile devices or embedded systems.
Advanced Learning Strategies: Exploring semi-supervised, self-supervised, and unsupervised learning techniques to reduce the reliance on large labeled datasets. Synthesizing realistic crack images to augment training data is also a promising avenue.
Robustness Enhancement: Improving model resilience to varying environmental conditions and complex backgrounds through techniques like domain adaptation, data augmentation, and novel network designs.
Improved Segmentation Quality: Focusing on preserving crack continuity and accurately capturing fine details using specialized architectures and loss functions.
Multi-Modal Data Fusion: Integrating data from other sensors (e.g., thermal cameras, depth sensors, ultrasonic sensors) with visual data to provide a more comprehensive assessment.
3D Crack Analysis: Developing methods and collecting datasets for analyzing cracks in three dimensions.
Hybrid Approaches: Combining the strengths of deep learning with traditional image processing or other machine learning techniques.
Explainable AI (XAI): Making DL models more interpretable to build trust and facilitate debugging.
