Comprehensive Overview of Container Image Signing System Architecture

1. Introduction

In the evolving landscape of containerized applications, ensuring the authenticity and integrity of container images is paramount. Container image signing systems play a crucial role in safeguarding the software supply chain by validating that images originate from trusted sources and have not been tampered with. This comprehensive overview delves into the technical architecture of container image signing systems, exploring key components, processes, best practices, and popular implementation standards.

2. Key Components

2.1. Public/Private Key Pair

At the heart of container image signing lies the use of asymmetric cryptography, involving a public/private key pair. The private key is securely stored and utilized to generate digital signatures for container images, while the public key is distributed to consumers and integrated into verification processes to authenticate the signatures.

2.2. Key Management System (KMS)

Effective key management is critical for maintaining the security of the signing system. A Key Management System (KMS) facilitates the secure generation, storage, rotation, and usage of cryptographic keys. Approaches to KMS include:

• Hardware Security Modules (HSMs): Provide high-level security by safeguarding keys against unauthorized access, often used for long-term key storage.
• Cloud KMS: Managed services such as AWS KMS, Google Cloud KMS, and Azure Key Vault offer scalable key management solutions with built-in security features.
• Self-managed KMS: Offers granular control over key management processes but requires significant expertise to ensure security best practices.

2.3. CI/CD Pipeline Integration

Container images are typically built and deployed within Continuous Integration/Continuous Deployment (CI/CD) pipelines. Integration of the signing process into these pipelines ensures that every image built undergoes a standardized signing procedure, enhancing automation and consistency.

2.4. Signing Client

The signing client interfaces with the KMS to retrieve the private key and generate digital signatures for container images. It ensures secure communication with secret management services and manages the signing requests during the CI/CD process.

2.5. OCI Registry

The Open Container Initiative (OCI) compliant registries, such as Docker Hub, Google Container Registry (GCR), and Amazon Elastic Container Registry (ECR), store container images along with their corresponding signatures. These registries adhere to the ORAS (OCI Registry as Storage) framework, allowing for the distribution of artifacts and signature metadata alongside the images.

3. Signing Process

3.1. Image Digest Generation

Every container image is processed to generate a unique cryptographic hash, known as the image digest. This digest serves as a fingerprint for the image's contents, ensuring any alteration post-digest generation will result in a mismatched hash.

3.2. Signature Generation

The signing client utilizes the private key to create a digital signature based on the image digest. This signature, along with the image reference, is then sent to the OCI registry, where it is stored as part of the image's metadata.

3.3. Signature Storage

In the OCI registry, the container image and its corresponding signature are stored together. This association ensures that any consumer retrieving the image can access the signature to verify its authenticity and integrity.

4. Verification Process

4.1. Signature Retrieval

When a consumer, such as a Kubernetes cluster or container runtime like containerd, attempts to deploy a container, it first retrieves the image's signature from the OCI registry.

4.2. Verification Client

The verification client accesses the public key, typically stored in a secure location or distributed via a Public Key Infrastructure (PKI), to validate the signature against the image digest. Successful verification confirms that the image has not been tampered with and originates from a trusted source.

4.3. Trust Establishment

The combination of private and public key pairs establishes a root of trust between image producers and consumers. This cryptographic assurance ensures that the deployed images maintain their integrity from the signing stage through to deployment.

5. Public Key Infrastructure (PKI)

5.1. Certificate Authorities (CAs)

Certificate Authorities issue digital certificates that bind public keys to verified identities. These certificates play a pivotal role in the verification process, enabling consumers to trust that the public key used for verification genuinely belongs to the image publisher.

5.2. Certificate Transparency (CT) Logs

CT logs maintain a publicly auditable record of all issued certificates, enhancing transparency and security. By logging certificates, organizations can detect unauthorized certificate issuance and maintain the integrity of their PKI.

6. Transparency and Logging

6.1. Transparency Logs (TL)

Transparency logs record all signatures and their associated metadata, including timestamps. These logs provide an immutable record of signature generation, aiding in auditability and accountability within the signing system.

6.2. Signature Transparency Logs

Maintaining signature transparency logs ensures that all signatures are verifiable and traceable, preventing malicious actors from introducing unauthorized signatures without detection.

7. Storage and Distribution

7.1. Container Registries

Signed container images and their metadata are stored in container registries such as Docker Hub, Google Container Registry (GCR), and Amazon Elastic Container Registry (ECR). These registries support the storage, distribution, and automated signing workflows for container images.

7.2. ORAS Framework

The ORAS (OCI Registry as Storage) framework extends OCI registries' capabilities to handle additional artifacts beyond traditional container images. This includes signature metadata, enabling seamless distribution of signed images and their associated signatures.

8. Tools and Technologies

• Notary: Implements the signing and verification processes, often integrated with Docker for Docker Content Trust (DCT).
• Cosign GitHub
• Trivy GitHub

9. Best Practices and Security Considerations

9.1. Key Rotation

Regularly rotating cryptographic keys minimizes the risk of key compromise. Implementing automated key rotation policies ensures that keys are updated systematically without disrupting signing and verification processes.

9.2. Least Privilege Access

Adhering to the principle of least privilege ensures that only authorized entities have access to signing keys and critical components of the signing system. Role-based access controls (RBAC) help enforce minimal access rights.

9.3. Automated CI/CD Integration

Integrating signing and verification processes within CI/CD pipelines enhances automation, consistency, and scalability. Automated workflows reduce the potential for human error and accelerate the deployment of signed images.

9.4. Multi-Factor Authentication (MFA)

Implementing MFA for accessing signing keys adds an additional layer of security, ensuring that unauthorized individuals cannot perform signing operations even if they gain access to primary credentials.

9.5. Audit and Compliance

Maintaining detailed logs of signing and verification activities supports audit requirements and helps organizations comply with security policies and regulatory standards. Regular audits identify potential vulnerabilities and ensure adherence to best practices.

10. Implementation Examples

10.1. Datadog’s Approach

Datadog employs a service-oriented architecture utilizing gRPC services to handle signature generation and distribution. This approach ensures that signature metadata is consistently pushed to the registry and that signing operations are efficiently managed.

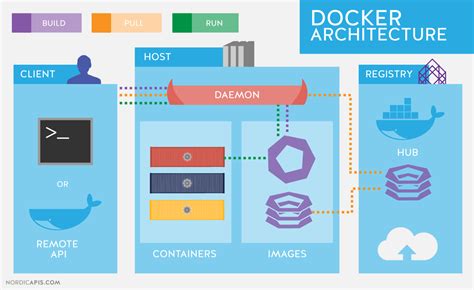

10.2. Docker’s Approach

Docker utilizes the docker trust command to facilitate the signing of images. This process involves generating a public/private key pair and using the private key to sign the image digest, ensuring that images pulled from Docker Hub can be verified for authenticity.

10.3. Sigstore’s Cosign

Sigstore's Cosign provides a streamlined method for signing and verifying container images. By leveraging cloud-native technologies, Cosign integrates seamlessly with various container registries and supports advanced features like transparency logs and keyless signing. Cosign GitHub

11. Architectural Considerations

11.1. Scalability

The signing system must efficiently handle a large volume of images and signatures, especially in environments with frequent deployments. Utilizing scalable infrastructure and optimizing signing workflows ensures performance remains robust under high load.

11.2. Security

Protecting private keys and securing communication channels are fundamental to the signing system's integrity. Implementing stringent security measures, such as encryption, secure key storage, and regular vulnerability assessments, mitigates potential threats.

11.3. Automation

Automating signing and verification processes through CI/CD pipeline integration reduces manual intervention, minimizing errors and accelerating deployment cycles. Automation also ensures consistency across the development lifecycle.

11.4. Transparency

Maintaining transparency through logs, audits, and transparency logs builds trust in the signing system. Transparent processes allow for verification of signing activities and facilitate the detection of unauthorized operations.

12. Conclusion

Container image signing systems are indispensable for maintaining the security and integrity of containerized applications. By integrating robust key management, secure signing and verification processes, and adhering to best practices, organizations can significantly reduce the risk of deploying compromised or untrusted images. Leveraging tools like Notary, Cosign, and robust PKI frameworks further enhances the reliability and scalability of these systems.
