Comprehensive Technical Overview of APIs for Integrating with Hardware Security Modules (HSMs)

1. Introduction to Hardware Security Modules (HSMs)

Hardware Security Modules (HSMs) are specialized physical devices designed to safeguard and manage digital keys, perform cryptographic operations, and ensure the integrity and confidentiality of sensitive data. HSMs provide a secure environment that protects against unauthorized access, tampering, and various cyber threats, making them essential components in modern security infrastructures.

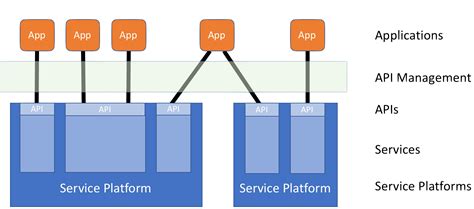

2. Common Integration APIs and Protocols

2.1 PKCS#11 (Cryptoki)

PKCS#11, also known as Cryptoki, is one of the most widely adopted APIs for interacting with cryptographic tokens, including HSMs. It provides a standardized interface that abstracts the underlying hardware specifics, allowing developers to perform a variety of cryptographic operations without needing in-depth knowledge of the HSM's internal architecture.

• Key Functions: Key generation, storage, encryption/decryption, signing/verifying, and more.
• Features:
  • Support for both symmetric and asymmetric cryptography.
  • Secure key management operations.
  • Language-agnostic C-style interface.
• Vendor Support: Supported by major HSM vendors such as Thales, Gemalto, and Utimaco.
• Resources: Refer to the PKCS#11 Standard for detailed specifications.

2.2 Key Management Interoperability Protocol (KMIP)

KMIP is an OASIS standard protocol designed for managing cryptographic keys in a scalable and interoperable manner. It facilitates centralized key lifecycle management across diverse systems and applications.

• Key Functions: Key creation, storage, retrieval, rotation, and deletion.
• Features:
  • XML/REST-based protocol for communication.
  • Supports enterprise-wide key management in cloud and distributed environments.
• Resources: Access the OASIS KMIP Specification for comprehensive guidelines.

2.3 Java Cryptography Architecture (JCA) and Java Cryptography Extension (JCE)

JCA and JCE provide a framework for implementing cryptographic operations within Java applications. Many HSMs offer JCA/JCE providers, enabling seamless integration and utilization of HSM capabilities directly from Java-based environments.

• Key Functions: Key management, encryption, decryption, and hashing.
• Advantages: Leverages the familiar Java programming model while ensuring hardware-backed security.

2.4 Microsoft Cryptography Next Generation (CNG)

Microsoft CNG is a modern API for Windows that allows applications to access cryptographic services, including those provided by HSMs. It offers a unified model for integrating various cryptographic providers.

• Key Functions: Supports a wide range of cryptographic algorithms and key management operations.
• Features:
  • Enables the use of hardware-backed keys.
  • Integrates with the Windows security infrastructure.

2.5 RESTful APIs

Modern HSMs often provide RESTful APIs that allow integration through standard HTTP/HTTPS protocols. This approach is particularly beneficial for cloud-based and web applications due to its language-agnostic nature.

• Key Functions: Key creation, retrieval, encryption/decryption, and auditing.
• Advantages:
  • Easy integration with a variety of web applications and services.
  • Facilitates cross-platform compatibility.

2.6 SOAP APIs

Some HSMs offer SOAP-based APIs, which are XML-based and are commonly used in enterprise environments where SOAP is preferred over REST.

• Key Functions: Similar to RESTful APIs, including cryptographic operations and key management.
• Use Cases: Legacy systems and enterprise applications that rely on SOAP protocols.

2.7 OpenSSL Engine Interface

The OpenSSL Engine Interface allows HSM integration for SSL/TLS operations by enabling hardware-accelerated cryptographic operations within the OpenSSL framework.

• Key Functions: Facilitates the dynamic loading of vendor-specific engine modules for enhanced cryptographic performance.
• Advantages: Enhances the security and performance of SSL/TLS operations by leveraging HSM capabilities.

2.8 Other Proprietary APIs

Various HSM vendors offer proprietary APIs tailored to their specific hardware, providing specialized functionalities and tighter integration options beyond standardized protocols.

• Features: Enhanced performance, specialized cryptographic functions, and customized security features.
• Implementation: Detailed documentation and support are typically available through the vendor's SDKs and developer portals.

3. Core API Functionalities

3.1 Key Management

Key management is a fundamental aspect of HSM APIs, encompassing the generation, storage, backup, retrieval, rotation, and deletion of cryptographic keys.

• Key Creation and Storage: Secure generation and storage of cryptographic keys within the HSM, ensuring that keys are protected against unauthorized access.
• Key Backup: Provision for backing up keys in wrapped form, which can be stored on external media or secure devices like smartcards.
• Key Deletion: Secure deletion mechanisms to remove keys from the HSM, ensuring that sensitive data is irrecoverably erased.

3.2 Cryptographic Operations

HSM APIs facilitate a wide range of cryptographic operations, ensuring that sensitive data is processed securely within the protected environment of the HSM.

• Encryption and Decryption: Secure processing of data encryption and decryption tasks to protect data confidentiality.
• Digital Signatures: Generation and verification of digital signatures to ensure data integrity and authenticity.
• Hashing: Creation of cryptographic hash functions to support various security protocols.
• Key Exchange: Secure exchange of cryptographic keys using protocols like Diffie-Hellman.

3.3 Secure Storage

HSMs provide secure storage solutions for sensitive data, ensuring that information remains protected even in the event of physical security breaches.

• Tamper Evidence and Resistance: HSMs are designed to detect and respond to tampering attempts, often rendering the device inoperable or deleting stored keys upon detection.
• Data Protection: Ensures that stored data is encrypted and safeguarded against unauthorized access.

3.4 Session Management

Effective session management is crucial for maintaining secure communication channels between applications and HSMs.

• Authentication and Authorization: Mechanisms to verify the identity of users and applications before granting access to HSM functions.
• Secure Communication Sessions: Establishment of encrypted channels to protect data in transit between the application and the HSM.

3.5 Audit Trails and Logging

Comprehensive logging and audit trails are essential for monitoring and ensuring the security of HSM operations.

• Event Logging: Recording of all access transactions and cryptographic operations performed within the HSM.
• Audit Trails: Creation of detailed records that can be analyzed to detect unauthorized access or suspicious activities.

4. Implementation Considerations

4.1 Communication Protocols

Choosing the appropriate communication protocol is vital for ensuring secure and efficient integration with HSMs.

• PKCS#11: Ideal for environments requiring a standardized, vendor-independent interface.
• KMIP: Suitable for enterprise-wide key management needs, especially in cloud and distributed settings.
• RESTful and SOAP APIs: Best for web-based and enterprise applications, offering flexibility and language-agnostic integration.
• Proprietary APIs: Preferred when leveraging specialized functionalities provided by specific HSM vendors.

4.2 Error Handling

Robust error handling mechanisms are essential to maintain the security and reliability of the integration.

• Error Codes: Utilize standardized error codes provided by the HSM APIs to diagnose and resolve issues effectively.
• Exception Handling: Implement comprehensive exception handling to gracefully manage unexpected scenarios without compromising security.

4.3 Security Best Practices

Ensuring the security of HSM integrations requires adherence to best practices throughout the development and deployment processes.

• Secure Coding Practices: Implement input validation, proper memory management, and safeguard against common vulnerabilities.
• Encrypted Communications: Utilize TLS/SSL protocols to encrypt data in transit between applications and HSMs.
• Access Controls: Enforce strict authentication and authorization policies to limit access to HSM functionalities.
• Regular Audits: Conduct periodic security audits and reviews to identify and mitigate potential threats.

4.4 Performance Optimization

Optimizing the performance of HSM integrations ensures that cryptographic operations do not become bottlenecks in application workflows.

• API Call Optimization: Minimize the number of API calls and reduce communication overhead to enhance efficiency.
• Resource Management: Efficiently manage resources such as memory and processing power to maintain optimal performance levels.
• High Availability: Implement high availability models, including clustering and automated failover, to ensure continuous operation.

4.5 Compliance and Standards

Adhering to industry standards and regulatory requirements is crucial for maintaining the integrity and acceptance of HSM integrations.

• FIPS 140-2/3: Ensure that the HSM meets Federal Information Processing Standards for cryptographic modules.
• PCI DSS: Comply with Payment Card Industry Data Security Standards for managing payment-related data.
• NIST Guidelines: Follow National Institute of Standards and Technology guidelines for cryptographic practices.

5. Integration with Cloud Services

HSMs can be integrated with cloud platforms to leverage scalable and flexible infrastructure while maintaining high security standards.

• Cloud-Based HSM Services: Providers like Google Distributed Cloud (GDC) offer HSM services that can be accessed via APIs, facilitating integration with cloud-based applications.
• Network Connectivity: HSMs can be connected to network servers or operated as standalone devices, depending on the deployment requirements.
• Hybrid Deployments: Combine on-premises HSMs with cloud services to achieve a balance between local control and cloud scalability.

6. Example: Using PKCS#11 API for HSM Integration

Below is a simplified example of how the PKCS#11 API can be utilized to perform cryptographic operations with an HSM:

#include

int main() {
    // Initialize the PKCS#11 library
    CK_C_Initialize(NULL_PTR);

    // Open a session with the HSM
    CK_SESSION_HANDLE hSession;
    CK_RV rv = C_OpenSession(slotID, CKF_SERIAL_SESSION | CKF_RW_SESSION, NULL_PTR, NULL_PTR, &hSession);
    if (rv != CKR_OK) {
        // Handle error
    }

    // Log in to the HSM
    rv = C_Login(hSession, CKU_USER, userPin, pinLength);
    if (rv != CKR_OK) {
        // Handle error
    }

    // Generate a new RSA key pair
    CK_MECHANISM mechanism = {CKM_RSA_PKCS_KEY_PAIR_GEN, NULL_PTR, 0};
    CK_OBJECT_HANDLE hPublicKey, hPrivateKey;
    CK_ATTRIBUTE pubTemplate[] = {
        {CKA_ENCRYPT, &true_val, sizeof(CK_BBOOL)},
        {CKA_VERIFY, &true_val, sizeof(CK_BBOOL)}
    };
    CK_ATTRIBUTE privTemplate[] = {
        {CKA_DECRYPT, &true_val, sizeof(CK_BBOOL)},
        {CKA_SIGN, &true_val, sizeof(CK_BBOOL)}
    };
    rv = C_GenerateKeyPair(hSession, &mechanism, pubTemplate, 2, privTemplate, 2, &hPublicKey, &hPrivateKey);
    if (rv != CKR_OK) {
        // Handle error
    }

    // Sign data
    CK_BYTE data[] = "Sample data to sign";
    CK_BYTE signature[256];
    CK_ULONG signatureLen = sizeof(signature);
    CK_MECHANISM signMechanism = {CKM_SHA256_RSA_PKCS, NULL_PTR, 0};
    rv = C_SignInit(hSession, &signMechanism, hPrivateKey);
    if (rv != CKR_OK) {
        // Handle error
    }
    rv = C_Sign(hSession, data, sizeof(data), signature, &signatureLen);
    if (rv != CKR_OK) {
        // Handle error
    }

    // Clean up and close the session
    C_Logout(hSession);
    C_CloseSession(hSession);
    C_Finalize(NULL_PTR);

    return 0;
}


Note: This example demonstrates basic operations such as initializing the PKCS#11 library, opening a session, generating a key pair, signing data, and cleaning up resources. Refer to the official PKCS#11 documentation for more detailed information and advanced usage scenarios.

7. Best Practices and Recommendations

• Understand Vendor-Specific Features: Different HSM vendors may offer unique functionalities and optimizations. Familiarize yourself with the specific features and best practices recommended by your HSM provider.
• Implement Strong Access Controls: Ensure that only authorized personnel and applications have access to HSM functionalities to prevent unauthorized key usage and management.
• Regularly Update and Patch: Keep the HSM firmware and associated software libraries up to date to protect against known vulnerabilities and security threats.
• Conduct Thorough Testing: Rigorously test the integration to identify and address potential issues related to performance, security, and functionality before deployment.
• Maintain Comprehensive Documentation: Keep detailed records of the integration processes, configurations, and security measures to facilitate maintenance and compliance audits.

8. Conclusion

Integrating with Hardware Security Modules requires a comprehensive understanding of the various APIs and protocols available for secure and efficient cryptographic operations. By leveraging standardized interfaces like PKCS#11 and KMIP, along with vendor-specific APIs, organizations can ensure robust key management, secure data processing, and compliance with industry standards. Implementing best practices in security, error handling, and performance optimization further enhances the effectiveness and reliability of HSM integrations.

9. References
