Understanding Time-Varying Potentials and the Enigmatic Displacement Current

Highlights

Displacement Current: Introduced by James Clerk Maxwell, this crucial concept extends Ampere's Law to account for magnetic fields generated by changing electric fields, ensuring the consistency of electromagnetism and explaining the propagation of electromagnetic waves.
Time-Varying Potentials: In dynamic electromagnetic scenarios, electric and magnetic fields cannot be described by static potentials alone. Time-varying scalar electric potentials (V) and magnetic vector potentials (A) are essential for a complete description, revealing how fields interdependently induce one another.
Interconnectedness of Fields: The core principle governing time-varying phenomena is that a changing magnetic field induces an electric field (Faraday's Law), and conversely, a changing electric field induces a magnetic field (Maxwell's addition to Ampere's Law via displacement current), leading to the self-sustaining propagation of electromagnetic waves.

In the realm of electromagnetism, understanding dynamic phenomena requires delving into concepts beyond static fields. Two pivotal ideas that underpin our comprehension of how electric and magnetic fields interact and evolve are the "displacement current" and "time-varying potentials." These concepts were instrumental in James Clerk Maxwell's unification of electricity, magnetism, and light, paving the way for modern physics and technology.

The Enigma of Displacement Current

Bridging the Gap in Ampere's Law

The displacement current, denoted as \(I_d\), is a foundational concept introduced by James Clerk Maxwell that revolutionized electromagnetism. Before Maxwell, Ampere's Circuital Law described how electric currents produce magnetic fields. However, this law faced a critical inconsistency when applied to circuits containing capacitors. Consider a capacitor being charged by a current:

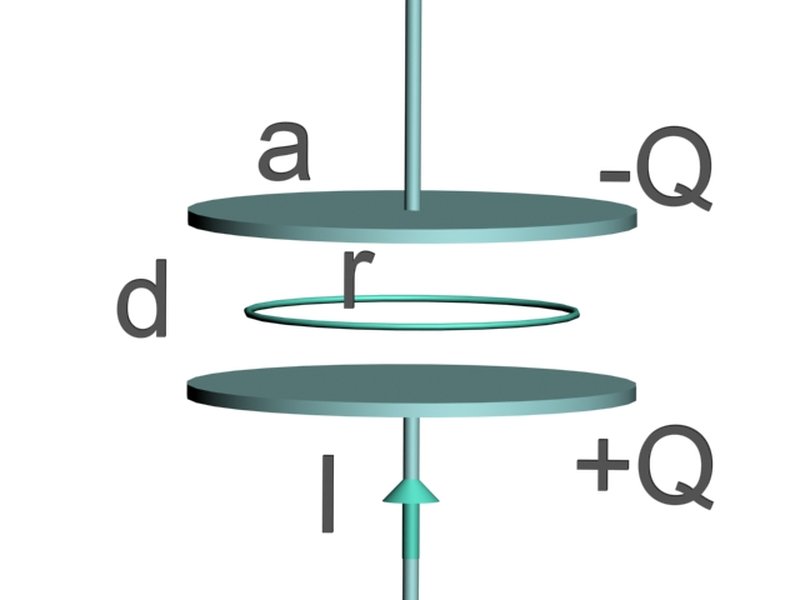

Charging Capacitor and Displacement Current Diagram

Illustration of a charging capacitor, demonstrating the continuity of current flow through the concept of displacement current between the plates.

A conduction current flows through the wires leading to the capacitor plates. Outside the capacitor, this conduction current produces a magnetic field. Inside the capacitor, however, there is an insulating dielectric material, meaning no actual charges flow across the gap. If Ampere's Law were strictly applied without modification, it would imply a discontinuity in the magnetic field lines around the capacitor, which is physically impossible. Maxwell resolved this paradox by proposing that a changing electric field itself acts as a source of a magnetic field, analogous to a real current. This "current" is not a flow of charge but a "displacement" of electric flux.

Definition and Equation

Displacement current density (\(J_d\)) is defined as the rate of change of the electric displacement field (\(D\)). The electric displacement field is related to the electric field (\(E\)) and the permittivity of free space (\(\epsilon_0\)) by \(D = \epsilon_0 E\). Therefore, the displacement current density is given by:

\[ \text{J}_d = \frac{\partial \text{D}}{\partial t} = \epsilon_0 \frac{\partial \text{E}}{\partial t} \]

The total displacement current (\(I_d\)) through a surface \(S\) is then the integral of the displacement current density over that surface:

\[ I_d = \iint_S \text{J}_d \cdot d\text{A} = \iint_S \epsilon_0 \frac{\partial \text{E}}{\partial t} \cdot d\text{A} \]

This quantity has the same units as electric current density and acts as a source of magnetic field, just like actual conduction current. Maxwell integrated this term into Ampere's Circuital Law, yielding the Ampere-Maxwell Law, one of Maxwell's four fundamental equations:

\[ \nabla \times \text{B} = \mu_0 \left( \text{J} + \epsilon_0 \frac{\partial \text{E}}{\partial t} \right) \]

where \(\text{B}\) is the magnetic field, \(\mu_0\) is the permeability of free space, and \(\text{J}\) is the conduction current density.

Significance in Electromagnetism

The inclusion of displacement current was a monumental leap because:

Continuity of Current: It ensured the mathematical consistency of Ampere's Law, particularly in circuits with capacitors or in regions where conduction current is absent but electric fields are changing.
Electromagnetic Wave Propagation: Most importantly, it revealed that changing electric fields produce changing magnetic fields, and vice versa. This self-sustaining interplay allows electromagnetic disturbances to propagate through empty space as waves, traveling at the speed of light. This was Maxwell's profound prediction, confirming that light itself is an electromagnetic wave.
Foundation for Radio and Light: Without displacement current, phenomena like radio waves, microwaves, and visible light would not be explicable as propagating electromagnetic phenomena.

While often termed a "current," it's crucial to remember that displacement current does not involve the flow of physical charges. Instead, it represents the magnetic effects arising from the dynamics of the electric field.

Delving into Time-Varying Potentials

The Dynamic Landscape of Electric and Magnetic Fields

In electrostatics, electric fields are derived from a scalar electric potential (V), and in magnetostatics, magnetic fields are derived from a magnetic vector potential (A). However, when fields are changing over time, these simple relationships are insufficient. Time-varying fields are interdependent: a changing magnetic field induces an electric field, and a changing electric field induces a magnetic field. To fully describe these dynamic interactions, both a time-varying scalar electric potential and a time-varying magnetic vector potential are necessary.

Understanding the Potentials

In electrodynamics, the electric field (\(\text{E}\)) and magnetic field (\(\text{B}\)) can be expressed in terms of the scalar potential (\(\varphi\)) and the magnetic vector potential (\(\text{A}\)) as follows:

\[ \text{E}(\text{r}, t) = -\nabla \varphi(\text{r}, t) - \frac{\partial \text{A}(\text{r}, t)}{\partial t} \] \[ \text{B}(\text{r}, t) = \nabla \times \text{A}(\text{r}, t) \]

The time-varying nature of these potentials is crucial. The term \(-\frac{\partial \text{A}}{\partial t}\) in the electric field equation demonstrates how a time-varying magnetic vector potential directly contributes to the electric field, which is a manifestation of Faraday's Law of induction. Similarly, the Ampere-Maxwell law shows how time-varying electric fields (through displacement current) contribute to the magnetic field, linking back to the magnetic vector potential.

Retarded Potentials

A key aspect of time-varying potentials is the concept of "retarded potentials." Because electromagnetic effects propagate at a finite speed (the speed of light, \(c\)), the potentials at a given point and time depend on the charge and current distributions at an earlier, "retarded" time. This means that a change in a charge or current distribution takes time to influence the potentials at a distant point. The formulas for retarded potentials are given by:

\[ \varphi(\text{r}, t) = \frac{1}{4\pi\epsilon_0} \int \frac{\rho(\text{r}', t_r)}{|\text{r} - \text{r}'|} d^3\text{r}' \] \[ \text{A}(\text{r}, t) = \frac{\mu_0}{4\pi} \int \frac{\text{J}(\text{r}', t_r)}{|\text{r} - \text{r}'|} d^3\text{r}' \]

where \(t_r = t - \frac{|\text{r} - \text{r}'|}{c}\) is the retarded time, and \(\rho\) and \(\text{J}\) are the charge and current densities, respectively.

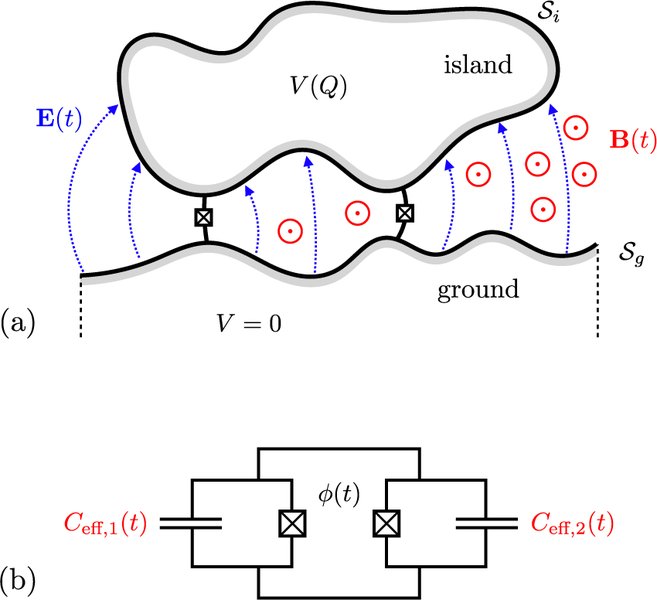

Visualization illustrating the complex nature of time-varying magnetic fields, which are intricately linked with electric potentials.

Conservation of Energy in Time-Varying Fields

When potentials explicitly depend on time, the concept of energy conservation needs careful consideration. Unlike conservative forces in static fields where mechanical energy is conserved, a force on a particle in a time-varying field generally does not conserve mechanical energy. This is because the field itself is changing, and energy can be transferred between the particles and the electromagnetic field, or flow into/out of the system as electromagnetic radiation.

The Interplay: Displacement Current and Time-Varying Potentials

The displacement current is a direct consequence of time-varying electric fields, and these time-varying electric fields are inherently linked to time-varying scalar potentials and magnetic vector potentials. The inclusion of the displacement current term in Maxwell's equations is what allows for the consistent description of electromagnetic wave propagation, where oscillating electric and magnetic fields mutually generate each other as they travel through space. This fundamental coupling is the essence of dynamic electromagnetism.

Consider the broader implications:

Faraday's Law: A time-varying magnetic flux generates an electromotive force (EMF) and thus an electric field. This is evident in the \(-\frac{\partial \text{A}}{\partial t}\) term.
Ampere-Maxwell Law: A time-varying electric flux (i.e., displacement current) generates a magnetic field. This completes the symmetry, showing that both changing electric fields and changing magnetic fields induce each other.

This mutual induction is what allows for the existence and propagation of electromagnetic waves, forming the backbone of all wireless communication and light itself.

Comparative Analysis: Conduction Current vs. Displacement Current

To further clarify the distinction, let's examine the fundamental differences between conduction current and displacement current.

Feature	Conduction Current (J)	Displacement Current (Jd)
Nature	Actual flow of electric charges (e.g., electrons in a wire).	Not a flow of charges, but associated with a changing electric field.
Origin	Movement of free charge carriers in a conductor due to an electric field.	Time rate of change of electric displacement field (\(\partial D / \partial t\)).
Medium	Occurs in conductors (wires, metals).	Occurs in dielectrics, insulators, and even vacuum.
Magnetic Field Source	Directly generates a magnetic field (Ampere's original law).	Generates a magnetic field, completing Ampere's Law for time-varying fields.
Continuity	Can be discontinuous across gaps (e.g., capacitor plates).	Ensures continuity of the total current (conduction + displacement) across all regions, including gaps.
Role in Waves	Not directly responsible for wave propagation in vacuum.	Essential for the self-propagation of electromagnetic waves.

Visualizing Dynamic Electromagnetic Behavior

The interactions between time-varying fields and potentials can be complex. A radar chart can help visualize the relative influence or characteristic strength of various aspects related to displacement current and time-varying potentials in different electromagnetic scenarios.

The radar chart illustrates that both displacement current and time-varying potentials are pivotal for understanding electromagnetic wave propagation and are highly relevant in AC circuits. Displacement current specifically excels in ensuring current continuity and completing Ampere's Law, while time-varying potentials are intimately linked with Faraday's Law and the broader mechanism of energy transfer in dynamic fields. Neither concept is significant in truly static field scenarios, as indicated by their low scores on "Presence in Static Fields," emphasizing their dynamic nature.

Further Exploration: The Importance of Displacement Current

To grasp the profound importance of the displacement current, especially its role in resolving inconsistencies in Ampere's Law and enabling the theory of electromagnetic waves, consider the following video:

This video explains the crucial role of displacement current in maintaining the consistency of Ampere's Law, particularly in circuits involving capacitors, and its broader significance for electromagnetic wave theory.

The video delves into the historical context and the physical necessity of displacement current, illustrating how it completes Maxwell's equations. It highlights how the original Ampere's Law, when applied to a charging capacitor, leads to a logical inconsistency regarding the magnetic field produced. Maxwell's genius was in realizing that the changing electric flux between the capacitor plates must act as an equivalent "current" to preserve the law's universality. This seemingly abstract concept is what allows light, radio waves, and all other forms of electromagnetic radiation to exist and propagate through space, fundamentally reshaping our understanding of the universe.

Frequently Asked Questions (FAQ)

What is the primary difference between conduction current and displacement current?

The primary difference is that conduction current involves the actual movement of electric charges (like electrons in a wire), while displacement current does not. Instead, displacement current arises from a changing electric field over time, even in a vacuum or insulating material.

Why was displacement current introduced by Maxwell?

Maxwell introduced the displacement current to resolve an inconsistency in Ampere's Circuital Law, particularly when applied to circuits with capacitors. Without it, the law would imply a discontinuity of current in such circuits. Its introduction also completed the symmetry of electromagnetic laws, leading to the prediction of electromagnetic waves.

How do time-varying potentials relate to electric and magnetic fields?

In time-varying scenarios, both electric and magnetic fields are derived from a combination of a scalar electric potential (V) and a magnetic vector potential (A). The electric field is influenced by both the gradient of the scalar potential and the time derivative of the magnetic vector potential, while the magnetic field is the curl of the magnetic vector potential. These potentials are essential for describing the dynamic and interdependent nature of electric and magnetic fields.

Does time-varying potential imply non-conservative forces?

Yes, when a potential explicitly depends on time, the associated force is generally non-conservative. This means that the mechanical energy of a particle moving in such a field is not necessarily conserved, as energy can be exchanged between the particle and the changing electromagnetic field.

Can electromagnetic waves exist without displacement current?

No, the concept of displacement current is fundamental to the existence and propagation of electromagnetic waves. It describes how a changing electric field induces a magnetic field, which in turn induces an electric field, allowing the wave to sustain itself and propagate through space, even in a vacuum.

Conclusion

The concepts of displacement current and time-varying potentials are cornerstones of classical electromagnetism, completing Maxwell's equations and providing a coherent framework for understanding the behavior of electric and magnetic fields in dynamic situations. Displacement current, a brilliant insight by Maxwell, corrected Ampere's law, ensuring the continuity of current and, more importantly, establishing the theoretical basis for electromagnetic wave propagation. Time-varying potentials offer a more comprehensive mathematical description of fields that change over time, revealing their intricate interdependencies and how energy is conserved or transferred within such systems. Together, these concepts elucidate the profound symmetry and elegance of electromagnetic phenomena, from the functioning of everyday electrical devices to the propagation of light and radio waves across the cosmos.
