Exploring the Intricacies of DLL Manual Mapping in C++

Discover how manual mapping bypasses standard API to inject DLLs stealthily and flexibly

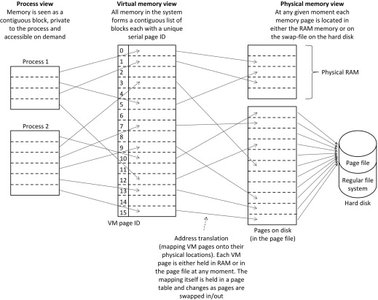

computer hardware, code injection, memory allocation diagram

Key Insights

Stealth Injection: Manual mapping bypasses the standard LoadLibrary() method, making DLL injection more discreet.
Detailed Process: Involves steps like memory allocation, PE header parsing, relocations, import resolution, and thread creation.
Advanced Control: Offers high flexibility and control for developers in specialized scenarios, including reverse engineering and security testing.

Understanding Manual Mapping

Manual mapping is a sophisticated technique used primarily in C++ to inject dynamic-link libraries (DLLs) into the memory space of a target process without resorting to standard Windows API functions, such as LoadLibrary(). This method involves reading the DLL’s binary data, manually allocating memory within the target process, adjusting the memory layout by parsing the Portable Executable (PE) header, and handling dependencies and relocations. Because it does not rely on the traditional DLL loading pathways, manual mapping offers stealth advantages, which is particularly useful for bypassing anti-cheat mechanisms and other security software.

Primary Steps Involved

1. Loading the DLL Bytes

The process begins with reading the DLL file’s bytes into a local buffer. File I/O operations in C++ are utilized to load the binary data from disk. The entire DLL, including headers and sections, is read directly into memory, forming the basis for the manual injection process.

2. Allocating Memory in the Target Process

Once the DLL's binary is obtained, memory is allocated inside the target process using Windows functions such as VirtualAllocEx. This allocation ensures there is sufficient space for the DLL's contents and for its proper alignment according to the PE format.

3. Mapping the DLL Sections

After memory allocation, the DLL’s sections—defined in its PE header—are mapped into the allocated memory space. This step involves copying each section while preserving the attributes (executable, writable, etc.) necessary for proper operation.

4. Fixing Relocations

When a DLL is loaded at an address different from its preferred base address, relocations are required. The relocation process involves updating the internal addresses of the DLL to reflect the actual memory location in the target process. This adjustment is crucial for ensuring that pointers to functions, global variables, and other important data are correctly referenced.

5. Resolving and Fixing Imports

DLLs often depend on external functions from other libraries. To make these imported functions usable, the manual mapping process involves resolving these imports. Functions like GetProcAddress are used on system DLLs, and the DLL’s Import Address Table (IAT) is updated with the correct addresses, allowing the manually mapped DLL to interact seamlessly with other libraries.

6. Executing TLS Callbacks and Entry Point

If the DLL utilizes Thread Local Storage (TLS), any defined callbacks must be executed to ensure proper initialization. Finally, the entry point of the DLL, typically its DllMain function, is executed by creating a thread within the target process. This step activates the DLL, integrating it into the target's execution flow.

Applications and Implications

Manual mapping is widely known for its use in both legitimate development tasks and in more controversial areas, such as game hacking or bypassing anti-cheat systems. Its primary application is in scenarios where stealth is paramount. Because LoadLibrary() is not used, conventional security mechanisms that monitor API calls might not flag the injected DLL’s presence.

Additionally, the flexibility provided by manual mapping makes it a favored technique in reverse engineering, debugging, and even in specialized security research. However, it is important to note the ethical and legal ramifications associated with this technique. When used without explicit permission, manual mapping may fall under illegal activities such as unauthorized code injection or malware implementation.

Technical Considerations

Complexity of Implementation

Implementing manual mapping requires a deep understanding of several technical domains:

The PE file format and how DLLs are structured in memory.
The use of Windows API functions for memory management and process manipulation.
The specific methods for addressing relocations, which involve calculating new addresses based on the allocated base address versus the preferred base address.
The meticulous process of resolving imports, which requires dynamic linking to other system libraries.
Handling thread local storage (TLS), ensuring all callbacks are executed correctly to maintain proper thread management.

Advantages of Manual Mapping

A major benefit of manual mapping is the enhanced level of stealth achieved by bypassing typical API calls. This technique avoids leaving the typical markers associated with LoadLibrary(), such as modifications in the Process Environment Block (PEB) or other standard data structures. As a result, the injected DLL can remain largely hidden from many conventional detection and investigation tools.

Moreover, manual mapping provides developers with the opportunity to control every step of the DLL loading process, allowing for optimizations and customizations for specific use cases. This granular control can also be used to improve performance or to implement safeguards against common pitfalls like memory leaks.

Challenges and Risks

Despite its advantages, manual mapping is fraught with challenges:

Error-Prone Process: Manual mapping requires precise handling of numerous elements, including memory allocation, relocations, and import resolutions. A small error in any step can lead to crashes or unexpected behavior in the target process.
Complex Debugging: Troubleshooting issues is often more difficult because traditional debugging tools may not properly recognize the manually mapped DLL or its interactions with the target process.
Security and Ethical Risks: Due to its potential for misuse, research and exploitation using this technique can lead to significant legal and ethical questions. Unauthorized use of manual mapping may result in serious legal consequences.

Detailed Process Overview Table

Step	Description	Key Windows API/Technique
Loading DLL Bytes	Read binary data from the DLL file into a buffer.	File I/O Operations
Memory Allocation	Allocate sufficient memory in the target process.	VirtualAllocEx
Mapping Sections	Copy each section into allocated memory preserving its attributes.	PE Header Parsing
Relocation	Adjust internal addresses if the DLL is loaded at a non-preferred base address.	Relocation Directory Processing
Resolving Imports	Find and update function pointers of imported libraries.	GetProcAddress, IAT Patching
TLS and Callbacks	Execute thread-local storage callbacks if present in the DLL.	TLS Initialization
Executing Entry Point	Start the DLL by calling the DllMain function via a new thread.	CreateRemoteThread

Sample Code Snippet

Below is a simplified C++ example demonstrating how one might start the manual mapping process by reading the DLL bytes and writing them into a target process. Note that a fully robust implementation would include all the steps described above.


  // #include <Windows.h>
  // #include <fstream>
  // #include <vector>

  // Function to read the DLL file's binary data
  std::vector<char> GetDllBytes(const std::string& dllPath) {
      std::ifstream file(dllPath, std::ios::binary | std::ios::ate);
      if (!file)
          throw std::runtime_error("Unable to open DLL file.");

      std::streamsize size = file.tellg();
      file.seekg(0, std::ios::beg);
      std::vector<char> buffer(size);
      if (!file.read(buffer.data(), size))
          throw std::runtime_error("Error reading DLL file.");
      return buffer;
  }

  // Example function to allocate memory and write the DLL bytes into another process
  void WriteDllToProcess(HANDLE processHandle, const std::vector<char>& dllBytes) {
      LPVOID remoteMemory = VirtualAllocEx(processHandle, nullptr, dllBytes.size(), MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
      if (!remoteMemory)
          throw std::runtime_error("Memory allocation failed in target process.");

      if (!WriteProcessMemory(processHandle, remoteMemory, dllBytes.data(), dllBytes.size(), nullptr))
          throw std::runtime_error("Failed to write DLL bytes to target process.");

      // Further steps such as relocation, resolving imports, and thread creation would follow here...
  }

Ethical and Legal Considerations

While manual mapping is a powerful technique in the hands of experienced developers and researchers, it is essential to be aware that its misuse can have severe legal and ethical implications. Unauthorized DLL injection, especially when used to bypass security mechanisms or to interfere with other software, often crosses into illegal territory. It is strongly advised to use these techniques strictly within legal boundaries such as in security research, debugging, or with proper authorizations.

Developers and researchers must ensure that their work complies with relevant laws and software usage policies, particularly when it comes to reverse engineering or modifying software in ways that may violate end-user license agreements (EULAs).

In-Depth Analysis on the Underlying Technologies

PE File Format and Its Importance

The Portable Executable (PE) file format is central to understanding manual mapping. A PE file contains various sections such as .text, .data, .rsrc, and more. Each section has a specific purpose, such as containing executable code, initialized data, or resources. When manually mapping a DLL, the injector must parse the PE header to correctly map these sections into the target process's memory space. Improper parsing can lead to issues where the binary code might not execute correctly, or worse, might cause memory corruption.

Relocations Explained

Relocations are the adjustments applied when a DLL is not loaded into its preferred base address. The relocation table contains specific entries that point to the locations in the DLL code that need to be modified. This process ensures that absolute addresses are recalculated in accordance with the new base address allocated in the target process. Manual mapping involves iterating over these entries and applying the necessary computed adjustments.

Import Resolution Mechanisms

Import resolution is another critical aspect of manual DLL injection. Every DLL generally relies on functions from Windows system libraries or other external modules. When a DLL is manually mapped, the embedding process must perform the work of what LoadLibrary and GetProcAddress would normally do. This involves:

Parsing the Import Directory from the PE header.
Resolving each imported function's actual address by querying the corresponding system DLL.
Patching the Import Address Table (IAT) so that the manually mapped DLL can correctly call these functions.

Thread Local Storage (TLS) Callbacks

Some DLLs implement thread-local storage, which requires executing designated callback functions upon initialization. In a standard DLL load, the operating system takes care of TLS. During manual mapping, if TLS callbacks are present, the injector must manually execute these functions to ensure proper DLL functionality, further complicating the injection process.
