Confirmation on Prelim Dossier Submission Status

A detailed review of the PMSS valve seat design change dossier enquiry

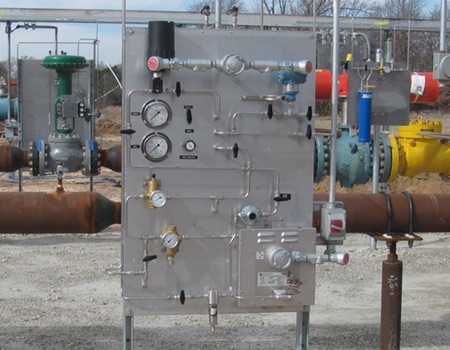

industrial valve assembly and control panel

Key Highlights

The current status of the dossier hasn’t been updated as submitted.
The PMSS design change enhances safety and performance in valve operation.
Follow-up with ARH or internal project teams is recommended to obtain precise updates.

Overview of the Inquiry

Your query asks for confirmation on whether the preliminary dossier for the ESDV-503 valve seat design change—from a metal-to-metal configuration to a PMSS (Primary Metal Seated and Secondary Soft Seated) setup—has been submitted to ARH (Algerian hydrocarbons regulations) for approval.

The inquiry addresses two main areas. Firstly, there is the technical aspect of the ESDV-503 valve seat design change and its inherent benefits. Secondly, one must consider the administrative process related to the dossier submission for ARH certification.

Technical Background: PMSS Valve Seat Design

Understanding the PMSS Concept

The PMSS (Primary Metal Seated and Secondary Soft Seated) design constitutes an advanced approach in ball valve engineering, offering both robust performance and enhanced sealing characteristics. In this dual approach, the valve features:

Primary Metal Seat

The primary metal seat provides a durable, always-active sealing mechanism responsible for mechanical integrity under high-pressure conditions. It also plays a crucial role in filtering any particulates or impurities that might be present in the medium, ensuring that these do not compromise the valve’s sealing capability.

Secondary Soft Seat

Working in tandem with the metal seat, the secondary soft seat—typically made of an elastomeric or rubber-like material—delivers an additional sealing layer. This soft seat is instrumental in achieving a bubble-tight shut-off, particularly important for applications involving both gaseous and liquid media. By offering redundancy, the soft seat mitigates risks should the primary metal seal encounter any issues or wear.

Implications for Safety and Performance

The enhanced sealing provided by the PMSS design significantly improves operational safety in industrial applications. These improvements include:

Enhanced Safety: In critical services like natural gas pipelines or hazardous liquid transfer, ensuring bubble-tight shut-off is essential. The PMSS design ensures that even if the soft seat encounters degradation, the primary metal seat continues to function effectively.
Increased Reliability: The dual nature of the sealing arrangement boosts overall reliability during overpressure conditions or safety shutdown situations.
Operational Longevity: The combination of robust metal seating with a resilient backup soft seat helps in minimizing wear and tear, thereby potentially extending the valve’s operational lifespan.

This design evolution is particularly relevant within the context of Emergency Shutdown Valves (ESDV), such as the ESDV-503, where rapid and fail-safe responses are crucial for preventing hazardous incidents.

Administrative Aspects: The Dossier Submission Process

ARH Certification Requirements

The Algerian hydrocarbons regulations (ARH) govern the certification of pressure equipment and associated components intended for operations within Algeria. Compliance with ARH requires the submission of a detailed preliminary dossier—a compilation of all technical documents, design change rationales, testing results, and supporting attachments.

The dossier is intended to showcase that the design modifications, such as the transition from a metal-to-metal seat to a PMSS design, have been validated according to stringent industry standards. It normally includes a preliminary dossier letter along with attachments that detail the design change, testing protocols, compliance with pressure vessel standards, and risk mitigation measures undertaken.

Status of the Dossier Submission

Based on the current compiled information and timeline up to February 26, 2025, there has been no confirmation that the preliminary dossier for the ESDV-503 valve seat design change has been officially transmitted to ARH. While technical discussions and industry literature detail the PMSS design benefits extensively, the administrative update regarding dossier submission remains unconfirmed.

It appears that the dossier for this particular design change, earmarked to transition from the metal-to-metal configuration to a two-layered sealing mechanism (PMSS), has not been sent or recorded as submitted. This means that the approval process under ARH is pending, and the status might not reflect any recent changes.

Potential Reasons for Delay

Several factors could contribute to this situation:

Internal Coordination: The assignment or execution of the dossier preparation might still be in progress within your internal design approval team. Complex industrial projects often require multiple reviews before submission.
Regulatory Compliance Checks: In some instances, companies perform additional audits or ensure alignment with the technical prerequisites mandated by ARH before dossier submission.
Communication Delays: Rather than a technical or design failure, the delay might simply be a notificatory lag between your organization’s submission processes and ARH’s acknowledgment system.

Actionable Recommendations

Given the critical nature of the ESDV-503 valve seat modifications, it is recommended to:

Verify Internal Records: Confirm with your internal design approvals or project management teams to ensure that all necessary documentation has been reviewed and is ready for submission.
Direct Inquiry with ARH: Contact the ARH certification team directly using the official channels provided in their guidelines to ascertain if there has been any correspondence or if the dossier is part of a pending queue.
Review Communication Logs: Check any recent submissions or communications related to the dossier to determine whether there might have been a misinterpretation in the status.
Documentation Audit: Undertake an internal audit of the dossier’s progress documentation, including checks for any emails, digital submission portals, or system notifications that might provide confirmation of receipt or pending review.

Comparative Summary of the Current Situation

It is important to juxtapose the technical strengths of the PMSS design against the procedural aspect of the dossier submission. For clarity, refer to the following table which summarizes both facets:

Aspect	Details
Design Change	Transition from metal-to-metal seat to PMSS, incorporating both a primary metal seat and a secondary soft seat to enhance sealing efficacy.
Technical Advantages	Improved safety, operational reliability, and extended lifespan of valve operation, which is essential, especially in ESDV identification during dangerous events.
Regulatory Requirement	Submission of a detailed preliminary dossier to ARH including justifications, testing results, and compliance metrics.
Current Submission Status	No confirmed submission of the preliminary dossier as of the latest available update, indicating pending actions or communication delays.

The above table is signified as a concise reference encapsulating the current situation. It serves to clearly delineate the technical merits and the current administrative standing regarding the dossier for the ESDV-503 valve seat design change.

Industry Implications and Future Considerations

Implications for Ongoing Operations

The implementation of the PMSS design in emergency shutdown valves (ESDV) is critical not only from a technical standpoint but also from a regulatory compliance perspective. The transition is intended to uphold or improve safety standards across various applications. However, the certification and validation process, represented by the submission of the preliminary dossier, is a pivotal part of the process. Delays or uncertainties in this area can lead to potential bottlenecks in project deployment.

For organizations operating under ARH guidelines, timely and accurate dossier submission ensures that all equipment meets the defined safety and operational standards. Missing or postponed submissions could lead to non-compliance issues, which in turn might affect overall project timelines, approval processes, and even market entry.

Best Practices for Dossier Management

To mitigate risks and ensure smooth transitions during design changes such as the one for the ESDV-503 valve seat, companies often adopt the following best practices:

Centralized Document Control: Maintain a central repository of all technical documents and submission records to easily track the progress and status of critical submissions.
Regular Status Reviews: Implement scheduled reviews that involve both technical and regulatory teams to reconcile project documentation and submission statuses.
Direct Communication Channels: Establish direct lines of communication with regulatory bodies such as ARH to promptly address any inquiries or clarifications needed during the dossier review process.
Comprehensive Audit Trails: Keep detailed records of all communications, revisions, and confirmations which can later serve as backup documentation in case of discrepancies.

By applying these practices, organizations can ensure that technical modifications, no matter how beneficial, do not get delayed in the administrative process, thereby safeguarding against operational disruptions.

Steps for Immediate Follow-Up

Next Steps for Confirmation

Since there is no confirmed submission of the preliminary dossier for the design change in question, it is advisable to take immediate actions:

Internal Verification

Start by examining the latest internal communications and project tracking logs. Verify whether the dossier has been finalized and if there exists any record of its submission. Contact your documentation or regulatory affairs department to cross-check the status.

Direct Communication with ARH

To obtain an unequivocal update, reach out directly to the ARH certification team. Provide them with necessary reference numbers and details related to the dossier. This proactive approach can help in clearing any misunderstandings and expedite the review process.

Monitoring and Follow-Up

Establish a regular follow-up mechanism where both internal teams and external contacts (if applicable) are reminded to update on the current dossier status. Maintaining a structured follow-up schedule can preempt delays and ensure that the dossier submission moves ahead without undue wait times.

Conclusion

In summary, while the technical merits of the design change from a metal-to-metal valve seating to a dual PMSS configuration are significant and well-documented, there has been no confirmed submission of the preliminary dossier to ARH as of the latest update. The dossier, which is essential for regulatory approval under Algerian hydrocarbons regulations, appears to be pending. Ensuring that all internal checks are made, and that direct communication channels with ARH are utilized, is crucial to either validate the current status or move forward with the necessary submission. It is recommended that you verify internal records and engage with ARH directly to obtain a definitive status update on the dossier.
