Dynamic Trunking Protocol (DTP) Explained

An In-Depth Guide to DTP and Its Configuration on Cisco Switches

Key Takeaways

Automates Trunk Negotiation: DTP simplifies trunk link setup between Cisco devices, reducing manual configuration errors.
Multiple Operating Modes: DTP supports various modes like dynamic auto, dynamic desirable, trunk, access, and nonegotiate, offering flexibility in network design.
Security and Compatibility Considerations: While DTP eases configuration, it poses security risks and compatibility issues with non-Cisco devices, necessitating careful management.

Introduction to Dynamic Trunking Protocol (DTP)

Dynamic Trunking Protocol (DTP) is a proprietary Layer 2 protocol developed by Cisco Systems. It is designed to facilitate the automatic negotiation of trunk links between Cisco switches, enabling the transmission of multiple VLANs over a single physical connection. By automating the trunking process, DTP reduces the need for manual configuration, thereby minimizing the risk of configuration errors and enhancing network efficiency.

Operational Modes of DTP

Dynamic Auto Mode

In Dynamic Auto mode, a switchport passively waits for the neighboring device to initiate trunking. If the connected port is set to Dynamic Desirable or trunk mode, the port will automatically form a trunk link. However, if both connected ports are set to Dynamic Auto, trunking will not occur, and the link will operate in access mode.

Dynamic Desirable Mode

Dynamic Desirable mode actively attempts to negotiate trunking with the connected device. When both connected ports are set to Dynamic Desirable or if one port is Dynamic Desirable and the other is trunk mode, a trunk link will be established. This mode is suitable for environments where proactive trunk negotiation is desired.

Trunk Mode

Trunk mode forces the switchport to operate as a trunk, regardless of the settings on the neighboring port. When configured with the switchport nonegotiate command, the port does not send DTP frames, making it ideal for connections to non-Cisco devices or when automatic trunk negotiation is not desired.

Access Mode

Access mode configures the switchport to carry traffic for only a single VLAN. This mode disables DTP negotiation, ensuring that the port remains in access mode irrespective of the settings on the connected device.

Nonegotiate Mode

The Nonegotiate mode disables DTP on the switchport, preventing it from sending or receiving DTP frames. This mode is typically used in conjunction with trunk mode to ensure that the port operates as a trunk without engaging in trunk negotiation, enhancing security and stability.

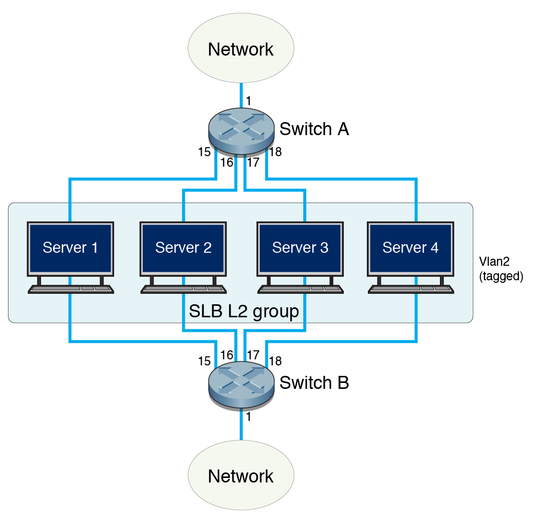

Configuring DTP on Cisco Switches

Basic Configuration Steps

Configuring DTP involves setting the desired mode on each switchport participating in trunking. Below are the steps and corresponding commands to configure various DTP modes:

Step 1: Enter Global Configuration Mode


SW1# configure terminal

Step 2: Select the Interface


SW1(config)# interface gigabitEthernet 1/0/20

Step 3: Configure DTP Mode

Choose the appropriate DTP mode based on network requirements:

Dynamic Auto Mode:
```
SW1(config-if)# switchport mode dynamic auto

```
Sets the port to passively await trunk negotiation.
Dynamic Desirable Mode:
```
SW1(config-if)# switchport mode dynamic desirable

```
Configures the port to actively attempt trunk negotiation.

Trunk Mode with Nonegotiate:


SW1(config-if)# switchport mode trunk
SW1(config-if)# switchport nonegotiate

Forces the port into trunk mode without sending DTP frames.

Access Mode:


SW1(config-if)# switchport mode access
SW1(config-if)# switchport access vlan 100

Configures the port as an access port for VLAN 100.

Step 4: Verify DTP Configuration

After configuration, verify the status of DTP on the interfaces:


SW1# show dtp interfaces

This command displays the DTP mode and status of each interface, confirming whether trunk links are established successfully.

Example Configuration

The following example demonstrates configuring a switch interface to actively negotiate trunking using Dynamic Desirable mode:


SW1# configure terminal
SW1(config)# interface FastEthernet0/1
SW1(config-if)# switchport mode dynamic desirable
SW1(config-if)# switchport trunk encapsulation dot1q
SW1(config-if)# switchport trunk allowed vlan 10,20,30

Explanation:

switchport mode dynamic desirable: Actively negotiates trunking with the connected device.
switchport trunk encapsulation dot1q: Specifies the use of IEEE 802.1Q for trunking.
switchport trunk allowed vlan 10,20,30: Restricts the VLANs permitted on the trunk to VLANs 10, 20, and 30.

Operational Behavior and Trunk Negotiation

DTP negotiation occurs only between directly connected switch ports. The resulting operational mode depends on the combination of DTP modes set on both ends of the link. The table below summarizes the interaction between different DTP modes and the resulting trunk behavior:

Local Port Mode	Neighbor Port Mode	Result
Dynamic Desirable	Dynamic Desirable	Trunk is formed
Dynamic Desirable	Dynamic Auto	Trunk is formed
Dynamic Auto	Dynamic Desirable	Trunk is formed
Dynamic Auto	Dynamic Auto	No trunk; link remains in access mode
Trunk	Trunk	Trunk is maintained
Trunk	Dynamic Auto	Trunk is maintained
Access	Any mode	No trunk; link remains in access mode
Nonegotiate	Any mode	Port operates in the configured mode without trunk negotiation

Security Considerations

While DTP offers significant convenience in automating trunk link configuration, it also introduces potential security vulnerabilities. Unauthorized trunk links can lead to the exposure of sensitive VLAN traffic and other network security issues. To mitigate these risks, the following best practices should be implemented:

Disable DTP on Non-Trunk Ports: Use the switchport nonegotiate command on access ports to prevent unauthorized trunk formation.
Manually Configure Trunk Ports: For critical trunk links, manually set the switchport mode to trunk and disable DTP to ensure that only intended trunk links are established.
Restrict Allowed VLANs: Limit the VLANs that can traverse trunk links to reduce the risk of VLAN hopping and unauthorized access.
Implement Port Security Measures: Utilize port security features such as MAC address filtering, access control lists (ACLs), and network access control (NAC) to enhance the security of trunk links.
Regularly Monitor Trunk Links: Continuously monitor trunk links and DTP negotiations to detect and respond to any unauthorized or suspicious activities.

Limitations and Compatibility Issues

DTP is a Cisco proprietary protocol, which limits its functionality to Cisco devices. In heterogeneous network environments where switches from different manufacturers are deployed, DTP-negotiated trunks may not be recognized, resulting in misconfigured or non-functional trunk links. To address compatibility issues, network administrators may need to:

Use Standard Trunking Protocols: Employ industry-standard trunking protocols such as IEEE 802.1Q, which are widely supported across various networking devices.
Manually Configure Trunk Links: In environments with mixed vendor equipment, manually configure trunk links to ensure interoperability and consistent network behavior.
Disable DTP When Unnecessary: On ports connected to non-Cisco devices, disable DTP to prevent automatic trunk negotiations that may not be supported.

Additionally, inconsistent DTP configurations across connected devices can lead to unexpected network behaviors and connectivity issues. Therefore, maintaining consistent and deliberate configurations is crucial for network stability.

Best Practices for Using DTP

To effectively leverage DTP while maintaining network security and reliability, the following best practices should be observed:

Disable DTP on Access Ports: Prevent unintended trunk formations by disabling DTP on ports that should operate solely as access ports.
Manually Configure Critical Trunk Links: For essential trunk connections, manually set the switchport mode to trunk and disable DTP to ensure that only authorized trunk links are established.
Consistent Configuration Across Switches: Ensure that DTP modes are consistently configured on connected switchports to avoid mismatched settings that can disrupt network connectivity.
Limit VLANs on Trunk Links: Restrict the number of VLANs allowed on trunk links to minimize unnecessary traffic and reduce the potential attack surface.
Regularly Audit Trunk Configurations: Conduct periodic audits of trunk configurations and DTP settings to identify and rectify any unauthorized or misconfigured trunk links.
Implement Additional Security Measures: Combine DTP configuration with other security practices such as port security, MAC address filtering, and network segmentation to enhance overall network security.

Conclusion

Dynamic Trunking Protocol (DTP) is a powerful tool within Cisco networking environments, offering automated trunk link negotiation that simplifies network configuration and reduces the potential for manual errors. By understanding and appropriately configuring the various DTP modes, network administrators can ensure efficient and secure VLAN communication across the network. However, the proprietary nature of DTP and its associated security implications necessitate careful consideration and adherence to best practices to maintain network integrity, especially in heterogeneous environments where compatibility with non-Cisco devices may be a concern. Ultimately, when leveraged correctly, DTP can contribute significantly to streamlined network management and operational efficiency.
