Comprehensive Guide to Electrical Inspections

Ensuring Safety, Functionality, and Code Compliance in Electrical Systems

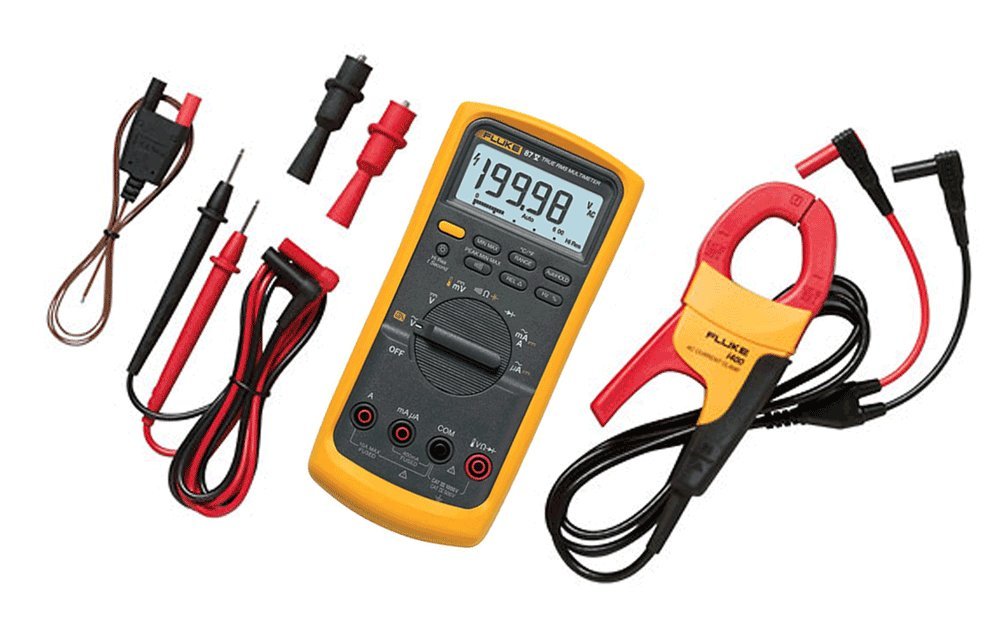

electrical inspection equipment

Key Takeaways

  • Electrical panels and circuit breakers must be properly installed, labeled, and maintained to ensure safe distribution of power.
  • Wiring integrity, including proper insulation and secure connections, is critical to prevent hazards such as electrical fires and shocks.
  • Safety devices like GFCIs and AFCIs are essential in protecting against electrical faults and must be correctly installed and functioning.

1. Electrical Panels and Circuit Breakers

Installation and Accessibility

Inspectors ensure that electrical panels are securely mounted with adequate clearance for easy access. Proper mounting prevents accidental damage and allows for efficient operation during emergencies.

Labeling and Organization

All circuits within the panel should be clearly labeled, allowing for quick identification and troubleshooting. Organized labeling facilitates maintenance and reduces the risk of accidental shut-offs.

Grounding and Bonding

Proper grounding and bonding are vital to prevent electrical shocks and ensure the safe operation of electrical systems. Inspectors verify that grounding electrodes are correctly installed and all metallic components are adequately bonded.

Condition and Functionality

Inspectors check for signs of overheating, corrosion, or physical damage within the panel. Circuit breakers must be appropriately sized for their respective circuits and function correctly to protect against overloads.

2. Wiring and Connections

Wire Sizing and Type

Using the correct wire gauge and type for each circuit is essential to handle the electrical load without overheating. Inspectors verify that wires are appropriate for their specific applications and comply with code requirements.

Insulation and Protection

Proper insulation prevents short circuits and electrical fires. Inspectors look for intact insulation and appropriate protection methods, such as conduits or raceways, especially in exposed areas.

Secure Connections

All wire connections must be secure and free from corrosion or damage. Inspectors ensure that wires are correctly terminated at outlets, switches, and panels to maintain system integrity and safety.

Routing and Support

Wires should be neatly routed and adequately supported to prevent physical damage. Inspectors check that wiring is properly secured to studs or joists and that there are no excessive bends or stress points.

3. Grounding and Bonding

Grounding Systems

The grounding system must effectively divert electrical faults away from users and equipment. Inspectors verify the installation of grounding rods and ensure that grounding conductors are properly connected to the main panel.

Bonding Requirements

Bonding ensures that all metallic parts of the electrical system are electrically connected, reducing the risk of shock hazards. Inspectors check for proper bonding of conduits, water pipes, and other metallic components.

4. Outlets and Switches

Proper Installation

Outlets and switches must be securely mounted, with no exposed wiring. Inspectors examine the installation to ensure that devices are correctly fitted into their boxes and that faceplates are properly attached.

Grounding and Polarity

Each outlet should be properly grounded and exhibit correct polarity. Inspectors use testing tools to confirm that hot, neutral, and ground wires are correctly connected, preventing potential electric shocks.

Safety Features

Ground-Fault Circuit Interrupters (GFCIs) and Arc-Fault Circuit Interrupters (AFCIs) are critical safety devices. Inspectors ensure that these devices are installed in required locations, such as kitchens, bathrooms, and outdoor areas, and that they function correctly.

5. Circuit Protection and Safety Devices

Circuit Breakers and Fuses

Circuit protection devices must be appropriately rated for their respective circuits to prevent overloads and short circuits. Inspectors verify the amperage ratings and test the functionality of breakers and fuses.

GFCI and AFCI Protection

GFCIs protect against ground faults, while AFCIs detect arcing conditions that can cause fires. Inspectors check that these devices are installed where required and operate as intended, enhancing overall electrical safety.

6. Lighting and Fixtures

Secure Installation

Lighting fixtures must be securely mounted to prevent falls or disconnections. Inspectors ensure that fixtures are properly attached to ceilings or walls and that all connections are secure.

Proper Wiring and Grounding

Wiring within fixtures should be correctly connected and insulated. Inspectors verify that all lighting installations comply with safety standards and are adequately grounded to prevent electrical hazards.

Energy Efficiency

Where required by code, energy-efficient lighting solutions should be implemented. Inspectors check for compliance with regulations regarding the use of LED bulbs or other energy-saving technologies.

7. Electrical Equipment and Appliances

Dedicated Circuits

High-power appliances like refrigerators, ovens, and HVAC systems should have dedicated circuits to prevent overloading. Inspectors ensure that these appliances are connected to appropriately sized circuits.

Proper Installation and Labeling

Electrical equipment must be correctly installed and clearly labeled for easy identification. Inspectors verify that all appliances are properly connected and that their circuits are accurately marked in the electrical panel.

8. Conductors and Connections

Correct Sizing and Type

Conductors must be sized appropriately for their load to prevent overheating and ensure efficient operation. Inspectors check that the conductors match the circuit requirements and are suitable for their intended use.

Secure Terminations

All connections should be tight and free from corrosion. Inspectors look for secure terminations at outlets, switches, and fixtures to maintain the integrity of the electrical system.

9. Junction Boxes

Proper Enclosures

All wire splices must be contained within appropriately sized junction boxes. Inspectors ensure that junction boxes are not overfilled and that they are accessible for future maintenance.

Secure Mounting

Junction boxes should be securely mounted to structural elements to prevent movement and potential damage. Inspectors check for proper installation and stability of junction boxes.

10. Final Inspection Requirements and Code Compliance

Adherence to Codes and Standards

All electrical work must comply with the National Electrical Code (NEC) and local regulations. Inspectors verify that installations meet these standards to ensure safety and legality.

Proper Documentation and Permits

Inspectors check that all necessary permits have been obtained and that the electrical work aligns with approved plans. Proper documentation is essential for legal compliance and future reference.

Final Functionality Tests

During the final inspection, inspectors test the electrical system to ensure all components are functioning correctly. They check that circuits do not overload and that the system operates safely under normal conditions.

Additional Inspection Considerations

Specific Areas

Different areas of a building have unique electrical requirements. Inspectors pay special attention to kitchens, bathrooms, outdoor installations, and service entrances to ensure compliance with specialized codes.

Safety Features

Emergency disconnects, proper insulation, adequate ventilation for heat-producing equipment, and the presence of warning signs are crucial safety features that inspectors evaluate to prevent accidents and ensure safe operation.

Condition of Existing Installations

In older buildings, inspectors look for signs of aging or wear, such as frayed wiring, outdated panels, and damaged outlets. Identifying these issues helps prevent potential hazards and ensures the building meets current safety standards.

Conclusion

Electrical inspections are a critical component in maintaining the safety, functionality, and compliance of electrical systems within residential, commercial, and industrial settings. By meticulously evaluating key elements such as electrical panels, wiring, grounding, circuit protection, and safety devices, inspectors ensure that electrical installations are reliable and pose no risks to inhabitants or property. Adhering to established codes and standards, along with proper documentation and final functionality tests, guarantees that electrical systems operate efficiently and safely. Regular inspections not only help in identifying and rectifying existing issues but also play a pivotal role in preventing future electrical hazards.
