Comprehensive Guide to Electrical Problems in Pressure Transmitters

Understanding, Identifying, and Resolving Electrical Issues for Optimal Performance

Key Takeaways

Accurate Diagnosis: Utilize proper diagnostic tools like multimeters and signal simulators to identify electrical faults effectively.
Preventive Maintenance: Regular inspection, calibration, and environmental protection are crucial to prevent electrical issues in pressure transmitters.
Proper Installation: Ensuring correct wiring, grounding, and shielding during installation minimizes the risk of electrical problems and enhances transmitter reliability.

Introduction

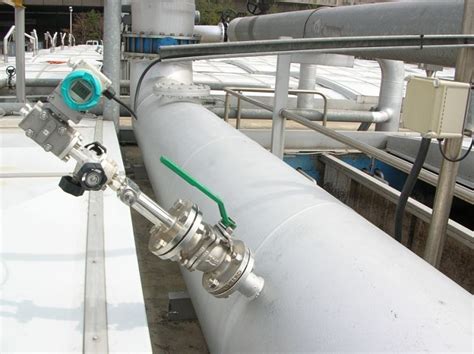

Pressure transmitters are indispensable components in various industrial applications, serving as the eyes and ears of systems by providing real-time pressure measurements. These devices convert physical pressure into electrical signals (commonly 4-20 mA) that can be monitored and controlled. However, electrical problems in pressure transmitters can lead to inaccurate readings, system inefficiencies, and even operational failures. This comprehensive guide delves into the common electrical issues encountered in pressure transmitters, their underlying causes, and effective troubleshooting methods to ensure their optimal performance.

Common Electrical Problems in Pressure Transmitters

1. No Output Signal or Abnormal Signal

A complete absence of signal or abnormal signal behavior can disrupt data flow and system control, making it a critical issue to address promptly.

Causes:

Improper wiring or loose connections.
Inadequate power supply (voltage below 12VDC).
Faulty signal conditioning or processing equipment.
Short circuits or open circuits in the wiring.
Incorrect polarity during installation.

Troubleshooting Steps:

Verify that the power supply voltage is within the specified range (typically 12-24VDC).
Check for loose or damaged wiring and ensure proper connections.
Use a multimeter to test for short circuits or open circuits in the wiring.
Confirm that the polarity of the power supply is correct.
Test the transmitter with a known-good signal conditioner or processing unit.

2. Signal Drift or Instability

Signal drift can lead to erroneous pressure readings over time, undermining the reliability of the transmitter.

Causes:

Electromagnetic interference (EMI) or radio frequency interference (RFI).
Ground loops caused by multiple grounding points.
Temperature fluctuations affecting the transmitter's electronics.
Aging or damaged components within the transmitter.

Troubleshooting Steps:

Shield the transmitter and wiring from EMI/RFI sources.
Ensure a single-point grounding system to eliminate ground loops.
Verify that the transmitter is operating within its specified temperature range.
Inspect the transmitter for signs of wear or damage and replace faulty components.

3. Incorrect Pressure Readings

Accurate pressure readings are vital for maintaining system integrity and performance.

Causes:

Vapor or moisture in the pressure transmitter.
Mechanical wear or damage to the sensor.
Improper calibration or configuration.
Over-pressurization beyond the transmitter's range.

Troubleshooting Steps:

Drain any vapor or moisture from the pressure transmitter.
Inspect the sensor for mechanical damage and replace if necessary.
Recalibrate the transmitter according to the manufacturer's guidelines.
Ensure the applied pressure does not exceed the transmitter's upper range limit.

4. Power Supply Issues

An unstable power supply can lead to inconsistent transmitter performance and potential failures.

Causes:

Inadequate voltage or current from the power source.
High load in the circuit causing voltage drop.
Incorrect power supply specifications.

Troubleshooting Steps:

Measure the power supply voltage and current to ensure they meet the transmitter's requirements.
Check for high loads in the circuit and reduce them if necessary.
Verify that the power supply matches the transmitter's specifications.

5. Wiring and Grounding Problems

Improper wiring and grounding can introduce noise and cause faulty signal transmission.

Causes:

Multiple grounding points causing ground loops.
Incorrect wiring connections.
Poor-quality or corroded wiring.

Troubleshooting Steps:

Implement a single-point grounding system.
Double-check wiring connections against the transmitter's wiring diagram.
Replace corroded or damaged wiring with high-quality cables.

6. Electromagnetic Interference (EMI)

EMI can distort the electrical signals, leading to inaccurate pressure readings and system instability.

Causes:

Proximity to high-power electrical equipment.
Unshielded cables or improper cable routing.

Troubleshooting Steps:

Use shielded cables and route them away from high-power equipment.
Install EMI filters or ferrite cores on the transmitter's power and signal lines.

7. Over-Pressurization

Exceeding the transmitter's pressure limits can damage internal components and result in faulty readings.

Causes:

Applying pressure beyond the transmitter's upper range limit.
Incorrect installation or configuration.

Troubleshooting Steps:

Ensure the applied pressure does not exceed 1.5 times the transmitter's upper range limit.
Verify the installation and configuration of the transmitter.

8. Calibration Errors

Incorrect calibration can lead to persistent inaccuracies in pressure measurements.

Causes:

Improper calibration procedures.
Aging or drift in the transmitter's internal components.

Troubleshooting Steps:

Recalibrate the transmitter using a certified calibration tool.
Replace the transmitter if calibration does not resolve the issue.

Causes of Electrical Problems in Pressure Transmitters

1. Environmental Factors

Environmental conditions play a significant role in the electrical stability and longevity of pressure transmitters.

Sub-factors:

Extreme temperatures affecting electronic components.
High humidity levels leading to moisture ingress.
Exposure to corrosive substances degrading components.
Improper sealing allowing moisture entry.

2. Installation Issues

Errors during installation can predispose transmitters to various electrical problems.

Sub-factors:

Incorrect wiring configuration.
Improper grounding leading to ground loops.
Exposed cables increasing susceptibility to EMI.
Poor mounting causing vibration damage to electrical components.

3. Operating Conditions

The conditions under which transmitters operate can influence their electrical performance.

Sub-factors:

Operating beyond the rated temperature range (-20°C to 70°C optimal).
Exposure to electromagnetic fields from nearby equipment.
Voltage spikes causing internal component stress.
Excessive load in the circuit leading to voltage drops.

Diagnostic Techniques and Tools

1. Using a Multimeter

A versatile tool essential for diagnosing electrical issues by measuring voltage, current, and resistance.

Applications:

Verifying zero-output voltage.
Measuring loop current (4-20mA).
Checking continuity of wiring and connections.

2. Simulating the Signal

Employing signal simulators to replicate pressure inputs and validate transmitter responses.

Applications:

Validating the transmitter's response to known pressure values.
Identifying discrepancies between expected and actual electrical outputs.

3. Testing Loop Resistance

Ensuring that the total resistance within the current loop does not impede signal transmission.

Applications:

Calculating load impedance using the formula: RL ≤ (Supply Voltage - 12V) / 0.02A.
Identifying excessive resistance due to faulty wiring or components.

4. Process Conditions Check

Confirming that the operational environment adheres to transmitter specifications.

Applications:

Ensuring that the applied process pressure is within the transmitter's operating range.
Verifying compatibility between the transmitter and monitoring equipment regarding electrical input/output.

Preventive Measures

1. Proper Installation

Correct installation practices lay the foundation for transmitter reliability and longevity.

Strategies:

Ensure that cables are correctly sized, shielded, and routed to minimize electrical noise and interference.
Use appropriate electrical connectors with weatherproof sealing in harsh conditions.
Implement correct wiring configurations to prevent ground loops and ensure signal integrity.

2. Routine Maintenance

Regular upkeep prevents minor issues from escalating into critical failures.

Strategies:

Regularly inspect and clean connections, terminals, and pressure sensing ports.
Perform periodic calibration to maintain measurement accuracy.
Monitor and replace worn or corroded components promptly.

3. Use of Surge Protectors and Isolated Power Supply

Protecting transmitters from voltage spikes and electrical surges enhances their durability.

Strategies:

Install surge suppressors to guard against power surges and voltage spikes.
Utilize an isolated power supply to prevent ground loops and minimize EMI effects.

4. Shielded and Twisted Pair Cables

Employing high-quality cabling reduces susceptibility to electromagnetic interference.

Strategies:

Use shielded cables, especially in environments with high electromagnetic noise.
Implement twisted pair configurations to cancel out electromagnetic interference.
Ground the shield at one end only to prevent ground loops while maintaining effective shielding.

When to Replace vs. Repair

Determining whether to repair or replace a pressure transmitter depends on the nature and extent of the electrical problems encountered.

1. Replacement Criteria

If major internal circuit damage is detected, such as burnt components or irreparable PCB damage, replacing the transmitter is advisable.
Persistent calibration errors that cannot be resolved through recalibration indicate the need for a new transmitter.
Advanced age of the transmitter leading to frequent failures and inefficiencies.

2. Repair Criteria

Minor mechanical or wiring issues, such as loose connections or minor corrosion, can be addressed through repairs or maintenance.
Issues related to calibration and configuration settings are typically resolvable without complete replacement.
Replacing individual faulty components, like sensors or connectors, when the main unit is in good condition.

Conclusion

Electrical problems in pressure transmitters can significantly impact industrial processes by causing inaccurate measurements and system inefficiencies. Understanding the common electrical issues, their causes, and effective troubleshooting methods is essential for maintaining the reliability and performance of these critical devices. Preventive measures, such as proper installation, routine maintenance, and the use of protective equipment, play a vital role in mitigating electrical problems. When faced with persistent or severe issues, the decision to repair or replace a transmitter should be made based on the extent of the damage and the overall condition of the device. By adhering to best practices and promptly addressing electrical challenges, industries can ensure the seamless operation of their pressure measurement systems.
