Understanding Electrical Voltage Drops in Shared Spaces

Detailed insights on why Tenant A’s stove causes Tenant B’s lights to dim

Key Takeaways

Overloaded/Shared Circuits: When high-power appliances share circuits, voltage drops occur.
Inadequate Wiring: Outdated or insufficient wiring can exacerbate electrical issues.
Safe Electrical Practices: Dedicated circuits and professional assessments are essential.

Detailed Explanation and Analysis

Root Cause Explanation

When Tenant A switches on the stove, the phenomenon of Tenant B’s bulbs dimming is an issue primarily related to a voltage drop. Voltage drop occurs when a significant load is placed on an electrical circuit, reducing the available voltage for other connected devices. Residential electrical wiring, especially in older buildings or in systems that share circuits between apartments, might not be designed to handle such high loads.

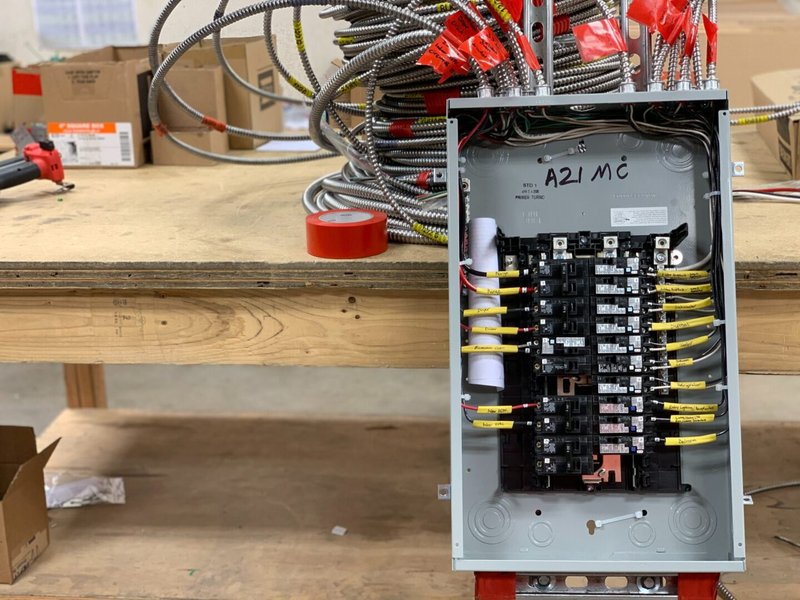

Overloaded Circuit and Shared Wiring

Most electrical circuits within residential settings are limited by a maximum current capacity. Appliances like stoves draw a high current when initiated, and if the circuit is already delivering power to other parts of the building (for instance, the lighting circuit in Tenant B’s floor), the circuit’s total available voltage drops. This is compounded in situations where circuits are not individually dedicated. In many cases, parts of the building use a common circuit or share a neutral wire, causing one tenant’s activity to adversely impact the other.

Wiring Integrity and Infrastructure

The condition and capability of the building’s wiring infrastructure play a crucial role in this issue. Aging wiring, compromised connections such as loose or corroded contacts, and insufficient gauge of wiring can all lead to excessive resistance within the circuit. According to Ohm’s law, an increase in current flowing through a resistor (the wiring) results in a voltage drop across that resistor. Thus, even if the load initially seems within limits, the inherent resistance due to wiring conditions can cause noticeable voltage reductions. The resulting effect is that when Tenant A’s stove, demanding high current, is activated, Tenant B's lights experience a reduced voltage supply, leading to dimming.

Impact of the Power Grid and Load Distribution

In some cases, issues can also arise due to the overall load on the building’s power supply or the local power grid. High peak loads in the neighborhood or fluctuations in grid power can exacerbate the dimming effect. However, the primary factors in this scenario remain the shared circuit configuration and wiring capacity within the building.

Visual Analysis: Electrical Load and Voltage Drop

The radar chart below provides a visual representation of various factors contributing to voltage stability in a residential electrical system. These factors are rated subjectively based on potential impact, including circuit capacity, wiring quality, load management, and the use of dedicated circuits.

Proposed Solutions to Address the Issue

Dedicated Electrical Circuits

One of the most effective solutions is to install a dedicated circuit for high-draw appliances like the stove. This prevents Tenant A’s use of the stove from drawing power from the shared circuit that supplies Tenant B’s lights. With a dedicated circuit, the heavy load is isolated, reducing the likelihood of voltage drops in adjacent circuits.

Improving Wiring and Infrastructure

Upgrading the building’s wiring to conform with modern standards can significantly reduce voltage drop issues. This includes:

Installing wiring with a larger gauge to accommodate higher current loads.
Securing and replacing any deteriorated or loose connections that increase resistance.
Implementing proper load balancing to distribute electrical demands evenly across circuits.

A professional electrician should perform an assessment to ensure the electrical system meets current safety and performance standards.

Incorporation of Voltage Stabilizers

In addition to dedicated circuits and wiring upgrades, installing a voltage stabilizer or regulator can help maintain a consistent voltage level. These devices work by compensating for transient dips in voltage when high-load appliances are activated, ensuring that sensitive devices like lighting systems maintain consistent brightness.

Regular Diagnostic and Maintenance Checks

Consistent monitoring and inspection of the electrical system can preemptively identify weaknesses such as overloaded circuits, wiring deterioration, or shared neutral connections. Regular maintenance ensures that the system is operating within safe parameters and can alert tenants to any potential hazards before they become severe.

Mindmap Diagram of Electrical Issue and Solutions

Below is a visual mindmap that outlines the core issue and the various recommendations:

mindmap root["Electrical Voltage Drop Issue"] Overloaded["Overloaded Circuit"] Shared["Shared Wiring"] HighLoad["High Current Draw"] Infrastructure["Inadequate Wiring"] Aging["Aging Wiring"] Loose["Loose Connections"] Solutions["Proposed Solutions"] Dedicated["Dedicated Circuit for High-power Appliances"] Upgrade["Upgrade Wiring"] Stabilizer["Install Voltage Stabilizer"] Maintenance["Regular Maintenance"]

Summary Table: Causes and Solutions

The table below summarizes the primary causes of voltage drop in shared electrical circuits and the corresponding solutions offered.

Cause	Description	Solutions
Overloaded Circuit	Excess load from appliances drawing high current on shared circuits.	Install dedicated circuits; redistribute electrical load.
Shared Wiring/Neutral	Multiple appliances sharing wiring causing voltage fluctuations.	Separate high-draw appliances; inspect and secure wiring connections.
Aging/Inadequate Wiring	Old or undersized wiring that offers high resistance.	Upgrade electrical infrastructure; use appropriate gauge wiring.
Voltage Instability	Transient drops and fluctuations when high current is drawn.	Use voltage stabilizers; conduct periodic electrical maintenance.

FAQ Section

Why do the lights dim when the stove is turned on?

The lights dim because the stove draws a large amount of power that leads to a voltage drop across the shared electrical circuit. This reduces the voltage available to the lighting system in another area, causing the bulbs to appear dimmer.

What is a dedicated circuit and why is it important?

A dedicated circuit ensures that high-draw appliances like the stove are powered separately from other devices. This isolation prevents voltage drops affecting other parts of the electrical system, such as lighting in neighboring apartments.

How can wiring upgrades help reduce dimming issues?

Upgrading wiring improves the circuit’s ability to handle higher currents without significant resistance. Enhanced wiring reduces voltage drops and ensures that appliances receive a stable voltage supply.

What role do voltage stabilizers play in this scenario?

Voltage stabilizers or regulators work to maintain a consistent voltage level throughout the circuit by compensating for transient dips. They help ensure that fluctuations caused by high-draw appliances are minimized.
