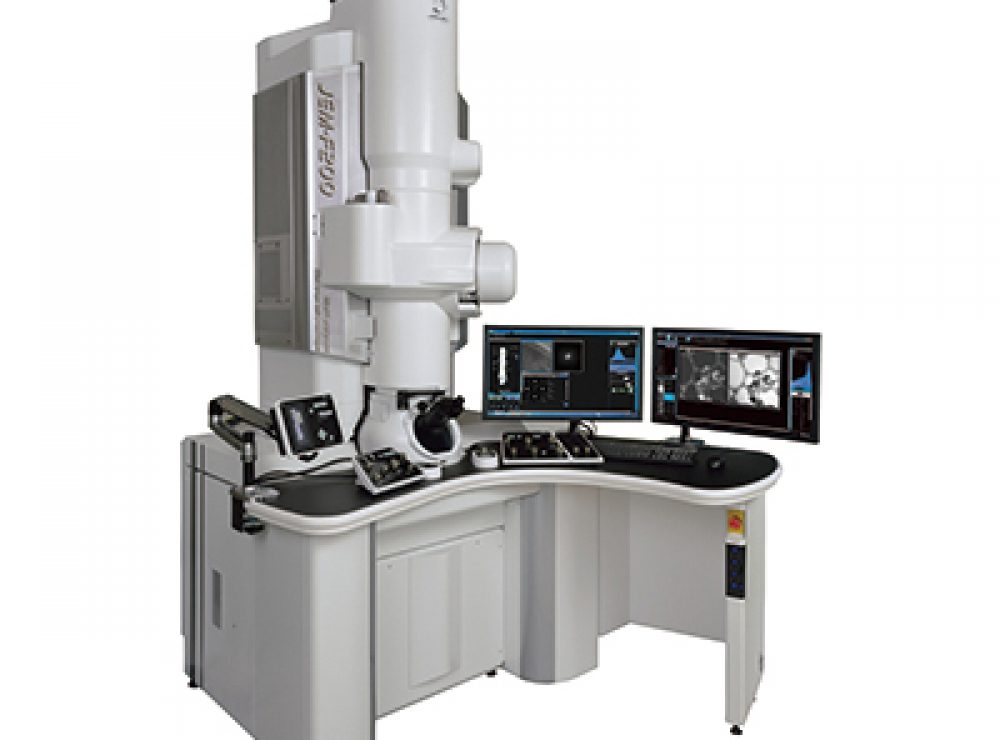

Understanding the Key Techniques in Electron Microscopy Sample Preparation

A Comprehensive Guide to Immunostaining, Post-Fixation, Embedding, Sectioning, and Etching

Key Takeaways

Precision in Sample Preparation: Each technique—Immunostaining, post-fixation, embedding, sectioning, and etching—plays a distinct role in ensuring the structural and molecular integrity of samples for high-resolution electron microscopy.
Interconnected Processes: These preparation steps are interdependent, requiring careful optimization to balance structural preservation, contrast enhancement, and molecular specificity.
Enhanced Visualization: Proper application of these techniques significantly improves the quality and clarity of electron microscopy images, enabling detailed ultrastructural analysis.

1. Immunostaining in Electron Microscopy

Immunostaining is a pivotal technique used to detect and visualize specific proteins or antigens within a sample. While traditionally associated with light microscopy, it has been adapted for electron microscopy (EM) to allow for the localization of molecular structures at the ultrastructural level.

Purpose and Application

The primary goal of immunostaining in EM is to identify and localize specific proteins within the complex architecture of cells or tissues. This is achieved by using antibodies that are conjugated to electron-dense markers, such as gold nanoparticles. These markers provide high contrast under electron beams, making the targeted molecules visible in the resulting images.

Process Overview

The immunostaining process typically involves the following steps:

Primary Antibody Binding: Antibodies specific to the target protein are applied to the sample, binding selectively to the antigen.
Secondary Antibody Conjugation: Secondary antibodies conjugated with electron-dense markers (e.g., gold particles) bind to the primary antibodies, providing the necessary contrast for EM visualization.
Visualization: The sample is then examined under an electron microscope, where the electron-dense markers appear as distinct particles, indicating the precise location of the target proteins.

Advantages and Considerations

Immunostaining in EM offers several advantages:

Specificity: Allows for the precise localization of specific proteins within the ultrastructure of cells.
High Resolution: Enables visualization of molecular targets at nanometer-scale resolution.

However, there are important considerations:

Antigen Preservation: Harsh fixation protocols can obscure antigen sites, making antigen retrieval strategies essential.
Optimization: Balancing fixation and staining conditions is critical to maintain structural integrity while ensuring antibody accessibility.

2. Post-Fixation in Electron Microscopy

Post-fixation is an essential step in EM sample preparation, serving to further stabilize and enhance the contrast of cellular structures following the initial fixation.

Purpose and Importance

The main purposes of post-fixation are:

Structural Stabilization: Ensures that cellular components maintain their native architecture during subsequent processing steps.
Contrast Enhancement: Utilizes heavy metal fixatives like osmium tetroxide to increase electron density, thereby improving image contrast.

Common Fixatives and Their Roles

Osmium tetroxide (OsO₄) is the most commonly used post-fixative in EM:

Protein and Lipid Stabilization: OsO₄ reacts with unsaturated lipids and proteins, preserving membranes and other structures.
Electron Density: Imparts electron density to the sample, enhancing the contrast of membranes and other cellular components under the electron beam.

Procedure

The post-fixation process generally involves:

Secondary Fixation: After the initial fixation with agents like glutaraldehyde, the sample is treated with osmium tetroxide.
Incubation: The sample is incubated with the post-fixative under controlled conditions to ensure optimal penetration and reaction.
Washing: Excess fixative is washed away, and the sample is prepared for subsequent embedding.

Impact on Sample Integrity

While post-fixation is crucial for preserving ultrastructure and enhancing contrast, it must be carefully controlled:

Over-Fixation Risks: Excessive cross-linking can obscure antigen sites, hindering immunostaining efforts.
Optimized Protocols: Balancing the concentration and exposure time of fixatives is necessary to maintain both structural integrity and molecular accessibility.

3. Embedding in Electron Microscopy

Embedding is the process of encasing a sample within a solid medium to provide mechanical support during the ultrathin sectioning required for electron microscopy.

Purpose of Embedding

The primary objectives of embedding are:

Support and Stability: Ensures that delicate cellular structures remain intact during sectioning.
Morphological Preservation: Maintains the native architecture of the sample, preventing deformation or collapse.

Embedding Media

Hard resins are typically employed for embedding in EM:

Epoxy Resins: Such as Epon or Spurr's resin, are favored for their hardness and stability under electron beams.
Acrylic Resins: Offer faster polymerization and can be used when quicker processing is desired.

Embedding Procedure

Dehydration: The sample is dehydrated using a graded series of ethanol or acetone concentrations to remove water.
Infiltration: The dehydrated sample is infiltrated with the embedding resin, which permeates the tissue or cells.
Polymerization: The resin is polymerized, typically through heat or ultraviolet light, to harden and encase the sample.

Considerations and Challenges

Successful embedding requires:

Complete Infiltration: Ensuring that the resin fully penetrates the sample to avoid sectioning artifacts.
Proper Polymerization: Achieving thorough hardening of the resin without introducing stress or cracks.

Poor embedding can lead to:

Sectioning Difficulties: Inadequate support can cause sample deformation during ultramicrotomy.
Artifact Formation: Improper embedding can introduce structural artifacts, compromising image quality.

4. Sectioning in Electron Microscopy

Sectioning involves slicing the embedded sample into ultrathin sections (typically 30-100 nanometers thick) suitable for examination under an electron microscope.

Purpose of Sectioning

The goals of sectioning are:

Electron Transparency: Thin sections allow electron beams to transmit through the sample, enabling the generation of high-resolution images.
Structural Detail: Provides the ability to visualize internal ultrastructures and their spatial relationships.

Sectioning Equipment and Tools

An ultramicrotome is the standard instrument used for sectioning in EM:

Ultramicrotome: Equipped with a diamond or glass knife capable of producing ultrathin slices.
Knife Blade: Must be exceedingly sharp to achieve the required section thickness without introducing artifacts.

Sectioning Process

Mounting: The embedded sample is mounted onto the ultramicrotome block, ensuring stability during slicing.
Slicing: The knife is precisely adjusted to produce sections of the desired thickness.
Collection: Ultrathin sections are carefully collected onto grids or substrates for subsequent staining and imaging.

Challenges and Best Practices

Effective sectioning demands:

Consistent Section Thickness: Uniform thickness is critical for image consistency and accurate interpretation.
Minimizing Artifacts: Proper knife angle and maintenance help reduce compression, folding, or tearing of sections.

Poor sectioning can result in:

Image Distortion: Uneven sections can lead to misleading representations of ultrastructural details.
Sample Loss: Fragile sections may break or deform, complicating analysis.

5. Etching in Electron Microscopy

Etching is a specialized technique used to modify the surface or composition of a sample to enhance contrast or reveal specific structural details under electron microscopy.

Purpose and Applications

Etching serves several purposes in EM sample preparation:

Surface Feature Enhancement: Selectively removing material to highlight topographical details.
Exposure of Internal Structures: Revealing subsurface features by removing overlying layers.

Etching Techniques

Various etching methods are employed depending on the sample type and desired outcome:

Chemical Etching: Utilizing acids or bases to chemically dissolve specific components of the sample.
Freeze-Etching: In biological samples, often involves fracturing and sublimating ice to expose internal structures.
Ion Beam Etching: Uses ion beams to physically remove material with high precision, commonly used in material science applications.

Procedure and Considerations

The etching process must be carefully controlled to achieve the desired modifications without damaging critical structures:

Selective Removal: Targeting specific components requires knowledge of the sample's chemical and physical properties.
Controlled Conditions: Parameters such as etchant concentration, temperature, and exposure time must be optimized for precision.

Impact on Imaging

Proper etching enhances the capabilities of electron microscopy by:

Increasing Contrast: Enhances visibility of otherwise subtle or hidden features.
Revealing Detailed Structures: Allows for the examination of internal architectures that would be obscured in unetched samples.

Poorly executed etching can lead to:

Structural Damage: Over-etching may compromise the integrity of critical features.
Artifacts Formation: Uncontrolled etching can introduce artifacts that mimic or obscure genuine structural details.

Comparative Summary of Techniques

Technique	Purpose	Sample Role	Connection to EM
Immunostaining	Detects and localizes specific proteins or antigens	Marks molecular targets with electron-dense markers	Enables molecular localization within ultrastructure
Post-Fixation	Stabilizes structures and enhances contrast	Preserves cellular architecture with heavy metal fixatives	Improves contrast and structural integrity for EM imaging
Embedding	Provides mechanical support for sectioning	Encases sample in hard resin to maintain morphology	Facilitates the production of ultrathin sections for EM
Sectioning	Produces ultrathin slices for electron beam transmission	Creates sections typically 30-100 nm thick	Essential for obtaining high-resolution TEM images
Etching	Enhances surface features or reveals internal structures	Selective material removal to accentuate specific features	Improves contrast and detail visibility in SEM and specialized TEM applications

Integration and Optimization of Techniques

Successful electron microscopy sample preparation relies on the seamless integration of immunostaining, post-fixation, embedding, sectioning, and etching. Each step must be carefully optimized to ensure that the sample maintains its structural and molecular integrity while providing the necessary contrast and detail for high-resolution imaging.

Sequential Workflow

The typical workflow for EM sample preparation is sequential and interdependent:

Fixation: Initial fixation with agents like glutaraldehyde preserves cellular structures.
Post-Fixation: Additional stabilization and contrast enhancement using osmium tetroxide.
Immunostaining: Labeling of specific proteins with electron-dense markers for molecular localization.
Embedding: Encasing the fixed and stained sample in resin for support during sectioning.
Sectioning: Cutting the embedded sample into ultrathin sections suitable for EM analysis.
Etching: Optional step to enhance surface features or reveal internal structures, depending on the study's requirements.

Balancing Preservation and Accessibility

One of the key challenges in sample preparation is balancing the preservation of ultrastructure with the accessibility of molecular targets:

Fixation Strength: Strong fixation preserves structures but may hinder antibody binding in immunostaining.
Embedding Conditions: Resin infiltration must be thorough to prevent sectioning artifacts without compromising molecular accessibility.

Achieving this balance often requires iterative optimization and careful protocol adjustments based on the specific sample type and research objectives.

Advanced Techniques and Innovations

Advancements in EM sample preparation continue to enhance the capabilities and applications of electron microscopy:

Cryo-Electron Microscopy: Freezing samples rapidly preserves native structures without the need for chemical fixation, allowing for the visualization of macromolecular complexes in their functional states.
Automated Embedding Systems: Streamline the embedding process, reducing preparation time and increasing consistency across samples.
Correlative Light and Electron Microscopy (CLEM): Combines immunostaining techniques used in light microscopy with EM, providing comprehensive insights into both molecular and structural aspects of samples.

Conclusion

The intricate process of preparing samples for electron microscopy involves a series of meticulously coordinated techniques—Immunostaining, post-fixation, embedding, sectioning, and etching. Each of these steps plays a crucial role in ensuring that samples are preserved, stabilized, and contrasted appropriately to facilitate high-resolution imaging. Understanding the distinct purposes and methodologies of these techniques allows researchers to optimize their workflows, thereby enhancing the quality and reliability of EM studies. As technology advances, the integration and refinement of these methods continue to push the boundaries of what can be visualized at the molecular and cellular levels, opening new avenues for scientific discovery.
