Comprehensive Guide to Entities and Their Attributes in Databases
Understanding the Building Blocks of Effective Data Modeling
Key Takeaways
- Entities represent real-world objects or concepts in a database, serving as the foundational elements of data modeling.
- Attributes provide specific details about each entity, defining their characteristics and properties.
- Effective entity-attribute design is crucial for creating organized, efficient, and scalable databases.
Introduction to Entities and Attributes
In the realm of database management, the concepts of entities and attributes are fundamental. They form the backbone of how data is organized, stored, and retrieved. Understanding these concepts is essential for designing efficient and effective databases that can handle complex data relationships and ensure data integrity.
An entity represents a real-world object or concept that can be distinctly identified and stored within a database. Examples of entities include people, products, events, or any object that holds significance within a particular context. Each entity is characterized by a set of attributes, which are specific properties or details that describe aspects of the entity.
Properly defining entities and their attributes is crucial for creating a well-structured database. This not only facilitates data organization but also enhances the ability to perform accurate queries, generate meaningful reports, and maintain data consistency across the system.
Detailed Examples of Entities and Their Attributes
1. Student Entity
Attributes:
- Student ID: A unique identifier assigned to each student, ensuring that each record is distinct within the database.
- First Name: The given name of the student.
- Last Name: The family name or surname of the student.
- Email: The student's email address, used for communication and notifications.
- Date of Birth: The birthdate of the student, which can be used to calculate age and eligibility for certain programs.
- Age: The current age of the student, derived from the date of birth.
- Major: The primary field of study or specialization that the student is pursuing.
- GPA: The student's Grade Point Average, reflecting their academic performance.
The Student entity is pivotal in educational institutions' databases. It allows for the management of student information, tracking academic progress, and facilitating communication between the institution and the student.
2. Employee Entity
Attributes:
- Employee ID: A unique identifier for each employee, ensuring precise record-keeping.
- First Name: The employee's given name.
- Last Name: The employee's family name or surname.
- Job Title: The position or role that the employee holds within the organization.
- Salary: The compensation the employee receives, typically expressed as an annual figure.
- Department: The specific division or unit within the organization where the employee works.
- Hire Date: The date when the employee commenced employment with the organization.
- Email Address: The employee's official email for internal and external communications.
Managing employee information is essential for human resources and payroll systems. The Employee entity facilitates tracking employee details, managing salaries, and overseeing departmental assignments.
3. Product Entity
Attributes:
- Product ID: A unique code assigned to each product for identification purposes.
- Product Name: The name of the product, used for branding and recognition.
- Price: The cost of the product, which can vary based on factors like production costs and market demand.
- Category: The classification or type of product, such as electronics, clothing, or groceries.
- Stock Quantity: The number of units available in inventory, helping manage supply levels.
- Description: A brief overview of the product's features and benefits.
- Manufacturing Date: The date when the product was produced, relevant for perishable goods or warranty purposes.
- Quantity in Stock: The current number of units available for sale or distribution.
The Product entity is central to sales and inventory management systems. It assists businesses in tracking what products are available, managing stock levels, and analyzing sales trends.
4. Car Entity
Attributes:
- Vehicle Identification Number (VIN): A unique code used to identify individual motor vehicles.
- Make: The manufacturer of the car, such as Toyota, Ford, or BMW.
- Model: The specific model name or number assigned by the manufacturer.
- Year: The model year of the car, indicating its production year.
- Color: The exterior color of the car, which can be important for customization and resale value.
- Mileage: The total distance the car has traveled, relevant for maintenance and valuation.
- Engine Type: The specification of the car's engine, such as electric, hybrid, or gasoline-powered.
- License Plate Number: The registration number assigned by the governing authority.
In automotive databases, the Car entity is essential for tracking vehicle information, managing sales and leases, and monitoring maintenance schedules.
5. Book Entity
Attributes:
- ISBN: International Standard Book Number, a unique identifier for books.
- Title: The name of the book, used for identification and cataloging.
- Author: The individual or group who wrote the book.
- Publication Year: The year the book was published, which can affect its relevance and edition status.
- Genre: The category or type of literature, such as fiction, non-fiction, fantasy, or biography.
- Number of Pages: The total count of pages, indicating the book's length.
- Publisher: The company responsible for producing and distributing the book.
- Edition: Information about whether the book is the first edition, revised edition, etc.
The Book entity is fundamental in libraries, bookstores, and publishing databases. It helps in managing collections, tracking sales, and organizing literary resources.
Comparative Overview of Entities and Attributes
| Entity | Key Attributes |
|---|---|
| Student | Student ID, First Name, Last Name, Email, Date of Birth, Major, GPA |
| Employee | Employee ID, First Name, Last Name, Job Title, Salary, Department, Hire Date |
| Product | Product ID, Product Name, Price, Category, Stock Quantity, Description |
| Car | VIN, Make, Model, Year, Color, Mileage, Engine Type |
| Book | ISBN, Title, Author, Publication Year, Genre, Number of Pages |
The table above provides a comparative overview of five common entities along with their key attributes. This comparison highlights the structured nature of entities and how attributes serve to detail each entity comprehensively.
Importance of Proper Entity and Attribute Definition
Defining entities and their attributes accurately is critical for several reasons:
1. Data Integrity and Consistency
Clear definitions ensure that data is entered consistently, reducing errors and redundancy. For instance, having a unique identifier like Student ID or Employee ID prevents duplicate records and maintains the uniqueness of each entity instance.
2. Efficient Data Retrieval
Well-defined attributes allow for precise querying and reporting. For example, searching for all products in a specific category or retrieving all orders placed within a certain date range becomes straightforward when the necessary attributes are properly defined.
3. Scalability and Flexibility
A robust entity-attribute framework facilitates the scalability of the database. As new requirements emerge, additional attributes can be incorporated without disrupting existing data structures. This flexibility is essential for evolving business needs and technological advancements.
Best Practices for Defining Entities and Attributes
To ensure the effectiveness of entities and attributes in database design, several best practices should be followed:
1. Use Clear and Descriptive Naming Conventions
Attribute names should be intuitive and self-explanatory. This enhances readability and makes it easier for anyone interacting with the database to understand the stored data. For example, using "FirstName" is more descriptive than "FName."
2. Ensure Uniqueness and Avoid Redundancy
Each entity should have a unique identifier, such as a primary key, to prevent duplicate records. Redundant attributes across different entities should be minimized to maintain data normalization and reduce storage inefficiencies.
3. Define Appropriate Data Types
Assign suitable data types to each attribute to ensure data integrity. For example, use date types for dates, numerical types for quantities and prices, and string types for names and descriptions. This helps in validating data and optimizing storage.
4. Establish Relationships Between Entities

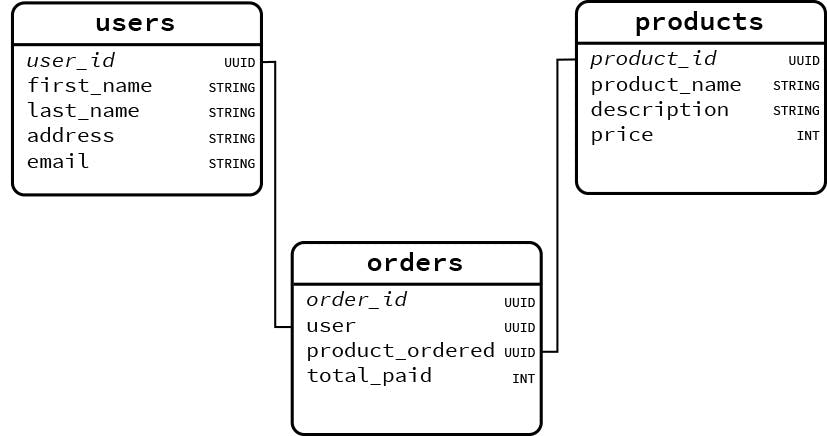

Understanding how entities relate to each other is crucial. For instance, an Order entity may be linked to a Customer entity via a CustomerID. Defining these relationships helps in maintaining referential integrity and enables complex queries involving multiple entities.
5. Document and Maintain Entity Definitions
Keeping thorough documentation of each entity and its attributes ensures that the database remains understandable and maintainable over time. This is especially important in collaborative environments where multiple stakeholders interact with the database.
Advanced Considerations in Entity-Attribute Design
Beyond the foundational aspects, several advanced considerations can enhance the effectiveness of entity-attribute design:
1. Normalization
Database normalization involves organizing the fields and tables of a relational database to minimize redundancy and dependency. By ensuring that each table represents one entity and that attributes are atomic, normalization enhances data integrity and efficiency.
2. Handling Composite and Derived Attributes
Sometimes, attributes may be composite, consisting of multiple sub-attributes (e.g., Address can be divided into Street, City, State, ZIP Code). Derived attributes are those calculated from other attributes (e.g., Age derived from Date of Birth). Properly managing these ensures comprehensive data representation.
3. Implementing Constraints
Constraints such as NOT NULL, UNIQUE, and FOREIGN KEY help enforce rules at the database level. These constraints ensure that the data adheres to business rules and maintain the overall integrity of the database.
4. Considering Future Scalability
Anticipating future data requirements and potential expansions is vital. Designing entities and attributes with scalability in mind allows the database to adapt to growing data volumes and evolving business needs without significant restructuring.
5. Securing Sensitive Attributes
Attributes containing sensitive information, such as personal identification numbers or financial data, should be protected through encryption and access controls. This ensures compliance with data protection regulations and safeguards against unauthorized access.
Practical Application: Designing a Sample Database
To illustrate the concepts discussed, let's consider the design of a simple university database. This database will include entities such as Student, Course, Instructor, Department, and Enrollment.
Entities and Their Attributes
1. Student
- StudentID
- FirstName
- LastName
- DateOfBirth
- Major
- GPA
2. Course
- CourseID
- CourseName
- CourseCode
- Credits
- Description
3. Instructor
- InstructorID
- FirstName
- LastName
- Department
- HireDate
4. Department
- DepartmentID
- DepartmentName
- Building
- Budget
5. Enrollment
- EnrollmentID
- StudentID
- CourseID
- EnrollmentDate
- Grade
In this sample database:
- The Student entity captures all relevant information about students.
- The Course entity details the courses offered by the university.
- The Instructor entity includes information about faculty members.
- The Department entity represents the various academic departments.
- The Enrollment entity manages the many-to-many relationship between students and courses.
Entity Relationships
Understanding how entities relate to each other is crucial for effective database design. In our sample database:
-
A Department can have multiple Instructors and Courses.
-
A Course is taught by one or more Instructors.
-
A Student can enroll in multiple Courses, and each Course can have multiple Students.
Conclusion
Entities and their attributes are fundamental components of database design, enabling the structured organization of data to reflect real-world scenarios accurately. By meticulously defining entities and their attributes, and understanding the relationships between them, database designers can create robust systems that support efficient data management, retrieval, and analysis.
The examples provided illustrate how entities encapsulate distinct objects or concepts, while attributes detail their specific characteristics. Adhering to best practices in entity-attribute definition ensures data integrity, reduces redundancy, and facilitates scalability, all of which are essential for maintaining a high-performance database system.
As technology evolves and data requirements become more complex, the principles of effective entity-attribute design remain steadfast, underscoring their enduring importance in the field of database management.
