Entity and Attributes: Comprehensive Example

Understanding the Structure and Implementation in Database Management Systems

Key Takeaways

Entities represent real-world objects or concepts within a database.
Attributes provide specific details that describe the properties of an entity.
Proper identification and categorization of entities and attributes are crucial for efficient database design.

Introduction to Entities and Attributes

In the realm of Database Management Systems (DBMS), the concepts of entities and attributes are foundational. They form the backbone of data modeling, enabling the structured representation of data within a database. Understanding these concepts is essential for designing efficient and effective databases that accurately reflect the real-world scenarios they aim to model.

Defining Entities

What is an Entity?

An entity is an object or concept that is distinguishable from others and holds significance within a specific context or system. In DBMS, entities are used to represent real-world objects such as people, places, things, or events that are of interest to an organization or application.

Types of Entities

Entities can be categorized into different types based on their nature and role within the database:

Strong Entities: These entities can exist independently without relying on other entities. They have a primary key that uniquely identifies each instance. For example, a Customer or a Product.
Weak Entities: These entities depend on other entities for their existence. They do not have a primary key and are identified using a combination of their attributes and the primary key of the strong entity they are related to. For example, an Order Item that depends on an Order.
Associative Entities: These entities manage many-to-many relationships between other entities. They often include attributes that pertain to the relationship itself. For example, a Course Registration entity that connects Students and Courses.

Understanding Attributes

What are Attributes?

An attribute is a property or characteristic that provides more information about an entity. Attributes define the details and nuances of an entity, making data storage and retrieval more precise and meaningful within the database.

Types of Attributes

Attributes can be classified into several types based on their characteristics:

Simple Attributes: These cannot be divided into smaller parts. For example, a First Name.
Composite Attributes: These can be divided into multiple components. For example, a Full Name that can be split into First Name and Last Name.
Derived Attributes: These are calculated from other attributes. For example, an Age derived from the Date of Birth.
Multi-Valued Attributes: These can hold multiple values simultaneously. For example, Phone Numbers for a single entity.
Key Attributes: These uniquely identify each instance of an entity. For example, an Employee ID.

Detailed Example: Customer Entity

Entity: Customer

Description

The Customer entity represents individuals or organizations that purchase goods or services from a business. This entity is pivotal in business operations as it encapsulates essential information required for transactions, marketing, and customer relationship management.

Attributes of Customer

The Customer entity comprises several attributes that collectively describe its properties:

Attribute Name	Type	Description
CustomerID	Key Attribute	A unique identifier assigned to each customer, ensuring distinct representation within the database.
FirstName	Simple Attribute	The given name of the customer.
LastName	Simple Attribute	The family name or surname of the customer.
Email	Simple Attribute	The customer's email address used for communication and account identification.
PhoneNumber	Multi-Valued Attribute	The contact numbers associated with the customer, allowing multiple entries such as mobile and home numbers.
Address	Composite Attribute	The residential or business address of the customer, which can be broken down into Street Address, City, State, and ZIP Code.
DateOfBirth	Simple Attribute	The birth date of the customer, used to derive attributes like Age.
Age	Derived Attribute	Calculated from the DateOfBirth, representing the customer's current age.
RegistrationDate	Simple Attribute	The date when the customer registered or created an account with the business.
PreferredLanguage	Simple Attribute	The language preference of the customer for communication and services.
PurchaseHistory	Multi-Valued Attribute	A collection of past purchases made by the customer, detailing products or services acquired.

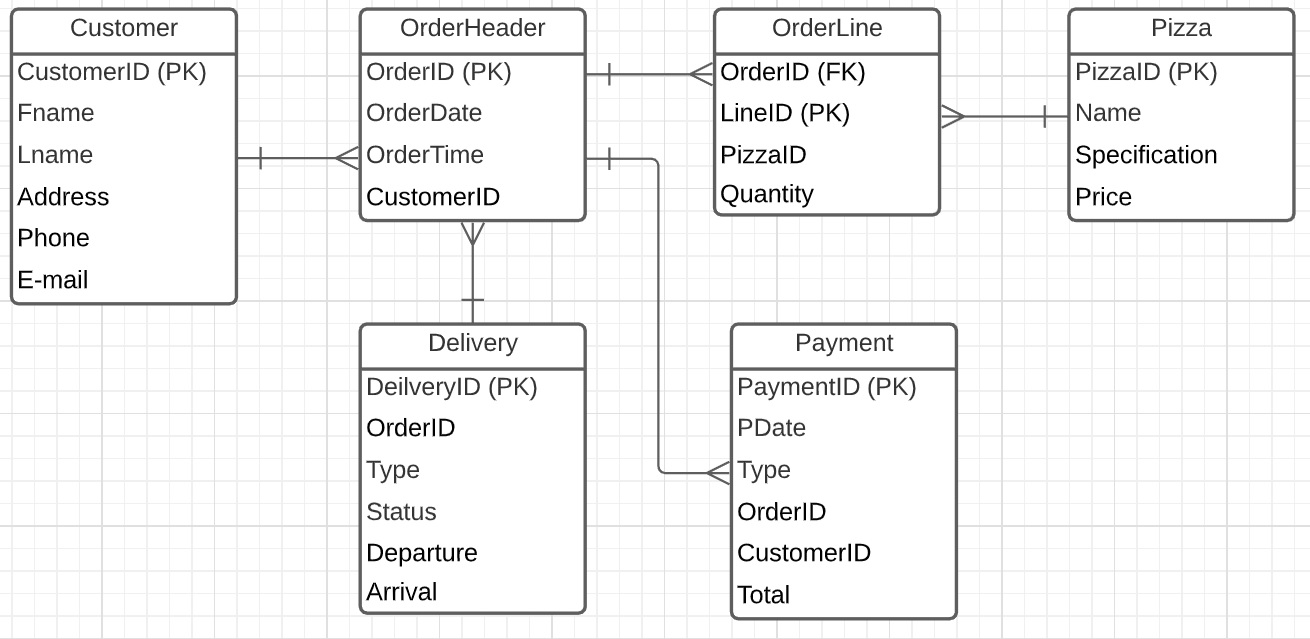

Entity-Relationship Diagram (ERD) for Customer

The Entity-Relationship Diagram (ERD) visually represents the Customer entity and its relationships with other entities within the database. This diagram aids in understanding how data is interconnected and ensures efficient database design.

Relationships

The Customer entity typically interacts with several other entities, forming various types of relationships:

Customer-Order Relationship: A one-to-many relationship where a customer can place multiple orders, but each order is associated with one customer.
Customer-Payment Relationship: A one-to-many relationship where a customer can have multiple payment methods or transactions.
Customer-Feedback Relationship: A one-to-many relationship where a customer can provide multiple feedback entries.

Implementation in a Database

Implementing the Customer entity within a database involves creating a table that encapsulates all its attributes. This structured approach facilitates data storage, retrieval, and management, ensuring that information is both accessible and secure.

Example SQL Table Creation


CREATE TABLE Customer (
    CustomerID INT PRIMARY KEY,
    FirstName VARCHAR(50) NOT NULL,
    LastName VARCHAR(50) NOT NULL,
    Email VARCHAR(100) UNIQUE NOT NULL,
    PhoneNumber VARCHAR(15),
    StreetAddress VARCHAR(100),
    City VARCHAR(50),
    State VARCHAR(50),
    ZIPCode VARCHAR(10),
    DateOfBirth DATE,
    RegistrationDate DATE DEFAULT CURRENT_DATE,
    PreferredLanguage VARCHAR(20),
    -- Derived attribute Age is calculated dynamically
    -- PurchaseHistory is managed through a separate related table
    CHECK (Age >= 0)
);

Handling Multi-Valued Attributes

Attributes like PhoneNumber and PurchaseHistory that can hold multiple values are managed through related tables to maintain normalization and avoid data redundancy.


CREATE TABLE CustomerPhoneNumbers (
    CustomerID INT,
    PhoneNumber VARCHAR(15),
    FOREIGN KEY (CustomerID) REFERENCES Customer(CustomerID)
);

CREATE TABLE PurchaseHistory (
    PurchaseID INT PRIMARY KEY,
    CustomerID INT,
    ProductID INT,
    PurchaseDate DATE,
    Quantity INT,
    FOREIGN KEY (CustomerID) REFERENCES Customer(CustomerID),
    FOREIGN KEY (ProductID) REFERENCES Product(ProductID)
);

Data Integrity and Validation

Ensuring data integrity is paramount when defining entities and attributes. Constraints such as PRIMARY KEY, FOREIGN KEY, UNIQUE, and CHECK are employed to maintain the accuracy and reliability of the data.

Examples of Constraints

Primary Key (CustomerID): Ensures that each customer can be uniquely identified.
Unique Constraint (Email): Prevents duplicate email entries, maintaining unique contact information.
Check Constraint (Age): Ensures that the calculated age is a non-negative value.
Foreign Keys: Maintain referential integrity between related tables, such as linking a customer to their orders.

Best Practices in Defining Entities and Attributes

Consistency and Naming Conventions

Adopting consistent naming conventions for entities and attributes enhances readability and maintainability of the database. Names should be descriptive, concise, and follow a standard format throughout the database schema.

Normalization

Database normalization involves organizing attributes and tables to minimize redundancy and dependency. This process ensures that each piece of data is stored logically and efficiently, enhancing data integrity and simplifying maintenance.

Documentation

Comprehensive documentation of entities and attributes is crucial for future reference and for developers who interact with the database. Documentation should include descriptions, data types, constraints, and relationships to provide a clear understanding of the database structure.

Advanced Considerations

Handling Complex Attributes

In scenarios where attributes are inherently complex, such as Address or PaymentDetails, it is advisable to model them as separate entities. This approach facilitates better data management and aligns with normalization principles.

Example: Address Entity

Instead of embedding address components directly within the Customer entity, an Address entity can be created to handle multiple addresses per customer or to standardize address data across different entities.


CREATE TABLE Address (
    AddressID INT PRIMARY KEY,
    CustomerID INT,
    StreetAddress VARCHAR(100),
    City VARCHAR(50),
    State VARCHAR(50),
    ZIPCode VARCHAR(10),
    FOREIGN KEY (CustomerID) REFERENCES Customer(CustomerID)
);

Security and Privacy Considerations

When defining attributes, especially those containing sensitive information such as Email, PhoneNumber, and DateOfBirth, it is imperative to implement security measures. This includes access controls, encryption, and compliance with data protection regulations to safeguard customer information.

Scalability

The design of entities and attributes should accommodate future growth and changes. This involves anticipating potential additions or modifications to data requirements and ensuring that the database structure remains flexible and scalable.

Practical Applications

Customer Relationship Management (CRM)

The Customer entity plays a central role in CRM systems, enabling businesses to manage interactions, track customer behavior, and personalize marketing efforts. Detailed attributes facilitate targeted communication and enhance customer satisfaction.

E-commerce Platforms

In e-commerce, the Customer entity is integral for processing orders, managing accounts, and facilitating transactions. Attributes such as PurchaseHistory and PreferredLanguage inform recommendations and improve user experience.

Healthcare Systems

In healthcare databases, patient information is managed through entities similar to Customer, with attributes encompassing medical history, contact information, and insurance details. Accurate entity and attribute definitions are crucial for effective patient care and data management.

Challenges and Solutions

Data Redundancy

Redundant data can lead to inconsistencies and increased storage costs. To mitigate this, normalization techniques should be employed to ensure each piece of data is stored only once, in the most appropriate place.

Handling Evolving Requirements

As business needs evolve, the database schema must adapt to accommodate new entities or attributes. Implementing a modular and flexible design facilitates easier updates and scalability.

Ensuring Data Quality

Maintaining high data quality involves implementing validation rules, regular audits, and data cleaning processes. High-quality data is essential for reliable analytics and informed decision-making.

Conclusion

The meticulous definition of entities and their attributes is a cornerstone of effective database design. By accurately modeling real-world objects and their characteristics, databases can efficiently store, retrieve, and manage data, thereby supporting the operational and strategic goals of an organization. Emphasizing best practices such as normalization, consistent naming conventions, and robust documentation ensures that the database remains scalable, secure, and maintainable over time.
