Generating a 0.2µs Square Wave with ESP-IDF RMT Peripheral

Comprehensive Guide and Example Program for High-Speed Signal Generation

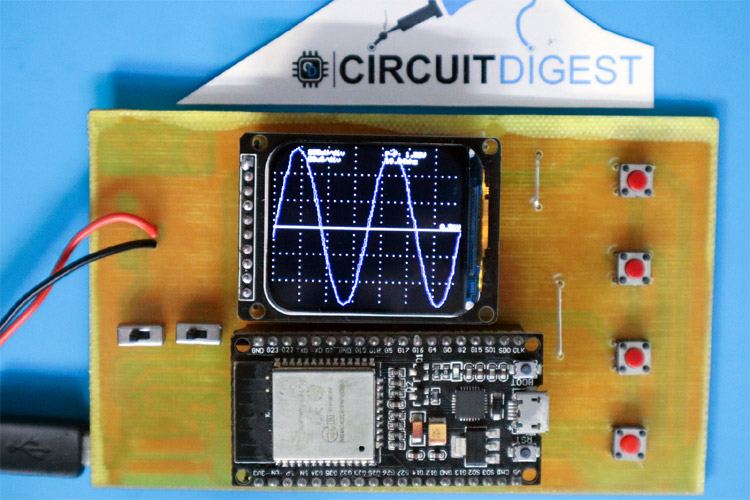

esp32 development board and oscilloscope setup

Highlights

Precise Timing: Achieve a 5 MHz square wave by meticulously configuring the RMT clock divider.
Continuous Transmission: Use loop mode with RMT items to consistently generate the waveform.
Hardware Compatibility: Ensure correct GPIO selection and configuration according to your ESP32 board.

Introduction

In this guide, we detail how to generate a square wave with a period of 0.2µs using the ESP32's RMT (Remote Control Transceiver) peripheral with ESP-IDF. A 0.2µs square wave translates to a frequency of 5 MHz. This frequency requires careful configuration of timing parameters including the clock divider, tick calculations, and proper RMT item settings. The RMT peripheral is versatile and can be used not only for transmitting infrared remote control codes but also for generating high-speed and precise waveforms.

Understanding the RMT Peripheral for High-Speed Signal Generation

The RMT peripheral operates by dividing the source clock (usually the 80MHz APB clock for ESP32) using a programmable clock divider. The resulting tick period defines the resolution of the RMT item durations. To generate a 0.2µs square wave, one must determine how many ticks correspond to half of the period (i.e., 100 ns for the high and 100 ns for the low phases).

Key Considerations

Clock Divider and Tick Period

The value of the clock divider directly influences the smallest time unit (tick) achievable with the RMT peripheral. For example, if the clock divider is set to 2, the tick period is calculated as:

\( \text{Tick Period} = \frac{\text{clk\_div}}{80 \text{MHz}} \)
For clk_div = 2, it becomes \( \frac{2}{80\times10^6} \) = 25 ns.

To obtain a 0.2µs period square wave, you need 2 pulses (high and low) of 100 ns duration each. With a tick period of 25 ns, each phase requires:

\( \text{Ticks per phase} = \frac{100 \text{ ns}}{25 \text{ ns}} = 4 \) ticks.

RMT Items and Looping

RMT items are structured to encapsulate two phases: a high signal phase and a low signal phase. By configuring these items with the proper duration values, you can define the waveform. Furthermore, setting loop mode enables continuous waveform generation without the need for repeated calls.

Program Structure and Code Walkthrough

Below is an in-depth example program that demonstrates how to generate the required 0.2µs square wave using the ESP-IDF framework. We'll start by including all necessary libraries, configuring the RMT peripheral, calculating tick durations, and setting up continuous transmission.

Complete Example Code


/*
   ESP-IDF Program to Generate a 0.2µs Square Wave using the ESP32 RMT Peripheral.
   This program configures the RMT to output a 5MHz signal (0.2µs period) on a designated GPIO pin.
   Ensure you have the correct ESP-IDF version and setup prior to compiling this code.
*/

#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "driver/rmt.h"
#include "driver/gpio.h"
#include "esp_err.h"

// Define the RMT channel and GPIO pin for transmission
#define RMT_CHANNEL      RMT_CHANNEL_0
#define GPIO_OUTPUT_PIN  18  // Adjust as necessary

// We choose a clock divider of 2.
// For an 80MHz input clock, the tick period becomes 25 ns (80MHz/2 = 40MHz)
#define RMT_CLK_DIV      2

// Calculating ticks for a 100 ns duration per phase (high and low)
#define TICKS_PER_PHASE  (100 / ( (RMT_CLK_DIV * 1.0f) / 80.0f ))  // 100 ns / tick period in ns

void app_main(void)
{
    // RMT transmitter configuration
    rmt_config_t rmt_tx_config = {
        .rmt_mode = RMT_MODE_TX,
        .channel = RMT_CHANNEL,
        .gpio_num = GPIO_OUTPUT_PIN,
        .clk_div = RMT_CLK_DIV,  // Clock divider set to achieve a 25 ns tick period
        .mem_block_num = 1,
        .tx_config = {
            .loop_en = true,          // Loop mode for continuous transmission
            .carrier_en = false,      // Disable carrier modulation
            .idle_output_en = true,   // Output idle level when not transmitting
            .idle_level = RMT_IDLE_LEVEL_LOW,
        }
    };

    // Apply the RMT configuration
    ESP_ERROR_CHECK(rmt_config(&rmt_tx_config));
    ESP_ERROR_CHECK(rmt_driver_install(rmt_tx_config.channel, 0, 0));

    // Calculate number of ticks for 100 ns
    // Given tick period = clk_div / 80MHz = 2/80M = 25 ns per tick, we need 4 ticks.
    uint16_t ticks_high = 4; // 100 ns high
    uint16_t ticks_low = 4;  // 100 ns low

    // Prepare the RMT items.
    // We create two items. One item will have a high phase followed by a low phase.
    // Alternatively, two items with appropriate levels can be used in a continuous loop.
    rmt_item32_t rmt_items[2] = {
        {
            .duration0 = ticks_high,  // Duration for high phase (100 ns)
            .level0 = 1,              // Signal high
            .duration1 = ticks_low,   // Duration for low phase (100 ns)
            .level1 = 0               // Signal low
        },
        {
            .duration0 = ticks_high,  // Next item: High phase (100 ns)
            .level0 = 1,
            .duration1 = ticks_low,   // Low phase (100 ns)
            .level1 = 0
        }
    };

    // Write the RMT items to the channel with loop enabled.
    // The true parameter enforces blocking until the write completes.
    ESP_ERROR_CHECK(rmt_write_items(RMT_CHANNEL, rmt_items, 2, true));

    // Start transmission explicitly if necessary.
    // Depending on the ESP-IDF API version, this might be redundant.
    ESP_ERROR_CHECK(rmt_tx_start(RMT_CHANNEL, true));

    printf("0.2µs square wave generation started on GPIO %d\n", GPIO_OUTPUT_PIN);

    // Infinite loop to keep the task alive and allow continuous transmission.
    while (1) {
        vTaskDelay(1000 / portTICK_PERIOD_MS);
    }
}

Explaining the Code and Configuration

RMT Peripheral Configuration

The initial part of the program includes the necessary header files and defines important constants. The RMT peripheral is set to transmission mode (RMT_MODE_TX) on a specified channel (RMT_CHANNEL_0) and GPIO pin (GPIO_OUTPUT_PIN). A very low clock divider value, set to 2, reduces the tick period to approximately 25 ns per tick. This setup ensures the RMT can capture the timing resolution required to generate a 100 ns high period and 100 ns low period for the square wave.

Calculating Ticks

The desired waveform has a period of 0.2µs, meaning each phase (high and low) must be 100 ns. With a tick period of 25 ns (calculated as \( \frac{2}{80 \text{MHz}} \)), exactly 4 ticks are needed to achieve each 100 ns duration. This precision allows the RMT peripheral to reliably generate the desired timing without human intervention.

RMT Items Setup

RMT items hold the duration and level for both phases (high and low) within one item. Although two items are prepared here for a continuous loop configuration, the system will continue to loop these items automatically due to the loop mode enabled (.loop_en = true). Each RMT item is structured so that the high level is asserted for 4 ticks and then the low level is asserted for another 4 ticks, resulting in the overall 0.2µs period.

Continuous Transmission Using Loop Mode

The RMT peripheral supports a loop mode which facilitates continuous transmission without reconfiguring the RMT items. The code uses rmt_write_items with a blocking call to ensure that the configuration writes are successful. The transmission is kept running in an infinite loop by the absence of any exit conditions, ensuring the square wave is continuously generated on the GPIO pin.

Additional Considerations and Best Practices

When working with high-frequency signals, it is essential to consider factors that might affect timing accuracy and signal integrity. Below is a table highlighting some considerations along with recommended practices:

Consideration	Recommendation
Clock Accuracy	Use a low clock divider value to maximize resolution and ensure your APB clock source is stable.
GPIO Pin Selection	Choose a GPIO pin that is free from interference and supported by the RMT peripheral.
Signal Integrity	Check the square wave output with an oscilloscope for any anomalies and adjust the divider if required.
Loop Stability	Use loop mode to minimize CPU intervention, but monitor CPU load if multiple peripherals are active.
ESP-IDF Version	Consult the latest ESP-IDF documentation as APIs may evolve, and ensure compatibility with your setup.

These practices are crucial for ensuring that your application performs reliably in real-time and high-frequency environments. Experimenting with various clock divider settings in combination with practical measurements on actual hardware can greatly assist in fine-tuning the output.

Troubleshooting

If the output does not meet the required 0.2µs specifications, consider:

Verifying that the APB clock frequency is indeed 80MHz on your board.
Re-assessing the clk_div value to get a precise tick period.
Checking for any conflicts on the selected GPIO pin which might interfere with signal transmission.
Using an oscilloscope to monitor the actual waveform and adjust the configuration accordingly.

Advanced Techniques and Extensions

Although the provided code achieves continuous 0.2µs square wave generation, advanced users might explore additional enhancements:

Dynamic Frequency Adjustment

Depending on the application, you might need to dynamically adjust the frequency of the square wave. Implementing an interface that recalculates the number of ticks and updates the RMT items on the fly can be integrated with FreeRTOS tasks or interrupt routines.

Parameter Tuning

Experiment with different clk_div values and corresponding tick counts based on the resolution required. Note that too low a divider value might push the hardware limits, while too high a value might result in insufficient resolution.

Multi-Channel Waveform Synthesis

The ESP32’s RMT supports multiple channels. You can generate multiple waveforms concurrently on different GPIO pins. For instance, a combination of square waves with varying duty cycles can be used for advanced modulation schemes or specialized signaling.

Combining Outputs

By managing multiple channels simultaneously, you may create composite signals or drive several outputs that need synchronized timing. Ensure that each channel's configuration does not conflict with one another, especially in high-speed applications.

Conclusion

The program detailed in this guide leverages the ESP32’s RMT peripheral to generate a highly precise 0.2µs square wave—a task that is particularly useful in high-speed signaling applications such as high-frequency clock generation, modulation signals, and timing-sensitive communications. By carefully configuring parameters such as the clock divider, tick calculations, and RMT items, you can achieve a continuous and accurate output. The example code provided is robust and includes continuous transmission capabilities with loop mode enabled. Furthermore, we highlighted troubleshooting steps and advanced techniques to further fine-tune your implementation. Taking a methodical approach to hardware configuration and signal verification using tools like an oscilloscope will ensure optimal results. This guide should serve both as an immediate solution and as a framework for experimenting with more complex waveform generation on the ESP32 platform.
