Excel Flooding Calculation for Structured Packed Columns

A comprehensive guide to setting up and analyzing flooding phenomena in packed columns via Excel

Key Takeaways

Methodology Integration: Flooding calculations combine empirical correlations with first‐principles and require careful integration of fluid properties and packing characteristics.
Excel Implementation: Setting up an Excel model involves defining input parameters, using standardized formulas for flooding velocity, and comparing operating conditions against theoretical limits.
Practical Design Considerations: Adjustments for packing geometry, fluid viscosities, feed condition and correction factors are necessary, and validation against pilot plant data is recommended.

Introduction

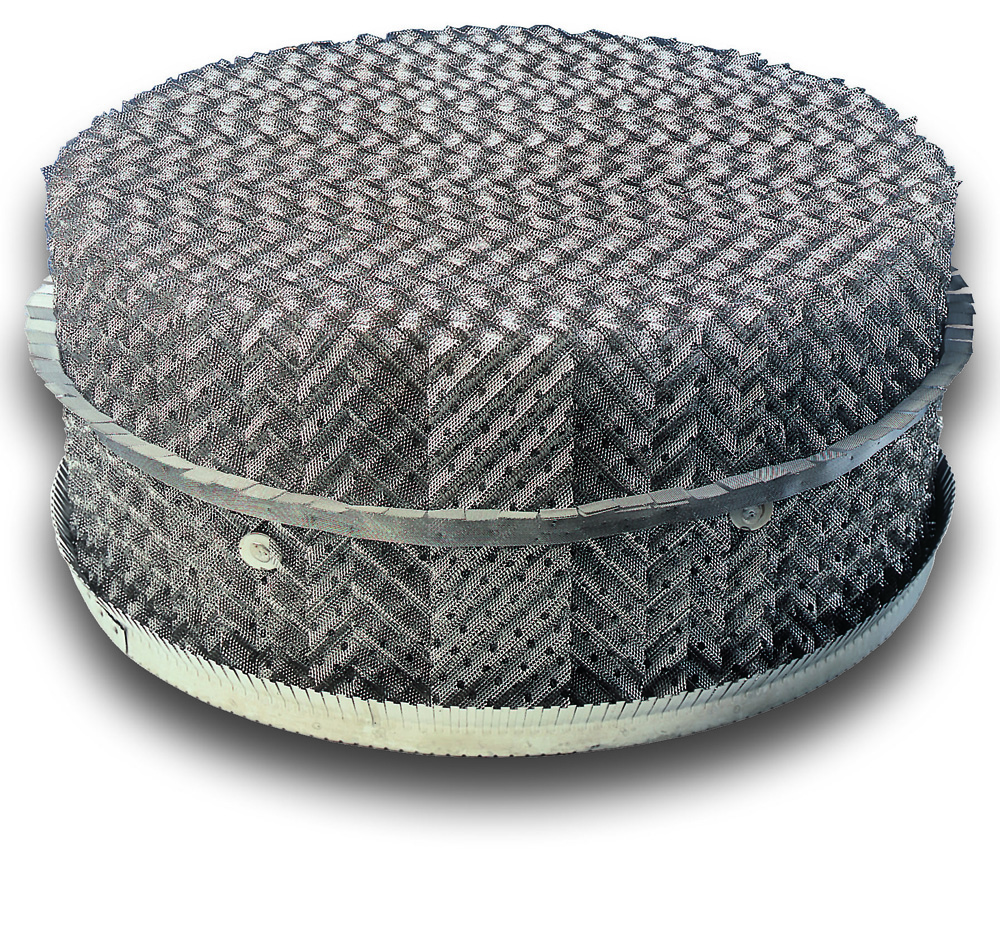

Flooding in structured packed columns is a critical operating condition in which the upward flow of gas overcomes the liquid retention capability of the packing, resulting in inefficient mass transfer and a dramatic rise in pressure drop. Accurate flooding calculations are essential in designing and operating columns in separation processes such as absorption, distillation, and extraction. This article provides an in-depth explanation of how to perform flooding calculations using Excel, integrating theoretical correlations, empirical adjustments, and design considerations to ensure an effective structured packing column.

Fundamental Concepts of Flooding

Flooding occurs when the upward gas flow is so high that the liquid can no longer be adequately held on the packing surface. Characteristics of flooding include a sharp increase in pressure drop, fluctuating liquid holdup, and significant liquid entrainment. The basic equation commonly used to define the flooding limit is given by:

Flooding Velocity Correlation

A frequently used correlation is:

U_flood = C × √(g (ρ_l – ρ_g) / ρ_g)

where U_flood is the superficial gas velocity at flooding, g is the gravitational acceleration (approx. 9.81 m/s²), ρ_l and ρ_g are the liquid and gas densities respectively, and C is an empirical constant (typically around 1.0 to 1.2) which adjusts for the packing geometry.

In some approaches the flooding condition is also expressed in terms of gas mass flux (G) using the relationship:

G = ρ_g × U_flood

Setting Up an Excel Worksheet for Flooding Calculations

Designing an Excel worksheet for flooding calculation involves logically breaking down the calculation into manageable cells that represent each critical parameter. The procedure generally follows these steps:

Step 1. Define Input Parameters

Begin by setting up cells to capture known operating conditions and fluid properties. Typical inputs include:

Gravitational acceleration, g: Typically 9.81 m/s²
Liquid density, ρ_l: For water, about 1000 kg/m³
Gas density, ρ_g: For air or other vapors, e.g., 1.2 kg/m³
Empirical constant, C: A value that adjusts for the packing geometry; for many structured packings, values between 1.0 and 1.2 are common.
Operating gas velocity, U_op: The trial or design gas velocity in m/s
Packing-specific parameters: Additional correction factors such as void fraction (ε), specific surface area (a), or packing factor (F_packing) that refine the calculations.

Step 2. Calculate Theoretical Flooding Velocity

With the inputs in place, calculate the theoretical flooding velocity using the correlation discussed earlier. In Excel, if the relevant inputs are in cells B2 (g), B3 (ρ_l), B4 (ρ_g), B5 (C), then the formula in a cell (say B8) might be:


=B5*SQRT(B2*(B3-B4)/B4)

This computes U_flood = C × √(g (ρ_l – ρ_g) / ρ_g).

Step 3. Compare Operating Velocity to Flooding Limit

After determining the flooding velocity, compare it against the actual operating gas velocity (U_op). In Excel, a simple IF-statement can be used. For example, if U_op is in cell B6 and U_flood is in cell B8, use the following in cell B10:


=IF(B6 < B8, "Safe – below flooding", "Warning – near or above flooding")

This provides an immediate check on the safety of the current operating conditions.

Step 4. Optional: Incorporate Additional Corrections

Further refinement may include additional packing correction factors such as modifying the correlation using a packing factor F_packing. In that scenario, if the correction factor is in cell B7, the adjusted flooding velocity can be computed as:


=B5*SQRT(B2*(B3-B4)/B4)/B7

When expressing conditions in terms of gas mass flux, use the relation G = ρ_g × U_flood. For instance, if ρ_g is in cell B4 and flooding velocity (with corrections) is computed in B8, the gas mass flux G_flood is:


=B4 * B8

Step 5. Presenting the Variables in a Structured Table

For clarity, it is helpful to organize key parameters and calculations in a table, as shown below:

Variable	Description	Example Value	Excel Cell/Formula
g	Gravitational acceleration	9.81 m/s²	Input (B2)
ρ_l	Liquid density	1000 kg/m³	Input (B3)
ρ_g	Gas density	1.2 kg/m³	Input (B4)
C	Empirical constant (packing correction)	1.1	Input (B5)
U_op	Operating gas velocity	e.g., 0.5 m/s	Input (B6)
F_packing	Packing correction factor	Optional, e.g., 1.0	Input (B7)
U_flood	Theoretical flooding velocity	-	=B5SQRT(B2(B3-B4)/B4) or adjusted by F_packing
G_flood	Gas mass flux at flooding	-	=B4*U_flood

This table summarizes the design parameters and intermediate calculations which serve as the backbone for the Excel flooding calculation.

Excel Simulation Tools and Practical Insights

Several specialized tools exist to simulate and analyze flooding in packed columns. Many research institutions and commercial software providers offer Excel-based simulators for structured packed columns that incorporate not only the basics of flooding calculation but also account for additional factors like pressure drop, liquid holdup, and overall loading capacity. Although custom spreadsheets can be built using the described methodology, it is important to validate these calculations against data from pilot columns or manufacturer-specific correlations.

A good practice is to adjust the spreadsheet to reflect real process conditions:

Ensure all units are consistent (e.g., kg/m³, N/m², m/s).
Incorporate corrections for fluid viscosities and surface tension if required.
Apply manufacturer provided flooding correlations if available.

Specialized software may include further refinements such as cryogenic piloting and additional pressure drop correlations. In an academic scenario, spreadsheets have been developed that integrate these empirical adjustments, and the principles remain similar regardless of the additional complexities.

Discussion on Structured Packed Column Flooding vs. Tray Flooding

While flooding calculations are also used for tray columns, structured packed columns present unique issues due to the ordered arrangement of the packing elements. The geometry of structured packing influences the flooding velocity significantly. The correlation with the empirical constant (C) in the flooding correlation adjusts for this and accounts for the specific surface area and void fraction of the column. When performing Excel calculations for these systems, it is crucial to input accurate packing data to ensure reliable predictions.

Additionally, the design approach often distinguishes between the behavior of the upper and lower sections of the column. Even though flooding concerns are specific for the gas-phase, liquid redistribution on the packing also influences liquid holdup and flooding predictions. It is recommended that calculated flooding velocities be compared to actual operating velocities to ensure a safety margin—often operating at 70–80% of the flooding limit.

Advanced Considerations in Flooding Calculations

Beyond the basic Excel setup, several advanced parameters might be included in a more detailed model:

Packing Geometry: Include aspects like void fraction (ε) and specific surface area (a) which influence the distribution of liquid and gas flow paths.
Fluid Properties Variability: In more complex systems, temperature and pressure variations are significant. Adjustments may be needed using temperature-dependent fluid properties.
Non-Newtonian Behavior: Some applications involve non-Newtonian liquids; hence, viscosity corrections or dynamic functions may be integrated into Excel models.
Mass Flux Variations: When designing for gas mass flux (G), further conversion between volumetric and mass flux may be necessary. This is particularly important when scaling up from lab-scale experiments.

In these advanced models, the computation may require iterative methods where the spreadsheet is used to predict a parameter, compare it to manufacturer data, and then refine the model by adjusting the input factors, such as the packing constant or correction factors.

Summary and Design Strategy

In summary, an Excel flooding calculation for a structured packed column should follow a systematic approach by:

Defining all relevant input parameters including fluid properties and packing-specific corrections.
Calculating the theoretical flooding velocity using a well-established empirical correlation.
Comparing the obtained flooding velocity with the actual design gas velocity or gas mass flux to ensure safe design operation.
Including advanced correction factors and adjustments based on experimental data or vendor-specific parameters.
Validating and iterating the Excel model based on real plant performance and pilot plant data.

It is vital to maintain unit consistency throughout the calculations, and whenever possible, incorporate a safety margin in the design to account for uncertainties. The Excel worksheet acts not only as a calculation tool but also as a simulator to help designers visualize and adjust the parameters to prevent flooding under operating conditions.

Conclusion

The Excel flooding calculation for a structured packed column is a powerful tool in the hands of a process engineer. It integrates theoretical correlations with empirical adjustments to predict the maximum gas flow before flooding occurs, ensuring safe and efficient column operation. By carefully defining input parameters, utilizing standardized flooding velocity equations, and comparing these against operating conditions, designers can effectively optimize column performance. Advanced aspects such as packing geometry, fluid variability, and non-Newtonian behavior can further refine the model. Ultimately, rigorous validation against plant data is essential for accurate and reliable design.
