Unlocking the Power of Matrices: How Does Multiplication Actually Work?

Core Insights into Matrix Multiplication

Compatibility is Key: Matrix multiplication is only possible if the number of columns in the first matrix exactly matches the number of rows in the second matrix.
Dot Product Driven: Each element in the resulting product matrix is calculated by taking the dot product of a row from the first matrix and a column from the second matrix.
Order Matters Greatly: Unlike regular number multiplication, matrix multiplication is generally not commutative, meaning changing the order of matrices (AB vs. BA) typically yields different results.

What Exactly is Matrix Multiplication?

Definition and Purpose

Matrix multiplication is a fundamental binary operation in linear algebra where two matrices are combined under specific rules to produce a third matrix, known as the product matrix. It's not simply multiplying corresponding elements; instead, it involves a more complex process reflecting the composition of linear transformations or the combination of structured data sets. This operation is crucial for solving systems of linear equations, representing geometric transformations, and performing complex calculations in fields ranging from physics and engineering to computer graphics and machine learning.

The Core Concept: Combining Transformations

At its heart, multiplying two matrices can be thought of as applying one linear transformation followed by another. If matrix A represents one transformation (like a rotation) and matrix B represents another (like scaling), the product matrix AB represents the combined transformation (rotation followed by scaling). This compositional nature makes matrix multiplication incredibly powerful for modeling sequential operations or relationships.

The Crucial Compatibility Rule

Why Dimensions Matter

Before you can even attempt to multiply two matrices, say matrix A and matrix B, you must check their dimensions. Let matrix A have dimensions \( m \times n \) (meaning \( m \) rows and \( n \) columns) and matrix B have dimensions \( p \times q \) (\( p \) rows and \( q \) columns). For the product AB to be defined, the "inner" dimensions must match: the number of columns in A (\( n \)) must be equal to the number of rows in B (\( p \)).

Rule: Matrix multiplication AB is possible if and only if \( n = p \). If \( n \neq p \), the matrices are incompatible for multiplication in that order.

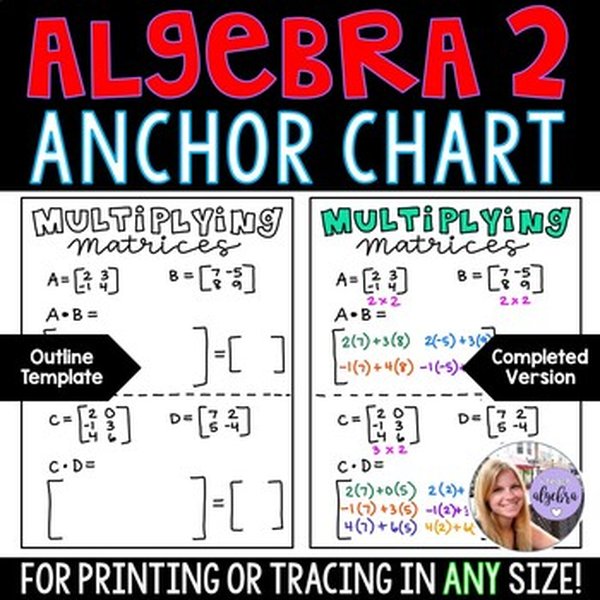

Algebra Anchor Chart explaining Matrix Multiplication rules and steps

Visual guide illustrating the compatibility rule and calculation steps for matrix multiplication.

Determining the Resultant Matrix Size

If the compatibility rule is met (i.e., A is \( m \times n \) and B is \( n \times p \)), the resulting product matrix, let's call it C = AB, will have dimensions defined by the "outer" dimensions of A and B. Specifically, matrix C will have \( m \) rows (from A) and \( p \) columns (from B).

Result Dimensions: If \( A_{m \times n} \) and \( B_{n \times p} \), then \( C = AB \) will be an \( m \times p \) matrix.

Step-by-Step: How to Multiply Matrices

The Dot Product Method

Once compatibility is confirmed, each element in the resulting matrix C is calculated using the dot product. The element in the \( i \)-th row and \( j \)-th column of C, denoted as \( c_{ij} \), is found by taking the dot product of the \( i \)-th row of matrix A and the \( j \)-th column of matrix B.

This involves:

Selecting the \( i \)-th row from matrix A.
Selecting the \( j \)-th column from matrix B.
Multiplying the corresponding elements from this row and column pair-wise.
Summing up all these products.

This sum gives you the value for the single element \( c_{ij} \) in the product matrix C.

Formula Explanation

Mathematically, if A has elements \( a_{ik} \) (element in row \( i \), column \( k \)) and B has elements \( b_{kj} \) (element in row \( k \), column \( j \)), the element \( c_{ij} \) in the product matrix C = AB is calculated as:

\[ c_{ij} = \sum_{k=1}^{n} a_{ik} b_{kj} = a_{i1}b_{1j} + a_{i2}b_{2j} + \dots + a_{in}b_{nj} \]

Here, \( n \) is the number of columns in A (which equals the number of rows in B).

Worked Example

Let's multiply the following matrices:

\[ A = \begin{bmatrix} 1 & 2 & 3 \ 4 & 5 & 6 \end{bmatrix} \quad (\text{a } 2 \times 3 \text{ matrix}) \] \[ B = \begin{bmatrix} 7 & 8 \ 9 & 10 \ 11 & 12 \end{bmatrix} \quad (\text{a } 3 \times 2 \text{ matrix}) \]

First, check compatibility: A has 3 columns, B has 3 rows. They match! The resulting matrix C = AB will have dimensions \( 2 \times 2 \).

Now, calculate the elements of C:

\( c_{11} \) (Row 1 of A, Column 1 of B): \( (1 \times 7) + (2 \times 9) + (3 \times 11) = 7 + 18 + 33 = 58 \)
\( c_{12} \) (Row 1 of A, Column 2 of B): \( (1 \times 8) + (2 \times 10) + (3 \times 12) = 8 + 20 + 36 = 64 \)
\( c_{21} \) (Row 2 of A, Column 1 of B): \( (4 \times 7) + (5 \times 9) + (6 \times 11) = 28 + 45 + 66 = 139 \)
\( c_{22} \) (Row 2 of A, Column 2 of B): \( (4 \times 8) + (5 \times 10) + (6 \times 12) = 32 + 50 + 72 = 154 \)

So, the resulting matrix C is:

\[ C = AB = \begin{bmatrix} 58 & 64 \ 139 & 154 \end{bmatrix} \]

Visual Tutorial

For a visual walkthrough of the matrix multiplication process, including how to handle different matrix sizes and check compatibility, the following video provides a clear explanation:

This video demonstrates the step-by-step calculation and emphasizes determining the dimensions of the resulting matrix, reinforcing the concepts discussed above.

Key Properties of Matrix Multiplication

Matrix multiplication behaves differently from scalar (regular number) multiplication in several important ways:

Non-Commutativity: Order Matters!

Perhaps the most crucial distinction is that matrix multiplication is generally not commutative. This means that for most matrices A and B, the product AB is not equal to the product BA (\( AB \neq BA \)). In fact, BA might not even be defined if the dimensions aren't compatible in that order, even if AB is defined. Using the example matrices from before, if we tried to compute BA:

\[ B = \begin{bmatrix} 7 & 8 \ 9 & 10 \ 11 & 12 \end{bmatrix} \quad (3 \times 2) \] \[ A = \begin{bmatrix} 1 & 2 & 3 \ 4 & 5 & 6 \end{bmatrix} \quad (2 \times 3) \]

Here, B has 2 columns and A has 2 rows, so BA is defined and will be a \( 3 \times 3 \) matrix (different dimensions than AB!). Calculating it would yield a completely different result. Always respect the order of multiplication.

Associativity: Grouping Flexibility

Matrix multiplication is associative, provided the dimensions allow for the products. This means that for compatible matrices A, B, and C:

\[ (AB)C = A(BC) \]

This property is very useful, especially in computations involving chains of transformations, as it allows flexibility in the order of calculation without changing the final result.

Distributivity: Interaction with Addition

Matrix multiplication distributes over matrix addition. For compatible matrices A, B, and C:

\[ A(B + C) = AB + AC \] \[ (A + B)C = AC + BC \]

This works similarly to distributivity in regular algebra.

The Identity Matrix Role

There exists an identity matrix, denoted as I, which acts like the number 1 in scalar multiplication. The identity matrix is a square matrix (same number of rows and columns) with 1s on the main diagonal and 0s elsewhere. For any matrix A, if the dimensions are compatible:

\[ AI = A \quad \text{and} \quad IA = A \]

The size of I must match the dimensions of A appropriately for the multiplication to be defined.

Properties Compared

The following table summarizes key algebraic properties, contrasting matrix multiplication with scalar (number) multiplication:

Property	Scalar Multiplication (a, b, c are numbers)	Matrix Multiplication (A, B, C are matrices)
Commutativity	\( a \times b = b \times a \) (Always True)	\( AB = BA \) (Generally False)
Associativity	\( (a \times b) \times c = a \times (b \times c) \) (Always True)	\( (AB)C = A(BC) \) (True if defined)
Distributivity over Addition	\( a \times (b + c) = (a \times b) + (a \times c) \) (Always True)	\( A(B + C) = AB + AC \) (True if defined) \( (A + B)C = AC + BC \) (True if defined)
Multiplicative Identity	\( a \times 1 = 1 \times a = a \) (Identity is 1)	\( AI = IA = A \) (Identity is I, the identity matrix)

Visualizing and Understanding Matrix Multiplication

Relative Importance Radar

Matrix multiplication finds use in many areas, but its characteristics make it more suited for some tasks than others. The following chart provides a subjective comparison of matrix multiplication against matrix addition and scalar multiplication across several factors:

Explanation of Radar Chart

This radar chart compares Matrix Multiplication (red), Matrix Addition (blue), and Scalar Multiplication (green) based on subjective scores (1-10, higher is generally "more" of that characteristic, except for cost where higher is worse). It highlights that while matrix multiplication is computationally more intensive and harder to do by hand, its importance in core areas like graphics and machine learning is very high due to its ability to represent complex transformations and operations.

Mindmap: Key Concepts and Relationships

To grasp the core ideas surrounding matrix multiplication, this mindmap organizes the key concepts and their connections:

mindmap root["Matrix Multiplication"] id1["Definition"] id1a["Binary operation
combining two matrices (A, B)
to produce a third (C=AB)"] id2["Compatibility Rule"] id2a["Columns in A must equal Rows in B"] id2b["If A is m x n, B must be n x p"] id3["Calculation"] id3a["Dot Product Method"] id3a1["Element c_ij = (Row i of A) ⋅ (Column j of B)"] id3b["Formula: c_ij = Σ a_ik * b_kj"] id4["Result Dimensions"] id4a["If A is m x n and B is n x p,
then C=AB is m x p"] id5["Key Properties"] id5a["Non-Commutative (AB ≠ BA generally)"] id5b["Associative ((AB)C = A(BC))"] id5c["Distributive (A(B+C) = AB+AC)"] id5d["Identity Matrix (I) exists (AI = A)"] id6["Applications"] id6a["Linear Transformations (Composition)"] id6b["Solving Systems of Equations"] id6c["Computer Graphics (Rotation, Scaling)"] id6d["Machine Learning (Neural Networks)"] id6e["Physics & Engineering"]

Explanation of Mindmap

This mindmap provides a visual overview, starting from the central concept of Matrix Multiplication. It branches out to cover its definition, the essential compatibility rule, the calculation method based on dot products, how to determine the result's dimensions, its distinct algebraic properties (like non-commutativity), and its wide-ranging applications across various scientific and technical domains.

Beyond the Basics: Special Cases and Interpretations

Matrix-Vector Multiplication

Multiplying a matrix by a vector is a common special case. A vector can be treated as a matrix with only one column (a column vector) or one row (a row vector). If A is an \( m \times n \) matrix and v is an \( n \times 1 \) column vector, the product Av is an \( m \times 1 \) column vector. This operation represents applying the linear transformation defined by matrix A to the vector v, transforming it into a new vector in the output space.

Scalar vs. Matrix Multiplication

It's crucial not to confuse matrix multiplication with scalar multiplication. Scalar multiplication involves multiplying every element of a matrix by a single number (a scalar). Matrix multiplication, as detailed above, is the operation between two matrices involving row-column dot products.

Geometric Interpretation: Linear Transformations

One of the most powerful ways to understand matrix multiplication is through geometry. A matrix can represent a linear transformation of space (like rotation, scaling, shearing, or projection). When you multiply two matrices, AB, the resulting matrix C represents the composite transformation: applying transformation B first, followed by transformation A. This is why the order matters – rotating then scaling is generally different from scaling then rotating.

Why is Matrix Multiplication Important? (Applications)

Matrix multiplication isn't just an abstract mathematical concept; it's a cornerstone tool used extensively in numerous practical applications:

Solving Systems of Linear Equations

A system of linear equations can be compactly represented in the matrix form \( Ax = b \), where A is the matrix of coefficients, x is the column vector of variables, and b is the column vector of constants. Matrix multiplication (and related concepts like matrix inversion) are central to methods for solving for x.

Computer Graphics and Image Processing

In 2D and 3D computer graphics, matrix multiplication is used constantly to manipulate objects. Transformations like translation, rotation, scaling, and perspective projection are represented by matrices. Applying a sequence of transformations corresponds to multiplying their respective matrices together.

Machine Learning and Data Science

Matrix multiplication is fundamental to many machine learning algorithms, especially in deep learning. Neural networks rely heavily on multiplying input vectors by weight matrices at each layer. Operations like principal component analysis (PCA) and various optimization techniques also heavily involve matrix operations.

Physics and Engineering

Many physical systems and engineering problems are modeled using matrices and vectors. Matrix multiplication appears in areas like quantum mechanics (representing state transformations and operators), structural analysis (solving for stresses and strains), electrical circuit analysis, and control systems.
