The Ultimate Guide to Fixing Inverted Touchscreen Issues in Ubuntu 24.04.2 LTS

Transform your frustrating upside-down touch experience into perfect precision with these proven methods

fix-inverted-touchscreen-ubuntu-guide-50jsz466

Essential Touchscreen Inversion Solutions

  • Use the Coordinate Transformation Matrix to recalibrate your touchscreen's input mapping
  • Apply both temporary fixes and permanent solutions depending on your needs
  • Different approaches required for X11 vs. Wayland display servers

An inverted touchscreen on Ubuntu 24.04.2 LTS can be incredibly frustrating – when you touch the bottom of your screen, the system registers input at the top, or left touches register as right. This comprehensive guide will walk you through multiple proven methods to diagnose and fix this issue, ensuring your touchscreen works exactly as intended.

Understanding Touchscreen Inversion Problems

Touchscreen inversion occurs when the coordinate system used by your touchscreen doesn't properly align with your display. On Ubuntu 24.04.2 LTS, this typically happens due to one of the following reasons:

  • The touchscreen's calibration data is incorrect
  • The display has been rotated but the touch input hasn't been updated to match
  • A display server (X11 vs. Wayland) incompatibility exists
  • The touchscreen driver isn't properly configured for your hardware

Before attempting any fix, it's important to identify whether your system is using X11 or Wayland as the display server, as the solutions differ. You can check this by running echo $XDG_SESSION_TYPE in a terminal.

Method 1: Using xinput (X11 Display Server)

The most direct approach for X11 users is modifying the touchscreen's Coordinate Transformation Matrix using the xinput command.

Step 1: Identify Your Touchscreen Device

Open a terminal and run:

xinput list

Look for your touchscreen device in the output. It might appear as something like "eGalaxTouch", "ILITEK", "Wacom", or similar. Note the ID number or name.

Step 2: Check Current Properties

To view the current properties for your device, run:

xinput list-props "Your Touchscreen Name"

Replace "Your Touchscreen Name" with the actual name from the previous step. Look for "Coordinate Transformation Matrix" in the output.

Step 3: Apply the Transformation Matrix

For Y-axis inversion (top/bottom flipped)

xinput set-prop "Your Touchscreen Name" "Coordinate Transformation Matrix" 1 0 0 0 -1 1 0 0 1

For X-axis inversion (left/right flipped)

xinput set-prop "Your Touchscreen Name" "Coordinate Transformation Matrix" -1 0 1 0 1 0 0 0 1

For both X and Y inversion

xinput set-prop "Your Touchscreen Name" "Coordinate Transformation Matrix" -1 0 1 0 -1 1 0 0 1

These changes will take effect immediately, allowing you to test if the transformation fixes your touchscreen inversion issue.

Method 2: Using udev Rules (Permanent Solution)

The xinput method works immediately but doesn't persist after reboots. For a permanent solution, creating a udev rule is recommended.

Step 1: Identify Your Touchscreen Device Information

cat /proc/bus/input/devices

Look for your touchscreen device in the output and note details such as name, handler, etc.

Step 2: Create a udev Rule

sudo nano /etc/udev/rules.d/99-touchscreen-calibration.rules

Add the following line, replacing "Your Touchscreen Name" with your actual device name:

ATTRS{name}=="Your Touchscreen Name", ENV{LIBINPUT_CALIBRATION_MATRIX}="1 0 0 0 -1 1 0 0 1"

Choose the appropriate matrix values based on which axis needs to be inverted (see the transformation matrix options from Method 1).

Step 3: Apply the Changes

sudo udevadm control --reload-rules
sudo udevadm trigger
sudo reboot

After rebooting, your touchscreen should have the correct orientation permanently.

Method 3: Fixing Touchscreen in Wayland

Ubuntu 24.04.2 LTS uses Wayland as the default display server, which handles touchscreen input differently than X11.

Option 1: Switch to X11 Session

The easiest workaround is to switch to X11 which offers more straightforward touchscreen calibration:

  1. At the login screen, click on your username
  2. Click the gear icon in the bottom right
  3. Select "Ubuntu on Xorg" (this is the X11 session)
  4. Log in and apply the fixes from Method 1 or 2

Option 2: Configure Wayland Directly

For Wayland sessions, you can create a libinput configuration file:

sudo mkdir -p /etc/libinput
sudo nano /etc/libinput/local-overrides.quirks

Add the following content, adjusting the matrix values as needed:

[Touchscreen Calibration]
MatchName=Your Touchscreen Name
AttrCalibrationMatrix=1 0 0 0 -1 1 0 0 1

Save the file and reboot your system.

Method 4: Using the autorotate Command

For convertible laptops or tablets, the autorotate command can be useful:

# To invert the display
autorotate invert --display eDP-1

# To restore normal orientation
autorotate normal --display eDP-1

Replace "eDP-1" with your actual display name, which you can find by running xrandr.

Comparing Solution Methods

Below is a visual comparison of the different methods to fix touchscreen inversion, rated across multiple factors:

Touchscreen Calibration Matrix Values Reference

The Coordinate Transformation Matrix is a 3x3 matrix that transforms touch input coordinates. Here's a reference table of common transformation matrices for different orientations:

Touchscreen Issue Transformation Matrix xinput Command
Normal (no inversion) 1 0 0 0 1 0 0 0 1 xinput set-prop "Device" "Coordinate Transformation Matrix" 1 0 0 0 1 0 0 0 1
Y-axis inverted (top/bottom) 1 0 0 0 -1 1 0 0 1 xinput set-prop "Device" "Coordinate Transformation Matrix" 1 0 0 0 -1 1 0 0 1
X-axis inverted (left/right) -1 0 1 0 1 0 0 0 1 xinput set-prop "Device" "Coordinate Transformation Matrix" -1 0 1 0 1 0 0 0 1
Both X and Y inverted -1 0 1 0 -1 1 0 0 1 xinput set-prop "Device" "Coordinate Transformation Matrix" -1 0 1 0 -1 1 0 0 1
90° clockwise rotation 0 1 0 -1 0 1 0 0 1 xinput set-prop "Device" "Coordinate Transformation Matrix" 0 1 0 -1 0 1 0 0 1
90° counterclockwise rotation 0 -1 1 1 0 0 0 0 1 xinput set-prop "Device" "Coordinate Transformation Matrix" 0 -1 1 1 0 0 0 0 1
180° rotation -1 0 1 0 -1 1 0 0 1 xinput set-prop "Device" "Coordinate Transformation Matrix" -1 0 1 0 -1 1 0 0 1

Touchscreen Inversion Solutions Mindmap

This mindmap illustrates the various approaches to solving touchscreen inversion issues in Ubuntu 24.04.2 LTS, organized by display server and solution type:

mindmap root["Ubuntu 24.04.2 LTS
Touchscreen Inversion Solutions"] X11 Solutions xinput Command Temporary Fix Simple Implementation Requires CLI Knowledge udev Rules Permanent Solution Requires Root Access Works Across Reboots Screen Orientation Apps GUI-based User-friendly May Not Work For All Devices Wayland Solutions Switch to X11 Session Simple Workaround Changes Desktop Environment Reliable Solution libinput Configuration Permanent Solution System-wide Effect Requires Root Access Recent Ubuntu Updates Check for System Updates May Fix Common Issues Easiest Solution If Available Diagnostics Identify Display Server Check Device Recognition Test Different Transformation Matrices Verify Hardware Compatibility

Video Tutorial: Fixing Touchscreen Issues in Linux

This helpful video by Novaspirit Tech demonstrates how to create accel_mount_matrix data for tablet PCs to fix screen rotation issues in Ubuntu Linux, which applies to touchscreen inversion problems as well:

The video covers the creation of calibration matrices for Linux touchscreens, which is particularly useful if you're using a tablet PC or convertible laptop with Ubuntu 24.04.2 LTS. It demonstrates practical examples of how to apply the fixes discussed in this guide.

Visual Guide to Touchscreen Settings

Below are images showing the touchscreen configuration process in Ubuntu:

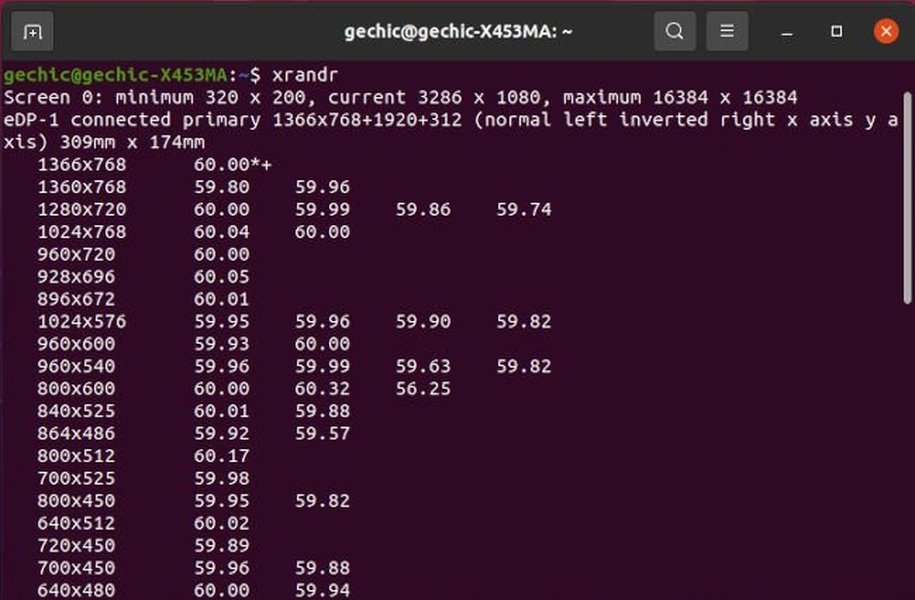

Using xrandr to check display configuration

Using xrandr to check your display configuration

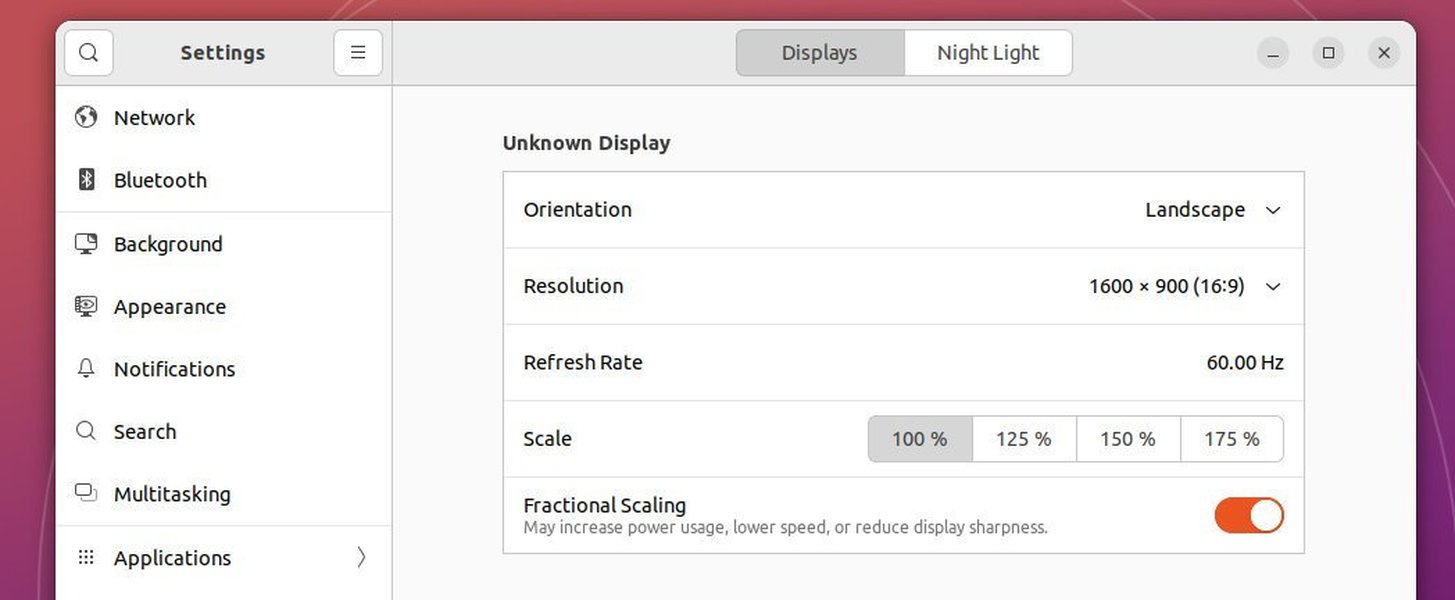

Ubuntu Display Settings

Ubuntu Display Settings panel where you can adjust screen orientation

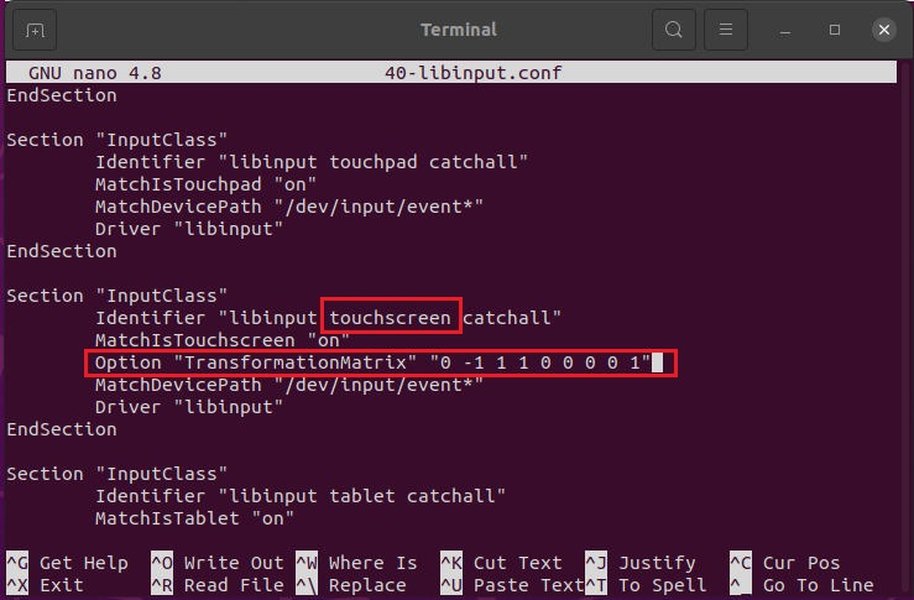

Adding Transformation Matrix

Adding transformation matrix to libinput configuration file

Making Your Changes Persistent

To ensure your touchscreen configuration persists across reboots, you can choose from several methods:

1. Create a Startup Script

#!/bin/bash
# Place this script in ~/.config/autostart/
# Make it executable with: chmod +x ~/.config/autostart/fix-touchscreen.sh

xinput set-prop "Your Touchscreen Name" "Coordinate Transformation Matrix" 1 0 0 0 -1 1 0 0 1

2. Add to Startup Applications

  1. Open "Startup Applications"
  2. Click "Add"
  3. Name: "Fix Touchscreen"
  4. Command: The xinput command you want to run
  5. Comment: "Fixes inverted touchscreen"

3. Use udev Rules (Most Reliable)

As described in Method 2, this is the most robust solution for persistence across reboots.

Frequently Asked Questions

Why does my touchscreen get inverted in the first place?
Touchscreen inversion typically occurs because the orientation data for the touchscreen doesn't match the orientation of the display. This can happen after system updates, when switching between display servers (X11 and Wayland), or due to hardware-specific issues with certain touchscreen models. Ubuntu 24.04.2 LTS uses Wayland by default, which handles touchscreen input differently than X11, potentially causing inversion issues.
Will these fixes work for all touchscreen devices?
The methods described should work for most common touchscreen devices, but there can be exceptions. Some specialized hardware may require vendor-specific drivers or configurations. If the standard methods don't work, you might need to check for device-specific solutions from the manufacturer or community forums. Recent Ubuntu updates have improved touchscreen compatibility, so ensure your system is up to date with sudo apt update && sudo apt upgrade.
Why do I lose my touchscreen calibration after rebooting?
The xinput command provides an immediate fix but only applies to the current session. When you reboot, the system reverts to default settings. For a permanent solution, you should use udev rules or libinput configuration files as described in the guide. These methods persist across reboots because they're applied during system initialization before the display server starts.
What's the difference between X11 and Wayland for touchscreens?
X11 (Xorg) is the older display server protocol that handles input devices through the X Input Extension (xinput). It allows direct manipulation of input device properties. Wayland is newer and handles input through libinput, with a more integrated approach to display and input management. This architectural difference means that touchscreen calibration methods differ between the two. Wayland is designed to better handle modern input devices but may require different configuration approaches compared to X11.
I've tried everything and my touchscreen is still inverted. What else can I do?
If you've tried all the methods in this guide without success, consider these additional steps:
  • Check for hardware-specific drivers or firmware updates from your device manufacturer
  • Try a different kernel version (using an LTS kernel may provide better stability)
  • File a bug report with Ubuntu to get developer attention on your specific hardware issue
  • Explore third-party calibration tools like xinput_calibrator
  • Check Ubuntu forums or Ask Ubuntu for device-specific solutions not covered in this guide
Sometimes a full system update with sudo apt full-upgrade can resolve issues by updating core system components.
