Flight Control Laws in Aircraft: A Deep Dive for CSE 411

Exploring Longitudinal Flight Control and Autopilot Designs with MATLAB

Key Takeaways

Integration of Flight Control Laws: Understand the system-level design that translates pilot inputs and sensor data into precise actuator movements via computational algorithms.
Longitudinal Dynamics and MATLAB Simulation: Learn how to model aircraft pitch dynamics, linearize the equations of motion, and simulate control strategies using MATLAB and Simulink.
Autopilot Design Strategies: Explore various control design methodologies—including PID and state-space (LQR) control—in order to achieve robust and stable autopilot performance under different flight conditions.

Introduction

Modern aircraft, especially those with fly-by-wire systems, rely on flight control laws to ensure safe and efficient operation. These laws are the core algorithms that process pilot commands and sensor inputs to control the aircraft’s surfaces, thereby achieving a coordinated, stable, and protected flight regime. Within the realm of CSE 411, the focus on longitudinal flight control—primarily associated with the pitch and altitude regulation—is of particular importance. The evolution from mechanical flight control systems to sophisticated electronic flight control systems (EFCS) has enabled designers to incorporate a wide array of protections, such as overload prevention, angle-of-attack and high-speed limitations, and envelope protections that assist in both manual and autopilot modes.

This report provides an in-depth review of flight control laws, emphasizing longitudinal control and autopilot design using MATLAB codes. It covers the theoretical underpinnings of aircraft dynamics, the mathematical formulation and linearization of the dynamic equations, control law design methodologies, and simulation results. Using MATLAB as the simulation environment, the discussion demonstrates both conventional PID and state-space (LQR) approaches.

1. Overview of Flight Control Laws

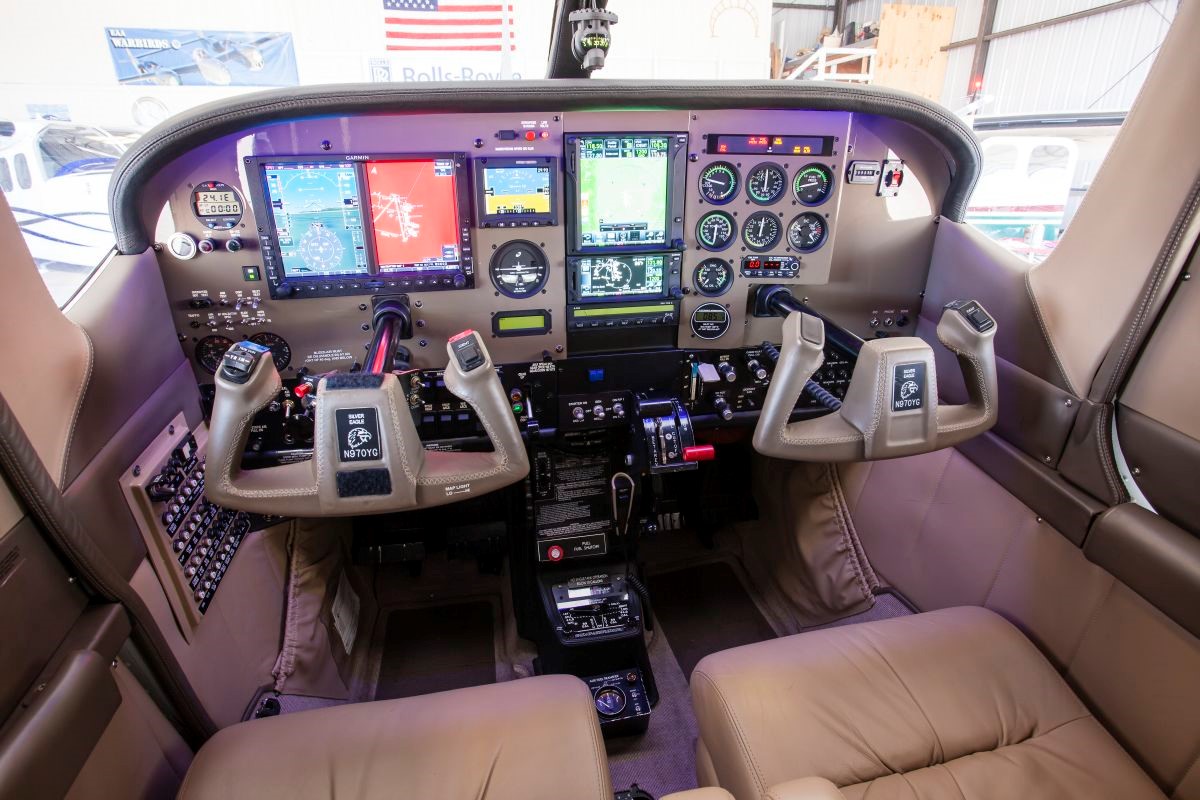

Flight control laws are the embedded software algorithms in modern aircraft that process sensor measurements, pilot control inputs, and flight management system data to output commands for control surfaces such as elevators, ailerons, rudders, and spoilers. They are central to ensuring that an aircraft remains within its flight envelope while affording protection against aerodynamic stall, overspeed, and other operational hazards.

1.1 Understanding the Operational Modes

Aircraft flight control systems operate under different control modes to adapt to various phases of flight and to compensate for potential system failures. The primary control modes include:

Normal Law: Incorporates full envelope protections, including pitch, load factor, and angle-of-attack limitations. In this mode, autopilot systems work seamlessly to maintain stability under normal conditions.
Alternate Law: Engaged when some system failures occur. Protections become limited and there is a shift in pilot control authority, necessitating different control strategies while still offering some envelope safeguards.
Direct Law: Used as a last resort when multiple failures are detected. In this mode, protections are removed and the control input is directly transferred to the control surfaces, providing raw control without computational augmentation.
Mechanical Backup: In the event of total electrical or computer failures, mechanical linkages ensure that the aircraft can still be piloted manually.

Each mode is characterized by its own subset of control laws that are designed to protect against specific hazards while ensuring the aircraft remains responsive to pilot inputs.

1.2 The Evolution to Fly-by-Wire Systems

Historically, aircraft were controlled through direct mechanical or hydraulic linkages between pilot controls and aircraft surfaces. However, with the advent of fly-by-wire systems, electrical signals now guide much of the flight control behavior. This progression has allowed designers to incorporate sophisticated algorithms that provide a layer of safety through protections like load factor limits, pitch attitude restrictions, and dynamic response enhancements. Modern implementations in systems such as those found in Airbus and Boeing aircraft illustrate the successful integration of these advanced concepts.

2. Fundamentals of Longitudinal Flight Control

Longitudinal flight control focuses on controlling the pitch motion of the aircraft. The primary control surface responsible for this is the elevator, which manipulates the aircraft's nose-up or nose-down attitude. Key dynamics, such as pitch angle, pitch rate, and angle of attack, are critical in assessing the performance of an aircraft during various flight phases.

2.1 Key Variables in Longitudinal Dynamics

The following key variables are essential in constructing the longitudinal dynamic model:

Forward Velocity (u): Represents the horizontal component of the aircraft’s speed.
Pitch Angle (θ): The angle between the aircraft’s longitudinal axis and the horizon.
Pitch Rate (q): The rate at which the pitch angle changes over time.
Altitude (h): The vertical displacement of the aircraft from a reference ground level.

The nonlinear aircraft longitudinal dynamics can be expressed using differential equations derived from Newton’s laws and Euler’s equations for rotational motion. For instance, a simplified form of these equations is:

Simplified Equations of Motion

The typical system of equations includes:

u˙ = f₁(u, α, δₑ, …)
q˙ = f₂(q, θ, δₑ, …)
θ˙ = q
h˙ = u sin(θ)

where δₑ denotes the elevator deflection. To facilitate controller design, these equations are often linearized around a trimmed flight condition.

2.2 Linearization and State-Space Modeling

Linearizing the equations of motion around an equilibrium point leads to a state-space representation in the following form:

x˙ = A x + B u
y = C x + D u

Here, x represents the state vector (e.g., x = [Δu Δθ Δq Δh]ᵀ), u is the control input (elevator deflection), and A, B, C, D are matrices computed through partial differentiation. This formulation is crucial for designing linear controllers such as PID or state feedback controllers.

2.3 MATLAB Tools for Modeling and Simulation

MATLAB, along with its Simulink and Aerospace Blockset toolkits, offers a powerful environment for modeling and simulating longitudinal flight control systems. Engineers can:

Create a dynamic model of the aircraft and integrate the control laws.
Simulate various flight conditions including turbulence, gusts, and different flight phases.
Investigate the responses via simulation plots and robust analysis using state-space tools and PID tuning utilities.

3. Autopilot Design Using MATLAB

Autopilot systems are an integral part of modern aircraft, executing control commands automatically to maintain optimal flight conditions. In MATLAB, autopilot design involves setting up appropriate control strategies, simulating system responses, and refining the controller parameters to ensure reliable and safe flight.

3.1 Control Law Design Strategies

Two predominant methodologies for designing autopilots—particularly for longitudinal control—include the PID controller and the state-space (LQR) controller approach.

PID Control Approach

The PID controller uses a proportional, integral, and derivative term to manage error correction between the setpoint and actual system output. The general form is:

δₑ = K_p e(t) + K_i ∫ e(t) dt + K_d de(t)/dt

where e(t) is the error signal. This method is well-suited for systems where simplicity and prompt implementation are key.

State-Space (LQR) Control

For a more robust and optimal solution, the Linear Quadratic Regulator (LQR) methodology is employed. In this approach, a cost function is minimized:

J = ∫ (xᵀQx + uᵀRu) dt

where Q and R are matrices that penalize deviations in the state error and control effort. MATLAB’s “lqr” function simplifies the design process by computing the optimal feedback gain K such that:

u = –K x + r

This approach yields a controller that is not only effective in tracking but also in managing the trade-offs between performance and control energy.

3.2 MATLAB Simulation Example

Below is an example MATLAB code snippet demonstrating an LQR-based state-space control for longitudinal dynamics:


    % Define system matrices (example values representing the aircraft dynamics)
    A = [ -0.313, 56.7,   0,      0;
          -0.0139, -0.426, 0,      0;
           0,      1,      0,      0;
           0,      0,      1,      0 ];

    B = [ 0.232;
          0.0203;
          0;
          0 ];

    C = eye(4);  % Measure all states for analysis
    D = zeros(4,1);

    % Define weighting matrices for LQR design
    Q = diag([10, 10, 1, 1]);
    R = 0.5;

    % Calculate optimal state feedback gain K
    [K, S, e] = lqr(A, B, Q, R);

    % Define closed-loop system
    Acl = A - B*K;
    sys_cl = ss(Acl, B, C, D);

    % Simulation parameters
    t = 0:0.01:10; % Time vector
    % Initial conditions for demonstration
    initial_conditions = [0.1; 0.1; 0; 0];

    % Simulate the response using the 'initial' function
    [x, t_out] = initial(sys_cl, initial_conditions, t);

    % Plotting each state response
    figure;
    subplot(4,1,1);
    plot(t_out, x(:,1));
    title('Response of Δu (Velocity deviation)');

    subplot(4,1,2);
    plot(t_out, x(:,2));
    title('Response of Δθ (Pitch angle deviation)');

    subplot(4,1,3);
    plot(t_out, x(:,3));
    title('Response of Δq (Pitch rate)');

    subplot(4,1,4);
    plot(t_out, x(:,4));
    title('Response of Δh (Altitude deviation)');
    xlabel('Time (s)');

This simulation demonstrates the convergence of state variables to the trimmed equilibrium, validating the effectiveness of the LQR controller. Adjustments to the weighting matrices Q and R allow for fine-tuning of overshoot, settling time, and overall control performance.

3.3 Integration of MATLAB Simulations with Autopilot Design

A complete autopilot design not only involves controller synthesis but also extensive simulation under various flight conditions. MATLAB and Simulink enable:

Emulating different flight regimes—ground, flight, and flare modes.
Introducing disturbances such as gusts and turbulence to assess controller robustness.
Visualizing time-domain responses and frequency-domain performance metrics that guide further controller refinement.

4. Comparative Analysis and Performance Evaluation

Evaluating the performance of any flight control system involves checking its response characteristics. Several performance metrics are critical:

4.1 Key Performance Metrics in Longitudinal Flight Control

The following table summarizes the metrics typically considered in the evaluation:

Metric	Description	Desired Outcome
Rise Time	Time to reach a specified percentage of response change	Minimized for rapid response
Settling Time	Time required to stabilize within a predefined error band	Low for smooth transitions
Overshoot	Extent to which the response exceeds the target value	Controlled to avoid excessive control actions
Stability	Ensures that transient responses dampen over time	Guaranteed with proper controller tuning

These metrics help in understanding the trade-offs in controller design, particularly when comparing simple PID controllers against more sophisticated state-space solutions.

4.2 Simulation Case Studies

Several simulation case studies can be conducted using MATLAB:

Simulating a pitch response to a step change in elevator deflection.
Assessing the impact of aerodynamic disturbances on control surface responses.
Evaluating the robustness of the autopilot under system parameter variations and sensor noise.

Comparison of simulation results from different control strategies allows for optimization of flight control laws to best meet the criteria of safety, performance, and robustness.

5. Report Structure and MATLAB Code Integration for CSE 411

A comprehensive report on flight control laws for a course like CSE 411 should be structured logically. A recommended structure includes:

Title Page: Title, course details, student name, and submission date.
Abstract: A concise summary highlighting dynamic modeling, control law synthesis, and simulation outcomes.
Introduction: An overview of flight control laws, fly-by-wire systems, and the importance of longitudinal flight control.
Modeling of Dynamics: Detailed derivation of the aircraft’s longitudinal dynamics, including non-linear equations and their linearization.
Control Methodology: Explanation of control approaches (PID, LQR) with MATLAB code examples and tuning strategies.
Simulation Results: Graphical analysis and interpretation of MATLAB simulation outputs.
Conclusion and Future Work: Summarizing key findings and recommending further research directions.
References: List of all technical sources and documentation used.
Appendix: Extended MATLAB code, additional plots, and mathematical derivations.

Proper integration of MATLAB code with theoretical explanations enriches the report and demonstrates the direct application of control theory to practical flight control problems.

6. Conclusion

This report has provided an in-depth exploration of flight control laws as applied to modern aircraft, with a specific focus on longitudinal flight control and autopilot design using MATLAB. By detailing the mathematical modeling, linearization procedures, and control law design—from simple PID to state-space LQR methodologies—we have examined how computational algorithms translate pilot inputs into safe and efficient control surface deflections. Our discussion extended to the simulation strategies used in MATLAB and the practical performance evaluation of these controllers using key metrics such as rise time, settling time, overshoot, and overall stability.

The integration of theoretical development with practical MATLAB examples underscores the utility of simulation tools in the design and validation of robust flight control systems. Future work can extend this study to incorporate non-linear control techniques, robustness analysis under varying flight conditions, and hardware-in-the-loop simulation to further bridge the gap between simulation and actual aircraft operation.
