Exploring the Transformative Potential of FMLs in Norwegian Wind Energy
Discover how Fiber Metal Laminates are revolutionizing wind turbine design and efficiency in Norway
Key Highlights
- Structural Resilience and Fatigue Performance: FMLs enhance durability, impact resistance, and fatigue performance, ensuring extended life for turbine components.
- Lightweight and Cost-effective Designs: By reducing overall weight while maintaining high strength, FMLs enable scalable and efficient wind turbine architectures.
- Advanced Manufacturing & Environmental Sustainability: Innovative production methods not only improve material integration but also support renewable energy goals by minimizing environmental impacts.
Overview of Fiber Metal Laminates in the Norwegian Wind Industry
The adoption of Fiber Metal Laminates (FMLs) in the wind energy sector, particularly in regions like Norway, represents a significant leap forward in engineering innovation and sustainability. FMLs combine the robustness of metals with the advantageous properties of fiber-reinforced composites, such as reduced weight and high fatigue resistance. This hybrid approach results in enhanced structural integrity, making FMLs ideal for the demanding environments found in offshore and onshore wind installations.
Norway, with its extensive coastline and strong commitment to renewable energy, offers an ideal environment to harness the benefits of FML technology. As the continent’s wind turbines continue to grow in size and design complexity, the need for advanced materials that can withstand extreme weather conditions and continuous cyclic loading becomes paramount. FMLs address these challenges by providing increased bearing strength, improved fatigue performance, and enhanced resistance against impacts and corrosion.
Advantages of FMLs in Wind Turbine Components
Enhanced Structural Integrity
FMLs incorporate layers of metal and composite materials, which together create a structure that is both lightweight and incredibly resilient. This synergy offers several key benefits:
- Increased Bearing Strength: The combination of metals (such as aluminum or steel) and composite fibers strengthens critical junctions, such as the blade root joints connecting rotor blades to the turbine hub. This ensures that the components can handle higher stress loads without increasing the overall weight.
- Improved Fatigue Resistance: Owing to the crack-bridging capacity of fibers embedded within the laminate, FMLs demonstrate exceptional durability under repeated cyclic stress. This results in longer service life of turbine blades and reduced maintenance intervals.
- Impact Resistance: With high impact resistance, FMLs are particularly effective in mitigating damage from environmental hazards—such as lightning strikes or drifting debris—thereby preserving the structural integrity of the wind turbine components.
- Corrosion Resistance: The composite layers act as protective barriers against corrosive marine environments, significantly extending the life of the structures used in offshore wind farms.
Lightweight Solutions for Modern Wind Turbine Design
Reducing the weight of wind turbine components is critical for optimizing performance and reducing costs. FMLs achieve this through:
- Material Efficiency: By streamlining the need for heavier metals through the substitution with high-performance composites, FMLs allow wind turbines to achieve higher efficiency. The reduction in weight permits the design of longer and more flexible rotor blades, enhancing the ability to capture a greater volume of wind energy.
- Transport and Installation Advantages: The lighter weight of FMLs also facilitates easier transportation and installation, a key factor especially for offshore wind projects where logistics are often challenging.
- Design Flexibility: The versatility of FMLs supports innovative structural designs that optimize aerodynamic performance and enable the development of next-generation wind turbines.
Economic and Environmental Considerations
FMLs offer not only technical advantages, but also notable economic and environmental benefits:
- Cost-effective Manufacturing: New manufacturing techniques, such as non-autoclave processes and advanced infusion methods, are making FML production increasingly feasible and cost-effective. Reduced material usage alongside enhanced performance contributes to lower production costs over the lifecycle of the turbines.
- Sustainability and Recycling: By incorporating recyclable thermoplastic composites alongside metals, FMLs support the push towards greener manufacturing processes. Enhanced recyclability is crucial for reducing the environmental footprint of wind turbine production and aligns with the broader goals of the Norwegian energy sector.
- Operational Efficiency: With improved durability and resistance to harsh environmental conditions, wind turbines built using FMLs are likely to exhibit lower maintenance and operational costs. This reliability further reinforces the economic viability of investing in renewable wind technologies.
Applications of FMLs in the Norwegian Wind Industry
Rotor Blades and T-Joints
One of the most critical applications of FMLs in wind turbines is in the construction of rotor blades. The turbine blades require materials that can endure cyclic loading while maintaining structural integrity. FMLs enhance the performance of rotor blades in the following ways:
- Fatigue Resistance: The alternating structure of FMLs significantly increases fatigue life, ensuring that blades remain robust and stable even under severe wind conditions.
- Improved Load Distribution: The integration of metal and composite layers aids in distributing large stress loads evenly across the blade structure, preventing localized failures.
- T-Joint Applications: The root joints (T-joints) that connect rotor blades to the hub benefit greatly from FMLs. A reinforced connection design enhances the bearing strength, ensuring that the critical joining areas are protected against both fatigue and impact forces.
Wind Turbine Towers
Beyond rotor blades, FMLs offer potential benefits in wind turbine tower construction. By partially substituting traditional steel with FML composites, towers can achieve significant weight reductions without a proportional loss in strength. This lightening of the tower structure results in:
- Improved Seismic and Wind Load Management: Reduced weight with maintained strength increases the ability of a tower to handle dynamic loads from wind and seismic activity, particularly important in exposed marine and coastal locations in Norway.
- Easier Installation and Transport: Lightweight towers allow for more efficient logistics, reducing transportation challenges and labor costs during installation phases.
Outer Skins and Spar Caps
In many wind turbine designs, the outer skins and spar caps are constructed using composite laminate techniques. FMLs enable improvements in these areas:
- Durability: The outer skins of turbine blades benefit from FMLs by increasing resistance to environmental degradation and fatigue, ensuring long-term performance.
- Enhanced Structural Support: The spar caps, which provide internal reinforcement, can be fabricated using carbon fiber composites integrated with thin metal layers, resulting in a structure that is both lightweight and highly resistant to mechanical stresses.
Technological and Manufacturing Innovations
Advanced Manufacturing Techniques
Recent developments in manufacturing techniques are crucial for realizing the full potential of FMLs in wind energy applications. Novel processes, including non-autoclave production and infusion methods, are pivotal in reducing production complexity and costs while ensuring high-quality laminate integration. Research and pilot projects have validated methods such as:
- Vacuum Infusion and Resin Transfer Molding: These methods are being optimized to ensure thorough wet-out of the fiber preforms and metal layers, leading to superior bonding and better mechanical performance.
- Automation and Robotics: Automated layering and curing processes streamline the production of FML components and enhance consistency across manufactured parts, which is essential for large-scale deployment in the wind industry.
- Non-Autoclave Processes: These processes eliminate the need for high-pressure autoclaving, reducing manufacturing costs and facilitating on-site production or repair of wind turbine components.
Interfacial bonding and Material Integrity
The long-term effectiveness and performance of FMLs are highly dependent on the interfacial bonding between the metal and composite layers. Challenges associated with differential thermal expansion, moisture ingress, and the inherent differences in material properties are being addressed through:
- Surface Treatments and Primers: Techniques for enhancing adhesion through surface treatments help ensure strong and durable bonds between the layers. Innovations in adhesive chemistry are being incorporated to boost interfacial integrity and fatigue performance.
- Advanced Resin Systems: Epoxy resins with low viscosity and specialized curing agents are optimized for lamination processes, resulting in efficient flow and solid bonding even at ambient temperatures.
- Thermoplastic Innovations: Research into recyclable glass fiber reinforced thermoplastics is gaining traction as a sustainable alternative, where the balance between mechanical performance and environmental compliance is critical.
Visualizing the Comparative Performance of FML Innovations
To provide a visual representation of how various design aspects of FMLs contribute to the performance of wind turbine components, below is a radar chart that demonstrates our opinionated analyses of key factors such as weight efficiency, fatigue resistance, impact resistance, structural integrity, and cost-effectiveness. This visualization helps compare the strengths of FMLs against traditional materials used in the wind industry.
Comprehensive Table of FML Characteristics vs. Traditional Materials
The table below summarizes the characteristics of Fiber Metal Laminates in contrast with traditional composite or metal materials typically used in the wind energy sector. This table highlights the improvements in structural properties, fatigue resistance, cost efficiencies, and sustainability that FMLs offer.
| Characteristic | Fiber Metal Laminates (FMLs) | Traditional Materials |
|---|---|---|
| Weight | Lower overall weight with high strength | Heavier, leading to design constraints |
| Fatigue Resistance | Exceptional due to hybrid composition | Moderate, prone to failure under cyclic loads |
| Impact Resistance | High impact tolerance protecting against debris and lightning | Lower performance in harsh environments |
| Structural Integrity | Optimized for load distribution and joint strength | Stronger in singular builds, but less versatile |
| Corrosion Resistance | Enhanced by composite layers, ideal for marine use | Susceptible to corrosion over time |
| Manufacturing Complexity | Improving with new techniques; initially complex | Straightforward manufacturing but limited design flexibility |
Real-World Implications in the Norwegian Wind Sector
Norway’s vision for renewable energy is deeply embedded in the commitment to harnessing cleaner, more sustainable sources of power. Incorporating FMLs into wind turbine design plays a vital role in:

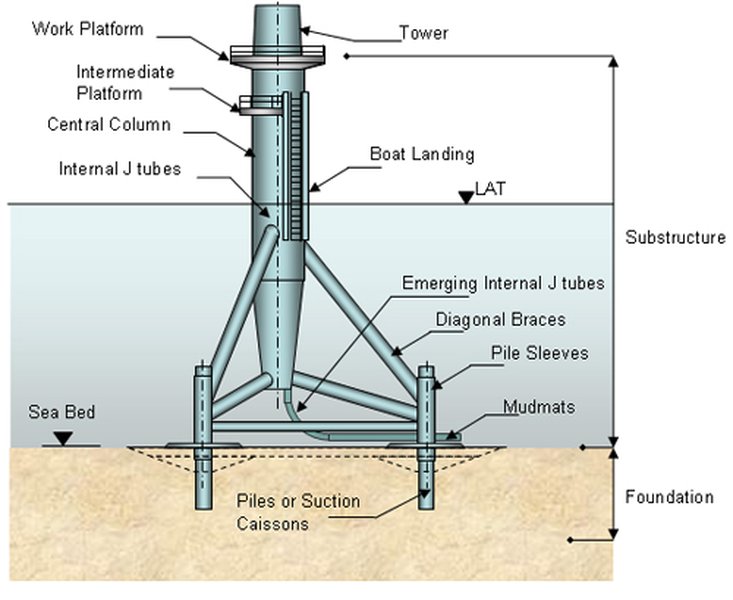

- Maritime Integration: Offshore wind farms benefit tremendously from the corrosion resistance and impact durability of FMLs. Their ability to endure aggressive marine environments contributes to safer and more efficient power generation.
- Extended Component Life: Enhanced fatigue and impact resistance translate to longer operational lifespans for wind turbines, reducing overall maintenance requirements and costs, which is critical for remote installations.
- Design Innovations: FMLs enable the creation of larger and more aerodynamically optimized rotor blades that can capture more wind energy without compromising stability. This is particularly significant given the increasing scale of modern wind farms throughout Norway.
- Environmental Benefits: With the potential to incorporate recyclable composite materials and reduce the carbon footprint in production, FMLs are in line with the environmental policies and strategic objectives of Norway’s renewable energy initiatives.
Additional Multimedia Resource
Below is an embedded video that offers further insights into the manufacturing techniques and innovations related to FMLs. This video provides a visual explanation of how these advanced materials are synthesized and applied in wind energy components.
Frequently Asked Questions
What are Fiber Metal Laminates (FMLs)?
Fiber Metal Laminates (FMLs) are advanced composite materials that combine the best properties of both metals and fiber-reinforced polymers. They offer high levels of strength, fatigue resistance, and impact resilience while being lightweight, making them ideal for critical structural applications such as wind turbine components.
How do FMLs improve the performance of wind turbine blades?
FMLs improve wind turbine blades by reducing weight while ensuring excellent fatigue and impact resistance. Their layered structure offers superior load distribution and enhanced mechanical properties, resulting in longer blade lifespans and reduced maintenance requirements.
What challenges are associated with using FMLs?
Although FMLs offer numerous advantages, their integration involves challenges such as complex manufacturing processes, ensuring robust interfacial bonding between the metal and composite layers, and optimizing cost-effective production processes. Nevertheless, ongoing research and technological advancements continue to address these challenges.
Why is Norway particularly interested in FML technology for wind energy?
Norway is keen to adopt FML technology due to its extensive coastline and the associated benefits of offshore wind energy. FMLs offer corrosion resistance, improved fatigue performance, and potential for lightweight structures that are crucial for both enhancing efficiency and reducing maintenance costs in harsh marine environments.
