Unlocking Success: A Deep Dive into the Fundamental Types of Constraints Across Disciplines

Constraints, in essence, are limitations or restrictions that define the boundaries within which a system, process, project, or entity must operate. Far from being mere obstacles, constraints are fundamental elements that shape design, guide decision-making, and ultimately influence outcomes across a vast array of fields. Recognizing and understanding the various types of constraints is crucial for effective planning, problem-solving, and innovation. Whether in managing a complex project, designing a robust database, analyzing physical systems, or formulating business strategies, a clear grasp of constraints allows for more targeted and efficient approaches.

Key Insights into Constraints

Ubiquitous Influence: Constraints are not confined to a single domain but are integral to project management, database architecture, engineering, physics, design, and business operations, each field having its specific set of common limitations.
Drivers of Innovation: While often perceived as restrictive, constraints can also fuel creativity and efficiency by forcing focused problem-solving and the development of novel solutions within defined parameters.
Interconnected Nature: In many systems, especially in project management, constraints are often interrelated, meaning a change in one constraint (like budget) can directly impact others (like scope or timeline).

Constraints in Project Management: The Art of Balancing Limitations

The Classic Triple Constraint and Its Modern Evolution

Project management is a field where constraints are explicitly identified and managed. The success of a project often hinges on the ability to navigate these limitations effectively. Traditionally, project management constraints were encapsulated by the "Iron Triangle" or "Triple Constraint."

Diagram illustrating a bottleneck as a constraint in a process flow

A visual representation of a bottleneck, a common type of constraint in process flows, often discussed in the Theory of Constraints.

The Triple Constraints

Scope: This defines the specific goals, deliverables, features, functions, tasks, deadlines, and ultimately, the boundaries of the project. It answers the question, "What work needs to be done?" Managing scope is crucial to prevent "scope creep," where uncontrolled changes or continuous growth in a project's scope can derail the project.
Time (or Schedule): This refers to the amount of time available to complete a project. It includes the project's overall deadline, as well as timelines for specific tasks and milestones. Delays in one area can have cascading effects on the entire project schedule.
Cost (or Budget): This encompasses all the financial resources allocated for the project. It includes labor costs, materials, equipment, and other expenses. Staying within budget is a primary measure of project success.

These three constraints are intrinsically linked. For example, if the project scope increases, it will likely require more time and/or cost. If the budget is reduced, it might necessitate a reduction in scope or an extension of the timeline (if resources are cut).

Expanded Project Constraints

Modern project management recognizes that the triple constraint model, while foundational, may not capture all critical limitations. Thus, it's often expanded to include other vital factors:

Quality: This refers to the standards, criteria, and specifications that the project's deliverables must meet. There's often a trade-off between quality and the triple constraints; for instance, achieving higher quality might require more time or cost, or a reduction in scope.
Resources: This includes the availability and capacity of personnel (skills, number of people), equipment, materials, facilities, and other assets required to execute the project. Resource limitations can significantly impact the schedule and budget.
Risk: This involves identifying, assessing, and mitigating potential events or conditions that could negatively (or sometimes positively) impact the project's objectives. Risks can be technical, financial, operational, or external.

Effectively managing these six constraints—scope, time, cost, quality, resources, and risk—provides a more comprehensive framework for navigating the complexities of modern projects.

Database Management System (DBMS) Constraints: Ensuring Data Integrity

The Rules That Keep Data Accurate and Reliable

In the realm of Database Management Systems (DBMS), constraints are rules enforced on data columns or tables to ensure the accuracy, consistency, and reliability of the stored information. They are fundamental to maintaining data integrity and preventing invalid data from being entered into the database. These rules are typically defined when the database schema is created or altered.

The embedded video above offers a beginner's guide to database constraints, explaining their core role in relational databases for improving data quality by preventing issues like duplicate or orphaned rows. Database constraints, such as Primary Keys, Foreign Keys, and NOT NULL, are crucial for defining the structure and relationships within data, ensuring its integrity and reliability—a central theme in effective data management.

Common Types of SQL Constraints:

NOT NULL Constraint: This rule ensures that a column cannot have a NULL (empty or undefined) value. If a column is defined as NOT NULL, every row inserted into the table must have a non-null value for that column. This is critical for fields that require mandatory information, like a user's username.
UNIQUE Constraint: This constraint guarantees that all values in a specific column (or a set of columns) are distinct. While similar to a Primary Key in ensuring uniqueness, a UNIQUE constraint allows one NULL value (in most RDBMS implementations, though this can vary). An example would be an email address column, where each user must have a unique email.
PRIMARY KEY Constraint: This uniquely identifies each record (row) in a database table. A primary key inherently enforces both NOT NULL and UNIQUE constraints. Each table can have only one primary key, which can consist of a single column or multiple columns (a composite key). It's fundamental for establishing relationships between tables.
FOREIGN KEY (Referential) Constraint: This constraint establishes and enforces a link between data in two tables. It ensures referential integrity by requiring that a value in a foreign key column of one table matches an existing value in the primary key column (or a unique key column) of another table. This prevents orphaned records, for instance, ensuring an order record always links to a valid customer record.
CHECK Constraint: This constraint enforces domain integrity by validating that the values entered into a column satisfy a specific condition or a Boolean expression. For example, a CHECK constraint can ensure that an 'Age' column only accepts values greater than 18, or that a 'Gender' column only accepts 'Male', 'Female', or 'Other'.
DEFAULT Constraint: This constraint provides a default value for a column if no value is explicitly specified during data insertion (an INSERT statement). For example, a 'RegistrationDate' column might default to the current system date if a date is not provided when a new user record is created.

These constraints are pivotal in relational databases for maintaining the structural and semantic integrity of data, facilitating accurate querying and reliable application performance.

A Comparative Look: Impact of Constraints Across Domains

Visualizing Constraint Characteristics

Constraints manifest differently across various domains, varying in their typical frequency, impact, and manageability. The radar chart below offers an opinionated visualization of these characteristics for key domains. This is an illustrative analysis based on common understandings within these fields, rather than precise empirical data. The axes represent different attributes of constraints, scaled from 1 (low) to 10 (high), helping to highlight how domains like Project Management, Database Systems, Engineering Design, Physical Mechanics, and Business Operations might perceive or experience constraints differently.

This chart helps illustrate, for example, that constraints in Physical Mechanics often have a very high impact and rigidity (being laws of nature), while Project Management constraints are frequently encountered and highly interdependent. Database constraints are generally rigid once defined but might have moderate management complexity compared to constantly shifting project variables.

Constraints in Mechanics and Physics: Governing Motion and Behavior

The Laws That Limit Physical Systems

In classical mechanics and physics, constraints are conditions that restrict the motion or possible states of a physical system. They limit the degrees of freedom of a system, meaning they reduce the number of independent coordinates needed to describe its configuration. Understanding these constraints is essential for analyzing the dynamics of mechanical systems.

Fundamental Types in Mechanics:

Holonomic Constraints: These constraints can be expressed as algebraic equations relating the coordinates of the particles in the system and possibly time. Importantly, they do not involve velocities. An example is a bead sliding on a fixed wire; its position can be described by its distance along the wire, and its coordinates (x, y, z) are related by equations defining the wire's shape. Holonomic constraints are integrable, meaning they effectively reduce the dimensionality of the configuration space.
Non-Holonomic Constraints: These constraints are not expressible solely as algebraic equations of coordinates and time; they typically involve velocities or are in the form of non-integrable differentials or inequalities. A classic example is a wheel rolling without slipping on a plane. The condition of no slipping relates the wheel's linear velocity to its angular velocity. These constraints cannot be used to eliminate coordinates in the same way holonomic constraints can, making the analysis of such systems more complex.

Other classifications exist, such as scleronomic (time-independent) vs. rheonomic (time-dependent) constraints, further refining the description of how physical systems are limited.

Design Constraints: Shaping Creativity and Feasibility

The Boundaries for Innovation in Design

In various design disciplines (e.g., UX/UI, product design, engineering design, architectural design), constraints are factors that limit the design choices or process. Rather than stifling creativity, well-defined constraints often channel it, leading to more focused and practical solutions.

Illustration showing various types of design constraints

An illustrative overview of different types of constraints encountered in the UX design process.

Common Categories of Design Constraints:

Technical Constraints: Limitations imposed by the available technology, platforms, materials, or manufacturing processes. For example, designing a mobile app that must work on older operating systems or a physical product that must be made from sustainable materials.
Financial (Budgetary) Constraints: The budget allocated for the design, development, and production of a product or system. This can dictate the choice of materials, features, and complexity.
Legal and Regulatory Constraints: Requirements imposed by laws, standards, patents, accessibility guidelines (e.g., WCAG for web design), or safety regulations that the design must comply with.
Organizational Constraints: Internal factors within the company or organization, such as brand guidelines, existing infrastructure, company policies, team skills, or stakeholder preferences.
Time Constraints: Deadlines for completing the design or development phases. This can influence the scope and depth of exploration.
Usability Constraints: Requirements related to how easy and efficient the product is to use for the target audience.
Self-Imposed Constraints: Goals or principles set by the designers or stakeholders themselves, such as adhering to a specific design philosophy or aesthetic.

Navigating these constraints effectively is key to successful design, balancing innovation with practicality.

Constraints in Optimization and Operations Research

Defining Feasible Solutions in Mathematical Modeling

In mathematical optimization and operations research, constraints are conditions that solutions to an optimization problem must satisfy. They define the feasible region, which is the set of all possible solutions. The goal is typically to find a solution within this feasible region that maximizes or minimizes an objective function.

Primary Types in Optimization:

Equality Constraints: These are conditions that must be met exactly. They are typically expressed in the form \( g_i(x) = 0 \), where \(x\) is the vector of decision variables. For example, in a production planning problem, an equality constraint might state that the total amount of a resource used must exactly equal the amount available.
Inequality Constraints: These define upper or lower bounds on certain expressions. They are typically expressed as \( h_j(x) \leq 0 \) or \( h_j(x) \geq 0 \). For example, a constraint might state that the amount of a product manufactured cannot exceed market demand (an upper bound) or must be at least a certain minimum production level (a lower bound).

These constraints are fundamental to formulating and solving problems in areas like linear programming, non-linear programming, resource allocation, and scheduling.

The Theory of Constraints (TOC): Identifying and Managing Bottlenecks

Focusing on What Limits System Performance

The Theory of Constraints (TOC) is a management philosophy introduced by Eliyahu M. Goldratt. It posits that every complex system has at least one constraint that limits its ability to achieve its goal. TOC provides a methodology for identifying and managing these constraints (often called bottlenecks) to improve overall system performance.

Types of Constraints in TOC:

Physical Constraints: These are tangible limitations related to the physical capacity of resources. Examples include insufficient machine capacity, lack of raw materials, limited space, or an inadequate number of skilled personnel.
Policy Constraints: These are rules, procedures, or practices (written or unwritten) that limit the system's performance. Examples include inefficient company policies, counterproductive performance metrics, outdated regulations, or poor communication protocols.
Paradigm Constraints: These are deeply ingrained beliefs, assumptions, or mental models that shape how individuals and organizations perceive and interact with their environment. These can be the most difficult to identify and change, such as a reluctance to adopt new technologies or a "this is how we've always done it" mentality.
Market Constraints: This occurs when the system can produce more than the market demands. The constraint is the level of demand itself.

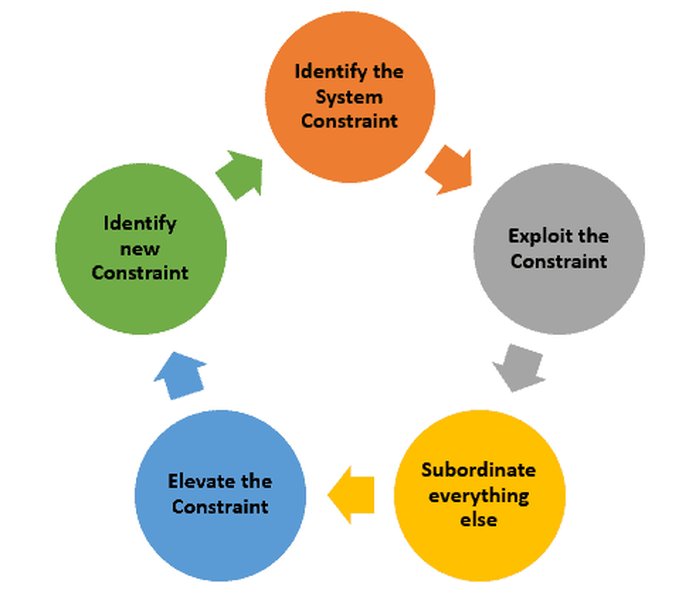

TOC focuses on a five-step process of continuous improvement: 1. Identify the constraint, 2. Exploit the constraint, 3. Subordinate everything else to the constraint, 4. Elevate the constraint, and 5. If the constraint is broken, go back to step 1 (don't let inertia set in).

Mapping the World of Constraints

A Mindmap Overview

To better visualize the diverse landscape of constraints discussed, the following mindmap illustrates the primary categories and their sub-types. This provides a hierarchical view, showing how different types of limitations are organized within various domains. Understanding these relationships can help in systematically identifying and addressing constraints in complex situations.

mindmap root["Fundamental Constraints"] pm["Project Management"] pm_triple["Triple Constraint"] pm_scope["Scope"] pm_time["Time / Schedule"] pm_cost["Cost / Budget"] pm_expanded["Expanded Constraints"] pm_quality["Quality"] pm_resources["Resources"] pm_risk["Risk"] dbms["Database (DBMS/SQL)"] dbms_nn["NOT NULL"] dbms_uq["UNIQUE"] dbms_pk["PRIMARY KEY"] dbms_fk["FOREIGN KEY"] dbms_ck["CHECK"] dbms_df["DEFAULT"] mech["Mechanics & Physics"] mech_holo["Holonomic"] mech_nonholo["Non-Holonomic"] design["Design"] des_tech["Technical"] des_fin["Financial"] des_legal["Legal / Regulatory"] des_org["Organizational"] des_self["Self-Imposed"] opt["Optimization & OR"] opt_eq["Equality Constraints"] opt_ineq["Inequality Constraints"] toc["Theory of Constraints (TOC)"] toc_phys["Physical"] toc_pol["Policy"] toc_para["Paradigm"] toc_mkt["Market"]

This mindmap serves as a quick reference, highlighting the key classifications of constraints from broad domains like Project Management and Database Systems down to specific types like 'Scope' or 'PRIMARY KEY'.

Summary Table of Constraint Types by Domain

A Quick Cross-Domain Reference

The following table provides a consolidated overview of the fundamental constraint types discussed, categorized by their primary domain of application. This allows for easy comparison and identification of relevant constraints depending on the context.

Domain	Fundamental Constraint Types
Project Management	Time (Schedule), Scope, Cost (Budget), Quality, Resources, Risk
Databases (SQL/DBMS)	NOT NULL, UNIQUE, PRIMARY KEY, FOREIGN KEY, CHECK, DEFAULT
Mechanics / Physics	Holonomic, Non-Holonomic
Design	Technical, Financial, Legal/Regulatory, Organizational, Self-Imposed, Time, Usability
Optimization & Operations Research	Equality Constraints, Inequality Constraints
Theory of Constraints (TOC)	Physical, Policy, Paradigm, Market

This table summarizes the core limitations inherent in different fields, emphasizing that while the specifics vary, the underlying concept of constraints as guiding or limiting factors is universal.
