Unlock Process Clarity: Your Guide to Generating Effective Flowcharts
Visually map any workflow step-by-step for improved understanding, analysis, and efficiency.
Generating a process flowchart involves creating a visual representation of the steps, decisions, and flow within a specific process or workflow. This powerful tool uses standardized symbols connected by arrows to clearly depict how something gets done, making it invaluable across various fields like business analysis, project management, software development, and even documenting daily routines. Understanding how to create one can significantly enhance communication, training, and process improvement efforts.
Essential Insights into Process Flowcharts
- Visual Clarity: Flowcharts transform complex sequences into easily understandable visual diagrams, simplifying communication and analysis.
- Standardized Symbols: Using consistent shapes (ovals for start/end, rectangles for tasks, diamonds for decisions) ensures universal understanding.
- Process Improvement: They are fundamental tools for identifying bottlenecks, redundancies, and opportunities for optimization within any workflow.
Why Create a Process Flowchart? Unveiling the Benefits
Process flowcharts offer numerous advantages for individuals and organizations:
- Enhanced Understanding: They provide a clear, high-level overview or detailed breakdown of how a process functions from beginning to end.
- Improved Communication: Visual diagrams are often easier to grasp than lengthy text descriptions, facilitating communication among team members, stakeholders, and trainees.
- Identifying Inefficiencies: By mapping out the steps, you can easily spot bottlenecks, delays, unnecessary tasks, or areas lacking clarity.
- Facilitating Problem Solving: Flowcharts help analyze where problems occur within a process and brainstorm potential solutions.
- Standardizing Processes: Documenting a process with a flowchart helps ensure everyone follows the same steps consistently.
- Supporting Training: They serve as excellent visual aids for training new employees on procedures and workflows.
- Aiding Documentation: Flowcharts form a crucial part of project documentation, process documentation, and quality management systems.
Decoding Flowchart Symbols: The Language of Processes
Consistency in flowcharting relies on using standardized symbols. While variations exist, some symbols are universally recognized:

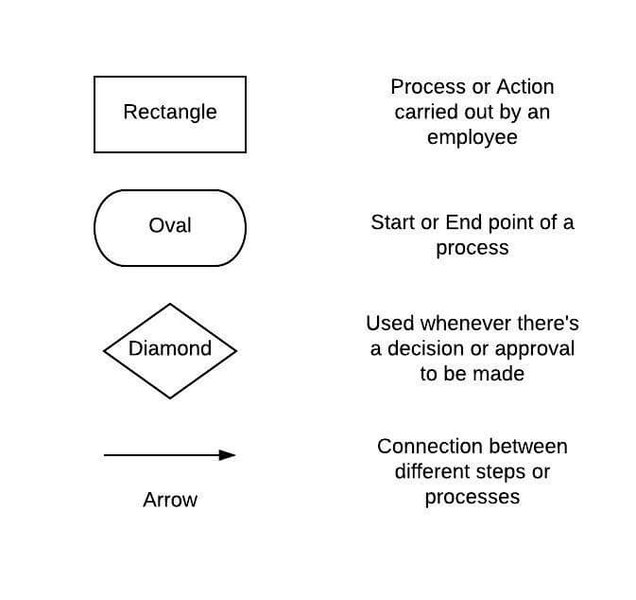

Common symbols used in process flowcharts.
Commonly Used Symbols Explained
Understanding these basic shapes is the first step towards creating clear and effective flowcharts.
| Symbol Shape | Name | Meaning |
|---|---|---|
| Oval / Rounded Rectangle | Terminator | Indicates the starting or ending point of the process. |
| Rectangle | Process Step | Represents a specific task, action, or operation within the process. |
| Diamond | Decision | Shows a point where a decision must be made, typically resulting in branching paths (e.g., Yes/No, True/False). |
| Arrow | Flow Line | Connects symbols and indicates the direction of flow through the process sequence. |
| Parallelogram | Input/Output | Represents data or materials entering (input) or leaving (output) the process. |
| Circle | Connector (On-Page) | Used to link separate parts of a flowchart on the same page, often used to avoid crossing lines. |
| Pentagon / Home Plate | Connector (Off-Page) | Indicates that the flowchart continues on another page. |
| Rectangle with Wavy Bottom | Document | Represents a document or report generated or used in the process. |
This table summarizes the most frequently encountered symbols. Different flowchart types (like Data Flow Diagrams or Swimlane Diagrams) might utilize additional specialized symbols.
Step-by-Step Guide: Generating Your Process Flowchart
Creating an effective flowchart involves a systematic approach. Follow these steps:
1. Define the Process Scope
Identify Boundaries
Clearly determine what process you want to map. Define the exact starting point (trigger event) and the precise ending point (final outcome). Knowing the scope prevents the flowchart from becoming too broad or too narrow.
Determine the Purpose
What is the goal of creating this flowchart? Is it for training, analysis, documentation, identifying improvements, or designing a new process? The purpose will influence the level of detail required.
2. Gather Information & List Steps
Collect Data
Talk to the people involved in the process (stakeholders, team members). Observe the process in action if possible. Gather all relevant documents and information.
Sequence Activities
List all the tasks, decisions, inputs, and outputs involved in the process sequentially. Don't worry about the symbols yet; just get the order right.
3. Choose Your Tool
Select Software or Method
Decide how you will create the flowchart. Options range from simple pen and paper to sophisticated software:
- Manual Drawing: Quick for initial drafts.
- Microsoft Office (Word, PowerPoint, Excel): Use SmartArt or Shapes for basic diagrams.
- Online Diagramming Tools: Lucidchart, Miro, Canva, SmartDraw, draw.io (diagrams.net) offer templates, symbol libraries, collaboration features, and cloud storage.
The choice depends on complexity, collaboration needs, and desired polish.
4. Sketch the Flowchart
Start and End Points
Begin with an oval (Terminator) labeled "Start" or with the specific triggering event.
Add Process Steps
Use rectangles for each action or task identified in Step 2. Write a clear, concise description inside each rectangle.
Incorporate Decisions
Use diamonds for points where a choice is made or a question is asked. Label the diamond with the decision question (e.g., "Approved?"). Draw arrows leading out from the diamond for each possible outcome (e.g., "Yes," "No").
Connect with Flow Lines
Use arrows to connect the symbols in the correct sequence, showing the direction of the process flow. Ensure lines don't cross unnecessarily; use connectors if needed.
Indicate Inputs/Outputs
Use parallelograms where data or materials enter or exit the process.
Finalize the End Point
Conclude the flowchart with an oval (Terminator) labeled "End" or describing the final outcome.

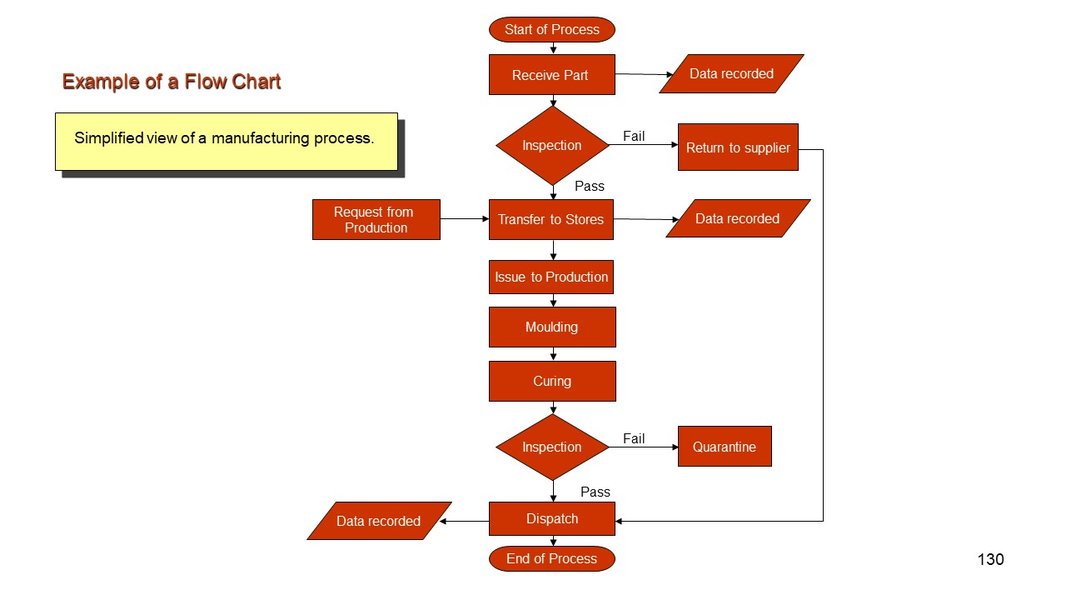

A simple flowchart illustrating basic structure with start, process, decision, and end points.
5. Add Detail and Context (Optional but Recommended)
Include Timings or Resources
You might add notes about time taken for steps, resources used, or roles responsible (consider Swimlane diagrams for role clarity).
Use Swimlanes
If multiple teams or individuals are involved, organize the flowchart into parallel lanes (swimlanes), each representing a specific role or department.
6. Review and Refine
Verify Accuracy
Walk through the flowchart step-by-step. Does it accurately reflect the real process? Are there missing steps or incorrect sequences?
Seek Feedback
Share the draft with stakeholders and those involved in the process. Incorporate their feedback to improve clarity and accuracy.
Check for Clarity
Is the flowchart easy to understand? Are the labels clear? Is the flow logical?
7. Finalize and Share
Polish the Diagram
Ensure consistent formatting, alignment, and symbol usage.
Distribute
Save the flowchart in an appropriate format (e.g., PDF, PNG) and share it with relevant parties or embed it in documentation.
Visualizing the Flowchart Creation Process
This mindmap summarizes the key elements involved in generating a process flowchart, from understanding its purpose to finalizing the diagram.
Comparing Popular Flowchart Tools
Choosing the right tool can streamline the flowchart creation process. This radar chart provides a comparative overview of some popular options based on key criteria. Ratings are subjective estimations (out of 10) for illustrative purposes.
Consider your specific needs regarding collaboration, complexity, budget, and existing software ecosystem when selecting a tool.
See It in Action: Creating a Simple Process Map
Visual examples can greatly aid understanding. This video provides a practical walkthrough of creating a simple process map (another term often used interchangeably with flowchart), covering key steps and considerations.
The video demonstrates how to break down a process, select appropriate symbols, and connect them logically to create a clear visual representation, reinforcing the steps outlined earlier.
Frequently Asked Questions (FAQ)
What's the difference between a flowchart and a process map?
Often, the terms "flowchart" and "process map" are used interchangeably. Both visually represent the steps in a process. However, "process map" sometimes implies a broader scope, potentially including more details like resources, roles (swimlanes), metrics, or system interactions. A basic flowchart typically focuses purely on the sequence of steps and decisions.
When should I use a Swimlane Flowchart?
Use a swimlane flowchart (also known as a cross-functional flowchart) when a process involves multiple departments, teams, or individuals. Each "lane" represents a specific actor or group, and the process steps are placed within the lane of the actor responsible for that step. This clearly shows handoffs, responsibilities, and potential delays between different groups.
How detailed should my flowchart be?
The level of detail depends on the flowchart's purpose and audience. For a high-level overview for management, keep it simple with major steps. For detailed analysis or training, include more granular steps, decision points, and potentially inputs/outputs. Avoid making it so complex that it becomes difficult to read.
Can I create flowcharts in Microsoft Word or PowerPoint?
Yes, both Microsoft Word and PowerPoint have built-in tools for creating flowcharts. You can use the "Shapes" feature to manually add and connect flowchart symbols, or use the "SmartArt" graphics feature which offers pre-designed process layouts. While functional for simpler diagrams, dedicated flowcharting software offers more flexibility and features for complex charts.
Recommended Next Steps
Explore these related topics for deeper insights:
- What are the different types of flowcharts and their specific uses?
- How can swimlane diagrams effectively map complex business processes involving multiple teams?
- What are the best practices for designing clear, effective, and optimized flowcharts?
- Which online flowchart maker tool is best suited for collaborative projects?
