Understanding the Impact of Motor Starting Methods on Generator Sizing

Key insights into how motor starting methods affect generator performance and reliability

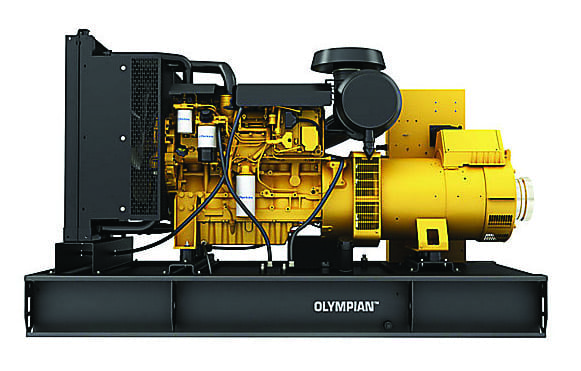

industrial generator equipment in operation

Highlights

Inrush Current Management: The method in which motors are started determines the magnitude of the inrush current, directly influencing the size and capacity of the generator set.
Voltage Stability: Different starting techniques affect voltage stability; high inrush currents can result in voltage dips that impact overall system performance.
Cost and Performance Optimization: Choosing an appropriate motor starting method ensures that the generator is neither over- nor under-sized, leading to efficient performance and reduced operating costs.

Introduction to Motor Starting and Generator Sizing

The relationship between a motor's starting method and the sizing of a generator set is fundamental to ensuring both operational reliability and efficiency. Essentially, the starting method dictates how much initial electrical demand is placed on the generator. When a motor starts, the initial surge of current, known as inrush current, can be significantly higher than its running current. This initial demand can lead to various challenges such as voltage dips, frequency fluctuations, and stress on the generator’s components. Understanding these dynamics allows engineers and system designers to correctly size a generator set that can reliably supply the necessary power during this critical phase.

Detailed Exploration of Inrush Current

Definition and Impact

At the core of generator sizing related to motor starting methods is the phenomenon known as inrush current. Inrush current is defined as the initial surge of electrical current drawn by a motor when it starts. Typically, this current can be between 5 to 8 times greater than the motor's full-load current. The magnitude of the inrush current is a key factor in determining the generator's starting capacity since the generator must be capable of handling this short-duration peak without significant performance degradation.

Mechanisms Triggering High Inrush Currents

Several factors contribute to the high inrush current observed during motor start-up:

Acceleration of the Motor: The rapid acceleration from a standstill requires a large current to overcome inertial forces.
Magnetic Field Establishment: The moment a motor is powered, the establishment of the magnetic field in the rotor and stator induces a high surge of current.
Circuit Impedance: At startup, low impedance in the motor’s circuit allows for a more significant current flow until the system stabilizes.

Implications on Generator Performance

If the generator is undersized in relation to the motor’s inrush requirements, several issues could arise:

Voltage Dips: A significant inrush current can cause voltage dips which may temporarily drop below operational thresholds for both the motor and other connected equipment.
Generator Overload: The generator may become overloaded, leading to potential mechanical and thermal stress that can shorten its life span.
System Instability: Unmanaged inrush currents can result in system instability, causing frequent generator trips or intermittent power supply issues.

Motor Starting Methods and Their Effect on Generator Sizing

Direct-On-Line (DOL) Starting

Mechanism and Impact

In the DOL method, the motor is energized by full voltage directly from the power supply. This results in an immediate high inrush current. While DOL is simple and cost-effective in terms of hardware, the high surge of current necessitates a generator that is capable of delivering a greater kVA output.

Key considerations include:

High Demand Requirements: Due to the sudden high current demand, the generator must be sized considerably higher than the motor's running requirements to accommodate the initial load stress.
Potential Voltage Dips: The high inrush current can lead to substantial voltage dips if not adequately managed by a robust generator.

Star-Delta (Wye-Delta) Starting

Mechanism and Impact

The star-delta starting method connects the motor’s windings in a star configuration at the start, reducing the initial voltage across each winding and consequently lowering the starting current. Once the motor reaches a certain speed, it is switched to a delta configuration for normal operation.

Advantages of this method include:

Reduced Inrush Current: The initial current is reduced significantly, minimising the burden on the generator during startup.
Cost Efficiency: With lower starting currents, it is often feasible to use a generator with a lower rated capacity compared to one required for DOL starting.
Improved Voltage Stability: The lower inrush current ensures that voltage remains more stable during motor starting, protecting sensitive equipment from fluctuations.

Soft Starter and Variable Frequency Drives (VFD)

Mechanism and Impact

Soft starters and VFDs represent modern techniques in motor starting. They gradually increase the motor's voltage or frequency during start-up, thereby controlling and limiting the surge in current.

The primary implications for generator sizing using these methods are:

Management of Inrush Current: The gradual ramp-up of power prevents sudden current surges, which enables the use of a smaller generator that does not have to buffer large, instantaneous loads.
Enhanced Operational Reliability: The controlled acceleration minimizes mechanical stress on both the motor and the generator, resulting in improved longevity and reduced maintenance issues.
Efficiency in Operation: By matching the generator capacity more closely to the motor load’s requirements, overall energy efficiency is improved, leading to cost savings over time.

Balancing Generator Sizing and System Performance

Generator Sizing Considerations

When sizing a generator set for motor loads, several critical factors must be considered to ensure efficient performance and system stability:

Peak kVA Requirements

The peak kVA requirement, which is primarily driven by the motor's starting method, dictates the generator size. During startup, the generator must supply a significant surge of power, and any miscalculation can result in voltage dips or overload conditions.

Voltage Regulation and Stability

Voltage regulation is critical for maintaining the performance of both the motor and other connected equipment. Inrush currents significantly affect voltage levels; therefore, the generator's voltage regulation capability must be robust enough to withstand rapid changes during motor start-up.

Digital Automatic Voltage Regulators (D-AVR)

Modern generators are often equipped with Digital Automatic Voltage Regulators (D-AVR) which improve the response to inrush current events. A D-AVR can adapt quickly, ensuring voltage stability even when significant surges occur. This allows for a more optimal size of the generator set, potentially reducing costs without sacrificing performance.

Cost Implications

Selecting the correct starting method and appropriately sizing the generator has significant economic implications:

Avoiding Oversizing: An oversized generator results in inefficiencies, higher operational costs, and wasted capacity during normal operation. Oversizing is often a direct consequence of overestimating the inrush current requirements when using inefficient starting methods like DOL.
Avoiding Undersizing: Undersized generators may not meet the inrush current demands, leading to frequent voltage drops, potential damage, and operational disruptions. This miscalculation not only jeopardizes the motor performance but can also lead to increased maintenance costs and reduced equipment lifespan.

Comparative Analysis of Generator Sizing Factors

A comprehensive table below summarizes the primary comparison factors when considering different motor starting methods and their impacts on generator sizing:

Starting Method	Inrush Current Level	Generator Sizing Implications	Advantages
Direct-On-Line (DOL)	High (5-8 times full-load current)	Larger generator required to handle high levels of surge current	Simplicity and lower initial equipment cost
Star-Delta (Wye-Delta)	Moderate (reduced current compared to DOL)	Smaller generator may suffice due to reduced inrush load	Enhanced voltage stability and improved component life
Soft Starter / VFD	Low (gradual ramp-up limits peak current)	Optimal generator sizing due to controlled current demand	Improved operational reliability, efficiency, and cost-effectiveness

Operational Reliability and Safety Considerations

Maintaining Voltage Stability

A key challenge during motor startup is preventing voltage dips that could adversely impact sensitive equipment. The high inrush current, if not properly buffered by the generator, can produce voltage levels that fall below the safe operational thresholds for other devices. By selecting an appropriate starting method, such as star-delta or soft starters, the peak demand on the generator is moderated, ensuring that the voltage remains stable across the entire system.

Protection Against Generator Overload

The correct sizing of a generator set that accounts for motor starting methods protects both the generator and the connected equipment. Overloading a generator can cause mechanical stress, overheating, and, in severe cases, permanent damage to the generator. Incorporating methods that limit inrush current not only optimizes the sizing but also extends the lifespan of the generator by reducing thermal and mechanical stresses.

Regulatory and Code Compliance

Electrical systems often must comply with standards and regulations, such as those outlined by the National Electrical Manufacturers Association (NEMA) and relevant local safety codes. These regulations typically specify acceptable voltage fluctuation ranges and generator sizing guidelines. By selecting a starting method that keeps inrush current within manageable levels and ensures voltage stability, one can achieve better compliance with regulatory requirements, thereby ensuring both safety and operational integrity.

Engineering Best Practices for Generator Sizing

Step-by-step Approach

1. Assessment of Motor Characteristics

The initial step involves a thorough assessment of the motor’s specifications, including its full-load current, inrush current potential, and operating characteristics as indicated on the nameplate and NEMA code. This assessment provides baseline data crucial for calculating the demand placed on the generator during start-up.

2. Selection of Starting Method

Choose an appropriate starting method based on the application’s requirements, ensuring a balance between simplicity, cost, and operational efficiency. For high-demand applications where voltage stability is critical, methods such as star-delta or use of soft starters/VFD are preferred.

3. Generator Sizing Calculation

Perform detailed calculations to determine the necessary kVA output of the generator set, incorporating the elevated kVA demand during motor startup. This should include a safety margin to account for transient conditions and other connected loads.

4. Integration of Voltage Regulation Technologies

Consider generators equipped with digital automatic voltage regulators (D-AVR). These enhance the system's overall resilience against voltage dips by automatically adjusting to fluctuations during the motor startup phase.

5. Continuous Monitoring and Maintenance

Regularly monitor the generator and motor system to ensure that the startup procedures continue to perform within desired parameters. This proactive approach helps in early detection of any issues that may compromise system performance.

Practical Considerations and Real-World Applications

Industrial Applications

In industrial environments, motors are often utilized in heavy machinery and production lines that require large amounts of power during start-up periods. Correctly sizing the generator not only prevents operational disruptions but also ensures that the equipment operates within optimal performance parameters. Industries such as manufacturing, mining, and construction have seen substantial benefits when implementing advanced starting methods along with correctly sized generators, reducing downtime and maintenance costs.

Case Studies

Multiple case studies have demonstrated that using controlled motor starting methods like star-delta and soft starters can lead to significant cost savings and improved equipment lifespan. In scenarios where conventional DOL starting was replaced with these modern approaches, companies achieved a reduction in generator size by 15-20% without any compromise in operational integrity.

Impact on Energy Efficiency

Energy efficiency is one of the critical factors in modern power systems. Sizing the generator optimally for the peak demand rather than using a one-size-fits-all approach results in better fuel efficiency, reduced emissions, and lower operational costs. This optimization strategy benefits both the environment and the bottom line, making it a prime consideration during system design.

Technical Data and Comparison Table

Below is a detailed comparison of various motor starting methods and the generator sizing implications:

Parameter	Direct-On-Line (DOL)	Star-Delta (Wye-Delta)	Soft Starter / VFD
Inrush Current	High (5-8 times full-load)	Moderate (limited surge)	Low (gradual ramp-up)
Generator Size Requirement	Larger capacity to handle high surge	Optimally sized; slight oversizing may be required	Smaller capacity; efficient operation
Voltage Stability	Risk of voltage dips	Improved stability with reduced current	Highly stable due to controlled start
System Efficiency	Potential inefficiencies and maintenance costs	More energy efficient with proper sizing	Optimal energy use and reduced operating costs

Summary of Best Practices

The importance of the motor loading starting method in generator sizing cannot be overstated. The key best practices include:

Assess the motor’s characteristics, including inrush current and full-load requirements.
Select a starting method that balances cost, performance, and operational reliability.
Calculate the generator size to ensure it accommodates peak demand while maintaining voltage stability.
Integrate modern voltage regulation technologies like D-AVR to improve overall system response and efficiency.
Monitor and maintain both the motor and generator systems consistently to ensure ongoing optimal performance.
